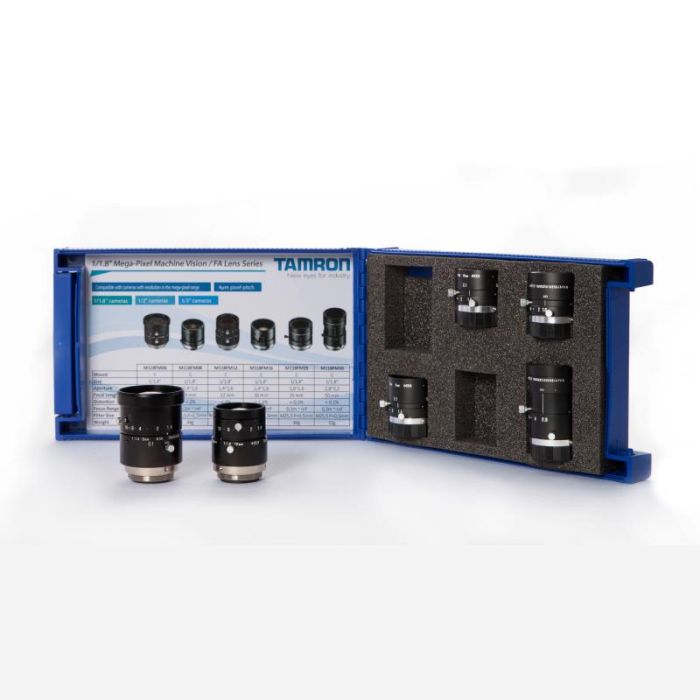

Tamron - M118FM
C-mount lens for 1/1.8" sensors with low cost
Key Features
- Sensor size: 1/1.8''
- Minimum pixel size: 3.5 µm
- Lens mount: C-mount
- MOD: 200 mm (M118FM50), 100 mm (all other)
- Filter size: M34 (M118FM06), M25.5 (all other)
- Temperature operating range: -10°C to +60°C
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Magnification (max) | Manufacturer | Min. pixel size | M.O.D. (mm) | Resolution | Sensor format | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F 1.4 | C-Mount | M25.5 x 0.5 | 16 | N/A | Tamron | 3.5 µm | 100 | 3.0 | 1/1.8" | 8.9 | Visible | |
| F 1.6 | C-Mount | M25.5 x 0.5 | 25 | N/A | Tamron | 3.5 µm | 89 | 3.0 | 1/1.8" | 8.9 | Visible | |
| F 2.8 | C-Mount | M25.5 x 0.5 | 50 | N/A | Tamron | 3.5 µm | 184 | 3.0 | 1/1.8" | 8.9 | Visible | |
| F 1.4 | C-Mount | M25.5 x 0.5 | 8 | N/A | Tamron | 3.5 µm | 100 | 3.0 | 1/1.8" | 8.9 | Visible | |
| F 1.4 | C-Mount | M34 x 0.5 | 6 | N/A | Tamron | 3.5 µm | 100 | 3.0 | 1/1.8" | 8.9 | Visible | |
| F 1.4 | C-Mount | M25.5 x 0.5 | 12 | N/A | Tamron | 3.5 µm | 100 | 3.0 | 1/1.8" | 8.9 | Visible |
Why choose Tamron - M118FM?
1/1.8" image circle
The M118FM series lenses are designed for Sony and AMS small sensors.
Excellent reproduction in the close range
The optical design is particularly geared towards providing excellent imaging at close range.
Focusable from 100 mm
The lenses are focusable from 100 mm, making extension rings unnecessary in most cases.
