VICO Imaging - DTCA

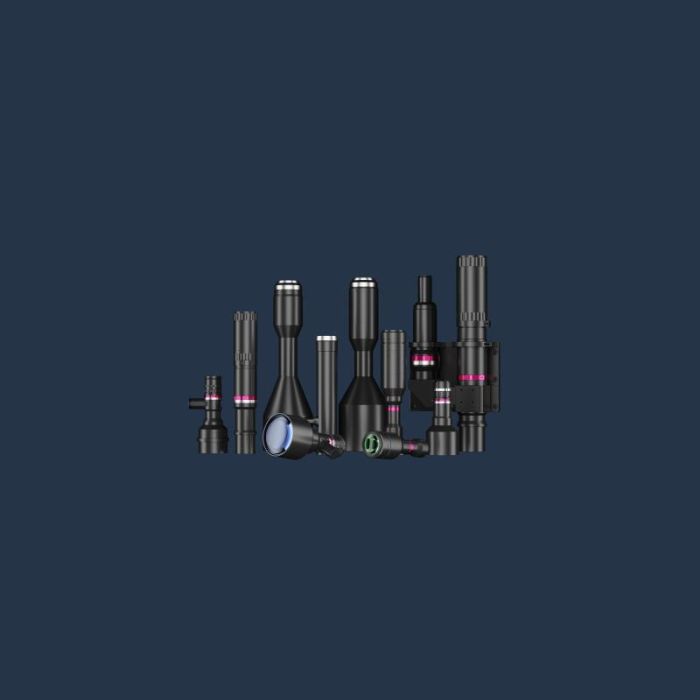

Ultra Resolution Bi-Telecentric Lenses, specially designed for high-resolution especially large-target imaging systems.
Key Features
- 58 models
- Sensor size for C-mount up to 2”, for M58 up to 44 mm
- coaxial light available
- C-Mount, M58 Mount
- FOV 5 mm - 215 mm
- magnification 0.075 - 5.0
- High telecentricity
- Large depth of field
- High resolution (MTF30 up to >260 lp/mm on some models)
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Magnification (max) | Min. pixel size | Aperture | Camera mount (optics) | Manufacturer | Resolution | Sensor format | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|
| 0.3 | N/A | F 3.75 | C-Mount | VICO Imaging | N/A | 2/3" | 11 | Visible | |
| 4.0 | 5.56 µm | F 11 - F 32 | M58 x 0.75 | VICO Imaging | N/A | 1" | 44 | Visible | |
| 1.0 | 4.55 µm | F 7 | M72 x 0.75 | VICO Imaging | N/A | N/A | 62 | Visible | |
| 0.369 | 4.39 µm | F 32 - F 8 | M58 x 0.75 | VICO Imaging | N/A | N/A | 30 | Visible | |
| 4.0 | 1.85 µm | F 11 - F 32 | M42 x 0.75 | VICO Imaging | N/A | N/A | 44 | Visible | |
| 0.400 | N/A | F 12.64 | Nikon F-Mount | VICO Imaging | N/A | N/A | 43.4 | Visible | |
| 0.530 | 3.2 µm | F 10 | M42 x 0.75 | VICO Imaging | 65 | N/A | 44 | Visible | |
| 0.463 | 4.35 µm | F 8 | M58 x 0.75 | VICO Imaging | 65 | N/A | 43.4 | Visible | |
| 0.400 | 2.44 µm | F 4.5 | C-Mount | VICO Imaging | N/A | 2/3" | 11 | Visible | |
| 2.0 | 2.74 µm | F 6.6 | C-Mount | VICO Imaging | 24 | 1.2" | 20 | Visible | |
| 2.740 | 4.76 µm | F 8.5 | C-Mount | VICO Imaging | N/A | 1.2" | 20 | Visible | |
| 2.0 | 3.52 µm | F 6.6 | C-Mount | VICO Imaging | 24 | 1.2" | 20 | Visible |
