VICO DTCA230-37C
SKU#:
43927
Ultra-High-Resolution Bi-Telecentric Lenses.

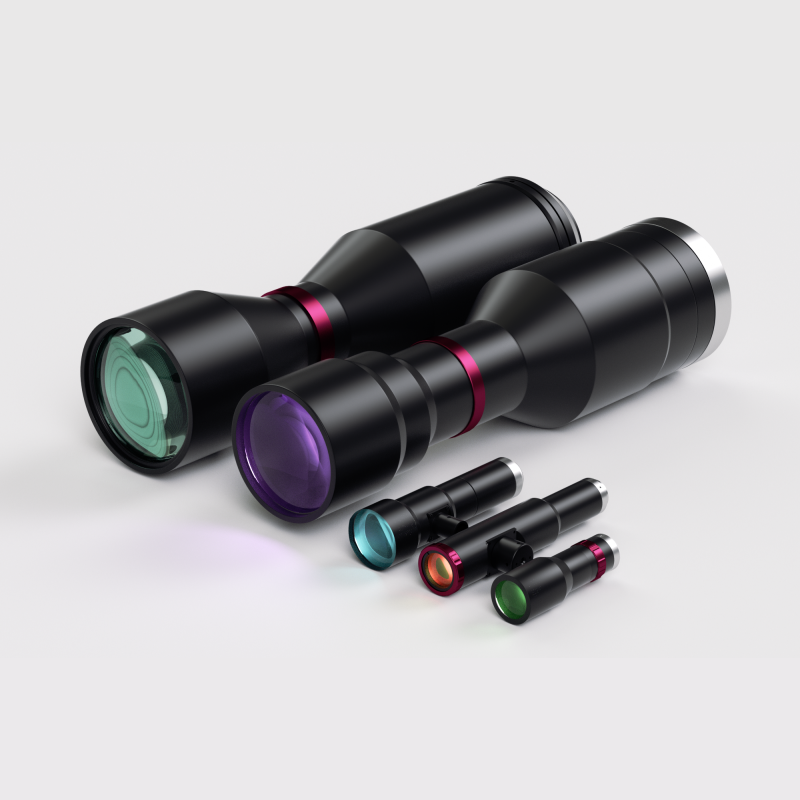

Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
VICO Imaging - DTCA
List Price
Your Discount
Your Price
Product not available in your country
Price & Availability on Request
Contact us
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Magnification (max) | 0.3 |
| Sensor format | 2/3" |
| Sensor size diagonal (mm) | 11 |
| Camera mount (optics) | C-Mount |
| Min. pixel size | N/A |
| Aperture | F 3.75 |
| Working distance (mm) | 110.00 |
| Coaxial light input | yes |
| Flange focal distance | 17.526 |
| Length (mm) | 145.5 |
| Manufacturer | VICO Imaging |
| Wavelength range | Visible |
- Optical design: Bi-telecentric
- Magnification: 0.075x – 5.0x
- Object FOV: Ø5 – 215 mm
- Image circle: Up to Ø 88 mm
- Sensor support: Up to 24K / 150 MP
- MTF30: >260 lp/mm (selected models)
- Numerical aperture (NA): Up to 0.208
- Distortion: <0.01% (selected models)
- Telecentricity: <0.05° (selected models)
- Aperture: Fixed or adjustable iris
- Mounts: C, M42, M58, M72, M95
- Options: Coaxial light, adjustable BFL
