VICO Imaging - WWK

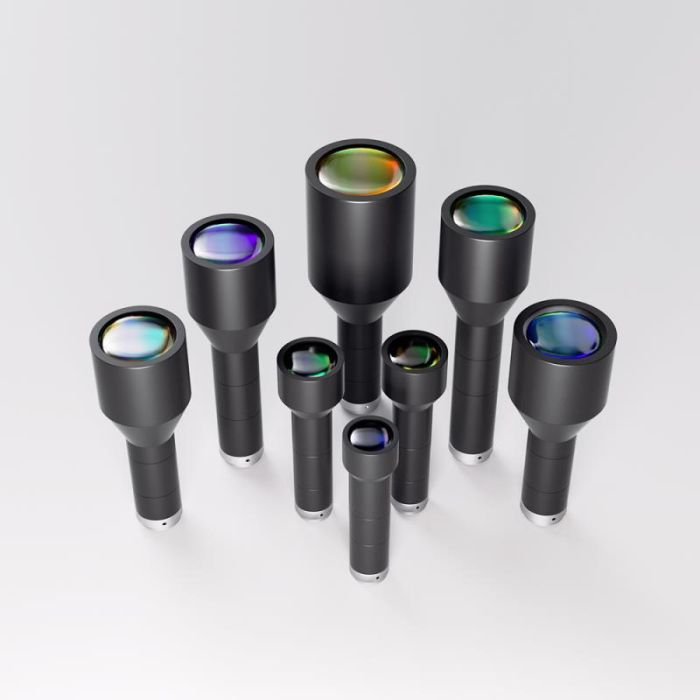

C-mount object side telecentric lenses with 10 MP resolution.
Key Features
- Compatible with up to 2/3" C-mount cameras
- Excellent with 5M-20M area scan cameras for high-resolution AOI inspection
- Magnification ranges from 0.12X to 8X
- Maximum WD up to 330 mm
- up to 25 MP
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Magnification (max) | Sensor format | Sensor size diagonal (mm) | Camera mount (optics) | Min. pixel size | Aperture | Manufacturer | Resolution | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|
| 0.367 | 1" | 15.8 | C-Mount | 2.4 µm | F 8 | VICO Imaging | 20 | Visible | |
| 0.367 | 1.1" | 17.6 | C-Mount | 14 µm | F 8 | VICO Imaging | 14 | Visible | |
| 1.5 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 10 | VICO Imaging | 25 | Visible | |
| 3.0 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 20.1 | VICO Imaging | 25 | Visible | |
| 1.0 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 7 | VICO Imaging | 25 | Visible | |
| 0.5 | 1" | 15.8 | C-Mount | 2.4 µm | F 8 | VICO Imaging | 20 | Visible | |
| 0.275 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 8 | VICO Imaging | 25 | Visible | |
| 0.246 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 8 | VICO Imaging | 25 | Visible | |
| 0.5 | 2/3" | 11 | C-Mount | 3.45 µm | F 7 | VICO Imaging | 5.0 | Visible | |
| 0.5 | 2/3" | 11 | C-Mount | 3.45 µm | F 7 | VICO Imaging | 5.0 | Visible | |
| 0.46 | 1" | 15.8 | C-Mount | 2.4 µm | F 11.6 | VICO Imaging | 20 | Visible | |
| 1.0 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 7 | VICO Imaging | 25 | Visible | |
| 0.400 | 2/3" | 11 | C-Mount | 3.45 µm | F 7 | VICO Imaging | 5.0 | Visible | |
| 2.0 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 13.5 | VICO Imaging | 25 | Visible | |
| 0.46 | 1" | 15.8 | C-Mount | 2.4 µm | F 11.6 | VICO Imaging | 20 | Visible | |
| 2.5 | 1.1" | 17.6 | C-Mount | 3.6 µm | F 13.4 | VICO Imaging | 3.5 | Visible | |
| 0.200 | 2/3" | 11 | C-Mount | N/A | F 11.3 | VICO Imaging | 37 | Visible | |
| 0.210 | 1" | 15.8 | C-Mount | N/A | F 9 | VICO Imaging | 28 | Visible | |
| 0.210 | 1/2.5" | 7.9 | C-Mount | 6.7 µm | F 10 | VICO Imaging | 37 | Visible | |
| 0.3 | 2/3" | 11 | C-Mount | 3.45 µm | F 5.6 | VICO Imaging | 12.5 | Visible | |
| 0.3 | 2/3" | 11 | C-Mount | 3.45 µm | F 10 | VICO Imaging | 5.0 | Visible | |
| 0.3 | 2/3" | 11 | C-Mount | 3.45 µm | F 13.6 | VICO Imaging | 5.0 | Visible | |
| 0.348 | 2/3" | 11 | C-Mount | 15 µm | F 8 | VICO Imaging | 15 | Visible | |
| 0.400 | 1" | 15.8 | C-Mount | 3.45 µm | F 8 | VICO Imaging | 13 | Visible | |
| 0.66 | 1" | 15.8 | C-Mount | 2.4 µm | F 7 | VICO Imaging | 20 | Visible | |
| 0.69 | 1.1" | 17.6 | C-Mount | N/A | F 9 | VICO Imaging | 25 | Visible | |
| 0.8 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 8 | VICO Imaging | 25 | Visible | |
| 3.5 | 1.1" | 17.6 | C-Mount | 4.5 µm | F 23.3 | VICO Imaging | 25 | Visible | |
| 6.0 | 1.1" | 17.6 | C-Mount | 3.4 µm | F 29.7 | VICO Imaging | 25 | Visible | |
| 1.5 | 2/3" | 11 | C-Mount | 3.45 µm | F 7.5 | VICO Imaging | 5.0 | Visible | |
| 8.0 | 1.1" | 17.6 | C-Mount | 3.4 µm | F 40.4 | VICO Imaging | 25 | Visible | |
| 2.0 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 13.5 | VICO Imaging | 25 | Visible | |
| 1.2 | N/A | 18 | C-Mount | 2.5 µm | F 9 | VICO Imaging | N/A | N/A | |
| 0.230 | 1.1" | 18 | C-Mount | N/A | F 8 | VICO Imaging | N/A | N/A | |
| 0.8 | N/A | 17.6 | C-Mount | 5.5 µm | F 6.6 | VICO Imaging | N/A | Visible | |
| 0.630 | 1.1" | 18.4 | C-Mount | 7.5 µm | F 7 | VICO Imaging | N/A | Visible |
Why choose VICO Imaging - WWK?
Low magnification suitable for large FOV requirements
More than 27 models with less than 0.55x magnification allow a wider field of view (FOV) and more detailed inspection.
Ultra-long working distance
More than 23 models have a working distance of more than 200 mm, enabling high-resolution cameras for long-distance inspection.
