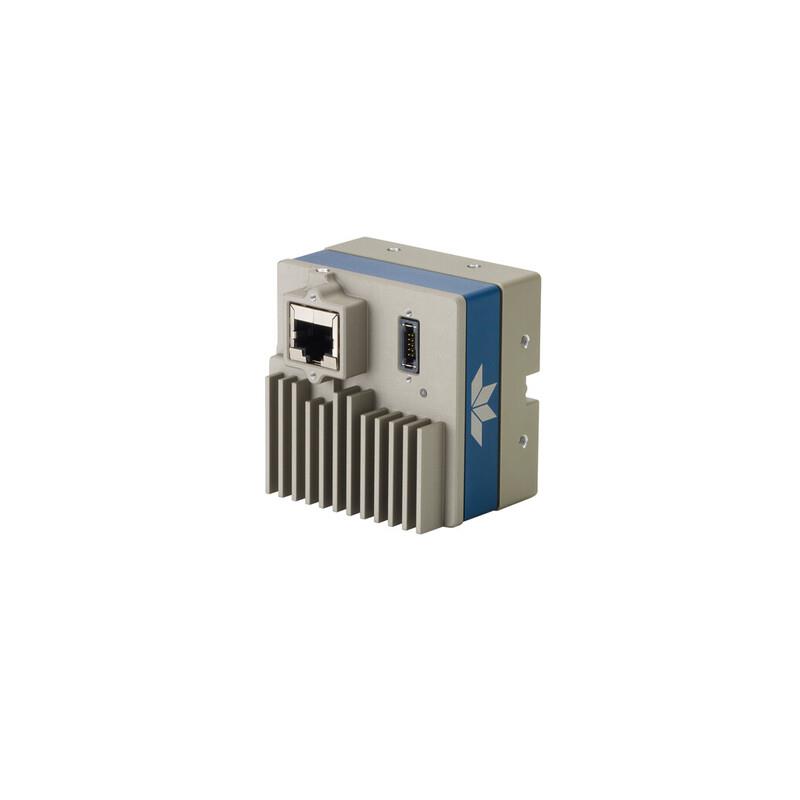

DALSA GENIE NANO-10G-C8200
SKU#:
55143
Small but fast high-speed data transfer via 10GigE
Nota: ¡El producto real puede variar respecto a la imagen!
Las descargas se encuentran en la serie de productos correspondiente:
Teledyne DALSA - Genie Nano-10GigE
Contáctanos >
Solicitar precios
Se exceptúan errores y omisiones. Se aplican nuestros Términos y Condiciones Generales. Abastecemos exclusivamente a clientes corporativos.
Product Features
| Attributes | |
|---|---|
| Active sensor size (horizontal, mm) | 20.48 |
| Bit depth | 10, 8 |
| Certificates | CE, FCC, RoHS |
| Connector a: video | RJ45 - (V) - Female |
| Connector c: I/O | 10-pin connector |
| Dimension (depth, mm) | 42.5 |
| Dimension (height, mm) | 59 |
| Dimension (width, mm) | 59 |
| Filter | no |
| Frame rate (Hz) | 15 |
| Resolution Horizontal (Px) | 8192 |
| Housing | standard |
| Interface | Gigabit Ethernet |
| Interface configuration | 1 GigE, 10 GigE, 5 GigE |
| Lens mount | M42 x 1 |
| Numbers of connectors (Video) | 1 |
| Operating temperature (°C) | -20 - 60 |
| Output formats | Bayer12, Bayer12Packed, Bayer8 |
| Pixel size (µm) | 2.5 |
| Power consumption (W) | 9.6 |
| Power supply voltage (VDC) | 10 - 36 |
| Resolution (MP) | 67 |
| Scan type | area |
| Sensor configuration | Single sensor |
| Sensor format | Large format |
| Sensor model | Teledyne E2V Emerald 67M |
| Sensor size diagonal (mm) | 28.96 |
| Sensor type | CMOS |
| Shutter type | Global shutter |
| Software CameraSuite | yes |
| Wavelength range | Colour, Visible |
| Resolution Vertical (Px) | 8192 |
| Weight (kg) | 0.183 |
- Sensor: E2V High resolution CMOS image sensor, colour and monochrome
- Resolution: 37 and 67 MP
- Framerate: up to 18 fps
- Features: cycling mode for various features multi-exposure feature and multi-ROI feature, EEE1588 PTP (Precision Time Protocol) support
- Trigger-to-image reliability (T2IR) framework improves the reliability of the inspection system and protects the system from data loss
- Interface: GigE Vision 10GBASE-T (10 Gb/s)
- I/O: programmable inputs and outputs
- Power requirement: PoE or 10-36 VDC
- Operating temperature: -20° C to 65° C
- Supports cable lengths up to 100 m (CAT-5e, CAT-6) or (4T-6A)
