DALSA LINEA2 L2-GC-04K03N-00
SKU#:
50477

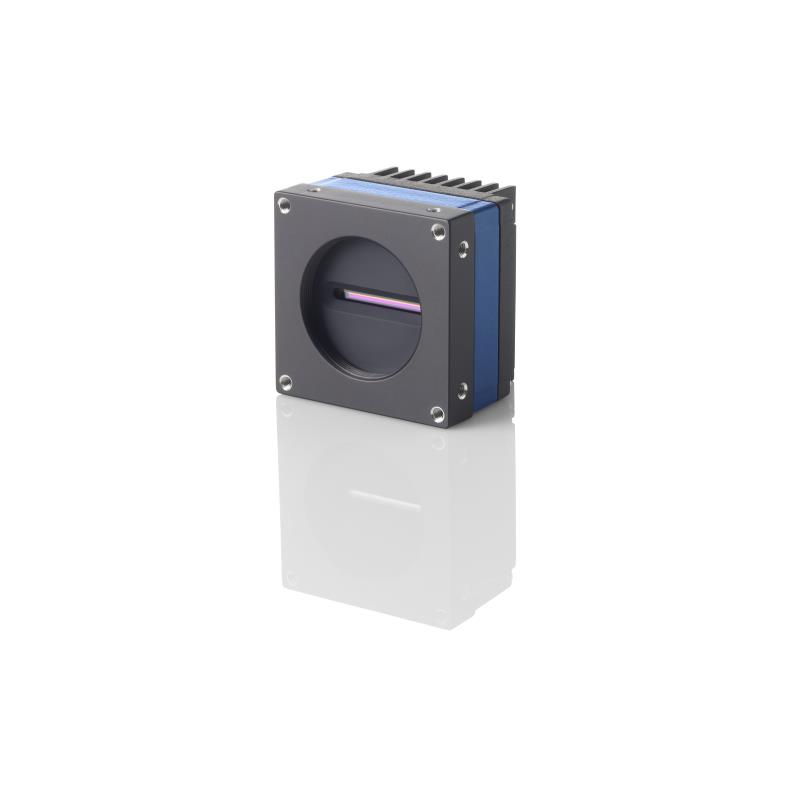

Linea2 compact line scan camera for Colour and Multispectral Imaging
Nota: ¡El producto real puede variar respecto a la imagen!
Las descargas se encuentran en la serie de productos correspondiente:
Teledyne DALSA - Linea2
Contáctanos >
Solicitar precios
Se exceptúan errores y omisiones. Se aplican nuestros Términos y Condiciones Generales. Abastecemos exclusivamente a clientes corporativos.
Product Features
| Attributes | |
|---|---|
| Active sensor size (horizontal, mm) | 28.67 |
| Bit depth | 12, 8 |
| Certificates | CE, REACH, RoHS |
| Connector a: video | RJ45 - (H/V) - Female |
| Connector c: I/O | HD15 |
| Dimension (depth, mm) | 49.3 |
| Dimension (height, mm) | 62 |
| Dimension (width, mm) | 62 |
| Resolution Horizontal (Px) | 4096 |
| Illumination | No |
| Interface | Gigabit Ethernet |
| Interface configuration | 5 GigE |
| Lens mount | M42 x 1 |
| Max. line freq. (kHz) | 32 |
| Numbers of connectors (Video) | 1 |
| Pixel size (µm) | 7 |
| Power consumption (W) | 13 |
| Power supply voltage (VDC) | 12 - 24 |
| Scan type | line |
| Sensor configuration | Quad linear |
| Sensor length (mm) | 28.67 |
| Sensor type | CMOS |
| Software CameraSuite | yes |
| Software driver CVB | yes |
| Wavelength range | Colour, VIS-NIR |
| Weight (kg) | 0.280 |
- Sensor: High speed CMOS line scan sensor (RGB or RGBN)
- Resolution: 4096 pixel with pixel size 7µm
- Interface: Gigabit Ethernet (Supports Power over Ethernet)
- Line rate: up to 42 kHz
- Features: TurboDrive, burst mode, HDR imaging, programmable GPIOs, multiple regions of interest (ROI) for calibration and data reduction; Precise Time Protocol (PTP)
- Configuration: GenICam compatible interfaces - 5GigE Ethernet
- Lens mount: M42
- I/O: programmable trigger, signal and synchronisation
- Operating temperature: -10 °C up to 65 °C
