CoaXPress cables
High speed image data transmission cable with bandwidths of up to 12 Gb/s from device to frame grabber
Key Features
- Bandwidth: up to 12 Gb/s from the device to the frame grabber, 20 Mb/s return channel for control data
- Power: 24 V power supply over the coaxial cable

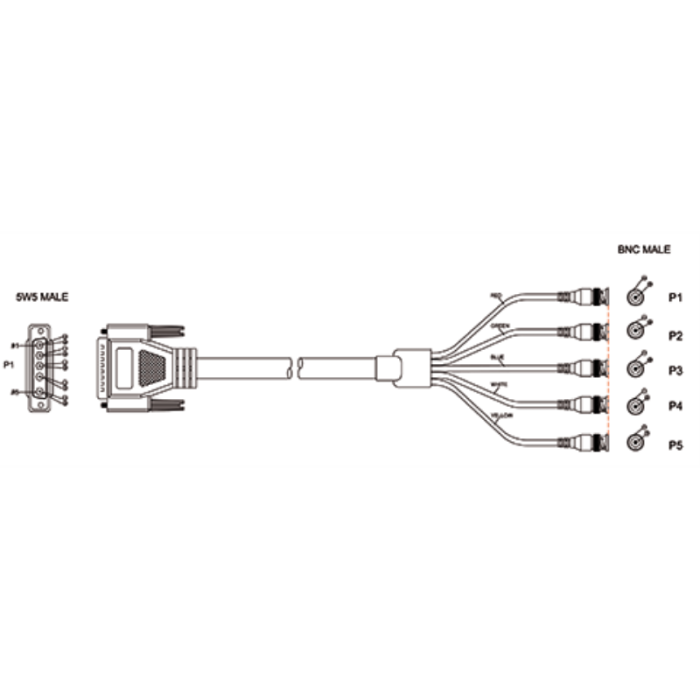

- Connector type options: BNC, CoaXPress 5W5, CoaXPress DIN 1.0/2.3, TNC or HD-BNC

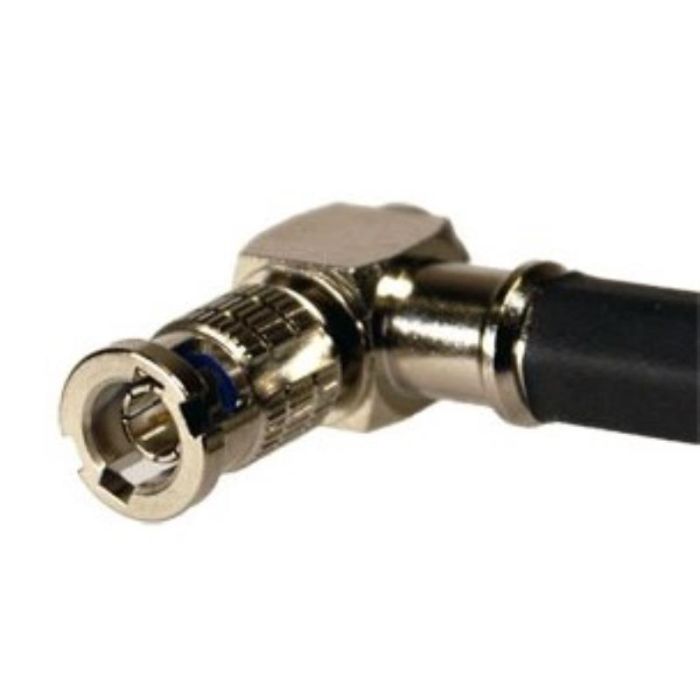

- Miscellaneous: different moulding for 1 up to 4 DIN 1.0/2.3 connector. Angle moulding available for reduced space.
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nombre del producto | Cable Interface | Cable connector A | Cable connector B | Cable length (m) | Cable type | Manufacturer |
|---|---|---|---|---|---|---|
| CoaXPress | 03) 4x CoaXPress DIN connector | 06) 4x CoaxPress DIN connector angle version | 10 | standard | CEI | |
| CoaXPress | 01) 4x BNC connector | 01) 4x BNC connector | 10 | standard | CEI | |

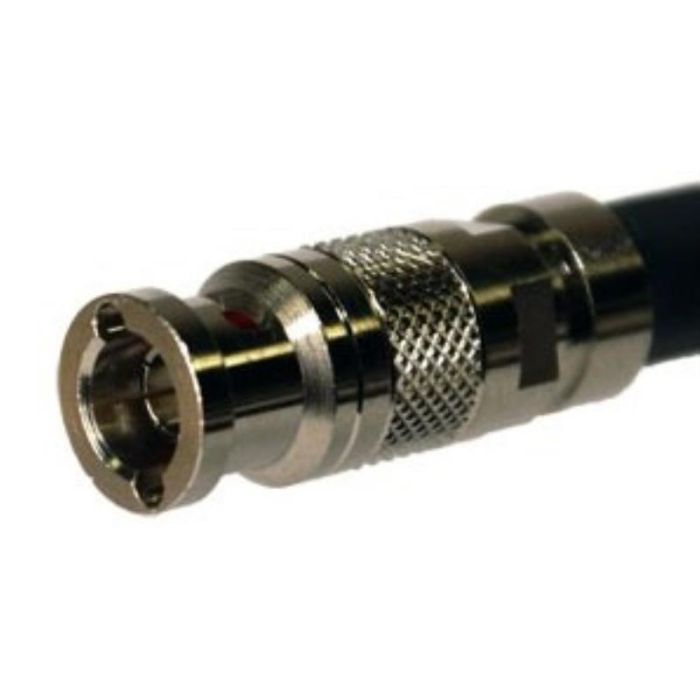

| CoaXPress | 08) 1x HD-BNC male | 08) 1x HD-BNC male | 3 | Mini RG59 | CEI | |
| CoaXPress | 01) 4x BNC connector | 01) 4x BNC connector | 20 | standard | CEI | |

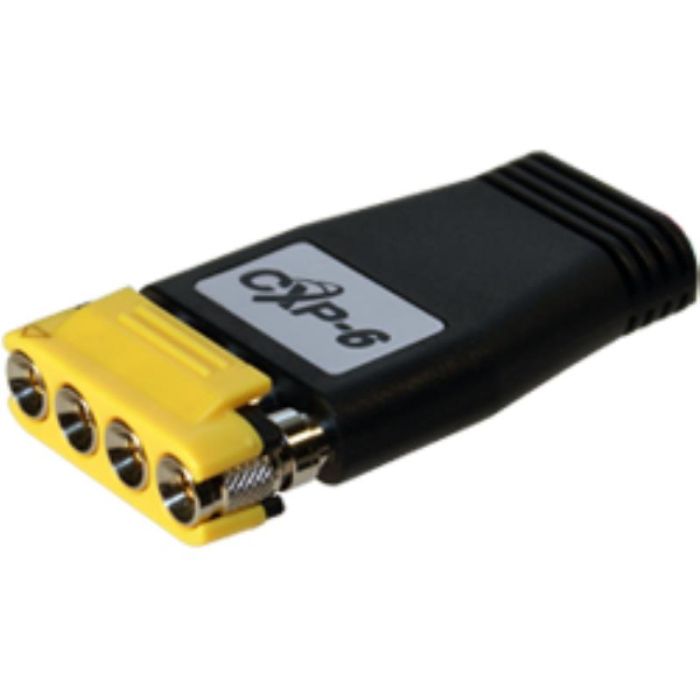

| CoaXPress | 01) 4x BNC connector | Molded DIN profile CEI4 | 20 | standard | CEI | |
| CoaXPress | 01) 1x BNC connector | 03) 1x CoaXPress DIN connector | 10 | standard | CEI | |
| CoaXPress | 01) 2x BNC connector | 01) 2x BNC connector | 10 | standard | CEI | |
| CoaXPress | 01) 4x BNC connector | Molded DIN profile CEI4 | 10 | standard | CEI | |
| CoaXPress | 01) 1x BNC connector | 01) 1x BNC connector | 10 | standard | CEI | |
| CoaXPress | 01) 2x BNC connector | Molded DIN profile CEI2 | 10 | standard | CEI | |
| CoaXPress | Molded DIN profile CEI2 | Molded DIN profile CEI2 | 10 | standard | CEI | |
| CoaXPress | 03) 1x CoaXPress DIN connector | 03) 1x CoaXPress DIN connector | 10 | standard | CEI | |
| CoaXPress | 03) 1x CoaXPress DIN connector | 03) 1x CoaXPress DIN connector | 20 | standard | CEI | |
| CoaXPress | Molded DIN profile CEI4 | Molded DIN profile CEI4 | 10 | standard | CEI | |
| CoaXPress | Molded DIN profile CEI4 | Molded DIN profile CEI4 | 15 | standard | CEI | |
| CoaXPress | Molded DIN profile CEI4 | Molded DIN profile CEI4 | 20 | standard | CEI | |
| CoaXPress | Molded DIN profile CEI4 | Molded DIN profile CEI4 | 3 | standard | CEI | |
| CoaXPress | 01) 1x BNC connector | 03) 1x CoaXPress DIN connector | 20 | standard | CEI | |
| CoaXPress | 03) 1x CoaXPress DIN connector | 03) 1x CoaXPress DIN connector | 3 | track | CEI | |
| CoaXPress | 01) 4x BNC connector | Molded DIN profile CEI4 | 15 | standard | CEI | |
| CoaXPress | 01) 1x BNC connector | 03) 1x CoaXPress DIN connector | 10 | track | CEI | |
| CoaXPress | Molded DIN profile CEI2 | Molded DIN profile CEI2 | 20 | standard | CEI | |
| CoaXPress | 01) 2x BNC connector | Molded DIN profile CEI2 | 20 | standard | CEI | |
| CoaXPress | 03) 4x CoaXPress DIN connector | 03) 4x CoaXPress DIN connector | 10 | standard | CEI | |
| CoaXPress | 03) 1x CoaXPress DIN connector | 03) 1x CoaXPress DIN connector | 3 | standard | CEI | |
| CoaXPress | Molded DIN profile CEI2 | Molded DIN profile CEI2 | 3 | standard | CEI | |
| CoaXPress | 03) 4x CoaXPress DIN connector | Molded DIN profile CEI4 | 3 | standard | CEI | |
| CoaXPress | 03) 4x CoaXPress DIN connector | 03) 4x CoaXPress DIN connector | 20 | standard | CEI | |
| CoaXPress | 03) 4x CoaXPress DIN connector | 03) 4x CoaXPress DIN connector | 3 | standard | CEI | |
| CoaXPress | 01) 4x BNC connector | 01) 4x BNC connector | 3 | standard | CEI | |
| CoaXPress | 04) 1x CoaxPress DIN connector screw | 04) 1x CoaxPress DIN connector screw | 3 | standard | CEI | |
| CoaXPress | 01) 4x BNC connector | Molded DIN profile CEI4 | 3 | standard | CEI | |
| CoaXPress | 01) 2x BNC connector | Molded DIN profile CEI2 | 3 | standard | CEI | |
| CoaXPress | 03) 2x CoaXPress DIN connector | 06) 2x CoaxPress DIN connector angle version | 20 | standard | CEI | |
| CoaXPress | Molded DIN profile CEI2 | Molded DIN profile CEI2 | 15 | standard | CEI | |
| CoaXPress | 03) 4x CoaXPress DIN connector | Molded DIN profile CEI4 | 10 | standard | CEI | |
| CoaXPress | 03) 1x CoaXPress DIN connector | 03) 1x CoaXPress DIN connector | 15 | track | CEI | |
| CoaXPress | 06) 4x CoaxPress DIN connector angle version | Molded DIN profile CEI4 | 10 | standard | CEI | |
| CoaXPress | 06) 4x CoaxPress DIN connector angle version | Molded DIN profile CEI4 | 15 | standard | CEI | |
| CoaXPress | 01) 1x BNC connector | 01) 1x BNC connector | 20 | track | CEI | |
| CoaXPress | 01) 1x BNC connector | 01) 1x BNC connector | 3 | standard | CEI | |
| CoaXPress | 01) 1x BNC connector | 03) 1x CoaXPress DIN connector | 15 | track | CEI | |
| CoaXPress | 04) 4x CoaxPress DIN connector screw | 04) 4x CoaxPress DIN connector screw | 10 | standard | CEI | |
| CoaXPress | 03) 4x CoaXPress DIN connector | Molded DIN profile CEI4 | 20 | standard | CEI | |
| CoaXPress | 04) 2x CoaxPress DIN connector screw | 04) 2x CoaxPress DIN connector screw | 3 | standard | CEI | |
| CoaXPress | 01) 2x BNC connector | 04) 2x CoaxPress DIN connector screw | 3 | standard | CEI | |
| CoaXPress | 03) 4x CoaXPress DIN connector | Molded DIN profile CEI4 | 15 | standard | CEI | |
| CoaXPress | 03) 4x CoaXPress DIN connector | 03) 4x CoaXPress DIN connector | 15 | standard | CEI | |
| CoaXPress | 01) 1x BNC connector | 01) 1x BNC connector | 20 | standard | CEI | |
| CoaXPress | 03) 1x CoaXPress DIN connector | 03) 1x CoaXPress DIN connector | 10 | track | CEI | |
| CoaXPress | 01) 2x BNC connector | 01) 2x BNC connector | 20 | standard | CEI | |
| CoaXPress | 01) 1x BNC connector | 01) 1x BNC connector | 10 | track | CEI | |
| CoaXPress | 06) 4x CoaxPress DIN connector angle version | Molded DIN profile CEI4 | 20 | standard | CEI | |
| CoaXPress | 03) 4x CoaXPress DIN connector | 08) 4x HD-BNC male | 3 | standard | CEI | |
| CoaXPress | 08) 1x HD-BNC male | 08) 1x HD-BNC male | 10 | Mini RG59 | CEI | |
| CoaXPress | 08) 1x HD-BNC male | 08) 1x HD-BNC male | 20 | Mini RG59 | CEI | |
| CoaXPress | 03) 2x CoaXPress DIN connector | 03) 2x CoaXPress DIN connector | 3 | standard | CEI | |
| CoaXPress | 03) 2x CoaXPress DIN connector | 03) 2x CoaXPress DIN connector | 10 | standard | CEI | |
| CoaXPress | 01) 1x BNC connector | 01) 1x BNC connector | 3 | track | CEI | |
| CoaXPress | 01) 1x BNC connector | 03) 1x CoaXPress DIN connector | 3 | track | CEI | |
| CoaXPress | 01) 1x BNC connector | 01) 1x BNC connector | 15 | track | CEI | |
| CoaXPress | 09) 4 x HD-BNC Jack | Molded DIN profile CEI4 | 15 | standard | CEI | |
| CoaXPress | 01) 1x BNC connector | 03) 1x CoaXPress DIN connector | 20 | track | CEI | |
| CoaXPress | 03) 2x CoaXPress DIN connector | 03) 2x CoaXPress DIN connector | 15 | standard | CEI | |
| CoaXPress | 03) 2x CoaXPress DIN connector | 03) 2x CoaXPress DIN connector | 20 | standard | CEI | |
| CoaXPress | 03) 1x CoaXPress DIN connector | 08) 1x HD-BNC male | 3 | standard | CEI | |
| CoaXPress | 03) 1x CoaXPress DIN connector | 08) 1x HD-BNC male | 5 | standard | CEI | |
| CoaXPress | 03) 1x CoaXPress DIN connector | 08) 1x HD-BNC male | 10 | standard | CEI | |
| CoaXPress | 03) 1x CoaXPress DIN connector | 08) 1x HD-BNC male | 15 | standard | CEI | |
| CoaXPress | 08) 1x HD-BNC male | 08) 1x HD-BNC male | 10 | standard | CEI | |
| CoaXPress | 08) 1x HD-BNC male | 08) 1x HD-BNC male | 15 | standard | CEI | |
| CoaXPress | 08) 1x HD-BNC male | 08) 1x HD-BNC male | 20 | standard | CEI | |
| CoaXPress | 03) 1x CoaXPress DIN connector | 08) 1x HD-BNC male | 20 | standard | CEI | |
| CoaXPress | 03) 1x CoaXPress DIN connector | 08) 1x HD-BNC male | 2 | standard | CEI |
¿Por qué elegir CoaXPress cables?
High bandwidth
Bandwidth: up to 12 Gb/s from the device to the frame grabber, 20 Mb/s return channel for control data
Power supply via coaxial cable
Power: 24 V power supply over the coaxial cable
Wide range of connector type options
Connector type options: BNC, CoaXPress 5W5, CoaXPress DIN 1.0/2.3, TNC or HD-BNC, different moulding for 1 up to 4 DIN 1.0/2.3 connector, angle moulding available for reduced space.
