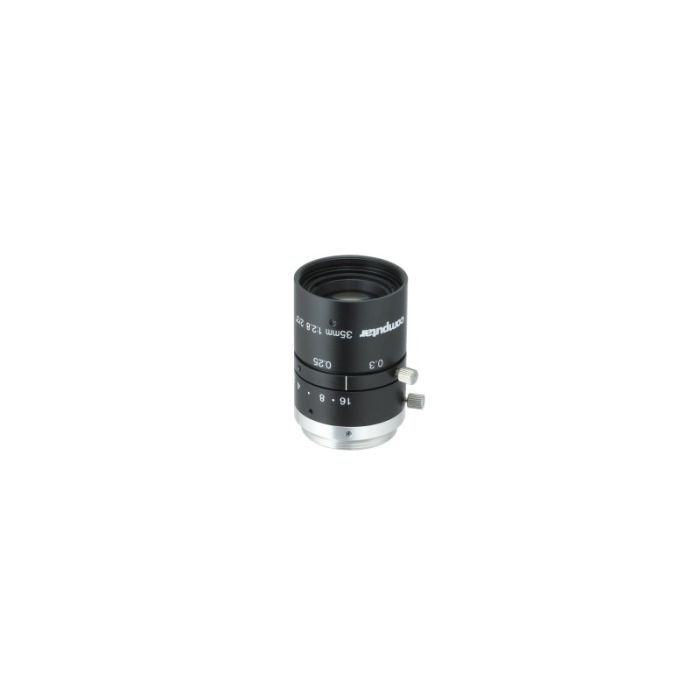

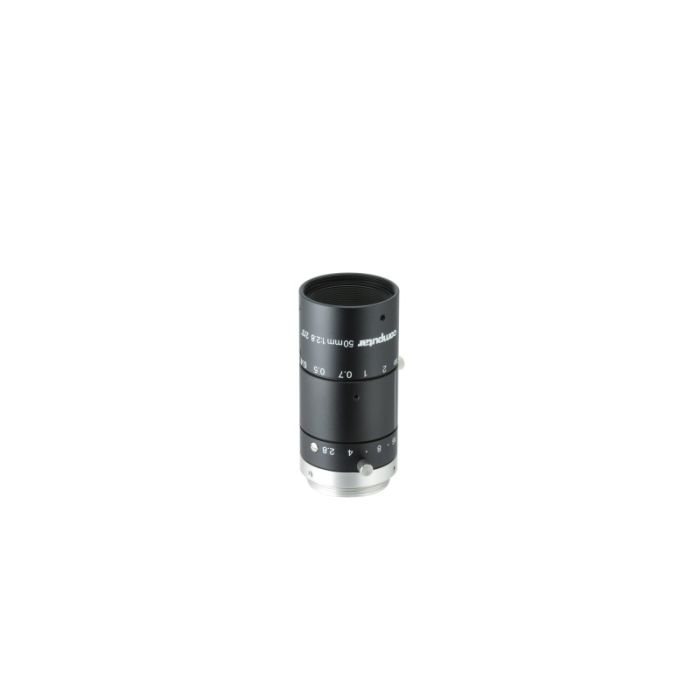

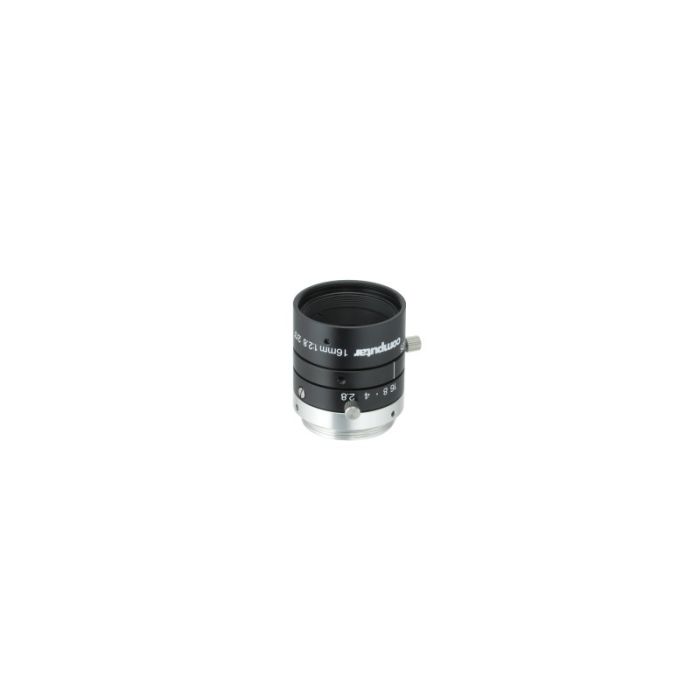

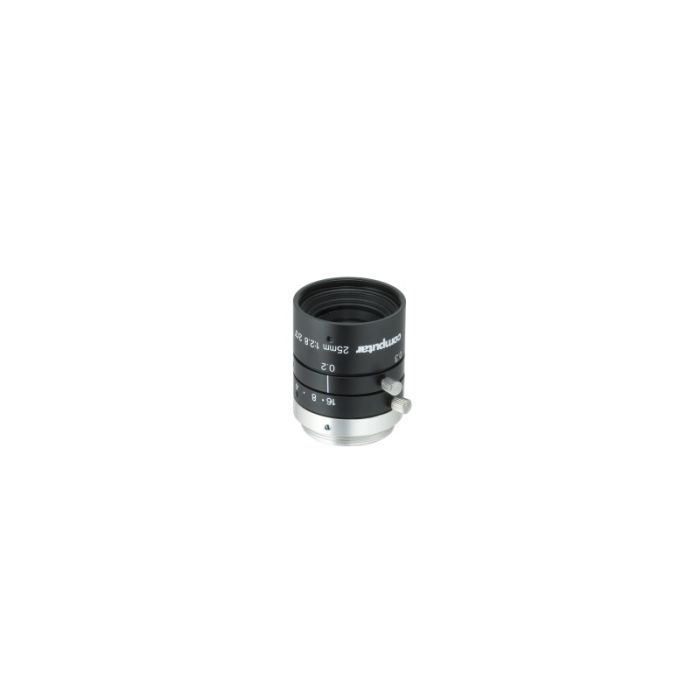

Computar - MPW3
The Computar MPW3 series supports 6 MP on 2/3″ sensors (2.74 µm), with low distortion, edge‑bright imaging, and short working distance in a compact C‑mount design.
Key Features
- Sensor size: up to 2/3"
- Image Circle: 11mm
- Resolution: up to 6 MP, supports 2.74 µm pixel pitch
- Focal length: 5, 8, 12, 16, 25, 35, 50, 75 mm
- Camera Mount: C-Mount
- Distortion: Ultra-low (TV<|2.0|%, except 5mm)
- Aperture Control: Manual (w/ lock screws)
- Working Distance: 0.1m to Inifinity (varies by model)
- Focus Control: Manual (w/ lock screws)
- Wavelength Range: VIS (400 to 700nm)
- Length: <75mm
- Diameter: 29mm (varies by model)
- Weight: 37g to 163g
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nombre del producto | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Magnification (max) | Manufacturer | Min. pixel size | M.O.D. (mm) | Resolution | Sensor format | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F 2.8 - F 16 | C-Mount | M27 x 0.5 | 25 | N/A | Computar | 2.74 µm | 182 | 6.0 | 2/3" | 11 | Visible | |
| F 2.8 - F 16 | C-Mount | M27 x 0.5 | 16 | N/A | Computar | 2.74 µm | 220 | 6.0 | 2/3" | 11 | Visible | |
| F 2.8 - F 16 | C-Mount | M27 x 0.5 | 35 | N/A | Computar | 2.74 µm | 246 | 6.0 | 2/3" | 11 | Visible | |
| F 2.8 - F 16 | C-Mount | M30.5 x 0.5 | 8 | N/A | Computar | 2.74 µm | 100 | 6.0 | 2/3" | 11 | Visible | |
| F 2.8 - F 16 | C-Mount | M27 x 0.5 | 12 | N/A | Computar | 2.74 µm | 91 | 6.0 | 2/3" | 11 | Visible | |
| F 2.8 - F 16 | C-Mount | M27 x 0.5 | 50 | N/A | Computar | 2.74 µm | 292 | 6.0 | 2/3" | 11 | Visible | |
| F 2.8 - F 16 | C-Mount | M34 x 0.5 | 75 | N/A | Computar | 2.74 µm | 380 | 6.0 | 2/3" | 11 | Visible | |
| F 2.8 - F 16 | C-Mount | M72 x 0.75 | 5 | N/A | Computar | 2.74 µm | 100 | 6.0 | 2/3" | 11 | Visible |
