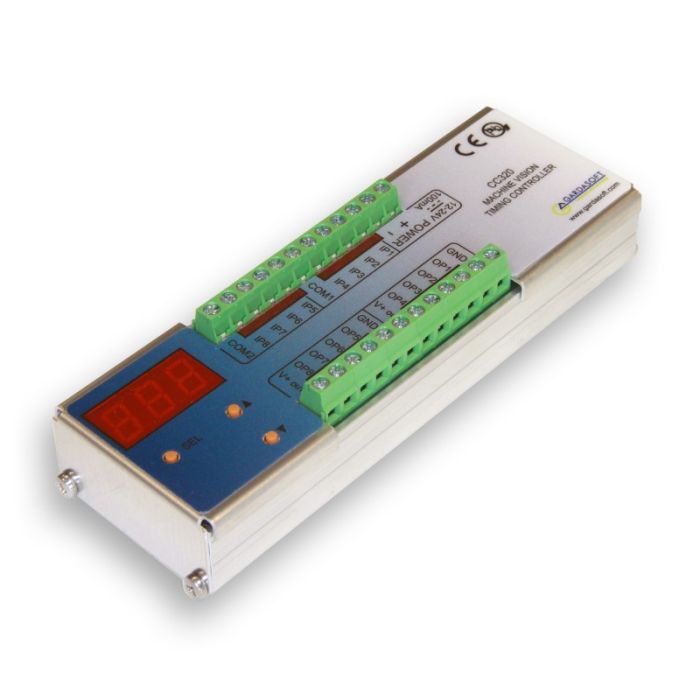

Gardasoft - CC320
Trigger timing controller that can combine lighting, cameras, proximity sensors and encoders to generate an automated solution.
Key Features
- Channels: 8 opto-isolated inputs, 8 outputs

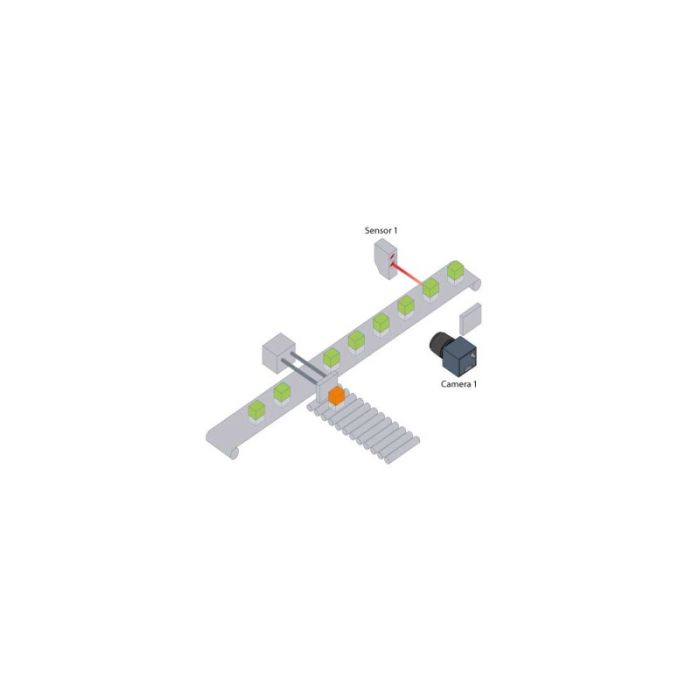

- Functions: synchronisation over external encoder-input or external clock source (including AB-inputs), trigger generator mode, FiFo mode, position trigger mode
- Frequency: incremental encoder frequency max. 200 kHz
- Power supply: 12-24 VDC (100mA)
- Configuration: push-button or Ethernet (static or DHCP)
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nombre del producto | Intensity control method | LED controller interface | Manufacturer | Max. output power per channel (W) | Max. trigger frequency (Hz) | Number channels | Operating mode | Triniti | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| N/A | Ethernet; PushButton | Gardasoft Vision | N/A | 25000 | 8 | continous mode | no | N/A |
¿Por qué elegir Gardasoft - CC320?
Highly flexible I/O options

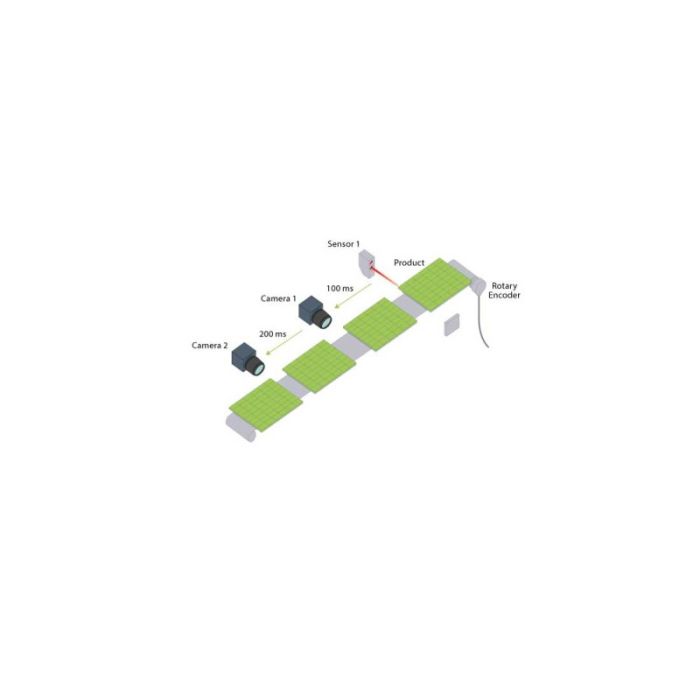

With the CC320, different cameras can be triggered at different times. The duration of the trigger signal can be used for control of the exposure time. The reject gate can also be controlled using the module. An output activates the gate upon receiving a pass/fail signal and after a corresponding delay.
Engineered for industrial requirements

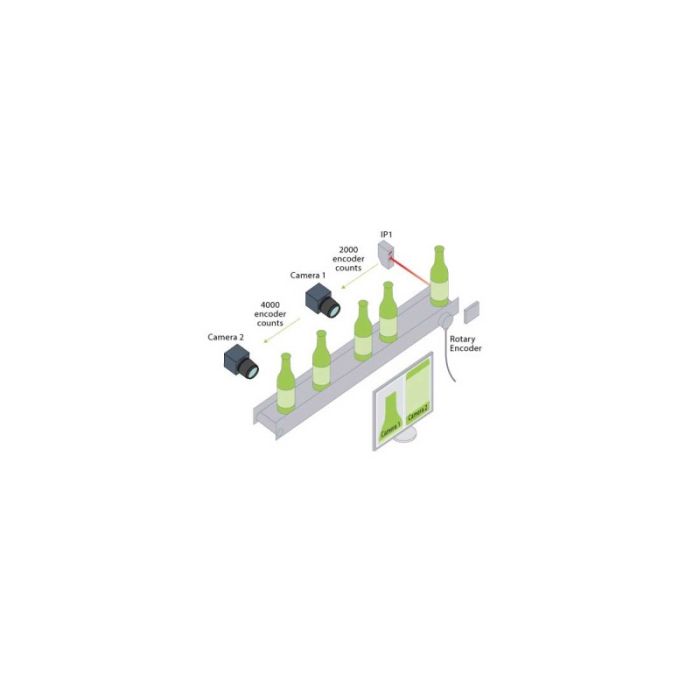

In the case of systems with different timings or band speeds, an encoder can be used to establish exact synchronisation with the band speed. The band can be held up if necessary, or even run backwards, in order to obtain the correct timing for rejection.
Remote access capability
The CC320 works as a mini web server and can be accessed from a remote PC through the image processing software. The top-hat rail module requires only an IP address that is entered using the controls on the front panel or via a dynamic host configuration protocol (DHCP) server. The CC320 can be controlled through the integrated web server by means of simple string commands from any application via TCP/IP or UDP, or alternatively through the front panel.
