KOWA - LM-EC-IR
24MP C-mount lenses with a 1.2” sensor format and IR correction for diverse applications
Key Features
• Sensor size: up to 1.2” • Resolution: 24MP, 200lp/mm (center) • Camera mount: C-mount • Focal lengths: 16mm, 25mm, 35mm, 50mm • Aperture: F2.4, F2.8, F4.5, F6.8 (interchangeable) • Focusing range: 0.5m to Infinity • Focus control: Manual • Wavelength range: VIS-NIR (400nm-1000nm) • IR correction: Minimal focus-shift across VIS-NIR range • Weight: 70g – 95g (depending on focal length) • Temperature range: -10°C to +50°C
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nombre del producto | Focal length (mm) | Sensor size diagonal (mm) | Min. pixel size | Aperture | Wavelength range | M.O.D. (mm) | Camera mount (optics) | Manufacturer | Filter thread | Magnification (max) | Resolution | Sensor format |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

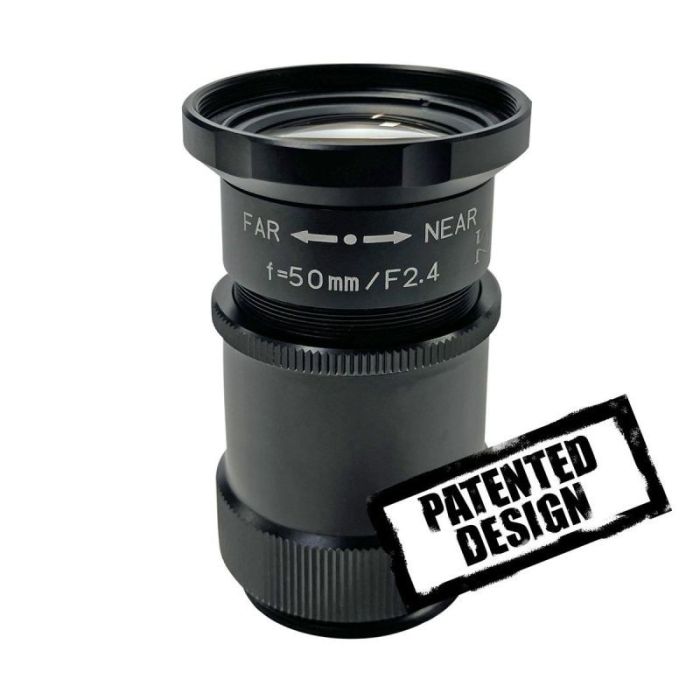

| 50 | 19.2 | 2.5 µm | F 2.4 | VIS-NIR | 500 | C-Mount | Kowa | M30.5 x 0.5 | N/A | 24 | 1.2" | |

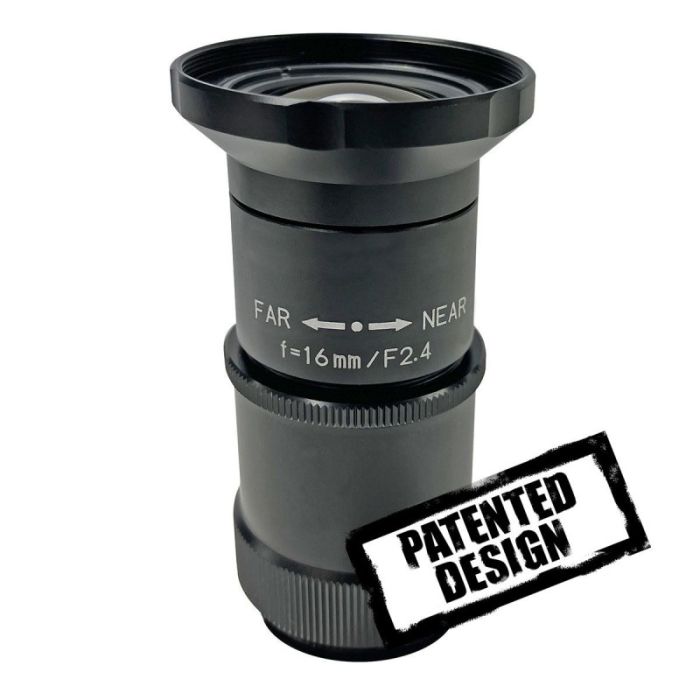

| 16 | 19.2 | 2.5 µm | F 2.4 | VIS-NIR | 500 | C-Mount | Kowa | M34 x 0.5 | N/A | 24 | 1.2" | |
| 25 | 19.2 | 2.5 µm | F 2.4 | VIS-NIR | 500 | C-Mount | Kowa | M34 x 0.5 | N/A | 24 | 1.2" | |

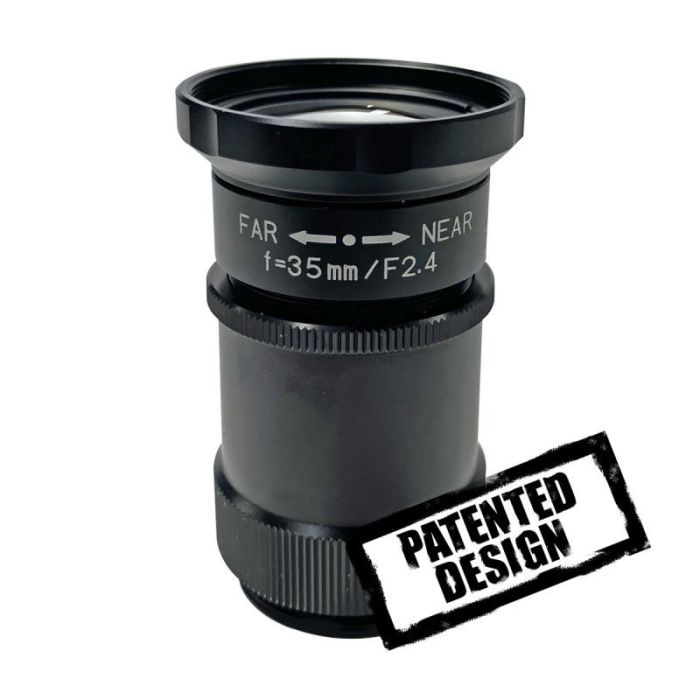

| 35 | 19.2 | 2.5 µm | F 2.4 | VIS-NIR | 500 | C-Mount | Kowa | M30.5 x 0.5 | N/A | 24 | 1.2" |
