KOWA - LM-JCM-V
3 megapixel lenses designed to withstand high vibration / acceleration environments.
Key Features
- Sensor size: up to 2/3"
- Focal length: 8.0 mm to 50 mm
- Aperture: F1.4 to F2.0
- MOD: 100 mm to 200 mm
- Filter thread: M27 x 0.5
- Camera mount: C-mount
- Dimensions: Ø 33 x 36.5 mm to Ø 33 x 41.6 mm
- Weight: 72.5 g bis 88 g
- Miscellaneous: Glued lenses / Focus with locking screws / Step up ring for iris
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nombre del producto | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Length (mm) | Magnification (max) | Manufacturer | Min. pixel size | M.O.D. (mm) | Resolution | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F 1.4 | C-Mount | M27 x 0.5 | 8 | 41.6 | N/A | Kowa | 4.5 µm | 100 | 2.0 | 11 | Visible | |

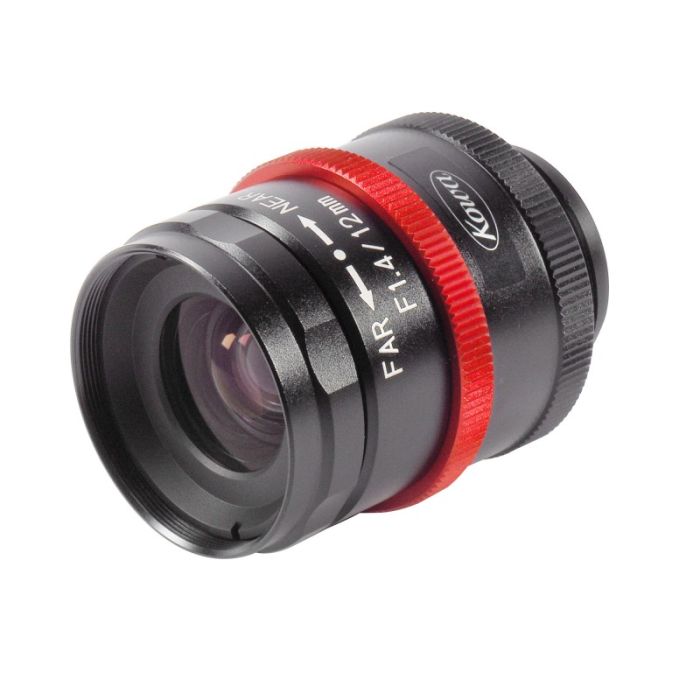

| F 1.4 | C-Mount | M27 x 0.5 | 12 | 37 | N/A | Kowa | 4.5 µm | 150 | 2.0 | 11 | Visible | |
| F 1.4 | C-Mount | M27 x 0.5 | 16 | 36.5 | N/A | Kowa | 4.5 µm | 200 | 2.0 | 11 | Visible | |
| F 1.4 | C-Mount | M27 x 0.5 | 25 | 39.5 | N/A | Kowa | 4.5 µm | 200 | 2.0 | 11 | Visible | |

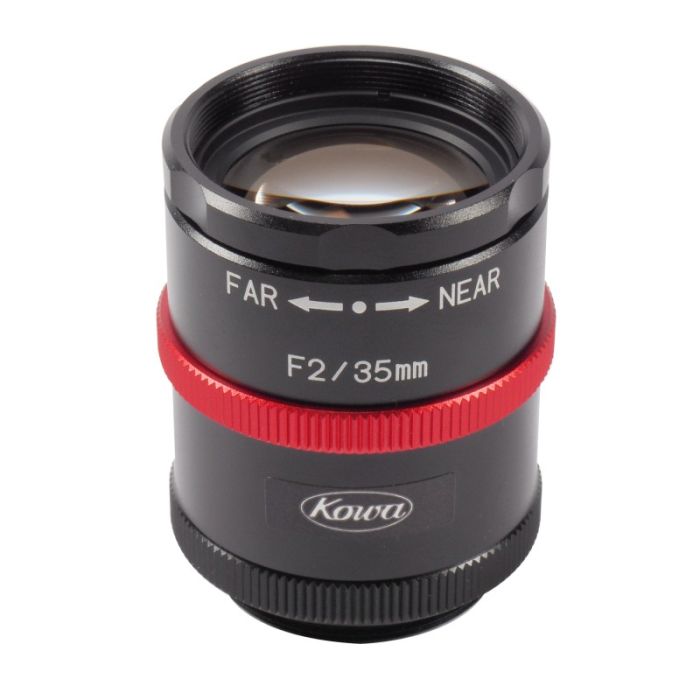

| F 2 | C-Mount | M27 x 0.5 | 35 | 37.8 | N/A | Kowa | 4.5 µm | 200 | 2.0 | 11 | Visible | |

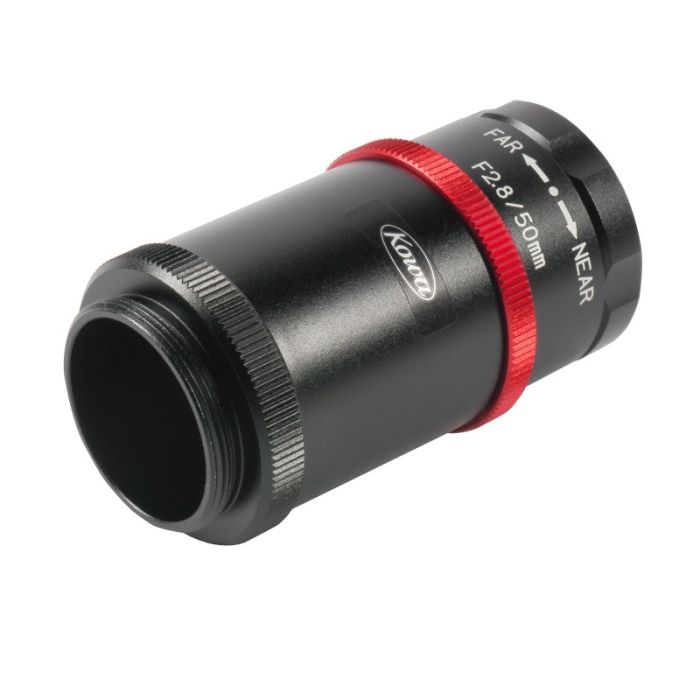

| F 2.8 | C-Mount | M27 x 0.5 | 50 | 56.2 | N/A | Kowa | 4.5 µm | 200 | 2.0 | 11 | Visible | |

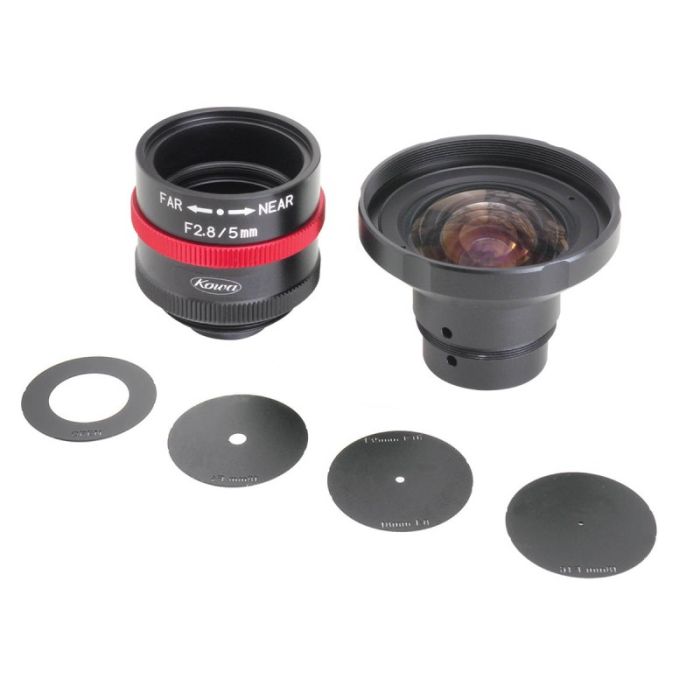

| F 2.8 - F 16 | C-Mount | M40.5 x 0.5 | 5 | N/A | N/A | Kowa | 4.5 µm | 100 | 100 | 11 | Visible |
