LMI - Gocator 5500

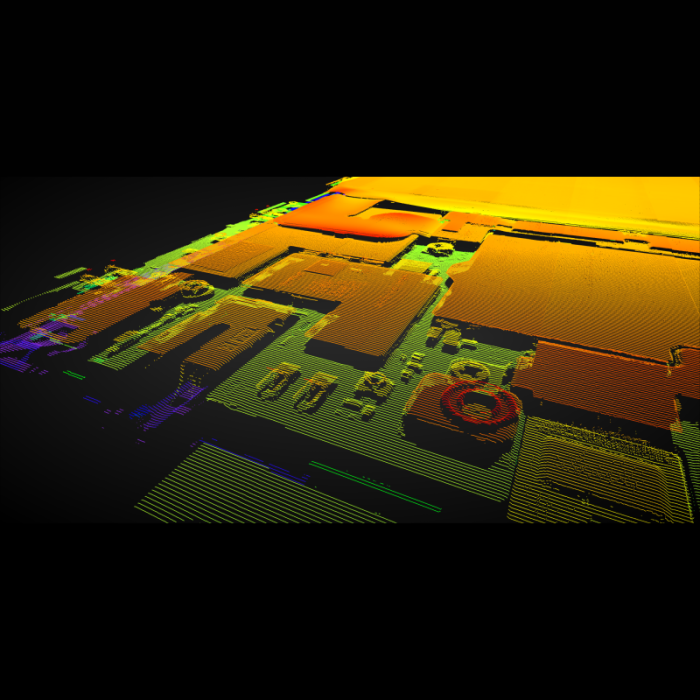

The Gocator 5500 series combines Line Confocal Imaging (LCI) technology with an easy-to-use web interface, integrated measurement tools and multi-layer profiling. These intelligent sensors offer simultaneous 3D topography, 3D tomography, and 2D intensity data, allowing for precise scanning of a wide range of materials.
Key Features
- Handles wide variety of material types
- Simultaneous generation of multiple profiles from multi-layer structures
- Runs next-generation onboard measurement and inspection software
- X-resolutions Up to 2.5 µm, Z-repeatability Up to 0.05 µm
- Scan rate: up to 16 kHz
- Generates 1792 data points per profile
- Dual-axis optical design provides higher signal quality
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nombre del producto | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Resolution Horizontal (Px) | Interface | LED risk group | Lens mount | Manufacturer | Pixel size (µm) | Scan type | Sensor format | Sensor size diagonal (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60.1 | 303.3 | 190.6 | N/A | Gigabit Ethernet | N/A | Integrated Lens | LMI Technologies | N/A | Line Confocal Imaging | N/A | N/A | 5.000 | |
| 91 | 419 | 354 | N/A | Gigabit Ethernet | N/A | Integrated Lens | LMI Technologies | N/A | Line Confocal Imaging | N/A | N/A | 19.000 | |
| 113 | 439.7 | 358 | N/A | Gigabit Ethernet | N/A | Integrated Lens | LMI Technologies | N/A | Line Confocal Imaging | N/A | N/A | 21.000 |
