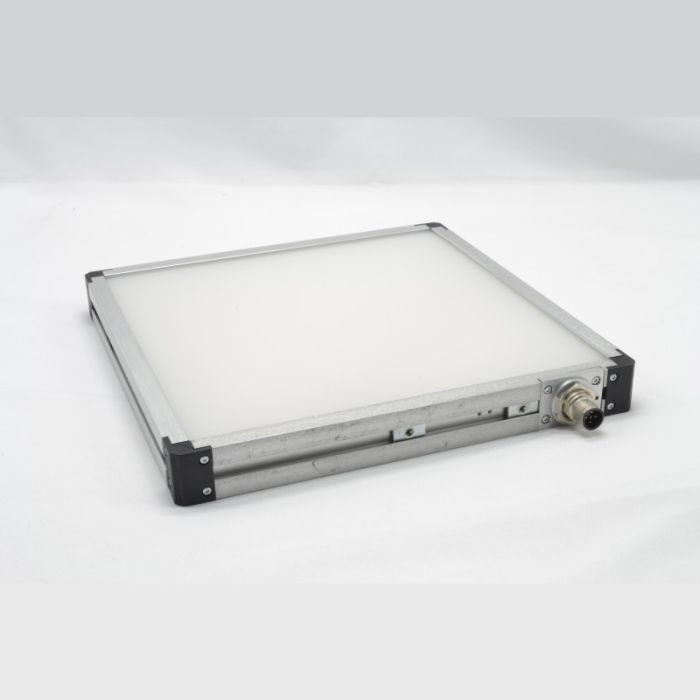

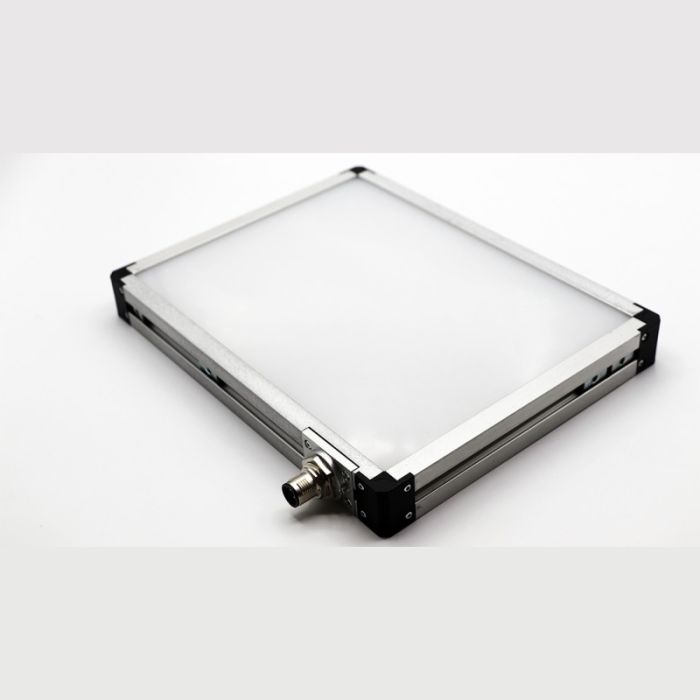

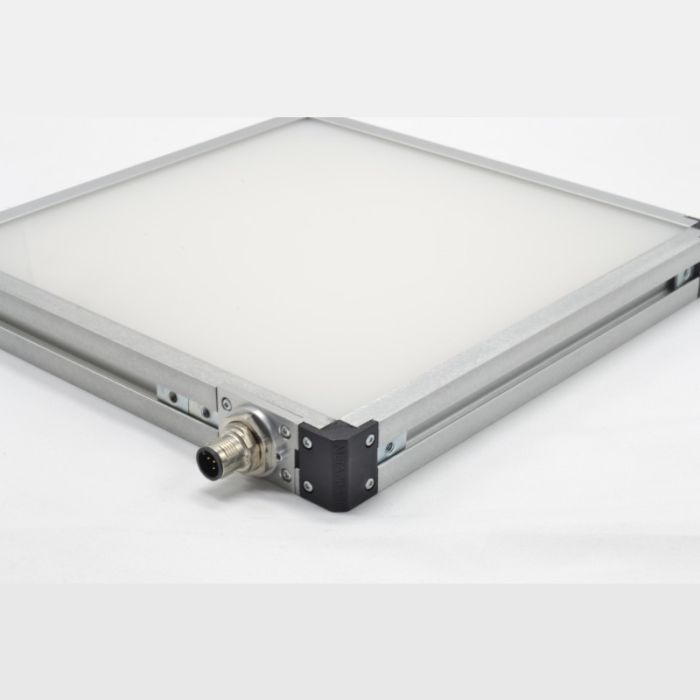

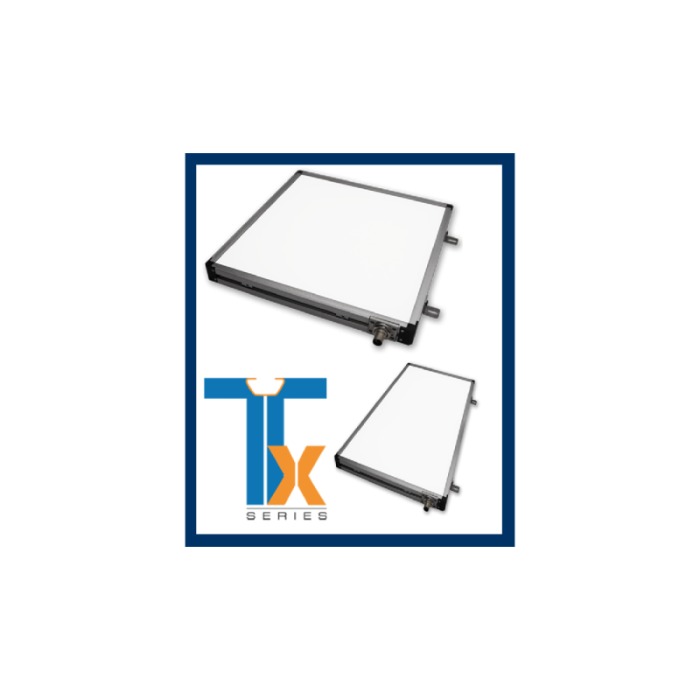

METAPHASE - TX
Backlight series providing impressive intensity and uniformity across the full array suitable for the most demanding machine vision applications.
Key Features
- Application Type: Backlighting, diffuse lighting, dome lighting
- TXBL und TXCBL (collimated) models available
- Light source: LED
- Colours: White (5700 K), Red (630 nm), Green (530 nm), Blue (470 nm), RGB, IR850 (Infrared 850 nm), IR940 (Infrared 940 nm)
- Intensity: 73,000 Lux (263W/m2)
- Control: New, advanced microprocessor that allows for DC continuous mode WITH continuous pulse-follow strobe all-in-one all built-in
- Mounting: 4-side T-slot mounting system with 180 degree adjustable T-slot L-Brackets
- Footprint: Low-profile housing with 10mm bezel
- Features: Multiple center hole sizes, ability to have multiple camera holes on one light
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nombre del producto | Beam angle | Connectors | Dominant wavelength (nm) | Emitting surface height (mm) | Emitting surface inner diameter (mm) | Emitting surface outer diameter (mm) | Emitting surface width (mm) | Intensity control method | IP rating | LED risk group | Light colour | Light distribution | Lighting geometry | Lighting technique | Manufacturer | Smart | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| not specified | N/A | N/A | 250 | N/A | N/A | 125 | N/A | IP50 | N/A | White | diffused | area light (panels) | backlight | Metaphase | no | 0.800 | |
| not specified | N/A | 630 | 75 | N/A | N/A | 75 | N/A | IP50 | N/A | Red | diffused | area light (panels) | backlight | Metaphase | no | 0.300 | |
| not specified | M12 5-pin A-coded | N/A | 50 | N/A | N/A | 50 | N/A | IP50 | N/A | White | diffused | area light (panels) | backlight | Metaphase | no | 0.200 | |
| not specified | N/A | 630 | 225 | N/A | N/A | 225 | N/A | IP50 | N/A | Red | diffused | area light (panels) | backlight | Metaphase | no | 1.100 | |
| not specified | M12 5-pin A-coded | 630 | 50 | N/A | N/A | 50 | N/A | IP50 | N/A | Red | diffused | area light (panels) | backlight | Metaphase | no | 0.200 | |
| not specified | N/A | N/A | 75 | N/A | N/A | 75 | N/A | IP50 | N/A | White | diffused | area light (panels) | backlight | Metaphase | no | 0.300 | |
| not specified | N/A | 940 | 400 | N/A | N/A | 150 | N/A | IP50 | N/A | IR | diffused | area light (panels) | backlight | Metaphase | no | N/A | |
| not specified | N/A | 630 | 250 | N/A | N/A | 125 | N/A | IP50 | N/A | Red | diffused | area light (panels) | backlight | Metaphase | no | 0.800 | |
| not specified | N/A | N/A | 225 | N/A | N/A | 225 | N/A | IP50 | N/A | White | diffused | area light (panels) | backlight | Metaphase | no | 1.100 | |
| not specified | N/A | N/A | 200 | N/A | N/A | 100 | N/A | IP50 | N/A | White | diffused | area light (panels) | backlight | Metaphase | no | 0.600 | |
| not specified | N/A | 630 | 200 | N/A | N/A | 100 | N/A | IP50 | N/A | Red | diffused | area light (panels) | backlight | Metaphase | no | 0.600 | |
| not specified | N/A | 630 | 300 | N/A | N/A | 300 | N/A | IP50 | N/A | Red | diffused | area light (panels) | backlight | Metaphase | no | 1.740 | |
| not specified | N/A | N/A | 300 | N/A | N/A | 300 | N/A | IP50 | N/A | White | diffused | area light (panels) | backlight | Metaphase | no | 1.740 | |
| not specified | N/A | 630 | 500 | N/A | N/A | 400 | N/A | IP50 | N/A | Red | diffused | area light (panels) | backlight | Metaphase | no | 3.400 | |
| not specified | N/A | N/A | 500 | N/A | N/A | 400 | N/A | IP50 | N/A | White | diffused | area light (panels) | backlight | Metaphase | no | 3.400 | |
| not specified | N/A | 850 | 200 | N/A | N/A | 150 | N/A | IP50 | N/A | IR | diffused | area light (panels) | backlight | Metaphase | no | 0.800 | |
| collimated | N/A | 850 | 200 | N/A | N/A | 150 | N/A | IP50 | N/A | IR | diffused | area light (panels) | backlight | Metaphase | no | N/A | |
| collimated | N/A | 530 | 350 | N/A | N/A | 200 | N/A | N/A | 0 (exempt) | Green | diffused | area light (panels) | backlight | Metaphase | no | N/A | |
| not specified | N/A | N/A | 500 | N/A | N/A | 375 | N/A | IP50 | N/A | RGB | diffused | area light (panels) | backlight | Metaphase | no | 3.200 | |
| not specified | M12 5-pin A-coded | 850; 940 | 50 | N/A | N/A | 50 | N/A | IP50 | N/A | IR | direct | area light (panels) | backlight | Metaphase | no | 0.200 | |
| not specified | N/A | N/A | 150 | N/A | N/A | 100 | N/A | IP50 | N/A | White | diffused | area light (panels) | backlight | Metaphase | no | N/A | |
| not specified | N/A | 630 | 150 | N/A | N/A | 75 | N/A | IP50 | N/A | Red | diffused | area light (panels) | backlight | Metaphase | no | N/A | |
| not specified | N/A | N/A | N/A | N/A | N/A | 250 | N/A | IP50 | N/A | White | diffused | area light (panels) | backlight | Metaphase | no | N/A |
