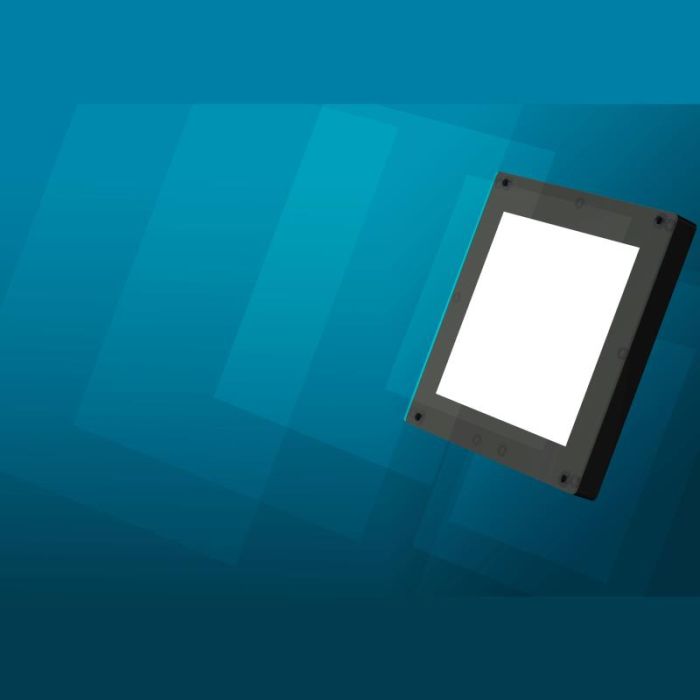

PHLOX - LLUB

High intensity LED backlight with sophisticated diffuser design for perfect uniformity.

Key Features

  • Type: high luminance LED illumination
  • Colour: white (5000°K), red and IR (850 nm)
  • Uniformity: > 95% (+/-10%)
  • Lens: fan angle reduced to 30°
  • Size: 20x20, 50x50, 100x100, 200x200, 150x40, 160x120, 300x220 or 400x200 mm
  • Protection: ultra slim housing with 8,5 mm thickness, IP65 rated

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

Hasta
Hasta
Nombre del producto Beam angle Connectors Dominant wavelength (nm) Emitting surface height (mm) Emitting surface inner diameter (mm) Emitting surface outer diameter (mm) Emitting surface width (mm) Intensity control method IP rating LED risk group Light colour Light distribution Lighting geometry Lighting technique Manufacturer Smart Weight (kg)
PHLOX LEDW-BL-50/50-LLUB-Q-1R24
 narrow N/A N/A 50 N/A N/A 50 N/A N/A 0 (exempt) White direct area light (panels) backlight Phlox no N/A
PHLOX LEDW-BL-400/200-LLUB-Q-1R24
 narrow N/A N/A 200 N/A N/A 400 N/A N/A 0 (exempt) White direct area light (panels) backlight Phlox no N/A
PHLOX LEDR-BL-160/120-LLUB-Q-1R24
 narrow N/A 625 120 N/A N/A 160 N/A N/A 0 (exempt) Red direct area light (panels) backlight Phlox no N/A
PHLOX LEDR-BL-50/50-LLUB-Q-1R24
 narrow N/A 625 50 N/A N/A 50 N/A N/A 0 (exempt) Red direct area light (panels) backlight Phlox no N/A
PHLOX LEDW-BL-160/120-LLUB-Q-1R24
 narrow N/A N/A 120 N/A N/A 160 N/A N/A 0 (exempt) White direct area light (panels) backlight Phlox no N/A
PHLOX LEDR-BL-400/200-LLUB-Q-1R24
 narrow N/A 625 200 N/A N/A 400 N/A N/A 0 (exempt) Red direct area light (panels) backlight Phlox no N/A
PHLOX LEDR-BL-200/200-LLUB-Q-1R24
 narrow N/A 625 200 N/A N/A 200 N/A N/A 0 (exempt) Red direct area light (panels) backlight Phlox no N/A
PHLOX LEDR-BL-150/40-LLUB-Q-1R24
 narrow N/A 625 40 N/A N/A 40 N/A N/A 0 (exempt) Red direct area light (panels) backlight Phlox no N/A
PHLOX LEDIR850-BL-50/50-LLUB-Q-1R24
 narrow N/A 850 50 N/A N/A 50 N/A N/A 0 (exempt) IR direct area light (panels) backlight Phlox no N/A
PHLOX LEDR-BL-20/20-LLUB-Q-1R24
 narrow N/A 625 20 N/A N/A 20 N/A N/A 0 (exempt) Red direct area light (panels) backlight Phlox no N/A
PHLOX LEDW-BL-20/20-LLUB-Q-1R24
 narrow N/A N/A 20 N/A N/A 20 N/A N/A 0 (exempt) White direct area light (panels) backlight Phlox no N/A
PHLOX LEDW-BL-150/40-LLUB-Q-1R24
 narrow N/A N/A 120 N/A N/A 150 N/A N/A 0 (exempt) White direct area light (panels) backlight Phlox no N/A
PHLOX LEDW-BL-300/220-LLUB-Q-1R24
 narrow N/A N/A 220 N/A N/A 300 N/A N/A 0 (exempt) White direct area light (panels) backlight Phlox no N/A
PHLOX LEDR-BL-300/220-LLUB-Q-1R24
 narrow N/A 625 220 N/A N/A 300 N/A N/A 0 (exempt) Red direct area light (panels) backlight Phlox no N/A
PHLOX LEDIR940-BL-100/100-LLUB-Q-1R24
 narrow N/A 940 100 N/A N/A 100 N/A N/A 0 (exempt) IR direct area light (panels) backlight Phlox no N/A

¿Por qué elegir PHLOX - LLUB?

Several standard sizes available

PHLOX offers a variety of standard sizes for the illumination: 20x20, 50x50, 100x100, 200x200, 150x40, 160x120, 300x220 and 400x200 mm.

Choice between several wavelengths

The light is available in white (5000°K), red (625 nm) and IR (850 nm). Further wavelengths can be supplied upon request.

Extended lifetime

The LLUB sports an extremely long expected lifetime, with more than 100.000 hours and less than 20% luminance loss.

Minimised chromaticity shift

The chromaticity shift is smaller than 10% over the complete LED lifetime. Recalibration (white balance) of the system is therefore generally not necessary, even for colour sensitive applications.

Industry-grade housing

IP65 rating permits the use in harsh environments without the need for additional housing. This reduces the costs but also allows for a more flexible integration.
