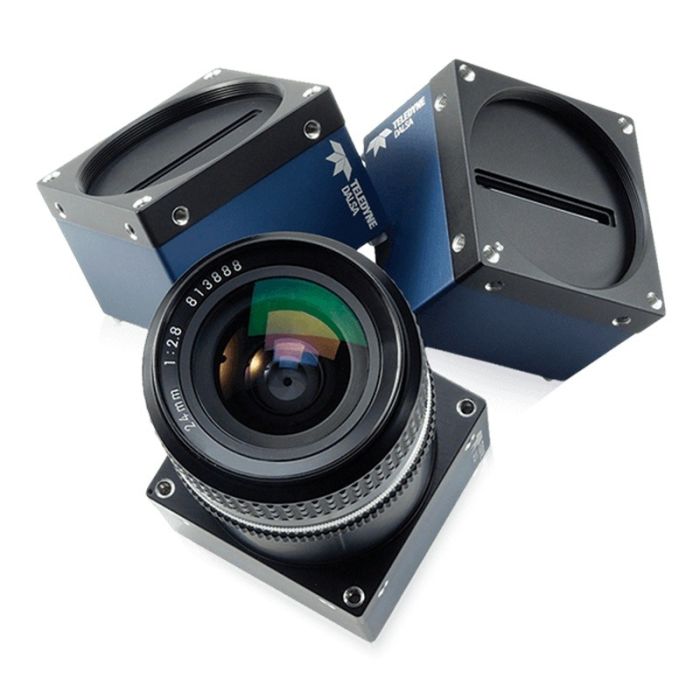

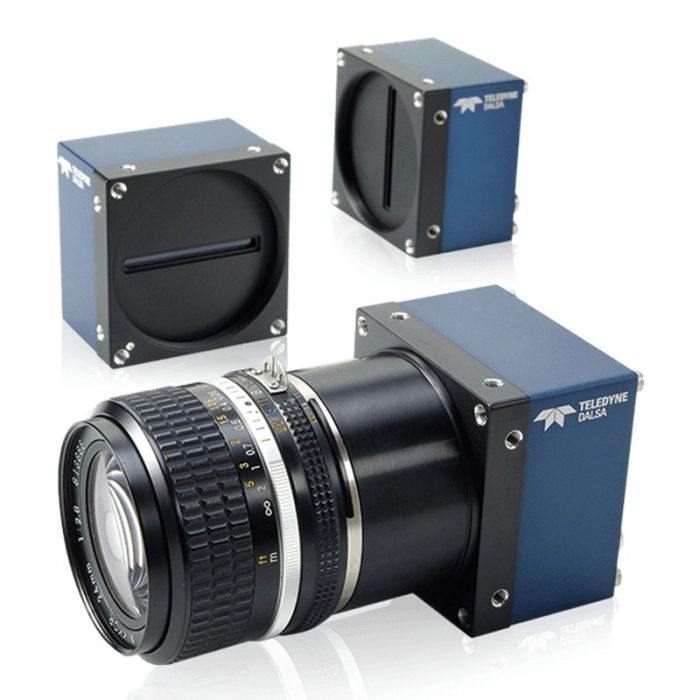

Teledyne DALSA - Piranha4

The Piranha4 cameras feature high-speed CMOS dual line and multiline scan technology for monochrome and color applications, providing exceptional image quality with up to 8k pixel resolution, an excellent signal-to-noise ratio for high-speed use, and a CameraLink interface.

Key Features

  • Sensor: Fast and sensitive monochrome and color CMOS sensor
  • Sensor Features: Exceptional signal-to-noise ratio (S/N ratio)
  • Resolution: 2k to 8k pixels
  • Line Rate: up to 200 kHz line rate (2k model) in high-speed mode
  • Pixel Size: 7.04 µm, 10.56 µm or 14.08 µm for supreme image quality
  • Features: Area of Interest (AOI), exposure control, flat-field correction with up to 4 Regions of Interest (ROI), and separate control of exposure time for HDR applications in both lines
  • Interface: CameraLink Base/Medium/Full/Deca; GenICam configuration
  • Operating Temperature: 0 to 65°C

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

Hasta
Hasta
Hasta
Nombre del producto Dimension (depth, mm) Dimension (height, mm) Dimension (width, mm) Resolution Horizontal (Px) Interface Interface configuration Lens mount Manufacturer Max. line freq. (kHz) Pixel size (µm) Scan type Sensor type Wavelength range Weight (kg)
DALSA P4-CM-08K70
 48 62 62 8192 CameraLink CameraLink Base; CameraLink Full; CameraLink Medium M72 x 0.75; Nikon F-Mount Teledyne DALSA 70 7.04 line CMOS Monochrome; Visible N/A
DALSA P4-CC-08K050
 48 62 62 8192 CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium M72 x 0.75 Teledyne DALSA 50 7.04 line CMOS Colour; Visible N/A
DALSA P4-CM-04k10D
 48 62 62 4096 CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium M58 x 0.75; Nikon F-Mount Teledyne DALSA 200 10.56 line CMOS Monochrome; Visible N/A
DALSA P4-CC-04K07T
 48 62 62 4096 CameraLink CameraLink Base; CameraLink Full; CameraLink Medium M58 x 0.75 Teledyne DALSA 70 10.56 line CMOS Colour; Visible N/A
DALSA P4-CM-02K10D
 48 62 62 2048 CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium M42 x 1; Nikon F-Mount Teledyne DALSA 200 10.56 line CMOS Monochrome; Visible N/A
DALSA P4-CC-02k07T
 48 62 62 2048 CameraLink CameraLink Base; CameraLink Full; CameraLink Medium M42 x 1 Teledyne DALSA 70 14.08 line CMOS Colour; Visible N/A
DALSA P4-CM-02K05D
 48 62 62 2048 CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium M42 x 1; Nikon F-Mount Teledyne DALSA 100 10.56 line CMOS Monochrome; Visible N/A
DALSA P4-CC-02k07N
 48 62 62 2048 CameraLink CameraLink Base; CameraLink Full; CameraLink Medium M42 x 1 Teledyne DALSA 70 14.08 line CMOS Colour; VIS-NIR N/A
DALSA P4-CM-04k05D
 48 62 62 4096 CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium M58 x 0.75; Nikon F-Mount Teledyne DALSA 100 10.56 line CMOS Monochrome; Visible N/A
DALSA P4-CC-04K04T-01R
 48 62 62 4096 CameraLink CameraLink Base; CameraLink Full; CameraLink Medium M58 x 0.75 Teledyne DALSA 40 10.56 line CMOS Colour; Visible N/A
DALSA P4-CC-02K04T-01R
 48 62 62 2048 CameraLink CameraLink Base; CameraLink Full; CameraLink Medium M42 x 1 Teledyne DALSA 40 14.08 line CMOS Colour; Visible N/A
DALSA P4-CC-08K03T-01-R
 48 62 62 8192 CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium M72 x 0.75 Teledyne DALSA 33 7.5 line CMOS Colour; Visible N/A
