VICO Imaging - DTCM
Bi-telecentric lens series specifically designed for high-accuracy machine vision systems.
Key Features
- Bi-telecentric industrial lenses

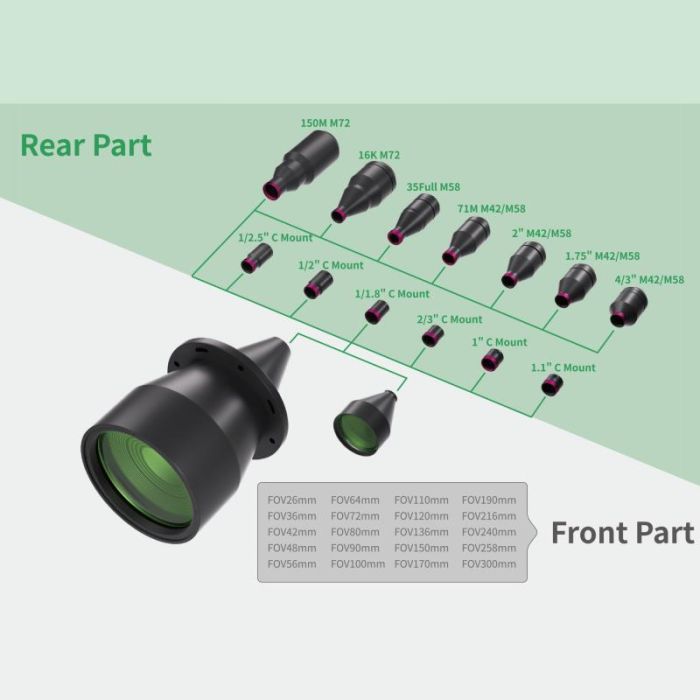

- Compatible with 1/2.5" - 67.6mm
- Feature a variety of FOVs from 16.6 mm up to 300 mm
- AL products: back focal length is adjustable
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nombre del producto | Magnification (max) | Sensor format | Sensor size diagonal (mm) | Camera mount (optics) | Min. pixel size | Aperture | Manufacturer | Resolution | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|
| 0.273 | 1/1.8" | 8.9 | C-Mount | 3.45 µm | F 6.8 | VICO Imaging | N/A | Visible | |
| 0.572 | 1" | 15.8 | C-Mount | 3.1 µm | F 8 | VICO Imaging | N/A | Visible | |
| 0.687 | 2/3" | 11 | C-Mount | 2.4 µm | F 4.9 | VICO Imaging | N/A | Visible | |
| 1.0 | 1" | 15.8 | C-Mount | 3.1 µm | F 8 | VICO Imaging | 20 | Visible | |
| 0.438 | 2/3" | 11.4 | C-Mount | 3.85 µm | F 6 | VICO Imaging | 5.0 | Visible | |
| 0.277 | 1/2.5" | 7.2 | C-Mount | 2.63 µm | F 4.2 | VICO Imaging | 5.0 | Visible | |
| 0.346 | 1/1.8" | 9 | C-Mount | 2.94 µm | F 4.6 | VICO Imaging | 6.0 | Visible | |
| 0.638 | 1" | 16.6 | C-Mount | 5.56 µm | F 8.7 | VICO Imaging | 20 | Visible | |
| 0.310 | 1/1.8" | 8.9 | C-Mount | 3.45 µm | F 6.8 | VICO Imaging | N/A | Visible | |
| 0.393 | 2/3" | 11 | C-Mount | 2.4 µm | F 6.9 | VICO Imaging | 5.0 | Visible | |
| 1.517 | SFF* | 35 | Nikon F-Mount | 4.8 µm | F 10.3 | VICO Imaging | N/A | Visible | |
| 0.345 | 2/3" | 11 | C-Mount | 2.4 µm | F 4.9 | VICO Imaging | N/A | Visible | |
| 0.060 | 1/1.8" | 9 | C-Mount | 2.5 µm | F 4.6 | VICO Imaging | 6.0 | Visible | |
| 0.200 | 1/2.5" | 7.2 | C-Mount | 2.63 µm | F 4.2 | VICO Imaging | 5.0 | Visible | |
| 0.250 | 1/1.8" | 9 | C-Mount | 2.78 µm | F 4.6 | VICO Imaging | 6.0 | Visible | |
| 0.317 | 2/3" | 11.4 | C-Mount | 3.45 µm | F 5.4 | VICO Imaging | 5.0 | Visible | |
| 0.46 | 1" | 16.6 | C-Mount | 5 µm | F 7.8 | VICO Imaging | 20 | Visible | |
| 0.917 | 2" | 32 | Nikon F-Mount | 4.5 µm | F 15.5 | VICO Imaging | N/A | Visible | |
| 0.150 | 1/2.5" | 7.2 | C-Mount | 2.63 µm | F 4.2 | VICO Imaging | 5.0 | Visible | |
| 0.188 | 1/1.8" | 9 | C-Mount | 2.63 µm | F 4.6 | VICO Imaging | 6.0 | Visible | |
| 0.238 | 2/3" | 11.4 | C-Mount | 3.03 µm | F 5.4 | VICO Imaging | 5.0 | Visible | |
| 0.346 | 1" | 16.6 | C-Mount | 3.85 µm | F 6.5 | VICO Imaging | 20 | Visible | |
| 0.92 | SFF* | 35 | Nikon F-Mount | 4.8 µm | F 17 | VICO Imaging | N/A | Visible | |
| 0.076 | 2/3" | 11.4 | C-Mount | 2.7 µm | F 4.9 | VICO Imaging | N/A | Visible | |
| 0.110 | 1" | 16.6 | C-Mount | 3.45 µm | F 6.5 | VICO Imaging | 20 | Visible | |
| 0.393 | 1/2.5" | 59 | M72 x 0.75 | 11.11 µm | F 19.8 | VICO Imaging | N/A | Visible | |
| 0.271 | 2/3" | 11.4 | C-Mount | 2.7 µm | F 4.9 | VICO Imaging | 5.0 | Visible | |
| 1.108 | 1.1" | 17.6 | C-Mount | 3.45 µm | F 7.2 | VICO Imaging | N/A | Visible | |
| 0.308 | 1/2" | 8 | C-Mount | 1.85 µm | F 4.2 | VICO Imaging | 10.0 | Visible | |
| 0.708 | 1.1" | 18.4 | C-Mount | 6.67 µm | F 9.6 | VICO Imaging | 25 | Visible | |
| 0.634 | 1.1" | 17.6 | C-Mount | 3.45 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.558 | 1.1" | 17.6 | C-Mount | 3.45 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.511 | 1.1" | 18.4 | C-Mount | 5.88 µm | F 8.7 | VICO Imaging | 25 | Visible | |
| 0.472 | 1.1" | 17.6 | C-Mount | 3.45 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.438 | 1.1" | 18.4 | C-Mount | 4.35 µm | F 7.2 | VICO Imaging | 25 | Visible | |
| 1.083 | SFF* | 39 | Nikon F-Mount | 3.1 µm | F 18.3 | VICO Imaging | N/A | Visible | |
| 0.214 | 1/1.8" | 9 | C-Mount | 2.56 µm | F 4.6 | VICO Imaging | 6.0 | Visible | |
| 0.171 | 1/2.5" | 7.2 | C-Mount | 2.5 µm | F 4.2 | VICO Imaging | 5.0 | Visible | |
| 0.190 | 1/2" | 8 | C-Mount | 2.38 µm | F 4.2 | VICO Imaging | 10.0 | Visible | |
| 0.395 | 1" | 16.6 | C-Mount | 3.85 µm | F 6.5 | VICO Imaging | 20 | Visible | |
| 1.048 | SFF* | 35 | Nikon F-Mount | 4.8 µm | F 17.2 | VICO Imaging | N/A | Visible | |
| 0.383 | 1.1" | 18.4 | C-Mount | 4.35 µm | F 7.2 | VICO Imaging | 25 | Visible | |
| 0.329 | 1.1" | 18.4 | C-Mount | 3.45 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.312 | 1.1" | 17.6 | C-Mount | 3.45 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.184 | 1" | 16.6 | C-Mount | 3.7 µm | F 6.5 | VICO Imaging | 20 | Visible | |
| 0.204 | 2/3" | 11.4 | C-Mount | 2.78 µm | F 4.9 | VICO Imaging | 5.0 | Visible | |
| 0.100 | 1/2.5" | 7.2 | C-Mount | 2.56 µm | F 4.2 | VICO Imaging | 5.0 | Visible | |
| 0.111 | 1/2" | 8 | C-Mount | 2.33 µm | F 4.2 | VICO Imaging | 10.0 | Visible | |
| 0.125 | 1/1.8" | 9 | C-Mount | 2.56 µm | F 4.6 | VICO Imaging | 6.0 | Visible | |
| 0.158 | 2/3" | 11.4 | C-Mount | 2.78 µm | F 4.9 | VICO Imaging | 5.0 | Visible | |
| 0.231 | 1" | 16.6 | C-Mount | 3.7 µm | F 6.5 | VICO Imaging | 20 | Visible | |
| 0.256 | 1.1" | 18.4 | C-Mount | 3.45 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.080 | 1/2.5" | 7.2 | C-Mount | 2.5 µm | F 4.2 | VICO Imaging | 5.0 | Visible | |
| 0.100 | 1/1.8" | 9 | C-Mount | 2.56 µm | F 4.6 | VICO Imaging | N/A | Visible | |
| 0.127 | 2/3" | 11.4 | C-Mount | 2.78 µm | F 4.9 | VICO Imaging | 5.0 | Visible | |
| 0.204 | 1.1" | 18.4 | C-Mount | 3.45 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.053 | 1/2" | 8 | C-Mount | 2.38 µm | F 8 | VICO Imaging | 10.0 | Visible | |
| 0.123 | 1.1" | 18.4 | C-Mount | 3.45 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.193 | 1.7" | 29 | C-Mount | 3.45 µm | F 8.5 | VICO Imaging | N/A | Visible | |
| 0.055 | 1" | 15.8 | C-Mount | 2.4 µm | F 8 | VICO Imaging | 20 | Visible | |
| 0.611 | SFF* | 35 | M58 x 0.75 | N/A | F 13 | VICO Imaging | N/A | Visible | |
| 0.113 | 1/2.5" | 7.2 | C-Mount | 2.5 µm | F 4.2 | VICO Imaging | N/A | Visible | |
| 0.230 | 1.1" | 18.4 | C-Mount | 3.45 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.258 | 1" | 16.6 | C-Mount | 3.85 µm | F 6.5 | VICO Imaging | 20 | Visible | |
| 0.208 | 1" | 16.6 | C-Mount | 3.7 µm | F 6.5 | VICO Imaging | 20 | Visible | |
| 0.113 | 1/1.8" | 9 | C-Mount | 2.56 µm | F 4.6 | VICO Imaging | 6.0 | Visible | |
| 0.288 | 1.1" | 18.4 | C-Mount | 3.33 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.140 | 1/1.8" | 9 | C-Mount | 2.56 µm | F 4.6 | VICO Imaging | 6.0 | Visible | |
| 0.178 | 2/3" | 11.4 | C-Mount | 2.78 µm | F 4.9 | VICO Imaging | 5.0 | Visible | |
| 0.142 | 2/3" | 11.4 | C-Mount | 2.78 µm | F 4.9 | VICO Imaging | 5.0 | Visible | |
| 0.195 | 1" | 59 | M72 x 0.75 | 3.52 µm | F 9 | VICO Imaging | 16 | Visible | |
| 0.687 | 2/3" | 11 | C-Mount | N/A | F 12 | VICO Imaging | N/A | Visible | |
| 0.200 | 1/2.5" | 7.2 | C-Mount | 2.2 µm | F 6.8 | VICO Imaging | N/A | Visible | |
| 0.367 | N/A | 44 | M58 x 0.75 | N/A | F 10.3 | VICO Imaging | N/A | Visible | |
| 0.393 | 2/3" | 11 | C-Mount | 2.4 µm | F 4.9 | VICO Imaging | 5.0 | Visible | |
| 0.060 | 2/3" | 11.4 | C-Mount | 2.78 µm | F 4.9 | VICO Imaging | 5.0 | Visible | |
| 0.41 | 2" | 33 | M58 x 0.75 | 4.55 µm | F 7.8 | VICO Imaging | 25 | Visible | |
| 0.41 | 2" | 32 | M45 x 0.75 | N/A | F 7.8 | VICO Imaging | 5.0 | Visible | |
| 0.41 | 2" | 32 | Nikon F-Mount | N/A | F 7.8 | VICO Imaging | 5.0 | Visible | |
| 0.214 | 1/1.8" | 8.9 | C-Mount | N/A | F 8 | VICO Imaging | N/A | Visible | |
| 0.231 | 1" | 15.8 | C-Mount | 2.4 µm | F 8.7 | VICO Imaging | N/A | Visible | |
| 0.084 | 2/3" | 11.4 | C-Mount | 2.7 µm | F 4.9 | VICO Imaging | N/A | Visible | |
| 0.230 | 1.1" | 17.6 | C-Mount | 3.45 µm | F 12 | VICO Imaging | 6.0 | Visible | |
| 0.095 | 2/3" | 11.4 | C-Mount | 2.7 µm | F 4.9 | VICO Imaging | 5.0 | Visible | |
| 0.138 | 1" | 16.6 | C-Mount | 3.57 µm | F 6.5 | VICO Imaging | 20 | Visible | |
| 0.153 | 1.1" | 18.4 | C-Mount | 3.33 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.097 | 1.1" | 18.4 | C-Mount | 3.33 µm | F 6.2 | VICO Imaging | N/A | Visible | |
| 0.097 | 1" | 16.6 | C-Mount | 3.57 µm | F 6.5 | VICO Imaging | 20 | Visible | |
| 0.908 | SFF* | 43.6 | M58 x 0.75 | 10 µm | F 17.1 | VICO Imaging | N/A | Visible | |
| 0.786 | 2" | 33 | M58 x 0.75 | 7.69 µm | F 12.9 | VICO Imaging | 25 | Visible | |
| 0.184 | 1.1" | 18.4 | C-Mount | 4.17 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.077 | 1.1" | 18.4 | C-Mount | 3.33 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.114 | 2/3" | 11.4 | C-Mount | 2.7 µm | F 4.9 | VICO Imaging | 5.0 | Visible | |
| 0.291 | SFF* | 43.6 | M58 x 0.75 | 7.94 µm | F 14.6 | VICO Imaging | N/A | Visible | |
| 0.047 | 1/1.8" | 9 | C-Mount | 2.5 µm | F 4.6 | VICO Imaging | 6.0 | Visible | |
| 0.69 | 1.75" | 29 | M58 x 0.75 | 7.14 µm | F 11.4 | VICO Imaging | N/A | Visible | |
| 0.656 | 4/3" | 23.6 | M58 x 0.75 | 6.49 µm | F 11.1 | VICO Imaging | 21 | Visible | |
| 0.205 | SFF* | 39 | M58 x 0.75 | 3.7 µm | F 6.5 | VICO Imaging | N/A | Visible | |
| 0.317 | 2/3" | 11 | C-Mount | 3.45 µm | F 16 | VICO Imaging | N/A | Visible | |
| 0.042 | 1/1.8" | 9 | C-Mount | 2.5 µm | F 4.6 | VICO Imaging | 6.0 | Visible | |
| 0.153 | 1.75" | 29 | M58 x 0.75 | 3.7 µm | F 6.8 | VICO Imaging | N/A | Visible | |
| 0.39 | N/A | 39 | Nikon F-Mount | N/A | F 15.3 | VICO Imaging | N/A | Visible | |
| 0.197 | N/A | 24 | M42 x 0.75 | N/A | F 4.6 | VICO Imaging | 21 | Visible | |
| 0.453 | 1.75" | 29 | M58 x 0.75 | 5 µm | F 8.5 | VICO Imaging | N/A | Visible | |
| 0.097 | 1" | 16.6 | C-Mount | 3.57 µm | F 6.5 | VICO Imaging | 20 | Visible | |
| 0.29 | 1.7" | 29 | M58 x 0.75 | 3.79 µm | F 6.8 | VICO Imaging | N/A | Visible | |
| 0.082 | 1/1.8" | 9 | C-Mount | 2.5 µm | F 4.6 | VICO Imaging | 6.0 | Visible | |
| 0.104 | 2/3" | 11.4 | C-Mount | 2.63 µm | F 4.9 | VICO Imaging | 5.0 | Visible | |
| 1.038 | 1" | 43.6 | M58 x 0.75 | 10 µm | F 17.1 | VICO Imaging | 47 | Visible | |
| 0.228 | SFF* | 39 | Nikon F-Mount | N/A | F 10 | VICO Imaging | N/A | Visible | |
| 0.066 | 1/1.8" | 8.9 | C-Mount | N/A | F 4.6 | VICO Imaging | 6.0 | Visible | |
| 0.488 | SFF* | 39 | M58 x 0.75 | 3.85 µm | F 6.6 | VICO Imaging | N/A | Visible | |
| 0.433 | SFF* | 39 | M58 x 0.75 | 5.88 µm | F 10.2 | VICO Imaging | N/A | Visible | |
| 0.184 | 1.1" | 18.4 | C-Mount | 3.33 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.220 | 2" | 32 | M42 x 1 | 4.5 µm | F 7.8 | VICO Imaging | N/A | Visible | |
| 0.33 | 2" | 32 | Nikon F-Mount | 4.5 µm | F 7.8 | VICO Imaging | N/A | Visible | |
| 0.258 | 1" | 15.8 | C-Mount | N/A | F 16 | VICO Imaging | 20 | Visible | |
| 0.135 | 1.1" | 18.4 | C-Mount | 3.33 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.038 | 2/3" | 11 | C-Mount | 3.45 µm | F 4.9 | VICO Imaging | N/A | Visible | |
| 0.363 | SFF* | 35 | M42 x 0.75 | N/A | F 8.5 | VICO Imaging | N/A | Visible | |
| 0.311 | 1" | 59 | M60 x 1 | 3.52 µm | F 8.7 | VICO Imaging | N/A | Visible | |
| 0.311 | 1" | 59 | M72 x 0.75 | 3.52 µm | F 8.7 | VICO Imaging | N/A | Visible | |
| 0.453 | 1.7" | 29 | M42 x 1 | 3.45 µm | F 8.5 | VICO Imaging | N/A | Visible | |
| 0.492 | 1.7" | 29 | M42 x 1 | N/A | F 6.8 | VICO Imaging | N/A | Visible | |
| 0.367 | 1" | 44 | Nikon F-Mount | N/A | F 10.3 | VICO Imaging | N/A | Visible | |
| 0.320 | 1" | 43.6 | M42 x 1 | N/A | F 7.9 | VICO Imaging | N/A | Visible | |
| 0.917 | 4/3" | 23.6 | M58 x 0.75 | 7.35 µm | F 12.3 | VICO Imaging | 21 | Visible | |
| 0.166 | 1" | 16.6 | C-Mount | 3.57 µm | F 6.5 | VICO Imaging | 20 | Visible | |
| 0.151 | 1" | 16.6 | C-Mount | 3.57 µm | F 6.5 | VICO Imaging | 20 | Visible | |
| 0.061 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 6.2 | VICO Imaging | 25 | Visible | |
| 0.231 | 1/1.8" | 8.9 | C-Mount | N/A | F 4.6 | VICO Imaging | N/A | Visible | |
| 0.053 | 1/1.8" | 9 | C-Mount | 2.5 µm | F 4.6 | VICO Imaging | 6.0 | Visible | |
| 0.205 | 1/1.8" | 8.9 | C-Mount | N/A | F 4.6 | VICO Imaging | N/A | Visible | |
| 0.080 | 1/2" | 8 | C-Mount | 2.38 µm | F 4.2 | VICO Imaging | 10.0 | Visible | |
| 0.067 | 1/2" | 8 | C-Mount | 2.38 µm | F 4.2 | VICO Imaging | 10.0 | Visible | |
| 0.059 | 1/2" | 8 | C-Mount | 2.33 µm | F 4.2 | VICO Imaging | 10.0 | Visible | |
| 0.047 | 1/2" | 8 | C-Mount | 2.38 µm | F 4.2 | VICO Imaging | 10.0 | Visible | |
| 0.042 | 1/2" | 8 | C-Mount | 2.38 µm | F 4.2 | VICO Imaging | 10.0 | Visible | |
| 0.027 | 1/2" | 8 | C-Mount | 1.85 µm | F 4.2 | VICO Imaging | 10.0 | Visible | |
| 0.167 | 1/2" | 8 | C-Mount | 2.63 µm | F 4.7 | VICO Imaging | 10.0 | Visible | |
| 0.125 | 1/2" | 8 | C-Mount | 1.85 µm | F 4.2 | VICO Imaging | N/A | Visible | |
| 0.072 | 1/2.5" | 7.2 | C-Mount | 2.38 µm | F 4.2 | VICO Imaging | 5.0 | Visible | |
| 0.113 | 1/2.5" | 7.2 | C-Mount | 2.2 µm | F 4.2 | VICO Imaging | N/A | Visible | |
| 0.590 | 1" | 59 | M72 x 0.75 | 7.46 µm | F 13.9 | VICO Imaging | 16k | Visible | |
| 0.492 | 1" | 59 | M58 x 0.75 | 3.52 µm | F 11.6 | VICO Imaging | N/A | Visible | |
| 0.492 | 1" | 59 | M60 x 1 | 3.52 µm | F 11.6 | VICO Imaging | N/A | Visible | |
| 0.492 | 1" | 59 | M72 x 0.75 | 3.52 µm | F 11.6 | VICO Imaging | N/A | Visible | |
| 0.311 | 1" | 59 | M58 x 0.75 | 3.52 µm | F 8.7 | VICO Imaging | N/A | Visible | |
| 2.03 | 1" | 59 | M58 x 0.75 | 3.52 µm | F 13.9 | VICO Imaging | N/A | Visible | |
| 2.03 | 1" | 59 | M60 x 1 | 3.52 µm | F 13.9 | VICO Imaging | N/A | Visible | |
| 2.03 | 1" | 59 | M42 x 0.75 | 3.52 µm | F 13.9 | VICO Imaging | N/A | Visible | |
| 2.03 | 1" | 59 | M72 x 0.75 | 3.52 µm | F 13.9 | VICO Imaging | N/A | Visible | |
| 1.513 | 1" | 59 | M58 x 0.75 | 3.52 µm | F 9.8 | VICO Imaging | N/A | Visible | |
| 0.518 | 1.7" | 29 | C-Mount | N/A | F 9.7 | VICO Imaging | N/A | Visible | |
| 0.518 | 1.7" | 29 | Nikon F-Mount | N/A | F 9.7 | VICO Imaging | N/A | Visible | |
| 0.518 | 1.7" | 29 | M42 x 0.75 | 3.45 µm | F 9.7 | VICO Imaging | N/A | Visible | |
| 0.688 | 2" | 32 | C-Mount | N/A | F 12.9 | VICO Imaging | 5.0 | Visible | |
| 0.202 | SFF* | 35 | M42 x 0.75 | N/A | F 10.4 | VICO Imaging | N/A | Visible | |
| 0.688 | 2" | 32 | Nikon F-Mount | N/A | F 12.9 | VICO Imaging | 5.0 | Visible | |
| 0.202 | SFF* | 35 | M70 x 0.75 | N/A | F 10.4 | VICO Imaging | N/A | Visible | |
| 0.202 | SFF* | 35 | M60 x 1 | N/A | F 10.4 | VICO Imaging | N/A | Visible | |
| 0.202 | SFF* | 43.6 | M58 x 0.75 | 5.56 µm | F 10.4 | VICO Imaging | N/A | Visible | |
| 0.688 | 2" | 32 | M42 x 0.75 | 4.5 µm | F 12.9 | VICO Imaging | 5.0 | Visible | |
| 0.067 | 2/3" | 11.4 | C-Mount | 2.78 µm | F 4.9 | VICO Imaging | N/A | Visible | |
| 0.363 | SFF* | 35 | M58 x 0.75 | 4.76 µm | F 8.5 | VICO Imaging | N/A | Visible | |
| 0.324 | 1" | 44 | Nikon F-Mount | N/A | F 10.3 | VICO Imaging | N/A | Visible | |
| 0.363 | SFF* | 35 | M60 x 1 | N/A | F 8.5 | VICO Imaging | N/A | Visible | |
| 0.204 | 1" | 44 | Nikon F-Mount | N/A | F 10.4 | VICO Imaging | N/A | Visible | |
| 1.85 | 1" | 43.6 | M42 x 0.75 | N/A | F 8.5 | VICO Imaging | N/A | Visible | |
| 1.503 | SFF* | 35 | M42 x 0.75 | N/A | F 10.3 | VICO Imaging | N/A | Visible | |
| 1.503 | SFF* | 35 | M58 x 0.75 | N/A | F 10.3 | VICO Imaging | N/A | Visible | |
| 1.503 | SFF* | 35 | M72 x 0.75 | N/A | F 10.3 | VICO Imaging | N/A | Visible | |
| 1.038 | SFF* | 35 | M42 x 0.75 | N/A | F 17.1 | VICO Imaging | N/A | Visible | |
| 0.991 | SFF* | 35 | M58 x 0.75 | N/A | F 10.3 | VICO Imaging | N/A | Visible | |
| 0.908 | SFF* | 35 | M42 x 0.75 | N/A | F 17.1 | VICO Imaging | 47 | Visible | |
| 0.779 | SFF* | 43.6 | M58 x 0.75 | 8.33 µm | F 14.6 | VICO Imaging | N/A | Visible | |
| 0.139 | 4/3" | 23.6 | M58 x 0.75 | 2.66 µm | F 4.6 | VICO Imaging | 21 | Visible | |
| 0.545 | SFF* | 35 | M42 x 0.75 | N/A | F 7.3 | VICO Imaging | N/A | Visible | |
| 0.484 | SFF* | 35 | M42 x 0.75 | N/A | F 11.4 | VICO Imaging | N/A | Visible | |
| 0.55 | SFF* | 35 | Nikon F-Mount | N/A | F 10.3 | VICO Imaging | N/A | Visible | |
| 0.124 | 4/3" | 23.6 | M58 x 0.75 | 2.84 µm | F 4.6 | VICO Imaging | 21 | Visible | |
| 0.482 | 2/3" | 11 | C-Mount | N/A | F 6.9 | VICO Imaging | 5.0 | Visible | |
| 0.053 | 2/3" | 11.4 | C-Mount | 2.78 µm | F 4.9 | VICO Imaging | 5.0 | Visible | |
| 0.5 | 4/3" | 21.6 | Nikon F-Mount | N/A | F 9.4 | VICO Imaging | N/A | Visible | |
| 0.262 | 1" | 67.6 | M72 x 0.75 | 5.26 µm | F 8.8 | VICO Imaging | N/A | Visible | |
| 0.656 | 1" | 59.4 | M72 x 0.75 | N/A | F 34.7 | VICO Imaging | 47 | Visible | |
| 0.347 | 1" | 59 | M72 x 0.75 | 5.56 µm | F 8.7 | VICO Imaging | N/A | Visible | |
| 0.434 | 1" | 59 | M72 x 0.75 | 6.25 µm | F 10.7 | VICO Imaging | N/A | Visible | |
| 0.178 | 2/3" | 11.4 | C-Mount | 3.45 µm | F 12.2 | VICO Imaging | N/A | Visible | |
| 0.121 | 4/3" | 29 | M42 x 0.75 | 3.45 µm | F 6.8 | VICO Imaging | N/A | N/A | |
| 1.115 | 1.75" | 29 | M58 x 0.75 | 10 µm | F 15 | VICO Imaging | N/A | Visible | |
| 1.083 | SFF* | 39 | M58 x 0.75 | 11.63 µm | F 18.3 | VICO Imaging | N/A | Visible | |
| 0.243 | 2" | 32 | M42 x 1 | 4.5 µm | F 7.8 | VICO Imaging | N/A | Visible | |
| 0.066 | 1/1.8" | 9 | C-Mount | 2.5 µm | F 4.6 | VICO Imaging | 6.0 | Visible |
¿Por qué elegir VICO Imaging - DTCM?
Matrix design concept
DTCM is a complete series with more than 200 variants. On the basis of the matrix design, Vico can combine different object side parts with different image side parts to produce a specific bi-telecentric lens option.
Excellent resolution for large sensor sizes
The lenses have an excellent resolution down to pixel size of 2.27 µm. The DTCM-series support the highest pixel resolution among area scan cameras -with the 150 MP DTCM-series supporting the biggest area scan sensor size of 67.6 mm (3.76 µm).
Big FOV, low distortion
For sensors up to 67.7mm, the DTCM series achieves a large FOV of up to 300mm for each sensor size. This series has the lowest magnification of 0.024 and the highest MTF30 of 215. The bi-telecentric design minimises distortion to the absolute minimum.
¿Desea más información?
Póngase en contacto con nuestros expertos para obtener recomendaciones personalizadas.
