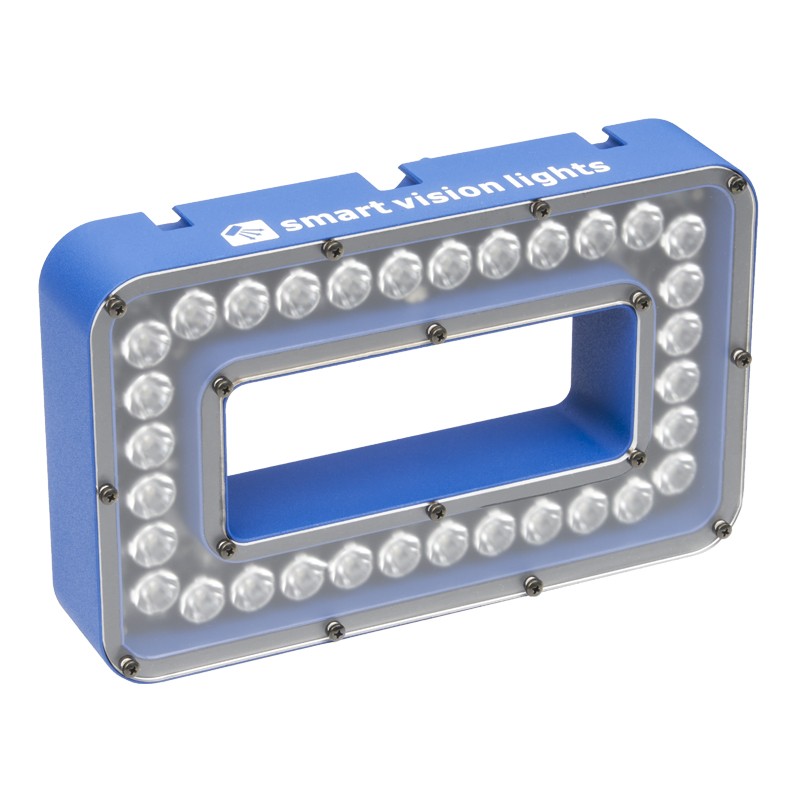

SVL JWL225-DO-WHI-N14
SKU#:
58800
Ring lights for logistics
Nota: ¡El producto real puede variar respecto a la imagen!
Las descargas se encuentran en la serie de productos correspondiente:
Smart Vision Lights - JWL225-DO
Contáctanos >
Solicitar precios
Se exceptúan errores y omisiones. Se aplican nuestros Términos y Condiciones Generales. Abastecemos exclusivamente a clientes corporativos.
Product Features
| Attributes | |
|---|---|
| Beam angle | 14° |
| Certificates | CE, FCC, REACH, RoHS, UL, WEEE |
| Connectors | M12 5-pin A-coded |
| Dominant wavelength (nm) | N/A |
| Emitting surface height (mm) | 56,5 |
| Emitting surface inner diameter (mm) | 145 |
| Emitting surface outer diameter (mm) | 227,5 |
| Emitting surface width (mm) | 227 |
| Input current (mA) | 1400 |
| Intensity control method | Dual Overdrive, Hidden Strobe |
| IP rating | IP65 |
| LED risk group | 0 (exempt) |
| Light colour | White |
| Light distribution | direct |
| Lighting geometry | ring light, square light |
| Lighting technique | frontlight |
| Mechanical depth (mm) | 45 |
| Mechanical height (mm) | 142 |
| Mechanical inner diameter (mm) | 145 |
| Mechanical outer diameter (mm) | 230 |
| Mechanical width (mm) | 230 |
| Power consumption (W) | 34 |
| Power supply voltage (VDC) | 24 |
| Smart | no |
| Supply mechanism | Voltage |
| Weight (kg) | 1.500 |
- IP Rating: IP65
- Working Distance: min. 500 mm - max. 2000 mm
- Illumination Type: Bright Field, Direct Lighting
- Mode: Dual OverDrive
- Wavelength: white, 625 nm (red)
- Lens Configuration: 10° (narrow), 14° (narrow standard), 30° (wide)
- Polariser possible
- Hidden Strobe selectable
