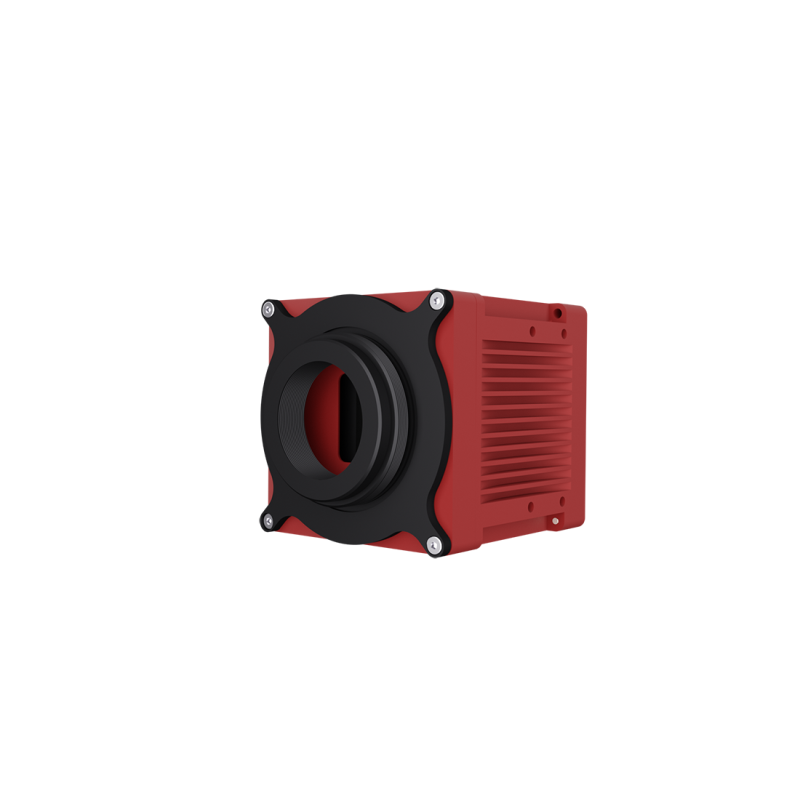

AT C6-3070-WARP-S8.5-GIGE
SKU#:
57003
High-resolution 3D measurement for harsh environments
Remarque : le produit réel peut différer de l'image !
Les téléchargements sont disponibles dans la série de produits correspondante:
Automation Technology - C6
Contactez nous
Demande de prix
Sous réserve d'erreurs et de modifications. Nos conditions générales de vente s'appliquent. Nous ne livrons que les entreprises clientes.
Product Features
| Attributes | |
|---|---|
| Active sensor size (horizontal, mm) | 8.45 |
| Active sensor size (vertical, mm) | 6.75 |
| Bit depth | 10 |
| Certificates | CE, RoHS |
| Configuration | camera |
| Connector a: video | M12 8-pin A-coded |
| Digitalisation | 10 bit A/D-converter |
| Dimension (depth, mm) | 55 |
| Dimension (height, mm) | 55 |
| Dimension (width, mm) | 55 |
| FoV (Field of View) | N/A |
| Resolution Horizontal (Px) | 3072 |
| Interface | Gigabit Ethernet |
| Interface configuration | 1 GigE |
| Laser Class | N/A |
| LED risk group | N/A |
| Lens mount | M42 x 1 |
| Numbers of connectors (Video) | 1 |
| Operating temperature (°C) | 0 - 50 |
| Pixel size (µm) | 6.6 |
| Power consumption (W) | 12 |
| Scan Rate (Hz) | 9145 |
| Scan type | laser triangulation |
| Sensor format | N/A |
| Sensor size diagonal (mm) | 21.37 |
| Software CameraSuite | yes |
| Software driver CVB | yes |
| Storage temperature (°C) | -30 - 70 |
| Resolution Vertical (Px) | 1020 |
| Weight (kg) | 0.200 |
| Working distance (mm) | N/A |
| X resolution (mm) | 29.8 |
| Z resolution (mm) | 35.2 |
- Camera designed for flexible laser triangulation setups with user-defined lasers and lenses
- Four different sensor resolutions available (1280, 2040, 3070, 4090)
- High industrial protection class IP67
- Available with various lens mounts and Scheimpflug adapters
- Lens protection tubes
- Compact size: 55mm x 55mm x 55 mm
- Dynamic range with HDR-3D up to 90 dB
