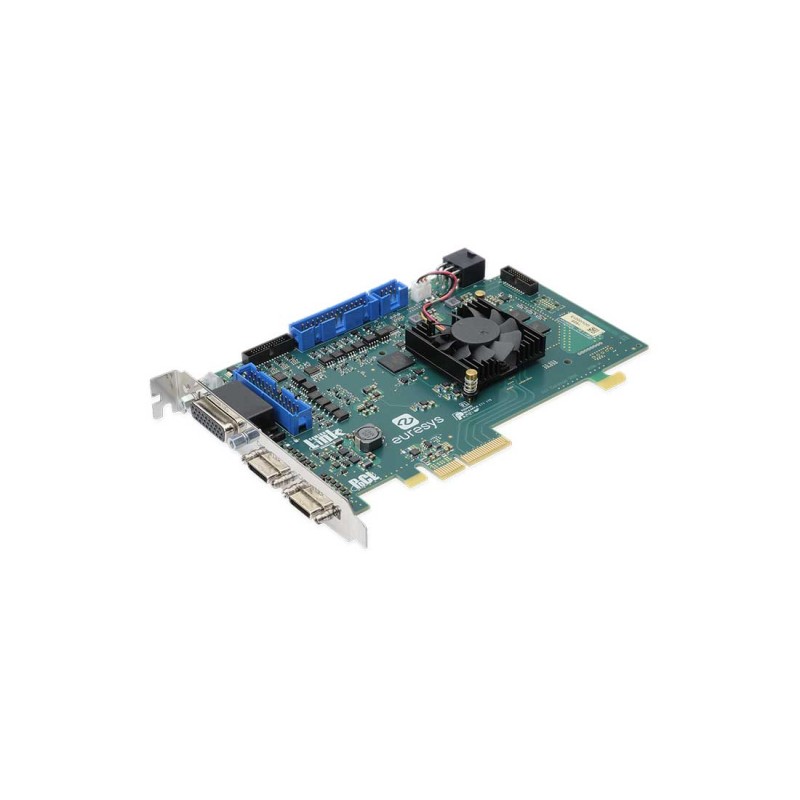

EURESYS GRABLINK DUO
SKU#:
54968
High-performance frame grabber for one Full- or two Base-configuration CameraLink cameras.
Remarque : le produit réel peut différer de l'image !
Les téléchargements sont disponibles dans la série de produits correspondante:
Euresys - Grablink Duo
List Price
Your Discount
Your Price
835,00 €
Product not available in your country
Prix et disponibilité sur demande
Contactez nous
Demande de prix
Sous réserve d'erreurs et de modifications. Nos conditions générales de vente s'appliquent. Nous ne livrons que les entreprises clientes.
Product Features
| Attributes | |
|---|---|
| Interface/Standard | CameraLink |
| Inputs | Base, Full, Medium |
| Connectors | 2* SDR |
| Number of cameras (max) | 2 |
| Onboard processing | no |
| PC: Internal Expansion Bus | PCIe x4 (Gen2) |
| Manufacturer | Euresys |
| Certificates | CE, REACH, RoHS |
| Design (plug-in card/box) | Interface board |
| Dimensions (LxH, mm) | 167.64 x 111.15 |
| I/Os | yes |
| Numbers of connectors (Video) | 2 |
| Onboard memory (MB) | 512 |
| Operating system | Linux, Windows |
| Operating temperature (°C) | 0 - 50 |
| Pixel clock (MHz) | 80 |
| Power over data interface | yes |
| Programmable | no |
| Signal | analogue |
- For two independent CameraLink Base configuration cameras or one CameraLink Base, Medium, Full, 72-bit or 80-bit camera (10 x 8-bit taps)
- CameraLink clock frequency: From 20 MHz up to 85 MHz
- PCIe Gen 2 x4 Bus
- Cable: Extended Camera Link Cable Operation (ECCO, ECCO+), which allows up to 2 times extended cable length beyond the Camera Link specification
- Direct transfer: High-performance DMA
- Bandwidth: Up to 1700 MB/s
- Onboard memory: Up to 512 MB for image buffering
- Power supply: Power over CameraLink (PoCL)
- Trigger: Area and line scan triggering capabilities
- I/O: Feature-rich set of digital I/O lines
- Other: Memento Event Logging Tool
- Operating system: Windows 7, 8.1, 10, 11 (64-bit), Linux 64-bit and MacOS 64-bit
- Software: Comprehensive SDK environment (Multicam)
- Operating temperature: 0 to +50 °C
