NEOUSYS NUVO-8108GC-XL
SKU#:
50141

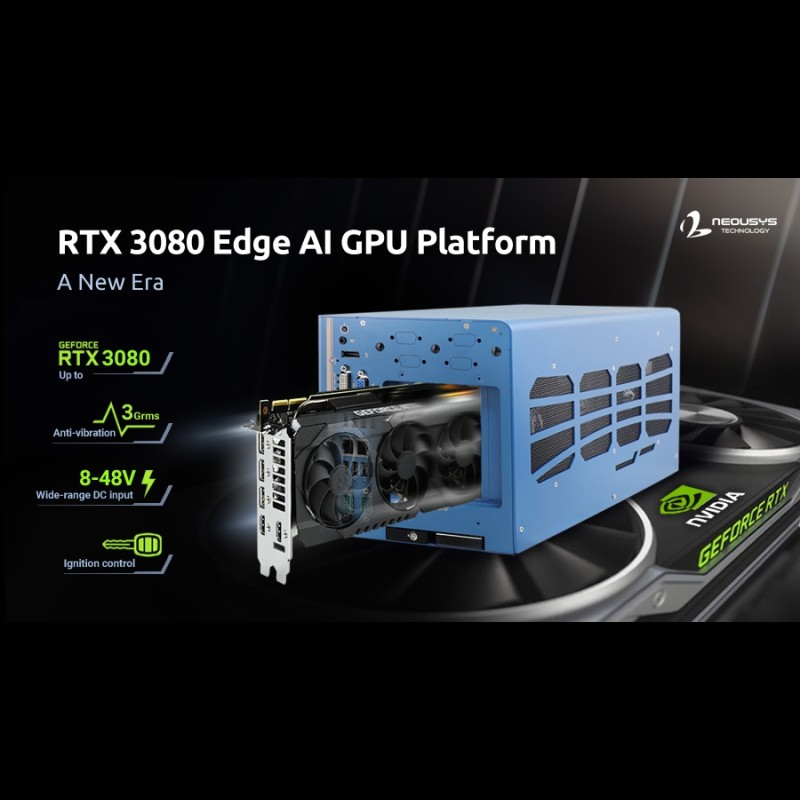

Industrial-grade GPU computing edge AI platform supporting NVIDIA RTX 30
Remarque : le produit réel peut différer de l'image !
Les téléchargements sont disponibles dans la série de produits correspondante:
Neousys - Nuvo-8108GC-XL
Contactez nous
Demande de prix
Sous réserve d'erreurs et de modifications. Nos conditions générales de vente s'appliquent. Nous ne livrons que les entreprises clientes.
Product Features
| Attributes | |
|---|---|
| Dimension (depth, mm) | 388 |
| Dimension (height, mm) | 198 |
| Dimension (width, mm) | 193 |
| Operating system | Several Systems |
| Operating temperature (°C) | -25 - 60 |
| PC: Graphics card type | dedicated, integrated |
| PC: Internal Expansion Bus | mini PCIe, PCIe x16 (Gen3), PCIe x8 (Gen3) |
| PC: I/O Interface | Audio, DisplayPort, DVI-D, Gigabit Ethernet, RS-232, RS-422, RS-485, USB 2.0, USB 3.1 Gen 1, USB 3.1 Gen 2, VGA |
| PC: Processor type | Intel Core i3, Intel Core i5, Intel Core i7, Intel Xeon |
| PC: Product type | wallmount |
| PC: Properties | Rugged |
| PC: RAM (GB) | 128 |
| PC: RAM max. (GB) | 128 |
| PC: RAM type | DDR4 |
| PC: Storage capacity (GB) | 128 |
| PC: Storage interface | M.2, mSATA full-size, SATA |
| Power supply voltage (VDC) | 8 - 48 |
| Weight (kg) | 5.200 |
- Processor: Supports Intel Xeon E or 9th/ 8th Gen Core i7/ i5 LGA1151 CPU
- Memory: Up to 128GB ECC/ non-ECC DDR4 2133 (4x SODIMM)
- Graphic card: Supports an NVIDIA RTX 30 series graphics card up to RTX 3080
- Display: 1x VGA, 1x DVI-D, 1x DisplayPort
- Interface GigE: 2x Gigabit Ethernet
- Interface USB: 4x USB 3.1 Gen2 (10 Gbps) , 4x USB 3.1 Gen1 (5 Gbps) , 1x USB 2.0 (internal for dongle use)
- Storage: 1x hot-swappable HDD tray for 2.5" HDD/ SSD installation 1x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1
- Expansion interfaces: Two x16 (8-lanes), two x8 (4-lanes), Gen3 PCIe slots for add-on cards; 1x M.2 M key, 1x M.2 B key and 2x full-size mini-PCIe sockets
- Miscellaneous: Patented thermal design for -25°C to 60°C rugged operation
- Miscellaneous: Patented damping brackets to withstand 3 Grms vibration
- Power supply: 8~48V wide-range DC input with built-in ignition power control
- Dimension: 193 mm (W) x 388 mm (D) x 198 mm (H)
- Weight: 5.2 kg
