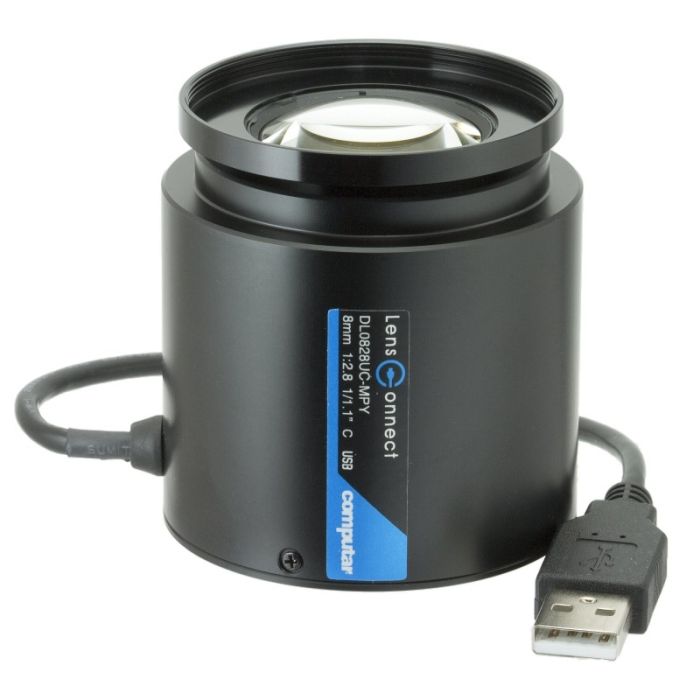

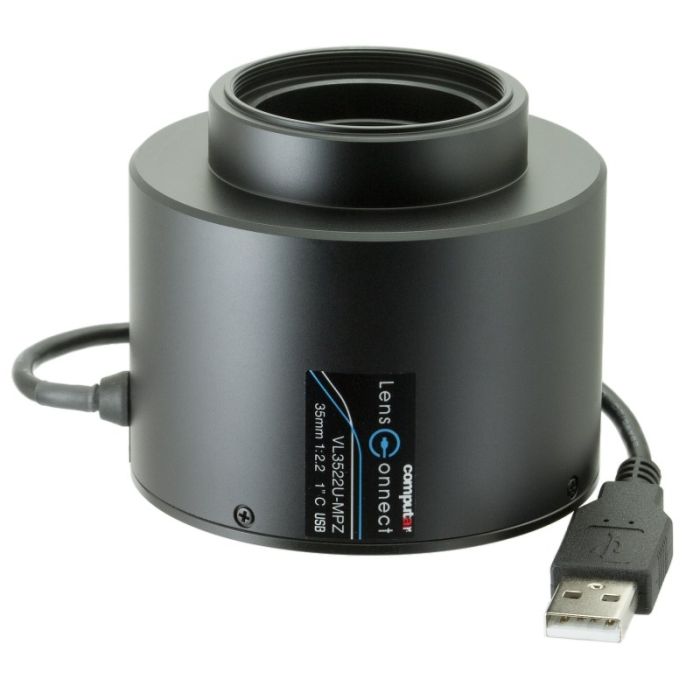

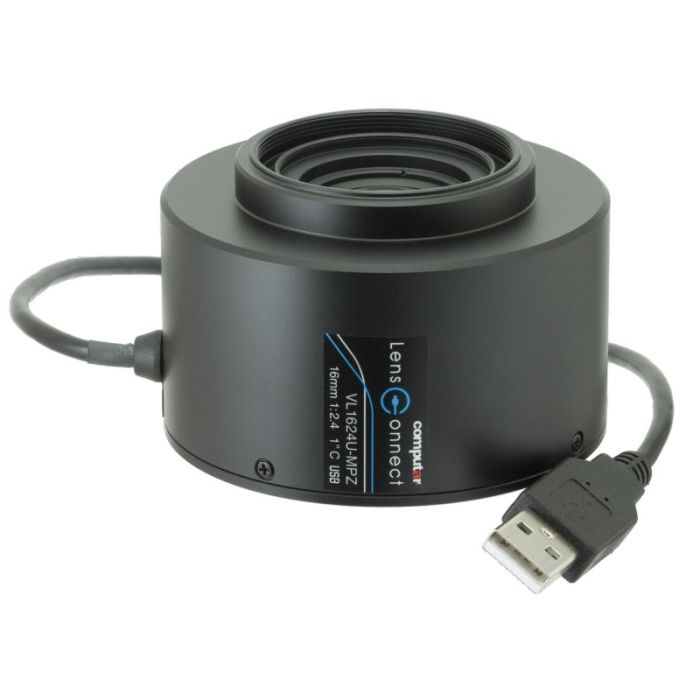

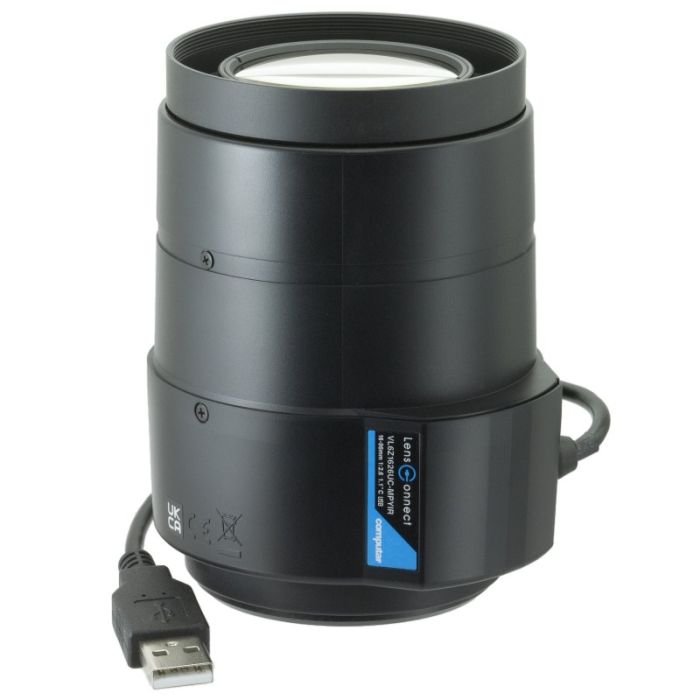

Computar - LensConnect
Remote control lens series with USB interface.
Key Features
- Focus, iris and zoom are controlled via USB (zoom adjustment for varifocal models only)
- Easy operation where manual adjustment is not possible
- Stepper motors for precise focus
- Plug and play for easy deployment
- Suitable for large-format sensors (IMX183)
- Floating focus design for ultra-high resolution
- Fixed 8 mm, 12 mm, 16 mm, 25 mm, 35 mm, 50 mm and 75 mm
- Varifocal 16 mm-96 mm, 9 mm-50 mm and 4 mm-10 mm
Ressources
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nom de produit | Focal length (mm) | Sensor size diagonal (mm) | Camera mount (optics) | Min. pixel size | Aperture | M.O.D. (mm) | Wavelength range | Cable Interface | Filter thread | Resolution | Sensor format |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 15.8 | C-Mount | 2 µm | F 2.6 | 100 | Visible | USB3 | M82 x 0.75 | 20 | 1" | |
| 16 | 15.8 | C-Mount | 2 µm | F 2.4 | 100 | Visible | USB3 | M43 x 0.75 | 20 | 1" | |
| 16 | 14.4 | C-Mount | 2 µm | F 2.3 | 110 | Visible | USB3 | M35.5 x 0.5 | 12.0 | 1/1.1" | |
| 12 | 15.8 | C-Mount | 2 µm | F 2.6 | 100 | Visible | USB3 | M46 x 0.75 | 20 | 1" | |
| 75 | 15.8 | C-Mount | 2 µm | F 3.1 - F 16 | 250 | Visible | USB3 | M43 x 0.75 | 20 | 1" | |
| 35 | 15.8 | C-Mount | 2 µm | F 2.2 | 200 | Visible | USB3 | M43 x 0.75 | 20 | 1" | |
| 8 | 14.4 | C-Mount | 2 µm | F 2.8 | 100 | Visible | USB3 | M52 x 0.75 | 12.0 | 1/1.1" | |
| 12 | 14.4 | C-Mount | 2 µm | F 2.4 | 100 | Visible | USB3 | M35.5 x 0.5 | 12.0 | 1/1.1" | |
| 35 | 14.4 | C-Mount | 2 µm | F 2.5 | 160 | Visible | USB3 | M30.5 x 0.5 | 12.0 | 1/1.1" | |
| 25 | 14.4 | C-Mount | 2 µm | F 2.3 | 120 | Visible | USB3 | M30.5 x 0.5 | 12.0 | 1/1.1" | |
| 50 | 14.4 | C-Mount | 2 µm | F 2.8 | 200 | Visible | USB3 | M30.5 x 0.5 | 12.0 | 1/1.1" | |
| 25 | 15.8 | C-Mount | 2 µm | F 2 | 150 | Visible | USB3 | M46 x 0.75 | 20 | 1" | |
| 50 | 15.8 | C-Mount | 2 µm | F 2.4 | 200 | Visible | USB3 | M43 x 0.75 | 20 | 1" |
Pourquoi choisir Computar - LensConnect ?
Remote zoom, focus or iris adjustment
The LensConnect series of motorised lenses are designed to be powered and controlled via USB. This innovative plug-and-play range of lenses allows remote adjustment of the zoom (for varifocal models only), focus, or iris and comes with a simple set-up software compatible with Windows or Linux.
Ultra-high resolution, precise focus control and high repeatability
Remote control is easy to achieve - even without any prior knowledge of the lens. The floating focus design delivers ultra-high resolution from near to far, and stepper motors provide precise focus control and high repeatability.
Suitable for a wide range of applications
LensConnect is ideal for a wide range of applications, including warehouses and factories. The lenses provide optimum inventory management and control, enabling users to fulfil orders quickly and efficiently.
