GigE Vision cables standard
High quality ethernet cables with RJ-45 and M12-X-coded connectors are an essential accessory for industrial GigE-Vision 1G/5G/10G applications. The cable range includes standard, drag chain and robotic suitable cables with different possible variants of cable directions in various lengths for demanding environments or application requirements.
Key Features
- Industrial Ethernet cables: category CAT5e, CAT6 or CAT6a

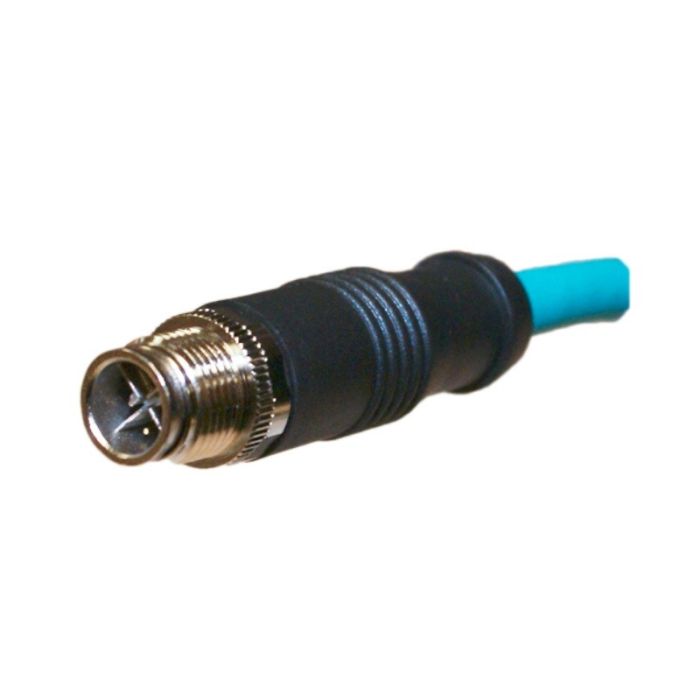

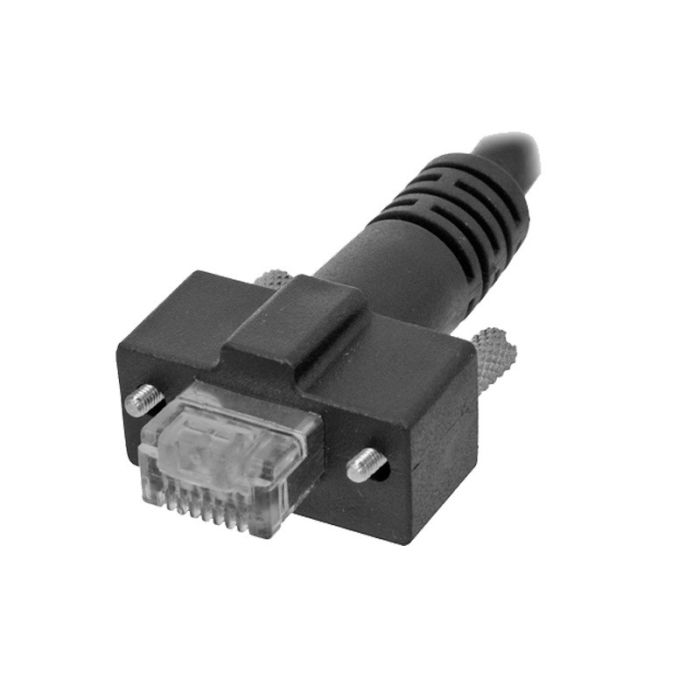

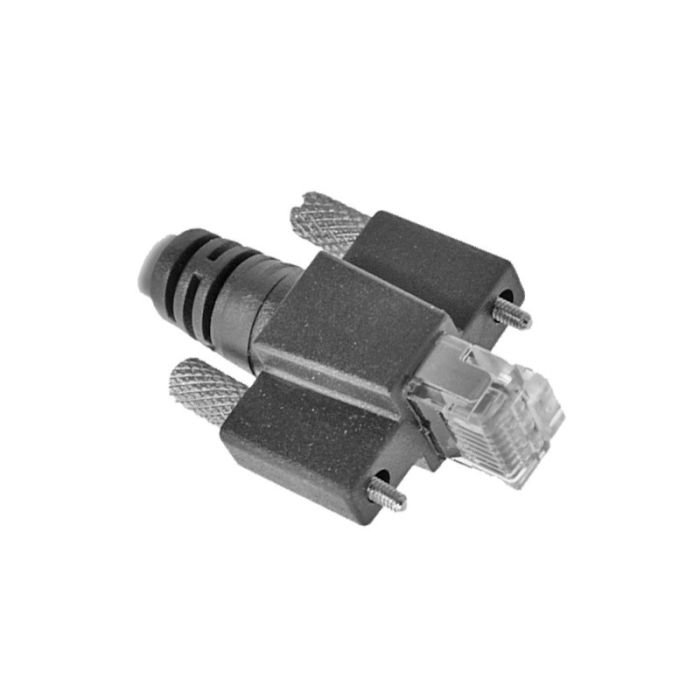

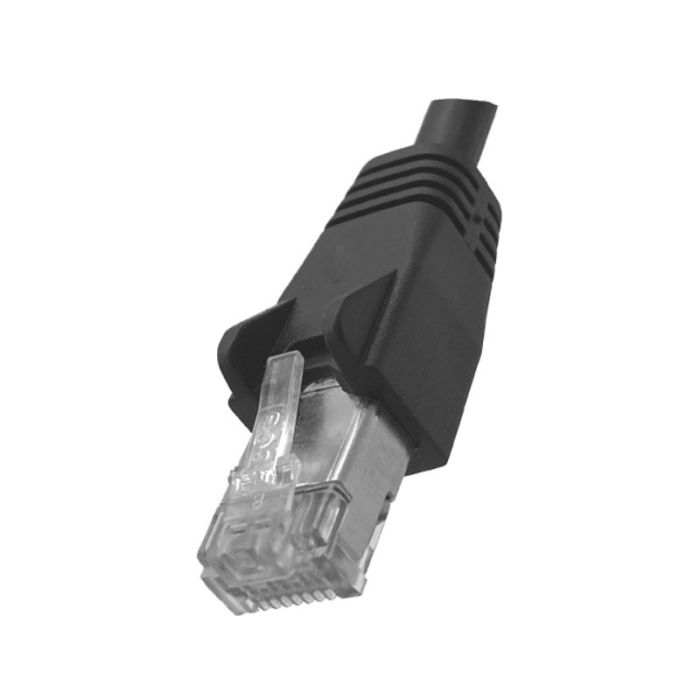

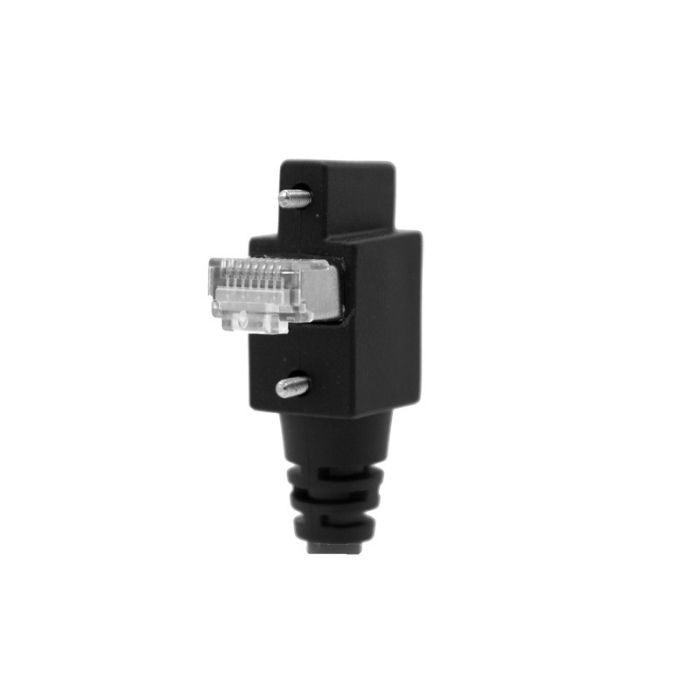

- Common standard connector versions: RJ45 (straight friction fit) / RJ-45 screw-type (vertical/horizontal) and M12 X-Coded
- Miscellaneous: large variations of connector combinations
- Moulded connectors

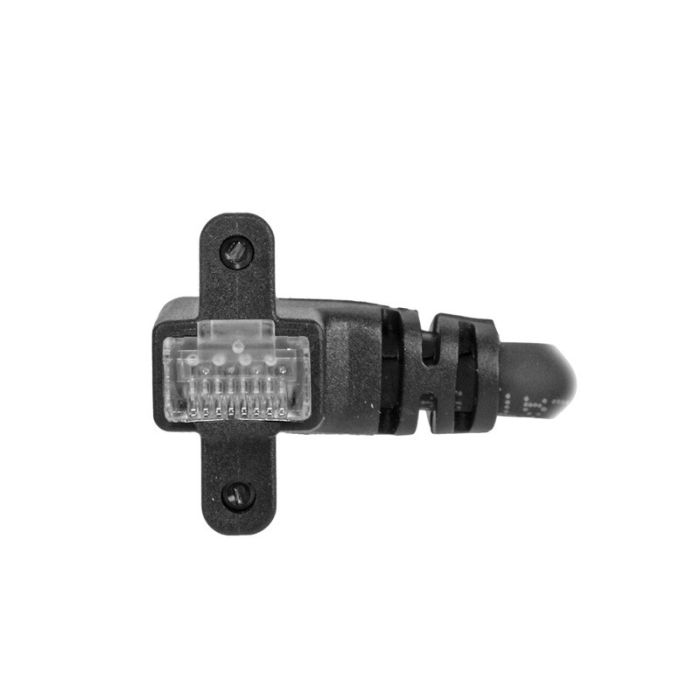

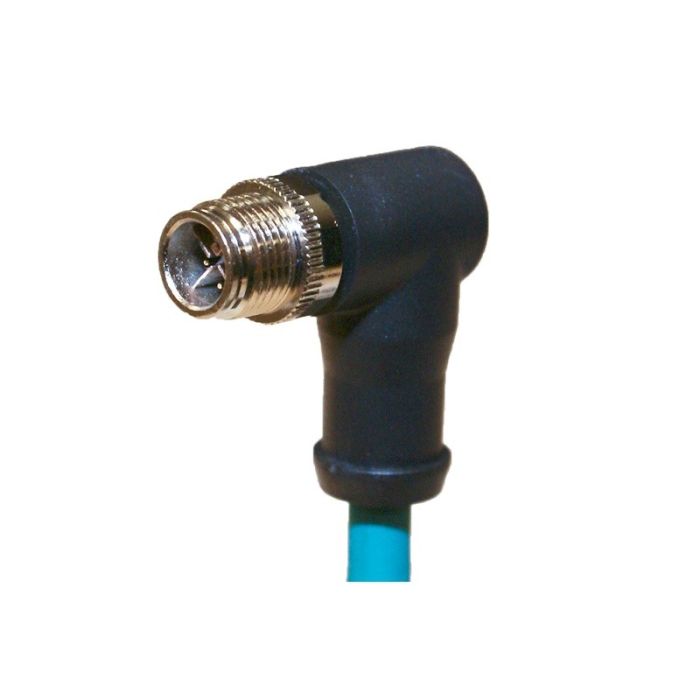

- Right angle connector versions
- Variants suitable for drag chains, robotic applications and harsh environment
- long distance version for extended length > 50 mtr.
- Customised variants on request
- Cables 100% tested & certified
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nom de produit | Cable Interface | Cable connector A | Cable connector B | Cable length (m) | Cable type | Manufacturer |
|---|---|---|---|---|---|---|
| Gigabit Ethernet | 01) RJ45 | 01) RJ45 | 30 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 03) horizontal RJ45 with thumbscrews | 10 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 03) horizontal RJ45 with thumbscrews | 3 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 03) horizontal RJ45 with thumbscrews | 20 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 02) vertical RJ45 with thumbscrews | 3 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 02) vertical RJ45 with thumbscrews | 5 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 02) vertical RJ45 with thumbscrews | 10 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 02) vertical RJ45 with thumbscrews | 15 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 02) vertical RJ45 with thumbscrews | 20 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 02) vertical RJ45 with thumbscrews | 1 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 02) vertical RJ45 with thumbscrews | 25 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 01) RJ45 | 35 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 02) vertical RJ45 with thumbscrews | 50 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 02) vertical RJ45 with thumbscrews | 30 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 01) RJ45 | 25 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 01) RJ45 | 15 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 03) horizontal RJ45 with thumbscrews | 2 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 02) vertical RJ45 with thumbscrews | 2 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 03) horizontal RJ45 with thumbscrews | 1 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 03) horizontal RJ45 with thumbscrews | 25 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 03) horizontal RJ45 with thumbscrews | 50 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 01) RJ45 | 10 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 01) RJ45 | 5 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 01) RJ45 | 3 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 01) RJ45 | 2 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 02) vertical RJ45 with thumbscrews | 40 | standard | CEI | |
| Gigabit Ethernet | 03) horizontal RJ45 with thumbscrews | 21) RJ45 slim line | 10 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 01) RJ45 | 20 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 03) horizontal RJ45 with thumbscrews | 15 | standard | CEI | |
| Gigabit Ethernet | 03) horizontal RJ45 with thumbscrews | 21) RJ45 slim line | 5 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 03) horizontal RJ45 with thumbscrews | 30 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 01) RJ45 | 40 | standard | CEI | |
| Gigabit Ethernet | 03) horizontal RJ45 with thumbscrews | 21) RJ45 slim line | 1 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 03) horizontal RJ45 with thumbscrews | 35 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 03) horizontal RJ45 with thumbscrews | 40 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 01) RJ45 | 45 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 02) vertical RJ45 with thumbscrews | 35 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 02) vertical RJ45 with thumbscrews | 45 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 15) M12 male X-coded | 5 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 15) M12 male X-coded | 1 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 15) M12 male X-coded | 10 | standard | CEI | |
| Gigabit Ethernet | 01) RJ45 | 15) M12 male X-coded | 20 | standard | CEI |
Pourquoi choisir GigE Vision cables standard ?
The right network cable categories (CATX)
At full speed standard Gigabit Ethernet CAT6/6a cables work up to a length of 70 to 80 m without additional switches, we have tested some configurations up to lengths of 100 m. For standard Gigabit Ethernet CAT5 cables STEMMER IMAGING recommends a maximum cable length of 40 m. Our general recommendation is to use CAT6 or higher cables wherever possible.
Various cable types available
STEMMER IMAGING can provide track, robot and high temperature resistant cables with numerous connector options - helping you save time when finding the right product for your application.
Robust cable materials
Outer sheath made from PUR guarantees a high level of mechanical resistance with respect to impact resistance, scuff resistance, thermal resilience and resilience to oils and coolants. Cables with particular specifications such as halogen-free, silicone-free and CFC free are also available.
