Tamron - MA23F-V
The Tamron MA23F-V series is engineered for 2/3" sensors with 2.74 µm pixel size, delivering up to 8MP resolution and ultra-low distortion (TV < 0.06%) in a ruggedized and compact 29 mm housing.
Key Features
- Maximum sensor size: 2/3"
- Minimum pixel size: 2.74 µm
- Camera mount: C-Mount
- Focal length: 8, 12, 16, 25, 35 and 50 mm
- Resolution: up to 8 MP
- Ultra-low distortion: TV distortion < 0.06%
- Close-up imaging: high contrast/resolution at 0.1 m
- Ruggedized: resistant to 10G shocks and vibrations
- High transmission: maintained up to 1000 nm
- Fixed set screws: consistent aperture and focus control
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nom de produit | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Magnification (max) | Manufacturer | Min. pixel size | M.O.D. (mm) | Resolution | Sensor format | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

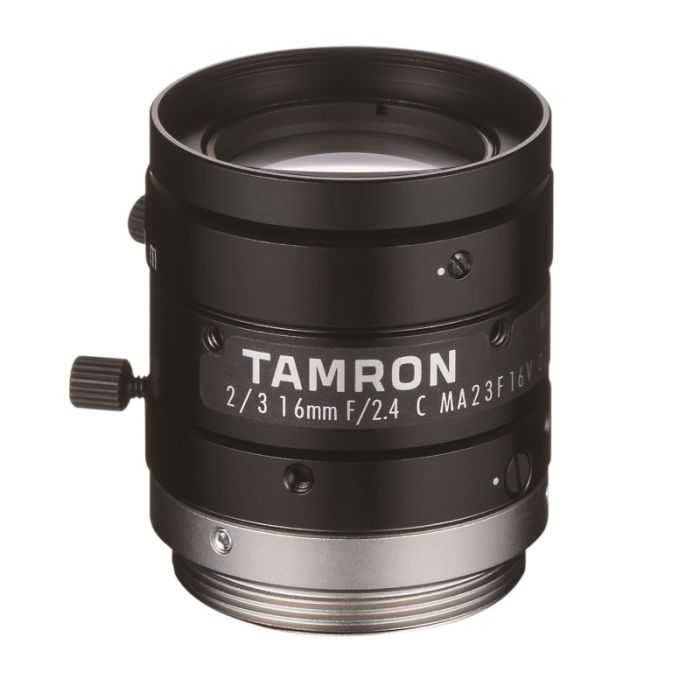

| F 2.4 - F 16 | C-Mount | M27 x 0.5 | 16 | N/A | Tamron | 2.74 µm | 100 | 8.0 | 2/3" | 11 | Visible | |
| F 2.4 | C-Mount | M34 x 0.5 | 8 | N/A | Tamron | 2.74 µm | 100 | 8.0 | 2/3" | 11 | Visible | |

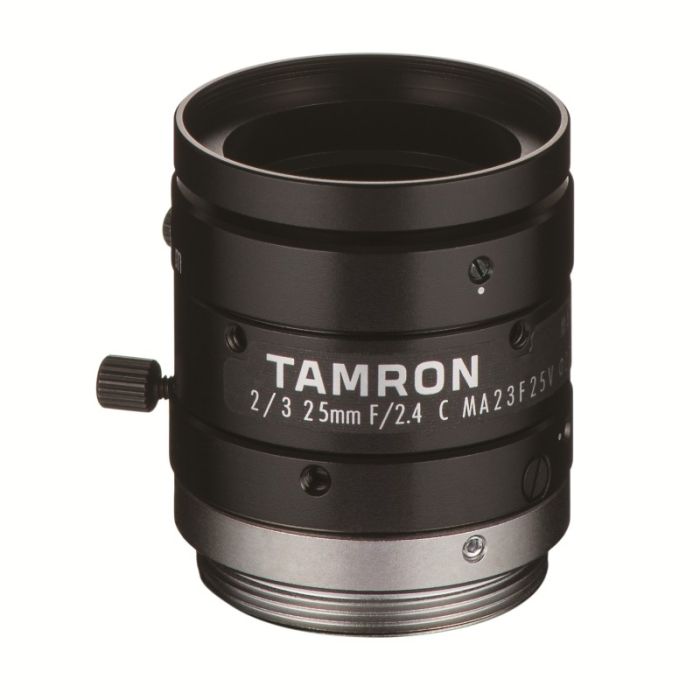

| F 2.4 | C-Mount | M27 x 0.5 | 25 | N/A | Tamron | 2.74 µm | 100 | 8.0 | 2/3" | 11 | Visible | |

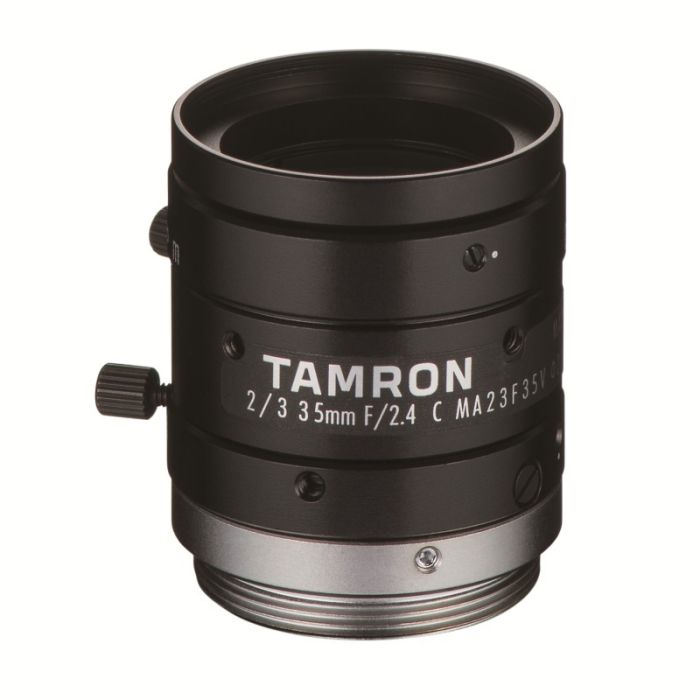

| F 2.4 | C-Mount | M27 x 0.5 | 35 | N/A | Tamron | 2.74 µm | 200 | 8.0 | 2/3" | 11 | Visible | |

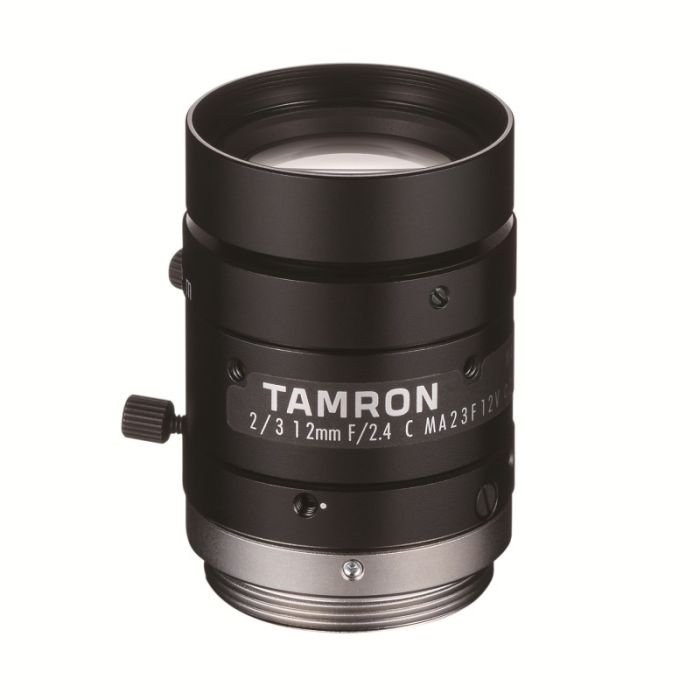

| F 2.4 - F 16 | C-Mount | M27 x 0.5 | 12 | N/A | Tamron | 2.74 µm | 100 | 8.0 | 2/3" | 11 | Visible | |

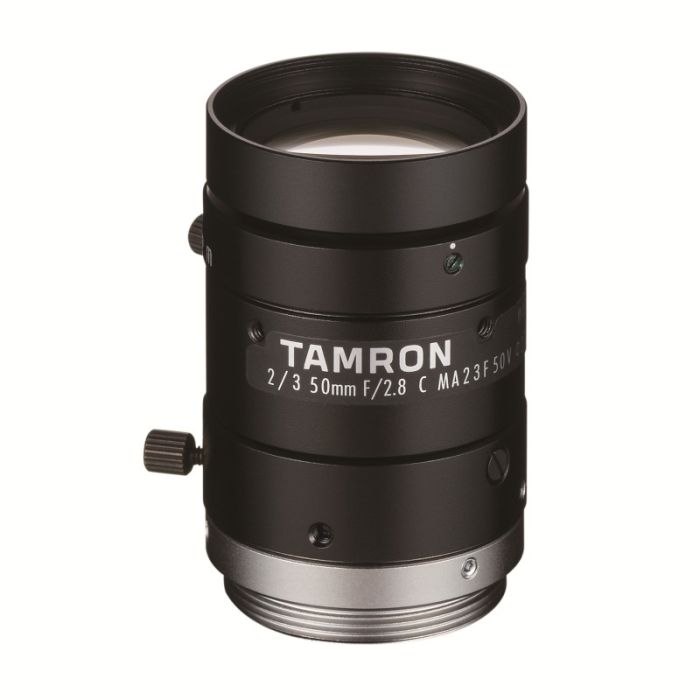

| F 2.8 - F 16 | C-Mount | M27 x 0.5 | 50 | N/A | Tamron | 2.74 µm | 300 | 8.0 | 2/3" | 11 | Visible |
