Teledyne DALSA - AxCIS

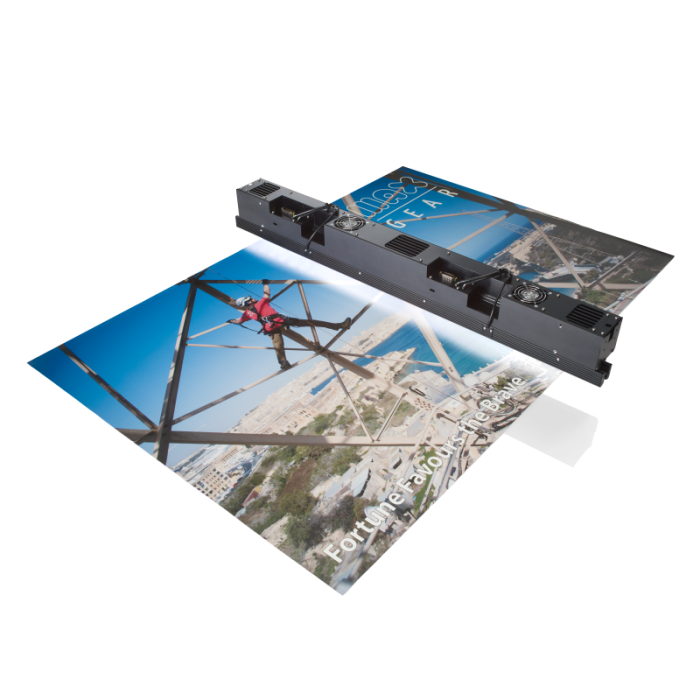

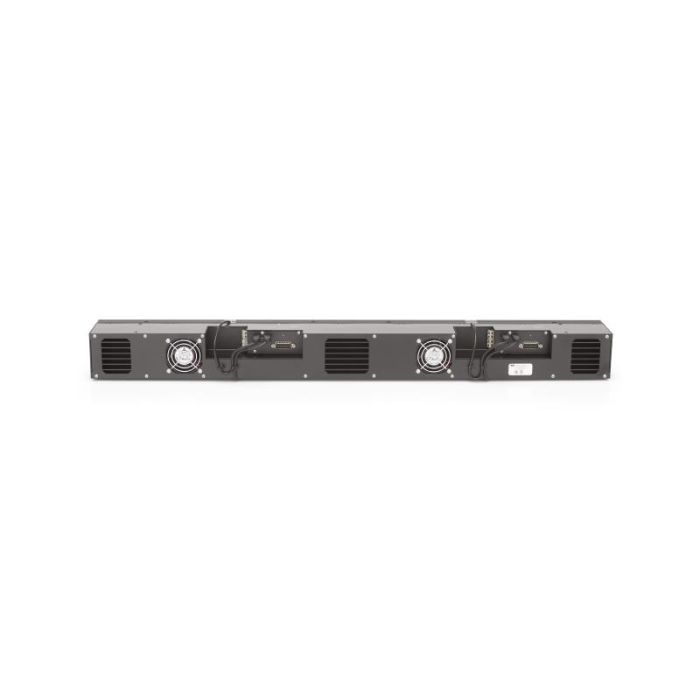

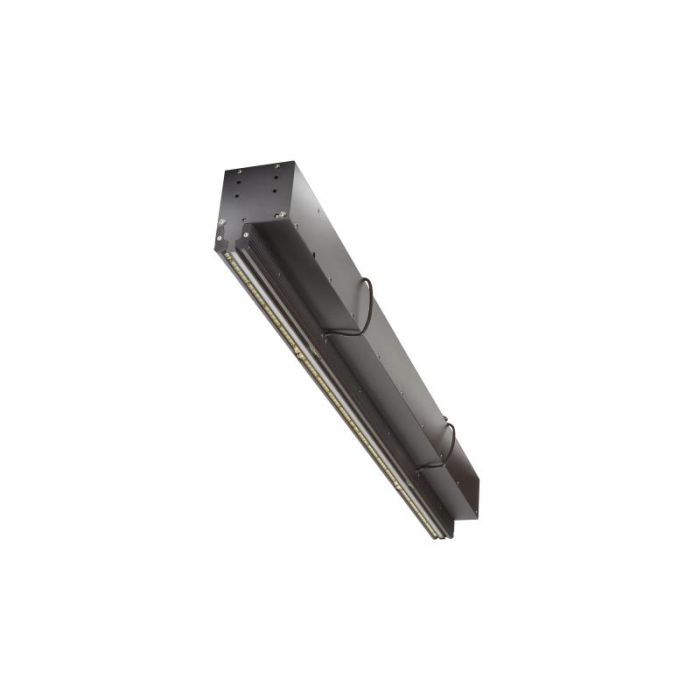

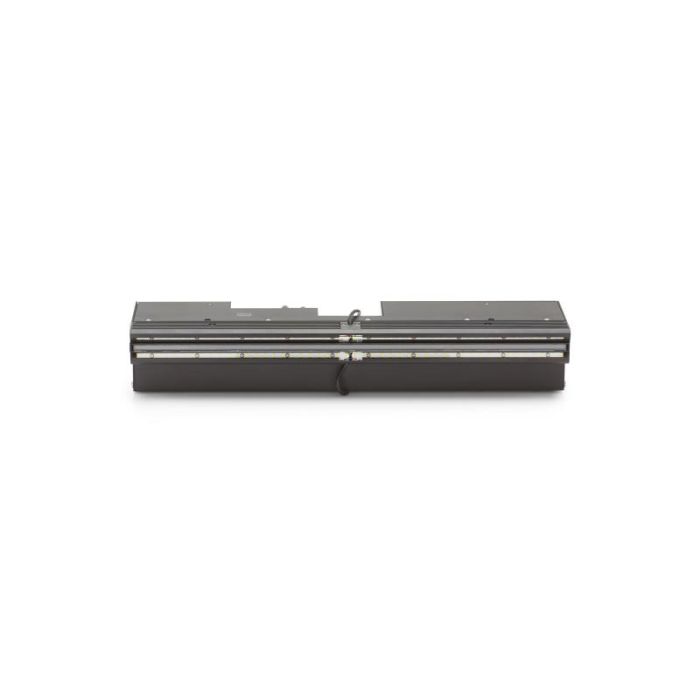

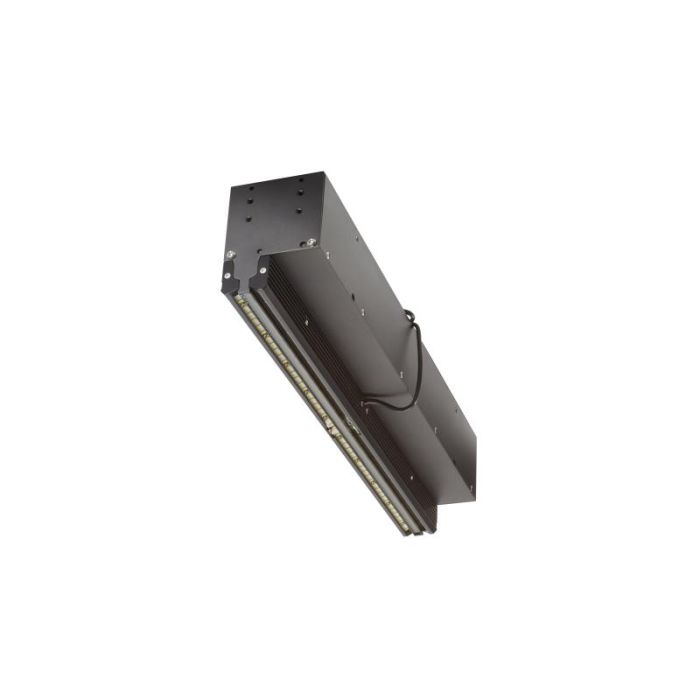

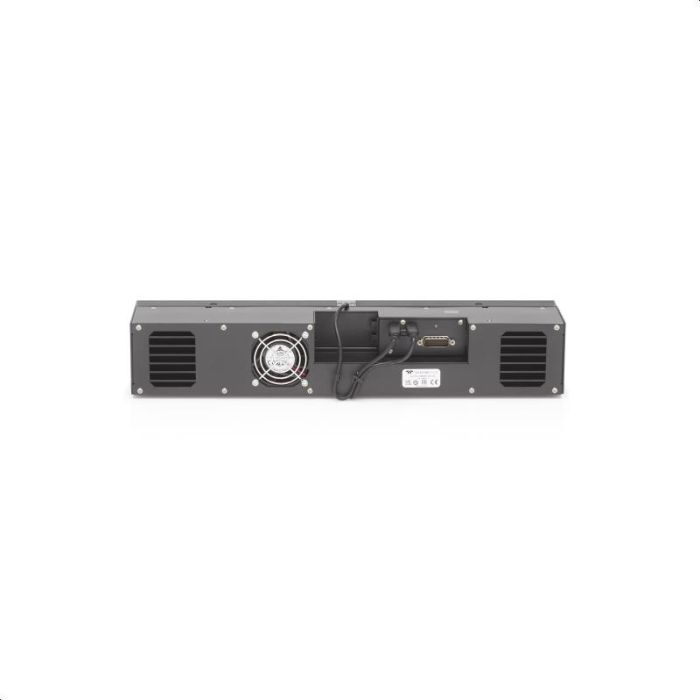

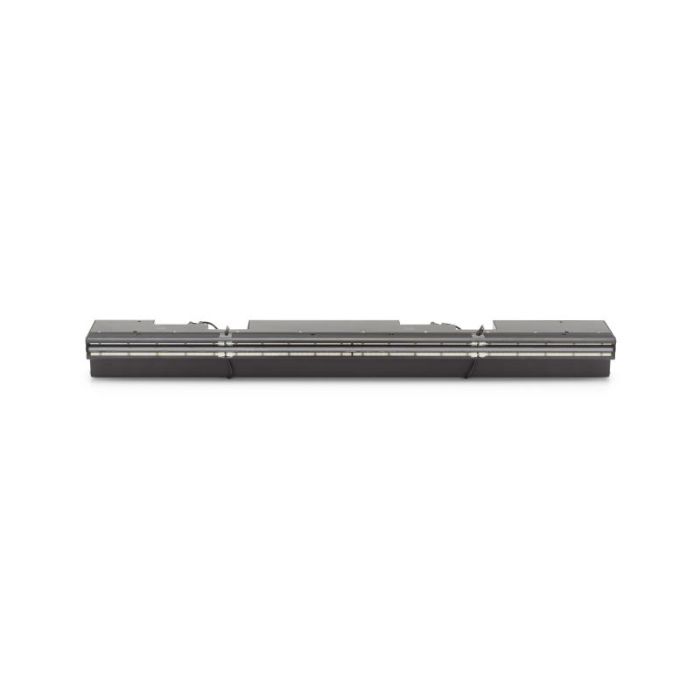

The Teledyne Vision Solutions AxCIS Series delivers high-speed, high-resolution line scan imaging in a fully integrated compact package. Combining sensors, optics, and illumination into a single Contact Image Sensor (CIS), AxCIS simplifies machine vision integration while reducing overall system cost. Designed for demanding inspection environments, the series offers exceptional image quality, seamless imaging, and reliable performance even in space-constrained industrial systems.
More product highlights about Teledyne DALSA AxCIS
Key Features
- Fully integrated Contact Image Sensor (CIS) design
- Combines sensors, lenses, and lighting in one module
- Available in monochrome and color models
- Up to 120 kHz mono line rate
- Up to 60 kHz x 3 line rate for color imaging
- 900 dpi resolution with 28 µm pixel size
- Highly sensitive multiline CMOS sensor technology
- HDR imaging capability with dual exposure mode
- 100% seamless imaging without interpolation
- Staggered sensor architecture with no missing pixels
- Compact form factor for limited vertical clearance
- Camera Link HS SFP+ fiberoptic interface
- Reliable data transmission over cable lengths up to 300 m
- Single 24V power supply operation
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nom de produit | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Resolution Horizontal (Px) | Interface | Lens mount | Manufacturer | Max. line freq. (kHz) | Pixel size (µm) | Scan type | Sensor type | Wavelength range | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 75 | 641.8 | 21440 | CameraLink HS | None | Teledyne DALSA | 60 | 28 | line | CMOS | Colour; Visible | N/A | |
| 100 | 75 | 441.8 | 14304 | CameraLink HS | None | Teledyne DALSA | 60 | 28 | line | CMOS | Colour; Visible | N/A | |
| 100 | 75 | 841.8 | 28608 | CameraLink HS | None | Teledyne DALSA | 60 | 28 | line | CMOS | Colour; Visible | N/A | |
| 100 | 75 | 441.8 | 14304 | CameraLink HS | None | Teledyne DALSA | 120 | 28 | line | CMOS | Monochrome; Visible | N/A | |
| 100 | 75 | 741.8 | 25204 | CameraLink HS | None | Teledyne DALSA | 120 | 28 | line | CMOS | Monochrome; Visible | N/A | |
| 100 | 75 | 841.8 | 28608 | CameraLink HS | None | Teledyne DALSA | 120 | 28 | line | CMOS | Monochrome; Visible | N/A | |
| 100 | 75 | 1541.8 | 53600 | CameraLink HS | None | Teledyne DALSA | 120 | 28 | line | CMOS | Monochrome; Visible | N/A | |
| 100 | 75 | 441.8 | 14304 | CameraLink HS | None | Teledyne DALSA | 60 | 28 | line | CMOS | Colour; Visible | N/A | |
| 100 | 75 | 641.8 | 21440 | CameraLink HS | None | Teledyne DALSA | 60 | 28 | line | CMOS | Colour; Visible | N/A | |
| 100 | 75 | 841.8 | 28608 | CameraLink HS | None | Teledyne DALSA | 60 | 28 | line | CMOS | Colour; Visible | N/A | |
| 100 | 75 | 441.8 | 14304 | CameraLink HS | None | Teledyne DALSA | 120 | 28 | line | CMOS | Monochrome; Visible | 3.220 | |
| 100 | 75 | 841.8 | 28608 | CameraLink HS | None | Teledyne DALSA | 120 | 28 | line | CMOS | Monochrome; Visible | N/A |
Pourquoi choisir Teledyne DALSA - AxCIS ?
Fully Integrated Design
The AxCIS series combines sensors, optics, and illumination into a single compact module for simplified system integration. This reduces engineering complexity and minimizes installation effort compared to conventional multi-component systems. Customers benefit from faster deployment, lower integration costs, and improved reliability in industrial inspection environments.
Exceptional Imaging Precision
With up to 900 dpi resolution and advanced CMOS sensor technology, AxCIS delivers highly detailed and accurate imaging performance. The seamless pixel architecture eliminates missing pixels and interpolation artifacts for precise defect detection. Customers gain improved inspection accuracy and greater confidence in quality control processes.
Native RGB Color Accuracy
AxCIS delivers native RGB color imaging at line rates of up to 60 kHz while maintaining a high resolution of 900 dpi and a 28 µm pixel size. This unique combination of speed and image detail enables reliable detection of the smallest color variations, print defects, and material inconsistencies without sacrificing throughput. Customers benefit from higher inspection accuracy, reduced false rejects, and improved product quality, even in the most demanding high-speed production environments. Its seamless imaging architecture ensures that every pixel contains real image data, providing consistent and trustworthy inspection results across the entire field of view.
Advanced HDR Capability
Dual exposure HDR imaging improves visibility in scenes with highly reflective or high-contrast materials. The technology enhances defect detectability across difficult inspection conditions such as battery and metallic surface inspection. Customers achieve more consistent image quality and reduced inspection errors in challenging applications.
Compact Space Efficiency
The slim integrated design allows installation in systems with limited vertical clearance and tight mechanical constraints. AxCIS eliminates the need for complex optical alignment and bulky external lighting systems. Customers can optimize machine layouts while reducing mechanical integration challenges and footprint requirements.
High-Speed Reliable Throughput
The Camera Link HS SFP+ fiberoptic interface supports high-speed image transmission over long cable distances with strong EMI immunity. This ensures stable and reliable operation even in harsh industrial environments. Customers benefit from uninterrupted data flow, flexible system architecture, and dependable performance in demanding production lines.
