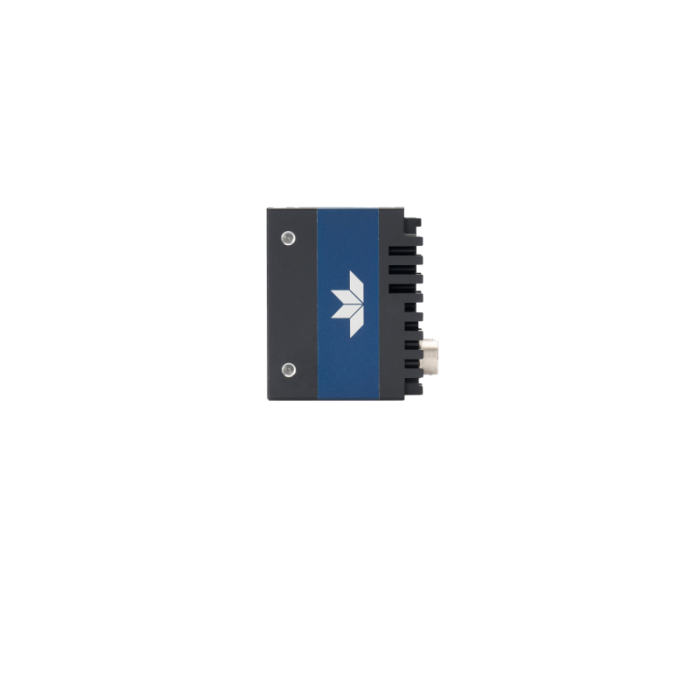

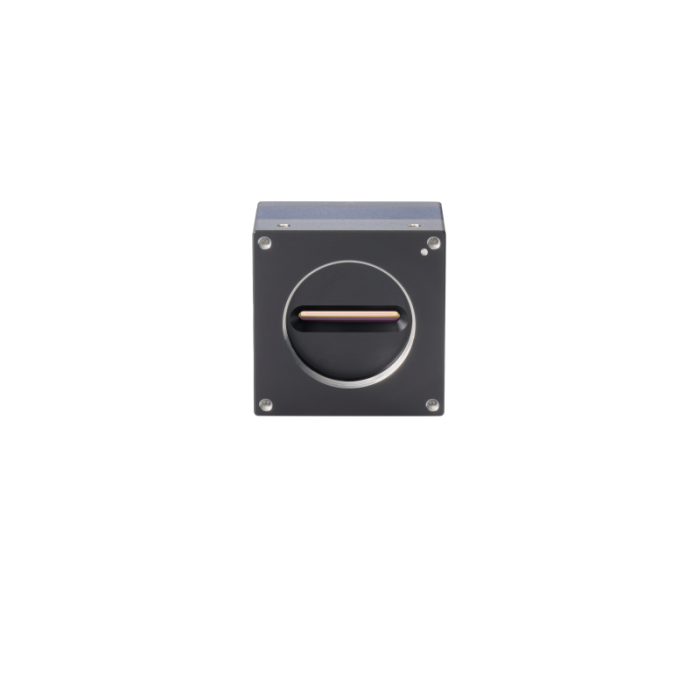

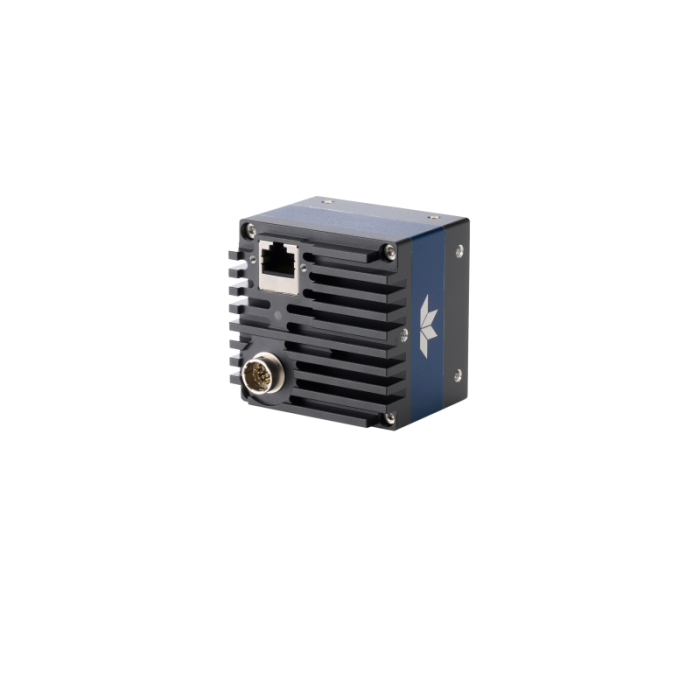

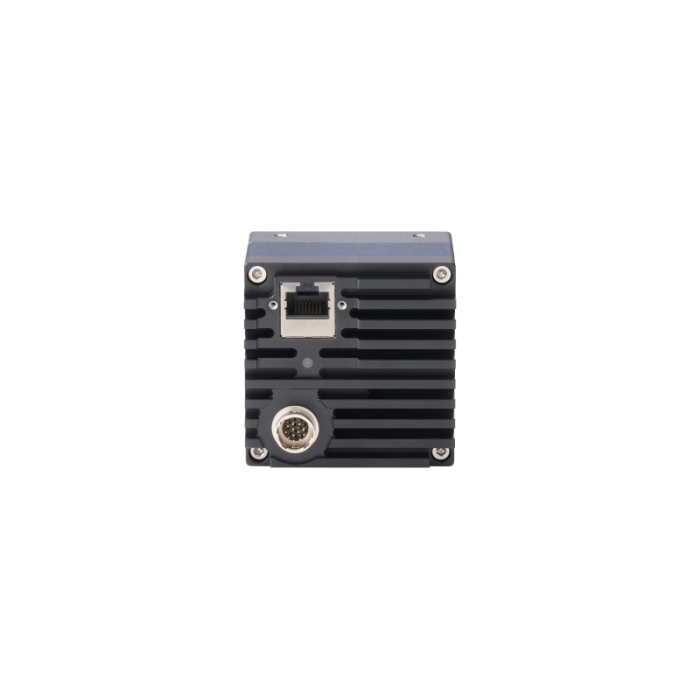

Teledyne DALSA - Tetra
The Tetra camera family from Teledyne DALSA offers 2k, 4k, and 8k Superresolution, tailored for diverse machine vision applications. With advanced multiline CMOS sensors and Super Resolution technology, they deliver exceptional image quality and performance. Additionally, they support 2.5G and 10G GigE interfaces, eliminating the need for frame grabbers.
Key Features
- Resolution Options: 2k: 2,048 x 2 pixels, 4k: 4,096 x 2 pixels / 4,096 x 3 pixels, 8k: 8,192 x 1 pixel
- Line Rates: 2.5G: Up to 150 kHz (2k), 75 kHz (4k), 75 kHz (8k), 10G: Up to 165 kHz (4k), 82 kHz (8k)
- Pixel Sizes: 2k: 14 x 14 µm, 4k: 7 x 7 µm, 8k: 3.5 x 3.5 µm
- Data Format: 8/10 bit
- Dynamic Range: 70 dB
- Full Well Capacity: 30 ke-
- Read Noise: 9 e-
- Power Dissipation: 2.5G: 6 W, 10G: 11 W
- Operating Temperature: 0 to +55 °C
- Dimensions: 62 mm (W) x 62 mm (H) x 50 mm (D)
- Lens Mount: M42 x 1
- Data Interface: 2.5/10 GigE Vision, RJ45
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nom de produit | Wavelength range | Resolution Horizontal (Px) | Max. line freq. (kHz) | Lens mount | Interface | Scan type | Pixel size (µm) | Manufacturer | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Sensor type | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Monochrome; Visible | 4096 | 75 | M42 x 1 | Gigabit Ethernet | line | 7 | Teledyne DALSA | 50 | 62 | 62 | CMOS | 0.297 | |
| Colour; Visible | 4096 | 25 | M42 x 1 | Gigabit Ethernet | line | 7 | Teledyne DALSA | 50 | 62 | 62 | CMOS | 0.297 | |
| Colour; Visible | 2048 | 50 | M42 x 1 | Gigabit Ethernet | line | 14 | Teledyne DALSA | 50 | 62 | 62 | CMOS | 0.297 | |
| Monochrome; Visible | 2048 | 150 | M42 x 1 | Gigabit Ethernet | line | 14 | Teledyne DALSA | 50 | 62 | 62 | CMOS | 0.297 | |
| Colour; Visible | 4096 | 42 | M42 x 1 | Gigabit Ethernet | line | 7 | Teledyne DALSA | 50 | 62 | 62 | CMOS | 0.297 | |
| Monochrome; Visible | 8192 | 75 | M42 x 1 | Gigabit Ethernet | line | 3.5 | Teledyne DALSA | 50 | 62 | 62 | CMOS | 0.297 | |
| Monochrome; Visible | 4096 | 165 | M42 x 1 | Gigabit Ethernet | line | 7 | Teledyne DALSA | 50 | 62 | 62 | CMOS | 0.297 | |
| Monochrome; Visible | 8192 | 82 | M42 x 1 | Gigabit Ethernet | line | 3.5 | Teledyne DALSA | 50 | 62 | 62 | CMOS | 0.297 |
Pourquoi choisir Teledyne DALSA - Tetra ?
Resolution Options
Available in 2k, 4k, and 8k Super Resolution to meet specific imaging needs. Super Resolution technology enhances detail and clarity, allowing for more accurate analysis in applications.
Image Quality
Dynamic range of 70 dB for effective performance in low-light settings. Improved image quality supports better detection and inspection capabilities, essential for quality control processes.
Power Efficiency
Less than 6 W (2.5G) or 11 W (10G) power consumption, compact dimensions (62 mm x 62 mm x 50 mm) for space-constrained environments. Lower power requirements contribute to reduced operational costs and facilitate integration into compact setups.
Integration Ease
Compatible with existing systems via 2.5/10 GigE Vision data interfaces and PoE power options. Simplified integration allows for quicker deployment and less downtime, ensuring efficient workflow in production environments.
Durability
Built for reliable use in industrial settings, operating within a temperature range of 0 to +55 °C. Robust design ensures long-term reliability, reducing maintenance needs and enhancing overall system uptime.
