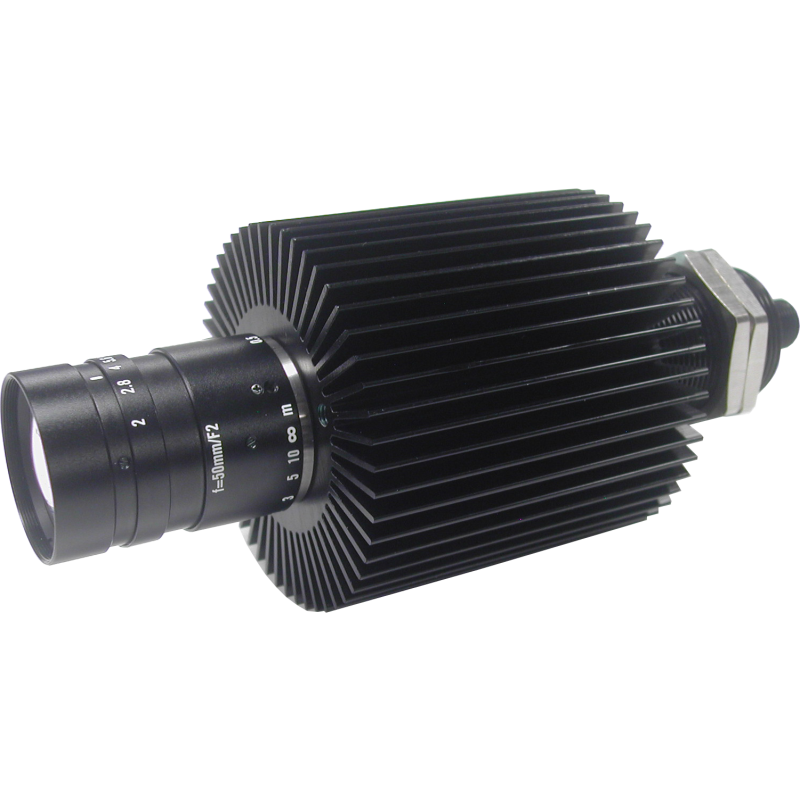

SVL SXP30-530
SKU#:
29353
Integrated driver, customizable pattern shapes, and compatibility with standard 2/3” C-mount lenses
Remarque : le produit réel peut différer de l'image !
Les téléchargements sont disponibles dans la série de produits correspondante:
Smart Vision Lights - Structured Light
Contactez nous
Demande de prix
Sous réserve d'erreurs et de modifications. Nos conditions générales de vente s'appliquent. Nous ne livrons que les entreprises clientes.
Product Features
| Attributes | |
|---|---|
| Beam angle | not specified |
| Dominant wavelength (nm) | 530 |
| Emitting surface inner diameter (mm) | 38 |
| Emitting surface outer diameter (mm) | 71 |
| Emitting surface width (mm) | 100 |
| Intensity control method | Continuous |
| Light colour | Green |
| Light distribution | direct |
| Lighting geometry | structured light |
| Lighting technique | frontlight |
| Mechanical depth (mm) | 50 |
| Power consumption (W) | 36 |
| Power supply voltage (VDC) | 24 |
| Smart | yes |
| Supply mechanism | Voltage |
| Weight (kg) | 0.410 |
- 5 Pin M12 Quick Disconnect
- Multiple interchangeable patterns
- Custom pattern shape available
- Driver built-in – No external wiring to a driver
- PNP and NPN Strobe input
- Continuous operation or strobe mode
- Analog intensity 0-25 VDC signal
- Single 9mm² die high current LED
- Standard C-mount 2/3” lenses
Further features of ODSXP models:
- Strobe mode only
- Additional SafeStrobe Technology
- 15 A pulsed through LED
- Up to 2000 strobes per second
- 5-6 x the intensity as the SPX30
- Maximum strobe time 50 ms
