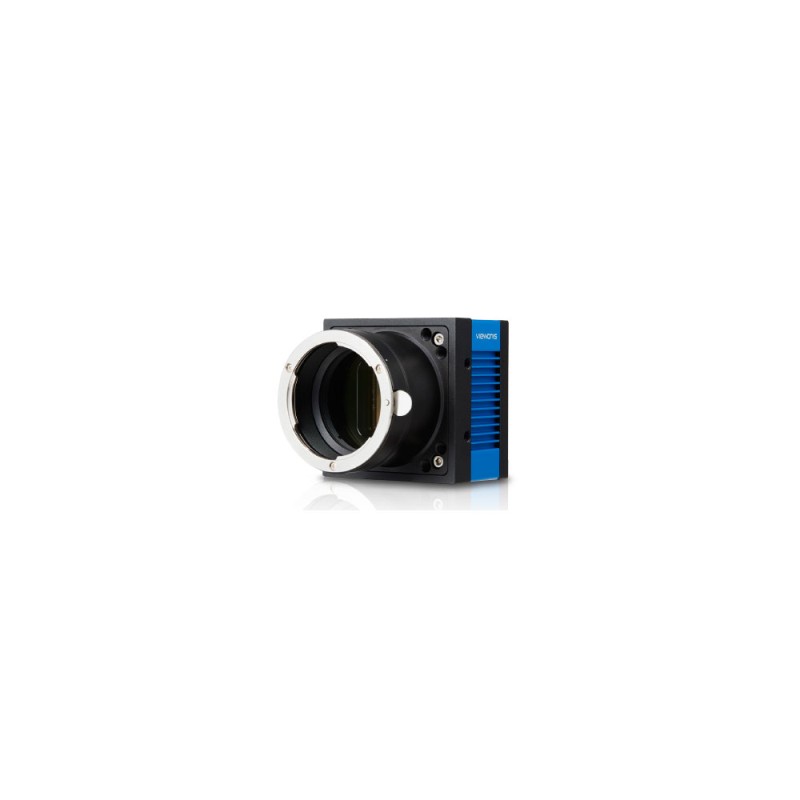

VIEWORKS VX-25MG-M5D0-FM
SKU#:
43325
Aerial imaging and ground surveillance camera.
Remarque : le produit réel peut différer de l'image !
Les téléchargements sont disponibles dans la série de produits correspondante:
Vieworks - VX
List Price
Your Discount
Your Price
Product not available in your country
Prix et disponibilité sur demande
Contactez nous
Demande de prix
Sous réserve d'erreurs et de modifications. Nos conditions générales de vente s'appliquent. Nous ne livrons que les entreprises clientes.
Product Features
| Attributes | |
|---|---|
| Wavelength range | Monochrome, Visible |
| Resolution (MP) | 25 |
| Resolution Horizontal (Px) | 5120 |
| Resolution Vertical (Px) | 5120 |
| Frame rate (Hz) | 4.7 |
| Lens mount | M42 x 1, Nikon F-Mount |
| Interface | Gigabit Ethernet |
| Sensor model | VITA 25K |
| Sensor type | CMOS |
| Scan type | area |
| Pixel size (µm) | 4.5 |
| Sensor format | 35mm |
| Sensor size diagonal (mm) | 1.8 |
| Shutter type | Global shutter/Prog scan |
| Dimension (width, mm) | 68 |
| Dimension (height, mm) | 68 |
| Dimension (depth, mm) | 80 |
| Housing | standard |
| Weight (kg) | 0.420 |
| Manufacturer | Vieworks |
| Active sensor size (horizontal, mm) | 23 |
| Active sensor size (vertical, mm) | 23 |
| Bit depth | 8 |
| Certificates | CE |
| Connector a: video | RJ45 (H) |
| Connector b: power | Hirose 6-pin |
| Connector c: I/O | Hirose 6-pin |
| Flange focal distance | 46.5 |
| Input current (mA) | 750 |
| Interface configuration | 1 GigE |
| Output formats | Mono8 |
| Power consumption (W) | 7.5 |
| Power supply voltage (VDC) | 10 - 36 |
| Sensor configuration | Single sensor |
| Software CameraSuite | yes |
| Software driver CVB | yes |
| Storage temperature (°C) | -50 - 90 |
- Sensor: high-performance progressive-scan CMOS
- Resolution: 25 megapixels
- Bit depth: 8,10 or 12 bit data output
- Frame rate: 2.3 fps
- Interface: GigE Vision
- Features: auto focus, auto exposure, auto gain, auto aperture control using Canon EF controller, defect pixel correction, anti-blooming, anti-smear
