AT C7-3070W-CA-S10-T-5G
SKU#:
65741

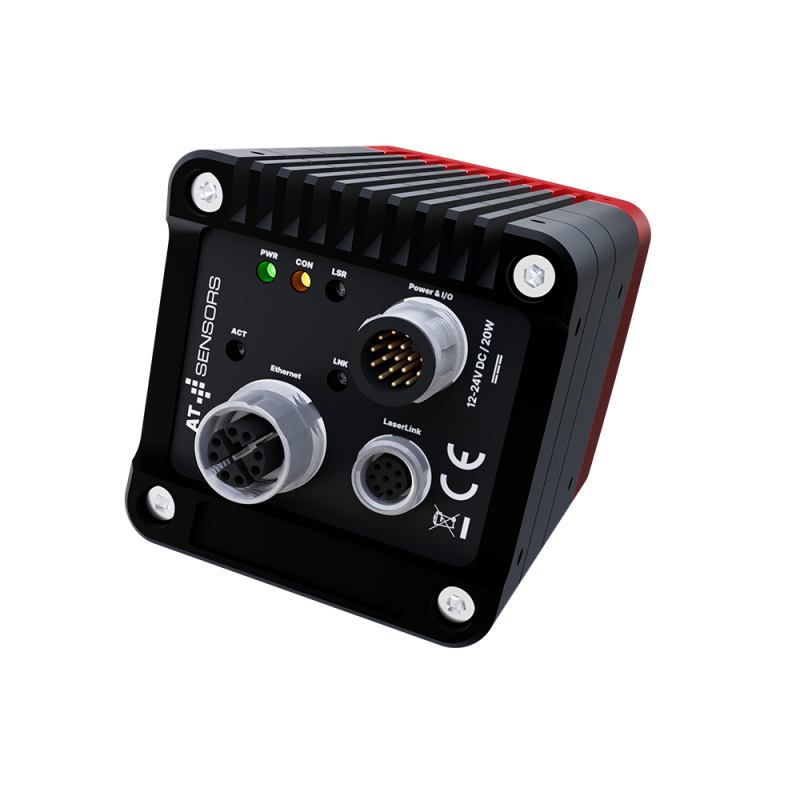

High-Speed 3D Camera with 5 Gigabit Ethernet Data Transmission and Laser Link Connector.
Atenção: O produto real pode diferir da imagem!
Os downloads podem ser encontrados na série de produtos correspondente:
Automation Technology - C7-CA
List Price
Your Discount
Your Price
€ 12.597,00
Product not available in your country
Preço e disponibilidade sob consulta
Contate-nos >
Solicitar preços
Erros e omissões são excetuados. Nossos Termos e Condições Gerais se aplicam. Fornecemos clientes corporativos exclusivamente.
Product Features
| Attributes | |
|---|---|
| Working distance (mm) | N/A |
| FoV (Field of View) | N/A |
| Scan Rate (Hz) | 87873 |
| X resolution (mm) | N/A |
| Z resolution (mm) | N/A |
| Scan type | laser triangulation |
| Laser Class | N/A |
| Manufacturer | Automation Technology |
| Active sensor size (horizontal, mm) | 20.27 |
| Active sensor size (vertical, mm) | 6.73 |
| Certificates | CE, RoHS |
| Configuration | camera |
| Connector a: video | M12 8-pin A-coded |
| Connector c: I/O | M12 |
| Dimension (depth, mm) | 79.8 |
| Dimension (height, mm) | 55 |
| Dimension (width, mm) | 55 |
| Resolution Horizontal (Px) | 3072 |
| Interface | Gigabit Ethernet |
| Interface configuration | 5 GigE |
| LED risk group | N/A |
| Lens mount | TFL-Mount |
| Numbers of connectors (Video) | 1 |
| Operating temperature (°C) | 0 - 50 |
| Pixel size (µm) | 6.6 |
| Power consumption (W) | 15 |
| Power supply voltage (VDC) | 12 - 24 |
| Scheimpflug | yes |
| Sensor size diagonal (mm) | 21.36 |
| Software CameraSuite | yes |
| Software driver CVB | yes |
| Storage temperature (°C) | -30 - 70 |
| Resolution Vertical (Px) | 1020 |
| Weight (kg) | 0.350 |
- New, high-performance integrated processing unit
- Five times higher data throughput with 5 Gigabit/s connectivity
- Simultaneous output of multiple data types, including 3D profile data, reflectance (intensity data), and scatter signals—even in high-speed applications
- Ultra-fast scanning for components of all sizes, including the smallest parts
- New laser interface for connecting standard laser line projectors
- Significantly increased profile rates of up to 94 kHz in combination with WARP technology
- Available with an integrated Scheimpflug adapter
- New TFL mount, with optional C-mount compatibility
