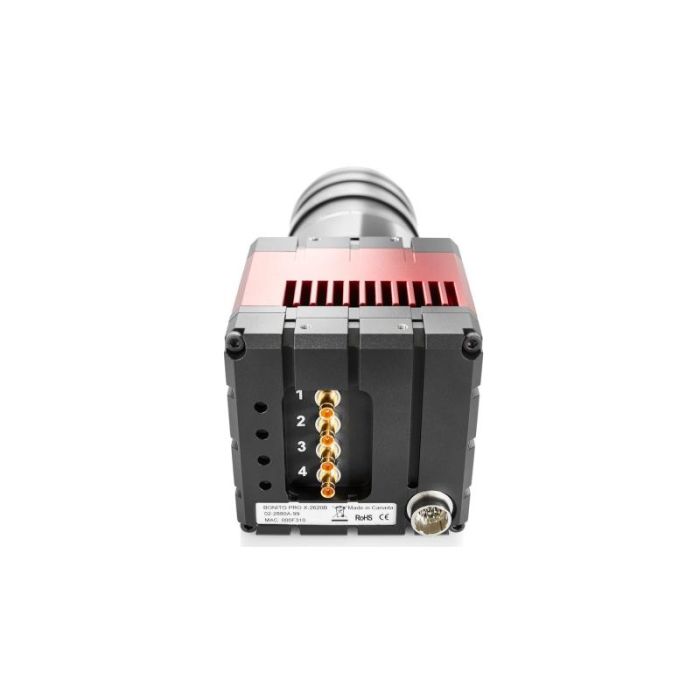

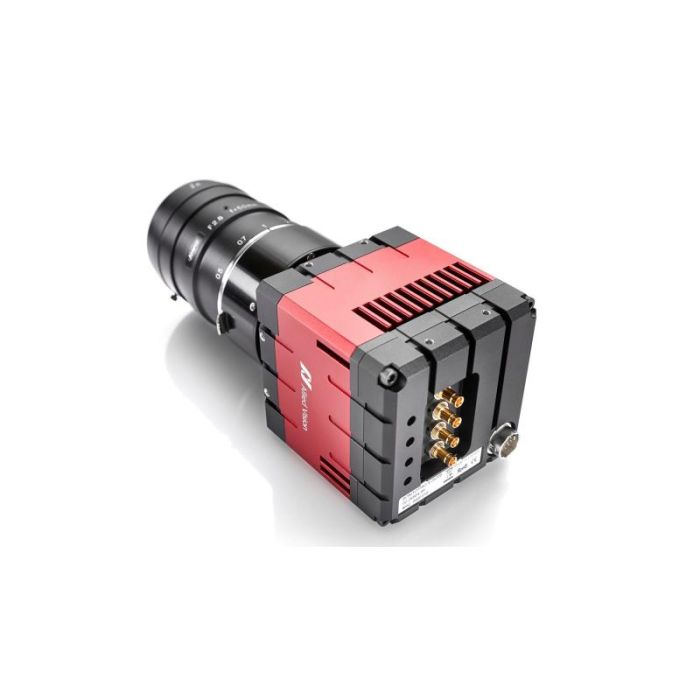

Allied Vision - Bonito Pro
The Allied Vision Bonito PRO is a high bandwidth camera with a quad lane CXP-6 interface capable of transmitting up to 25 Gb/s of image data.
Key Features
- Sensor: 26.2 megapixel On-Semi Python CMOS
- Frame rate: up to 80 fps
- Bit depth: 8 and 10 bit
- Options: colour, monochrome and NIR
- Features: multiple-ROI (up to 4 regions of interest readout), sequencer mode (up to 4 sequences), fixed pattern noise correction (FPNC), defect pixel correction (DPC), exposure, gain, white balance (manual, auto, one-push), look-up tables (LUTs), binning (separate x- and y-binning), subsampling (decimation)
- Interface: CoaXPress incl. Power over CoaXpress (PoCXP)
- Operating temperature: -20 °C to +70 °C (housing)
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nome do produto | Wavelength range | Resolution (MP) | Frame rate (Hz) | Lens mount | Interface | Sensor model | Manufacturer | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Resolution Horizontal (Px) | Housing | Pixel size (µm) | Scan type | Sensor format | Sensor size diagonal (mm) | Sensor type | Shutter type | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Monochrome; VIS-NIR | 26.2 | 80 | Nikon F-Mount | CoaXPress | Python 25K | Allied Vision | 70 | 110.6 | 70 | 5120 | large format | 4.5 | area | APS-H | 32.6 | CMOS | Global shutter/Prog scan | 0.500 | |
| Colour; Visible | 26.2 | 80 | Nikon F-Mount | CoaXPress | Python 25K | Allied Vision | 70 | 110.6 | 70 | 5120 | large format | 4.5 | area | APS-H | 32.6 | CMOS | Global shutter/Prog scan | 0.500 | |
| Monochrome; Visible | 26.2 | 80 | Nikon F-Mount | CoaXPress | Python 25K | Allied Vision | 70 | 110.6 | 70 | 5120 | large format | 4.5 | area | APS-H | 32.6 | CMOS | Global shutter/Prog scan | 0.500 | |
| Monochrome; VIS-NIR | 26.2 | 80 | M58 x 0.75 | CoaXPress | Python 25K NIR | Allied Vision | 70 | 74 | 70 | 5120 | large format | 4.5 | area | APS-H | 32.6 | CMOS | Global shutter/Prog scan | 0.500 |
Por que escolher Allied Vision - Bonito Pro?
Multiple ROI feature
The device allows the definition of up to 4 regions of interest within the image. Less image data lowers the bandwidth required, which results in an increased frame rate. As the host software does not need to extract the regions of interest anymore, image data processing on the host becomes faster.
Sequencer mode
This advanced feature allows the programming of a sequence of up to 4 different settings for a single parameter (e.g. for exposure time) that are applied to each image. That way, adaption to known changes of the imaging environment (or other application specific requirements) is possible without continuously transferring configuration changes between host and camera.
Extended operating temperature range
The Bonito PRO can be operated at an extended operating housing temperature range (-20 °C to +70 °C), which makes it very suitable for operation in extreme environments.
Allied Vision modular concept
Based on Allied Vision's modular concept, different lens mount and optical filter options are available. Having the option to choose between F-mount, M58, M42, and EF-mount gives more flexibility in terms of lenses being used and dealing with outdoor imaging conditions in an optimum way.
