CCS - HLDR3

High power LED ring lights for long-distance and wide-area irradiation

Key Features

  • Light colour: Red, White, Blue, IR (860 nm)
  • Beam angles: narrow (+/- 8°), medium (+/-20°), wide (+/40°)
  • Dimensions: outer diameter 100 mm, inner diameter 44 mm, height 31 mm
  • Input voltage: 24 V
  • Power consumption: 15 W
  • Recommended working distance: up to 2 m (depending on beam angle)
  • Can be connected to a lighting controller via standard FCB cable but also via FRCB robot cable
  • Suitable for continuous and strobe operation

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

Até
Nome do produto Beam angle Connectors Dominant wavelength (nm) Emitting surface height (mm) Emitting surface inner diameter (mm) Emitting surface outer diameter (mm) Emitting surface width (mm) Intensity control method IP rating LED risk group Light colour Light distribution Lighting geometry Lighting technique Manufacturer Smart Weight (kg)

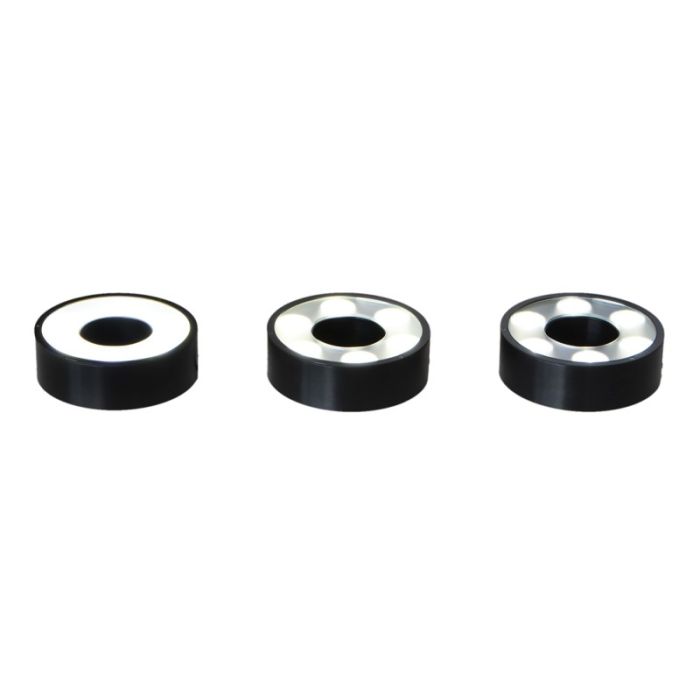

CCS HLDR3-100SW-DF-N
 narrow N/A N/A N/A 44 90 N/A N/A N/A 2 White direct ring light frontlight CCS no 0.340
CCS HLDR3-100SW-DF-M
 medium N/A N/A N/A 44 90 N/A N/A N/A 1 White direct ring light frontlight CCS no 0.340
CCS HLDR3-100SW-DF-W
 wide N/A N/A N/A 44 90 N/A N/A N/A 1 White direct ring light frontlight CCS no 0.340
CCS HLDR3-100RD-DF-N
 narrow N/A 625 N/A 44 90 N/A N/A N/A 1 Red direct ring light frontlight CCS no 0.340
CCS HLDR3-100RD-DF-M
 medium N/A 625 N/A 44 90 N/A N/A N/A 1 Red direct ring light frontlight CCS no 0.340
CCS HLDR3-100RD-DF-W
 wide N/A 625 N/A 44 90 N/A N/A N/A 0 (exempt) Red direct ring light frontlight CCS no 0.340

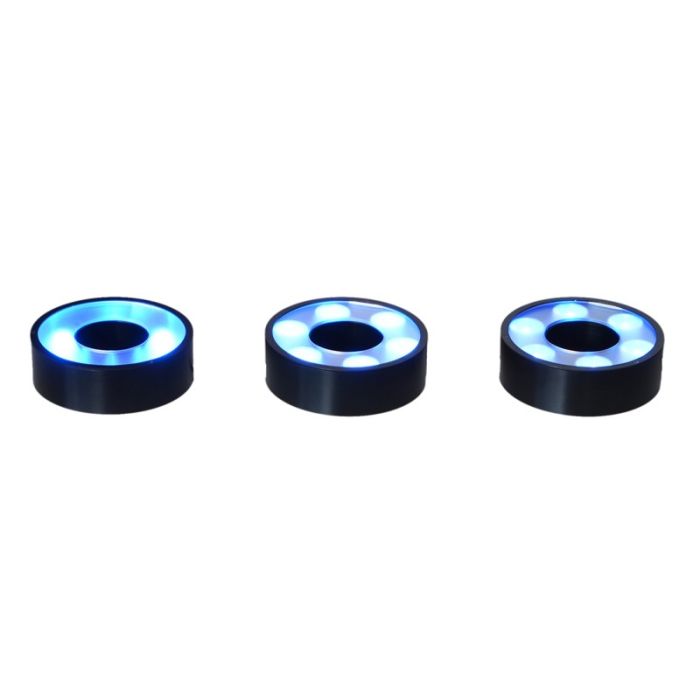

CCS HLDR3-100BL-DF-N
 narrow N/A 465 N/A 44 90 N/A N/A N/A 2 Blue direct ring light frontlight CCS no 0.340
CCS HLDR3-100BL-DF-M
 medium N/A 465 N/A 44 90 N/A N/A N/A 1 Blue direct ring light frontlight CCS no 0.340
CCS HLDR3-100BL-DF-W
 wide N/A 465 N/A 44 90 N/A N/A N/A 1 Blue direct ring light frontlight CCS no 0.340

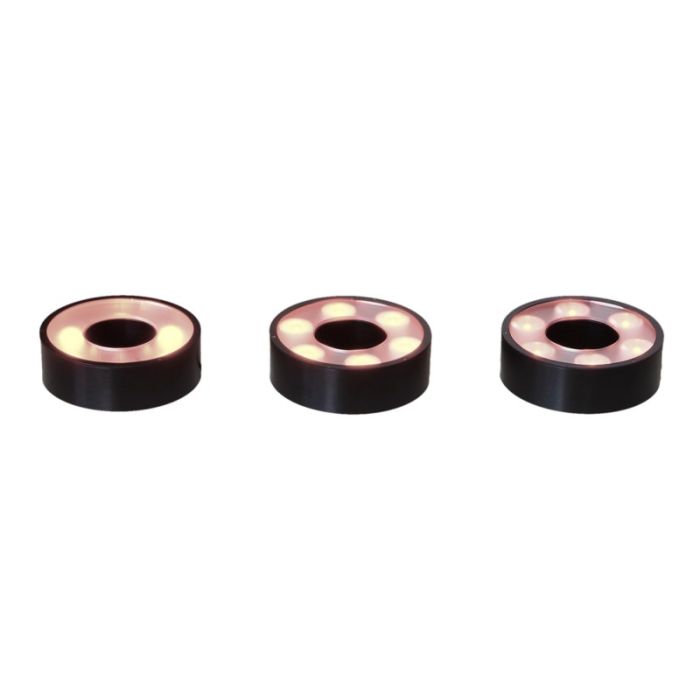

CCS HLDR3-100IR-DF-N
 narrow N/A 860 N/A 44 90 N/A N/A N/A 1 IR direct ring light frontlight CCS no 0.340
CCS HLDR3-100IR-DF-M
 medium N/A 860 N/A 44 90 N/A N/A N/A 0 (exempt) IR direct ring light frontlight CCS no 0.340
CCS HLDR3-100IR-DF-W
 wide N/A 860 N/A 44 90 N/A N/A N/A 0 (exempt) IR direct ring light frontlight CCS no 0.340

Por que escolher CCS - HLDR3?

Lightweight und compact

The CCS HLDR3 ring lights are lightweight and compact. This allows easy mounting on robotic arms and inspection equipment making them ideally suited for pick & place applications.

Different types of light directivity for flexible use

The CCS HLDR3 ring lights are available with 3 different beam angles: narrow (+/- 8°), medium (+/-20°), and wide (+/-40°). This enables flexible use for various working distances and object sizes making them suitable for applications requiring long-distance or wide-area illumination. Depending on the beam angle, the recommended working distance can range up to 2 m.
