CCS - LB

The CCS LB Series diffused bar lights, available in various sizes, offer high-performance white, blue, and red LED options. Designed for machine vision, these lights deliver consistent, uniform illumination for diverse industrial applications.

Key Features

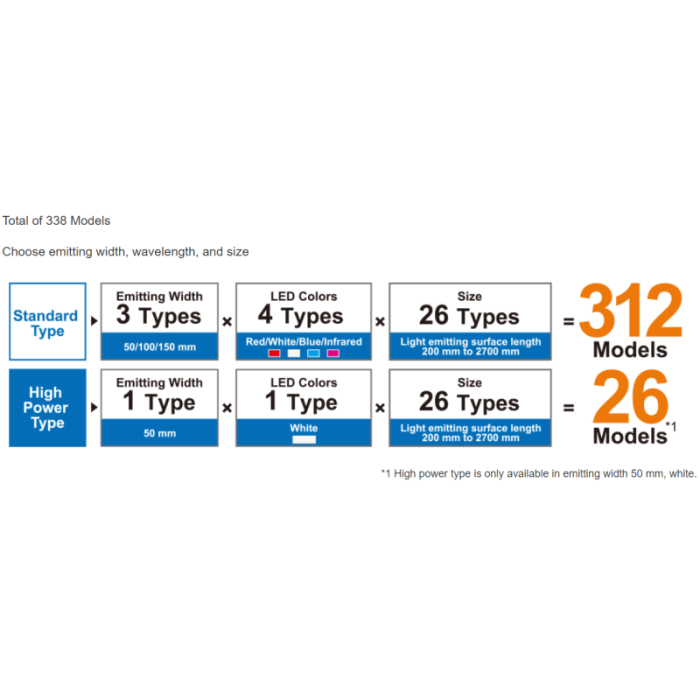

  • Diffused bar lights, vailable in 50 mm, 100 mm, and 150 mm sizes.
  • Various lengths from 200 mm to 2700 mm
  • Light Output: Offered in White (6300K), Red (630 nm), Blue (467 nm), and Infrared (860 nm).
  • Power Consumption: Ranges from 18 W to 724 W, depending on the model size and type (standard or high-power).
  • Operating Voltage: 24 V DC input voltage across all models.
  • Material: Made from durable aluminum alloy and steel for enhanced longevity.
  • Operating Temperature: Suitable for environments between 0 °C to 40 °C; storage temperature range is -20 °C to 60 °C.
  • Cooling System: Natural air-cooling design for effective heat dissipation.
  • Certification: Compliant with CE, UKCA, and RoHS standards, ensuring safety and environmental protection.
  • Control Options: Compatible with POD Series control units for optimal light control.
  • Order Options: Available with diffusion, polarizing, and protective plates for various applications.

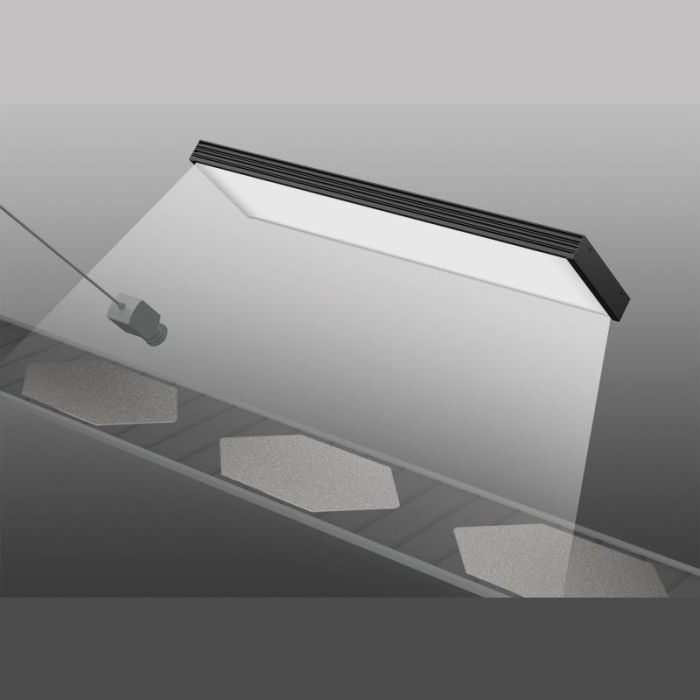

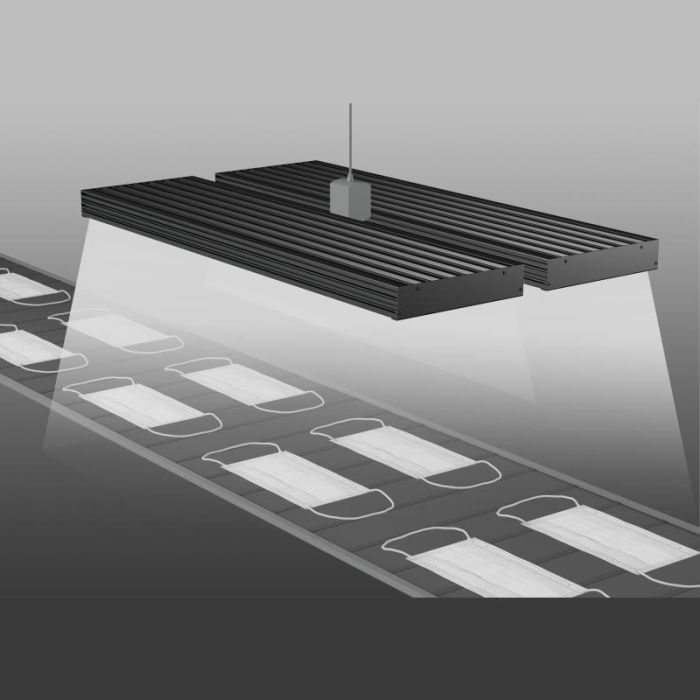

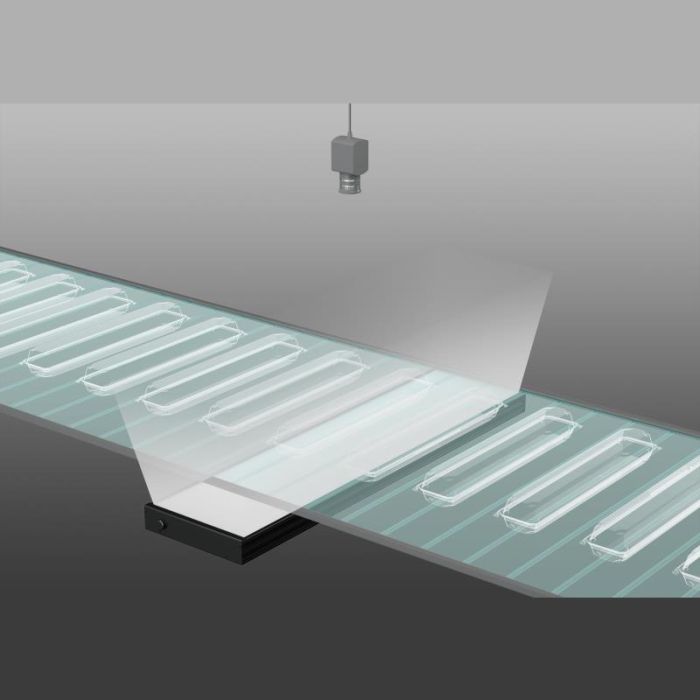

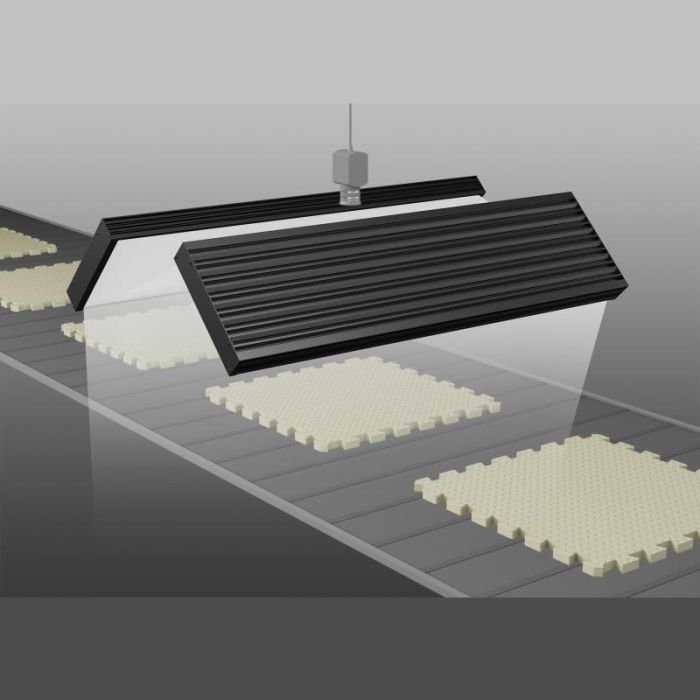

  • Applications: Designed for bright field, backlight, and diffused dome illumination in industries like machine vision and quality control

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

Até
Até
Nome do produto Lighting technique Lighting geometry Light distribution Light colour Emitting surface width (mm) Emitting surface outer diameter (mm) Emitting surface inner diameter (mm) Smart Beam angle Connectors Dominant wavelength (nm) Emitting surface height (mm) Intensity control method IP rating LED risk group Manufacturer Weight (kg)
CCS LB-2700X50BL
 backlight bar light diffused Blue 2700 N/A N/A no not specified N/A 467 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-1000X100RD
 backlight bar light diffused Red 1000 N/A N/A no not specified N/A 630 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-200X50RD
 backlight bar light diffused Red 200 N/A N/A no not specified 2-pin EL (ELP-02V) 530 50 N/A N/A 0 (exempt) CCS 0.475
CCS LB-600X150SW
 backlight bar light diffused White 600 N/A N/A no not specified N/A N/A 150 N/A N/A 0 (exempt) CCS 2.310
CCS LB-600X100RD
 backlight bar light diffused Red 600 N/A N/A no not specified 2-pin EL (ELP-02V) 630 100 N/A N/A 0 (exempt) CCS 1.730
CCS LB-600X100IR860
 backlight bar light diffused IR 600 N/A N/A no not specified 2-pin EL (ELP-02V) 860 100 N/A N/A 0 (exempt) CCS 1.730
CCS LB-2000X50RD
 backlight bar light diffused Red 2000 N/A N/A no not specified N/A 630 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-2000X50SW
 backlight bar light diffused White 2000 N/A N/A no not specified N/A N/A 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-2000X50IR860
 backlight bar light diffused IR 2000 N/A N/A no not specified N/A 860 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-2500X50IR860
 backlight bar light diffused IR 2500 N/A N/A no not specified N/A 860 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-2600X50IR860
 backlight bar light diffused IR 2600 N/A N/A no not specified N/A 860 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-2700X50IR860
 backlight bar light diffused IR 2700 N/A N/A no not specified N/A 860 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-200X100RD
 backlight bar light diffused Red 200 N/A N/A no not specified N/A 630 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-200X100SW
 backlight bar light diffused White 200 N/A N/A no not specified N/A N/A 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-200X100BL
 backlight bar light diffused Blue 200 N/A N/A no not specified N/A 467 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-200X100IR860
 backlight bar light diffused IR 200 N/A N/A no not specified N/A 860 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-500X100RD
 backlight bar light diffused Red 500 N/A N/A no not specified N/A 630 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-500X100SW
 backlight bar light diffused White 500 N/A N/A no not specified N/A N/A 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-500X100BL
 backlight bar light diffused Blue 500 N/A N/A no not specified N/A 467 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-500X100IR860
 backlight bar light diffused IR 500 N/A N/A no not specified N/A 860 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-1000X100IR860
 backlight bar light diffused IR 1000 N/A N/A no not specified N/A 860 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-1500X100IR860
 backlight bar light diffused IR 1500 N/A N/A no not specified N/A 860 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-200X150RD
 backlight bar light diffused Red 200 N/A N/A no not specified N/A 630 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-200X150SW
 backlight bar light diffused White 200 N/A N/A no not specified N/A N/A 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-200X150BL
 backlight bar light diffused Blue 200 N/A N/A no not specified N/A 467 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-200X150IR860
 backlight bar light diffused IR 200 N/A N/A no not specified N/A 860 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-500X150RD
 backlight bar light diffused Red 500 N/A N/A no not specified N/A 630 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-500X150SW
 backlight bar light diffused White 500 N/A N/A no not specified N/A N/A 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-500X150BL
 backlight bar light diffused Blue 500 N/A N/A no not specified N/A 467 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-500X150IR860
 backlight bar light diffused IR 500 N/A N/A no not specified N/A 860 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-1000X150IR860
 backlight bar light diffused IR 1000 N/A N/A no not specified N/A 860 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-1500X50RD
 backlight bar light diffused Red 1500 N/A N/A no not specified N/A 630 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-1500X50SW
 backlight bar light diffused White 1500 N/A N/A no not specified N/A N/A 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-1500X50BL
 backlight bar light diffused Blue 1500 N/A N/A no not specified N/A 467 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-1500X50IR860
 backlight bar light diffused IR 1500 N/A N/A no not specified N/A 860 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-1000X50IR860
 backlight bar light diffused IR 1000 N/A N/A no not specified N/A 860 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-1000X50RD
 backlight bar light diffused Red 1000 N/A N/A no not specified N/A 630 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-1000X50SW
 backlight bar light diffused White 1000 N/A N/A no not specified N/A N/A 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-1000X50BL
 backlight bar light diffused Blue 1000 N/A N/A no not specified N/A 467 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-500X50RD
 backlight bar light diffused Red 500 N/A N/A no not specified N/A 630 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-500X50SW
 backlight bar light diffused White 500 N/A N/A no not specified N/A N/A 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-500X50BL
 backlight bar light diffused Blue 500 N/A N/A no not specified N/A 467 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-500X50IR860
 backlight bar light diffused IR 500 N/A N/A no not specified N/A 860 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-200/50RD
 backlight bar light diffused Red 200 N/A N/A no not specified N/A 630 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-200X50SW
 backlight bar light diffused White 200 N/A N/A no not specified N/A N/A 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-1000X100SW
 backlight bar light diffused White 1000 N/A N/A no not specified N/A N/A 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-200X50BL
 backlight bar light diffused Blue 200 N/A N/A no not specified N/A 467 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-200X50IR860
 backlight bar light diffused IR 200 N/A N/A no not specified N/A 860 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-2000X50BL
 backlight bar light diffused Blue 2000 N/A N/A no not specified N/A 467 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-2500X50RD
 backlight bar light diffused Red 2500 N/A N/A no not specified N/A 630 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-2500X50SW
 backlight bar light diffused White 2500 N/A N/A no not specified N/A N/A 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-2500X50BL
 backlight bar light diffused Blue 2500 N/A N/A no not specified N/A 467 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-2600X50RD
 backlight bar light diffused Red 2600 N/A N/A no not specified N/A 630 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-2600X50SW
 backlight bar light diffused White 2600 N/A N/A no not specified N/A N/A 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-2600X50BL
 backlight bar light diffused Blue 2600 N/A N/A no not specified N/A 467 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-2700X50RD
 backlight bar light diffused Red 2700 N/A N/A no not specified N/A 630 60 N/A N/A 0 (exempt) CCS N/A
CCS LB-2700X50SW
 backlight bar light diffused White 2700 N/A N/A no not specified N/A N/A 50 N/A N/A 0 (exempt) CCS N/A
CCS LB-1000X100BL
 backlight bar light diffused Blue 1000 N/A N/A no not specified N/A 467 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-1500X100RD
 backlight bar light diffused Red 1500 N/A N/A no not specified N/A 630 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-2700X100RD
 backlight bar light diffused Red 2700 N/A N/A no not specified N/A 630 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-1500X100SW
 backlight bar light diffused White 1500 N/A N/A no not specified N/A N/A 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-1500X100BL
 backlight bar light diffused Blue 1500 N/A N/A no not specified N/A 467 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-2700X100IR860
 backlight bar light diffused IR 2700 N/A N/A no not specified N/A 860 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-1000X150RD
 backlight bar light diffused Red 1000 N/A N/A no not specified N/A 630 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-1000X150SW
 backlight bar light diffused White 1000 N/A N/A no not specified N/A N/A 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-1000X150BL
 backlight bar light diffused Blue 1000 N/A N/A no not specified N/A 467 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-1500X150IR860
 backlight bar light diffused IR 1500 N/A N/A no not specified N/A 860 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-2000X150IR860
 backlight bar light diffused IR 2000 N/A N/A no not specified N/A 860 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-2000X100IR860
 backlight bar light diffused IR 2000 N/A N/A no not specified N/A 860 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-2500X100IR860
 backlight bar light diffused IR 2500 N/A N/A no not specified N/A 860 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-2700X100SW
 backlight bar light diffused White 2700 N/A N/A no not specified N/A N/A 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-2700X100BL
 backlight bar light diffused Blue 2700 N/A N/A no not specified N/A 467 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-1500X150RD
 backlight bar light diffused Red 1500 N/A N/A no not specified N/A 630 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-1500X150SW
 backlight bar light diffused White 1500 N/A N/A no not specified N/A N/A 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-1500X150BL
 backlight bar light diffused Blue 1500 N/A N/A no not specified N/A 467 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-2000X150RD
 backlight bar light diffused Red 2000 N/A N/A no not specified N/A 630 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-2500X150RD
 backlight bar light diffused Red 2500 N/A N/A no not specified N/A 630 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-2000X150SW
 backlight bar light diffused White 2000 N/A N/A no not specified N/A N/A 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-2000X150BL
 backlight bar light diffused Blue 2000 N/A N/A no not specified N/A 467 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-2500X150SW
 backlight bar light diffused White 2500 N/A N/A no not specified N/A N/A 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-2500X150BL
 backlight bar light diffused Blue 2500 N/A N/A no not specified N/A 467 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-2500X150IR860
 backlight bar light diffused IR 2500 N/A N/A no not specified N/A 860 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-2700X150RD
 backlight bar light diffused Red 2700 N/A N/A no not specified N/A 630 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-2700X150SW
 backlight bar light diffused White 2700 N/A N/A no not specified N/A N/A 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-2700X150BL
 backlight bar light diffused Blue 2700 N/A N/A no not specified N/A 467 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-2700X150IR860
 backlight bar light diffused IR 2700 N/A N/A no not specified N/A 860 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-2000X100RD
 backlight bar light diffused Red 2000 N/A N/A no not specified N/A 630 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-2000X100SW
 backlight bar light diffused White 2000 N/A N/A no not specified N/A N/A 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-2000X100BL
 backlight bar light diffused Blue 2000 N/A N/A no not specified N/A 467 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-2500X100RD
 backlight bar light diffused Red 2500 N/A N/A no not specified N/A 630 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-2500X100SW
 backlight bar light diffused White 2500 N/A N/A no not specified N/A N/A 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-2500X100BL
 backlight bar light diffused Blue 2500 N/A N/A no not specified N/A 467 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-300X150SW
 backlight bar light diffused White 300 N/A N/A no not specified N/A N/A 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-400X150BL
 backlight bar light diffused Blue 400 N/A N/A no not specified N/A 467 150 N/A N/A 0 (exempt) CCS N/A
CCS LB-300X100SW
 backlight bar light diffused White 300 N/A N/A no not specified N/A N/A 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-1300X100SW
 backlight bar light diffused White 1300 N/A N/A no not specified N/A N/A 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-600X50SW
 backlight bar light diffused White 600 N/A N/A no not specified N/A N/A 50 N/A N/A 0 (exempt) CCS 1.050
CCS LB-1400X100SW
 backlight bar light diffused White 1400 N/A N/A no not specified N/A N/A 100 N/A N/A 0 (exempt) CCS N/A
CCS LB-600X100SW
 backlight bar light diffused White 600 N/A N/A no not specified 2-pin EL (ELP-02V) N/A 100 N/A N/A N/A CCS N/A

Por que escolher CCS - LB?

Industrial housing

The industry-grade aluminium housing provides superior protection and effective heat dissipation.

Available with different LED colours

The TH2 backlights are available in white (5.800 K) and red (635 nm). A number of models can be ordered in blue (465 nm).
