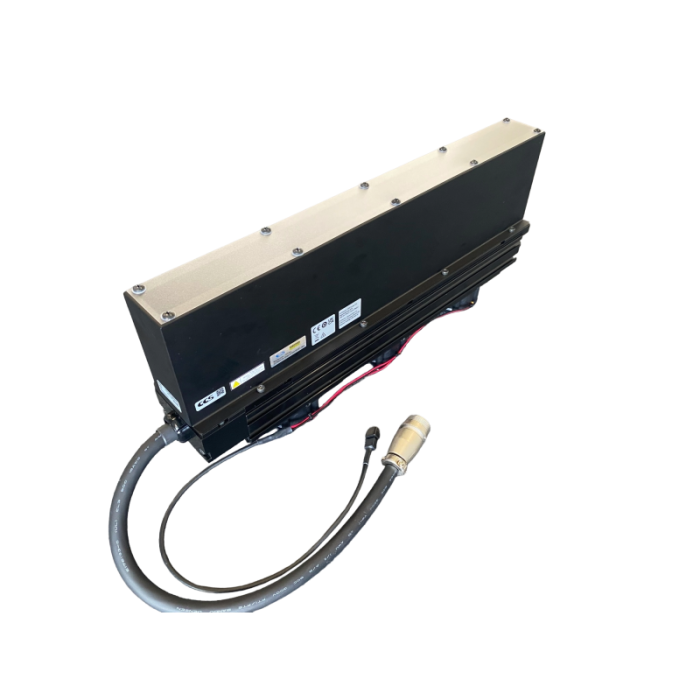

CCS - LNSP Hyperspectral
SWIR line light for hyperspectral imaging and spectral-interference thin-film thickness measurement.
Key Features
- Wavelength Band: 900 to 1700 nm
- Application focus: SWIR and hyperspectral imaging
- LED: Longer life, lower radiant (vs. HalogenLamp)
- Input voltage: DC 24 V max.
- Power consumption: 233 W max.
- Current consumption: 9.6 A max.
- Weight: approx. 2.8 kg
- Built-to-order, customizable light
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nome do produto | Lighting technique | Lighting geometry | Light distribution | Light colour | Emitting surface width (mm) | Emitting surface outer diameter (mm) | Emitting surface inner diameter (mm) | Smart | Beam angle | Connectors | Dominant wavelength (nm) | Emitting surface height (mm) | Intensity control method | IP rating | LED risk group | Manufacturer | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| frontlight | line light | N/A | SWIR | 334 | N/A | N/A | no | N/A | N/A | 900; 1700 | 23 | N/A | N/A | N/A | CCS | 2.800 |
Por que escolher CCS - LNSP Hyperspectral?
Perfect Uniformity for Reliable HSI Inspection
Highly uniform spatial intensity across all wavelength - ideal for HSI inspection
Precision Through Spectral Uniformity
Film-thickness variations are determined from interference in reflected light, requiring uniform spectral illumination across wavelengths for accurate measurement
Extended Lifetime with Minimal Radiant Output
Compared to halogen sources, LEDs deliver a substantially longer service life while minimizing radiant heat, resulting in enhanced system stability, reduced cooling requirements, and increased process reliability
