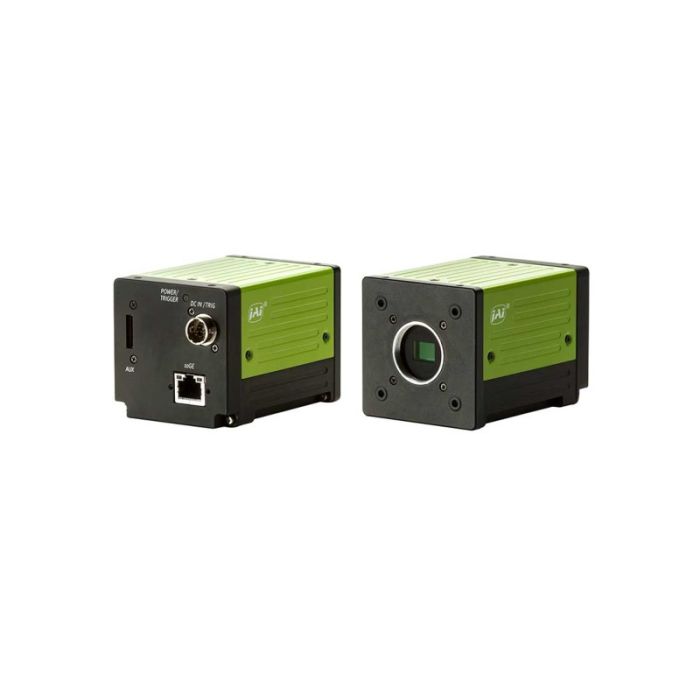

JAI - Fusion
Multi-sensor area scan camera for multi-spectral imaging. The multi-spectral technology enables the simultaneous imaging of visible colour and NIR light via two or three different channels and one lens.
Key Features
- Sensor: various models CMOS (2 or 3 sensor in one camera)
- Resolution (FS models) : up to 2018 x 1536 pixel and 123 fps with full resolution
- Bit depth: 10 bit or 8 bit output for NIR
- Features: separate AGC (automatic gain control) for each channel, simultaneously captures visible and NIR through the same optical path

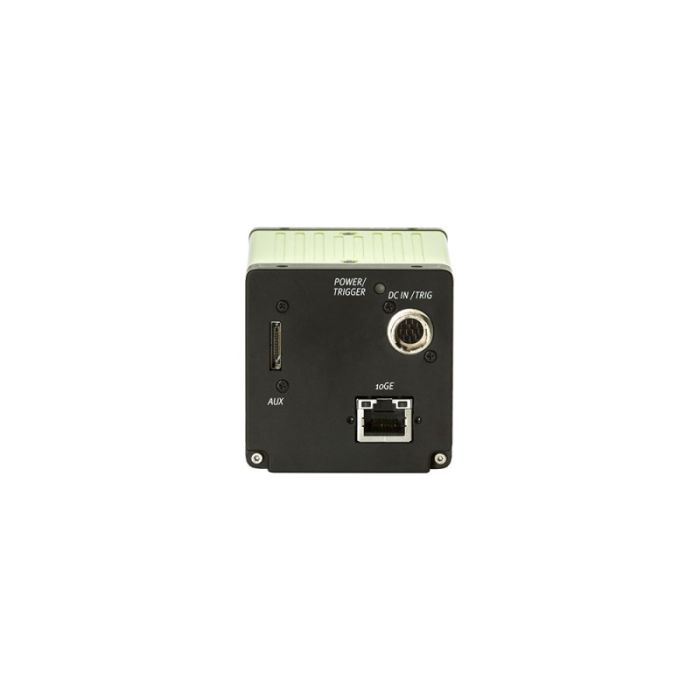

- I/O: programmable GPIO with opto-isolated inputs and outputs
- Interface: GigE Vision with 10GBASE-T (10GigE)
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nome do produto | Wavelength range | Resolution (MP) | Resolution Horizontal (Px) | Resolution Vertical (Px) | Frame rate (Hz) | Lens mount | Interface | Sensor model | Sensor type | Scan type | Pixel size (µm) | Sensor format | Sensor size diagonal (mm) | Shutter type | Dimension (width, mm) | Dimension (height, mm) | Dimension (depth, mm) | Housing | Weight (kg) | Manufacturer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Colour; VIS-NIR | 1.6 | 1440 | 1080 | 226 | C-Mount | Gigabit Ethernet | IMX273 | CMOS | area | 3.45 | 1/2.9" | 6.27 | Global shutter | 62 | 62 | 86.4 | standard | 0.270 | JAI | |
| Colour; VIS-NIR | 3.2 | 2048 | 1536 | 123 | C-Mount | Gigabit Ethernet | IMX265 | CMOS | area | 3.45 | 1/1.8" | 8.89 | Global shutter | 62 | 62 | 86.4 | standard | 0.270 | JAI | |
| Colour; VIS-NIR | 3.2 | 2065 | 1544 | 123 | C-Mount | Gigabit Ethernet | IMX265 | CMOS | area | 3.45 | 1/1.8" | 8.89 | Global shutter/Prog scan | 44 | 44 | 84 | standard | 0.200 | JAI |
Por que escolher JAI - Fusion?
Replaces multiple inspection stations with a single setup
JAI’s prism technology ensures perfect two-channel alignment, allowing users to replace multiple inspection stations with a single setup, providing both ease of use and lower equipment and maintenance costs.
Multi-spectral image acquisition for unique solutions
JAI's multi-sensor, multi-spectral prism cameras provide simultaneous images of different light spectrums through a single optical path. The cameras split incoming light into two separate channels - a visible color channel from 400-700nm and a near infrared (NIR) channel from 750-900+nm.

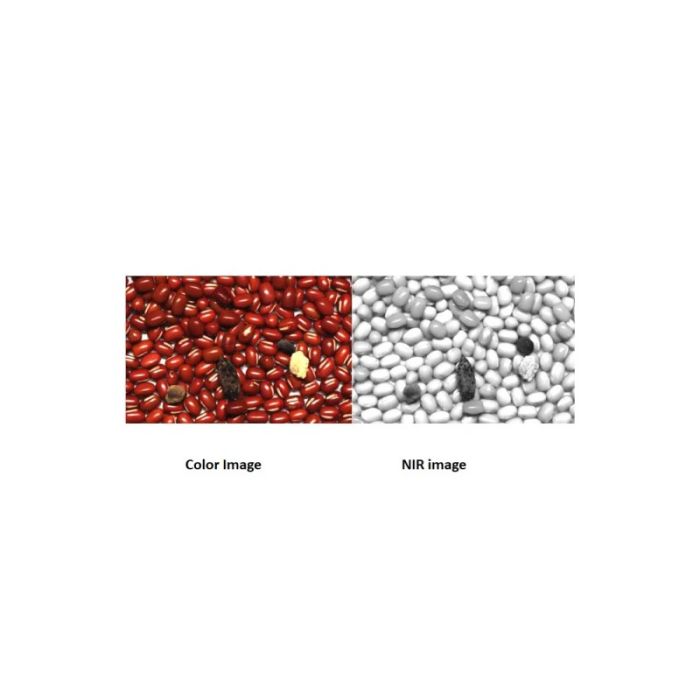

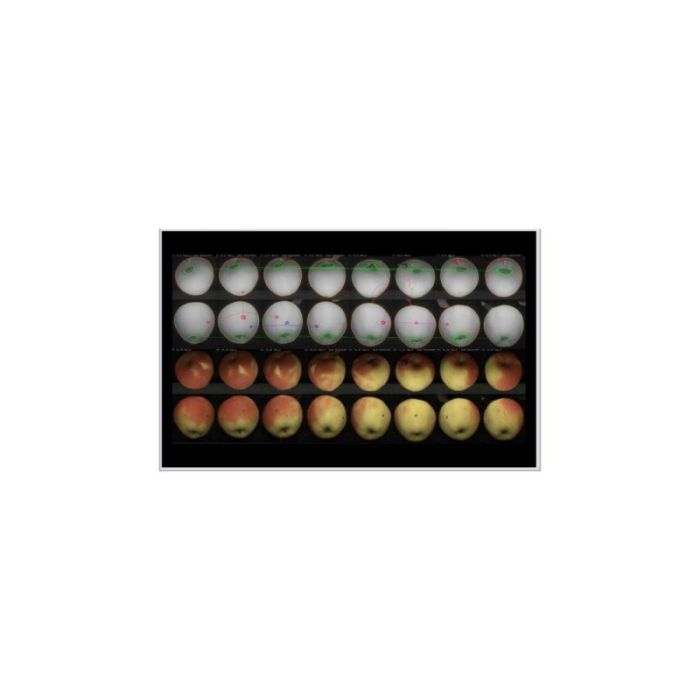

This makes it possible to simultaneously inspect surface properties or printing, as well as sub-surface defects or other information which is optimally detected at NIR wavelengths.
Individual exposure time adjustment for each channel
Separate exposure control for each channel allows the channels to be adjusted to one another without changes in the gain - maintaining a consistent signal-to-noise ratio at all times.
