METAPHASE - TXRL

Ultra‑compact TX Ring Light series with standard T‑slot mounting, multiple port sizes; designed for 360° illumination, delivering high uniformity and brightness with DC continuous or strobe capability via smart integrated driver.

Key Features

  • Application Type: Front Light, Direct, Ring Light
  • Light Source: LED
  • Wavelength options: Single color (White 6500 K, Red 630 nm, Green 530 nm, Blue 470 nm), RGB, UV (395 nm, 365 nm), IR850, IR940, SWIR (1050, 1200, 1450, 1550, 1650)
  • Beam angle: 12deg, 16deg, 30deg, 50deg (Full angle)
  • Control: Continuous DC with dimming, or pulse-follow strobe with 8x overdrive
  • Power Supply: 24VDC+/-5%

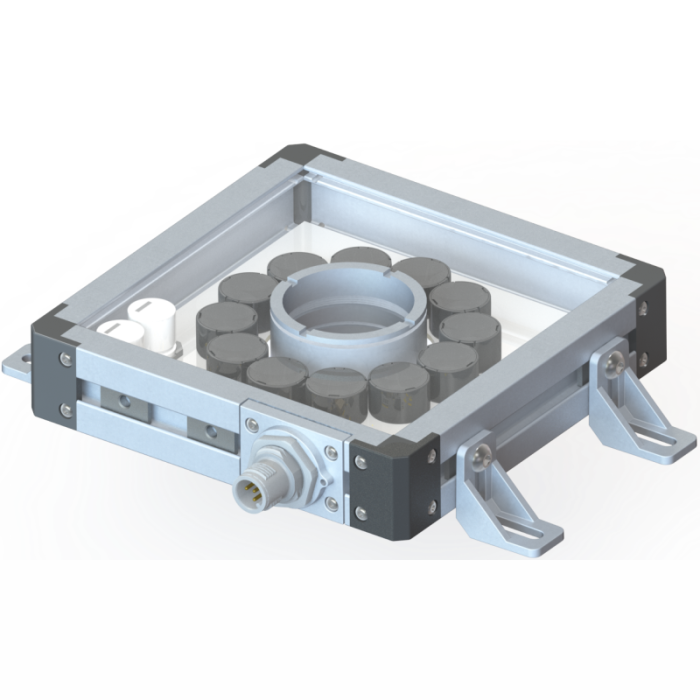

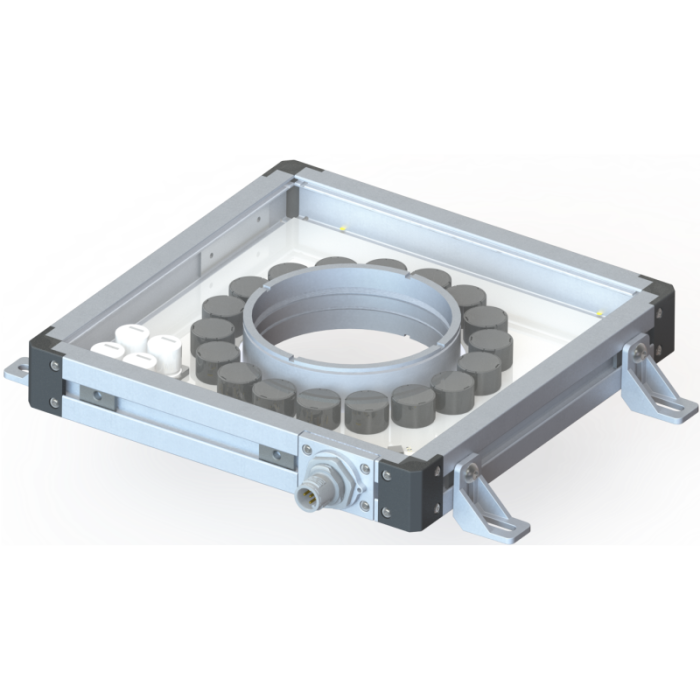

  • Frame size: 100 × 100 mm, 150 × 150 mm
  • Port size: 3 main port sizes (34mm, 47mm, 72mm)
  • Mounting: 25 mm slim aluminum extrusion with standard T‑slot mounting
  • Cover: CC00 clear cover; diffusers or polarizers available on request

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

Até
Até
Nome do produto Beam angle Connectors Dominant wavelength (nm) Emitting surface height (mm) Emitting surface inner diameter (mm) Emitting surface outer diameter (mm) Emitting surface width (mm) Intensity control method IP rating LED risk group Light colour Light distribution Lighting geometry Lighting technique Manufacturer Smart Weight (kg)
META TXRL2C-0606-UV395-CC-L30
 30° M12 5-pin A-coded 395 150 N/A N/A 150 Continuous; Overdrive; variable voltage control N/A N/A UV direct ring light frontlight Metaphase yes N/A
META TXRL2B-0606-UV365-CCUV
 not specified M12 5-pin A-coded 365 150 N/A N/A 150 Continuous; variable voltage control N/A 1 UV direct ring light frontlight Metaphase yes N/A
META TXRL3B-0606-IR940-CC-P0
 not specified M12 5-pin A-coded 940 150 N/A N/A 150 Continuous; variable voltage control N/A N/A IR direct ring light frontlight Metaphase yes N/A
META TXRL2B-0606-W-CC-L16
 16° M12 5-pin A-coded N/A 150 N/A N/A 150 Continuous; variable voltage control N/A 1 White direct ring light frontlight Metaphase yes N/A
META TXRL3B-0606-W-CC-L50
 50° M12 5-pin A-coded N/A 150 N/A N/A 150 Continuous; variable voltage control N/A 1 White direct ring light frontlight Metaphase yes N/A
META TXRL2B-0606-W-CC-L30
 30° M12 5-pin A-coded N/A 150 N/A N/A 150 Continuous; variable voltage control N/A 1 White direct ring light frontlight Metaphase yes N/A
META TXRL1B-0404-W-CC-L30
 30° M12 5-pin A-coded N/A 100 N/A N/A 100 Continuous; variable voltage control N/A 1 White direct ring light frontlight Metaphase yes N/A
META TXRL3C-0606-W-CC-P0-L30
 30° M12 5-pin A-coded N/A 150 N/A N/A 150 Continuous; Overdrive; variable voltage control N/A N/A White direct ring light frontlight Metaphase yes N/A
META TXRL2C-0606-R-CC-L30
 30° M12 5-pin A-coded 630 150 N/A N/A 150 Continuous; Overdrive; variable voltage control N/A 1 Red direct ring light frontlight Metaphase yes N/A
META TXRL3C-0606-R-CC-L30
 30° M12 5-pin A-coded 630 150 N/A N/A 150 Continuous; Overdrive; variable voltage control N/A 1 Red direct ring light frontlight Metaphase yes N/A
META TXRL3B-0606-R-CC-L30
 30° M12 5-pin A-coded 630 150 N/A N/A 150 Continuous; variable voltage control N/A 1 Red direct ring light frontlight Metaphase yes N/A
META TXRL3B-0606-W-CC-L30
 30° M12 5-pin A-coded N/A 150 N/A N/A 150 Continuous; variable voltage control N/A 1 White direct ring light frontlight Metaphase yes N/A
META TXRL2C-0606-W-CC-L12
 12° M12 5-pin A-coded N/A 150 N/A N/A 150 Continuous; Overdrive; variable voltage control N/A N/A White direct ring light frontlight Metaphase yes N/A
META TXRL2B-0606-W-CC-L12
 12° M12 5-pin A-coded N/A 150 N/A N/A 150 Continuous; variable voltage control N/A 1 White direct ring light frontlight Metaphase yes N/A
META TXRL2C-0606-W--CC-L30
 30° M12 5-pin A-coded N/A 150 N/A N/A 150 Continuous; Overdrive; variable voltage control N/A N/A White direct ring light frontlight Metaphase yes N/A
META TXRL1B-0404-R-CC-L30
 30° M12 5-pin A-coded 630 100 N/A N/A 100 Continuous; variable voltage control N/A 1 Red direct ring light frontlight Metaphase yes N/A
META TXRL1C-0404-R-CC-L30
 30° M12 5-pin A-coded 630 100 N/A N/A 100 Continuous; Overdrive; variable voltage control N/A 1 Red direct ring light frontlight Metaphase yes N/A
META TXRL2B-0606-R-CC-L30
 30° M12 5-pin A-coded 630 150 N/A N/A 150 Continuous; variable voltage control N/A 1 Red direct ring light frontlight Metaphase yes N/A
META TXRL1C-0404-W-C00-L30
 30° M12 5-pin A-coded N/A 100 N/A N/A 100 Continuous; Overdrive; variable voltage control N/A N/A White direct ring light frontlight Metaphase yes N/A
META TXRL2C-0606-W-CC-L16
 16° M12 5-pin A-coded N/A 150 N/A N/A 150 Continuous; Overdrive; variable voltage control N/A N/A White direct ring light frontlight Metaphase yes N/A
META TXRL2B-0606-G-CC-L30
 30° M12 5-pin A-coded 530 150 N/A N/A 150 Continuous; variable voltage control N/A 1 Green direct ring light frontlight Metaphase yes N/A
META TXRL2C-0606-G-CC-L30
 30° M12 5-pin A-coded 530 150 N/A N/A 150 Continuous; Overdrive; variable voltage control N/A N/A Green direct ring light frontlight Metaphase yes N/A
META TXRL2B-0606-B-CC-L30
 30° M12 5-pin A-coded 470 150 N/A N/A 150 Continuous; variable voltage control N/A 1 Blue direct ring light frontlight Metaphase yes N/A
META TXRL3B-0606-IR940-CC-P0-L30
 30° M12 5-pin A-coded 940 150 N/A N/A 150 Continuous; variable voltage control N/A 1 IR direct ring light frontlight Metaphase yes N/A
META TXRL2C-0606-B-CCL30
 30° M12 5-pin A-coded 470 150 N/A N/A 150 Continuous; Overdrive; variable voltage control N/A N/A Blue direct ring light frontlight Metaphase yes N/A
META TXRL2B-0606-IR850-CC-L30
 30° M12 5-pin A-coded 850 150 N/A N/A 150 Continuous; variable voltage control N/A 1 IR direct ring light frontlight Metaphase yes N/A
META TXRL2C-0606-IR850-CC-L30
 30° M12 5-pin A-coded 850 150 N/A N/A 150 Continuous; Overdrive; variable voltage control N/A N/A IR direct ring light frontlight Metaphase yes N/A
META TXRL1B-0404-UV365-CCUV
 not specified M12 5-pin A-coded 365 100 N/A N/A 100 Continuous; variable voltage control N/A 1 UV direct ring light frontlight Metaphase yes N/A
META TXRL1B-0404-UV395-CC
 not specified M12 5-pin A-coded 395 100 N/A N/A 100 Continuous; variable voltage control N/A 1 UV direct ring light frontlight Metaphase yes N/A
META TXRL2C-0606-UV365-CCUV
 not specified M12 5-pin A-coded 365 150 N/A N/A 150 Continuous; variable voltage control N/A 1 UV direct ring light frontlight Metaphase yes N/A
META TXRL3C-0606-W-CC-P0
 not specified M12 5-pin A-coded N/A 150 N/A N/A 150 Continuous; Overdrive; variable voltage control N/A N/A White direct ring light frontlight Metaphase yes N/A
META TXRL3B-0606-UV365-CCUV
 not specified M12 5-pin A-coded 365 150 N/A N/A 150 Continuous; variable voltage control N/A 1 UV direct ring light frontlight Metaphase yes N/A
META TXRL1B-0404-B-CC-L30
 30° M12 5-pin A-coded 470 100 N/A N/A 100 Continuous; variable voltage control N/A 1 Blue direct ring light frontlight Metaphase yes N/A
META TXRL1B-0404-G-CC-L30
 30° M12 5-pin A-coded 530 100 N/A N/A 100 Continuous; variable voltage control N/A 1 Green direct ring light frontlight Metaphase yes N/A
META TXRL3B-0606-B-CC-L30
 30° M12 5-pin A-coded 470 150 N/A N/A 150 Continuous; variable voltage control N/A 1 Blue direct ring light frontlight Metaphase yes N/A
META TXRL3B-0606-G-CC-L30
 30° M12 5-pin A-coded 530 150 N/A N/A 150 Continuous; variable voltage control N/A 1 Green direct ring light frontlight Metaphase yes N/A
