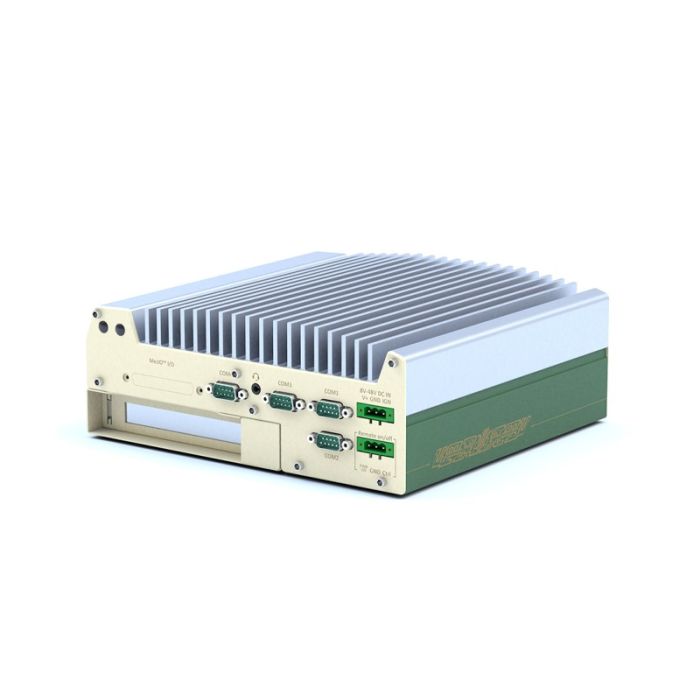

Neousys - Nuvo-9000
The Neousys Nuvo-9000 series of rugged embedded computers is based on the Intel 12th-Gen Alder Lake platform. Benefiting from cutting-edge Intel 7 photolithography, the latest Core desktop processor comes with up to 16 cores and 24 threads and presents an incredible boost of computing performance.
Key Features
- Processor: Intel 12th Gen Core i 35W/ 65W LGA1700 CPU
- Memory: up to 64 GB DDR5 4800 SDRAM (two SODIMM slots)
- Interface - GigE: up to 6x GigE ports, supporting 9.5 KB jumbo frame and 4x PoE
- Interface - USB: 1x USB 3.2 Gen2x2 (20 Gbps) type-C port and 6x USB 3.2 Gen2x1 type-A ports
- Storage: M.2 2280 M key socket (Gen4x4) for NVMe SSD
- Display: VGA/ DVI/ DP triple independent display, supporting 4K2K resolution
- Miscellaneous: Patented cassette for PCI/PCIe add-on card accommodation; MezIO interface for easy function expansion
- Operating temperature: Rugged, wide temperature range from -25°C to 70°C fanless operation
- Dimensions: 240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-9000E/P series); 240 mm (W) x 225 mm (D) x 110.5 mm (H) (Nuvo-9000DE series); 240 mm (W) x 225 mm (D) x 79 mm (H) (Nuvo-9000LP series)
- Weight: 4.4 kg (Nuvo-9000E/P series)
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nome do produto | PC: Product type | PC: Processor type | PC: RAM (GB) | PC: I/O Interface | Manufacturer | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | PC: RAM max. (GB) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| wallmount | Intel Alder Lade Core | N/A | 2x Gigabit Ethernet; USB 2.0; USB 3.1 Gen 2 | Neousys | N/A | N/A | N/A | N/A | 4.400 | |
| wallmount | Intel Alder Lade Core | 64 | 6x Gigabit Ethernet; PoE; USB 2.0; USB 3.1 Gen 2 | Neousys | N/A | N/A | N/A | N/A | 4.400 | |
| wallmount | Intel Alder Lade Core | 64 | 2x Gigabit Ethernet; USB 2.0; USB 3.1 Gen 2 | Neousys | N/A | N/A | N/A | N/A | 4.400 | |
| wallmount | Intel Alder Lade Core | 64 | 2x Gigabit Ethernet; USB 2.0; USB 3.1 Gen 2 | Neousys | N/A | N/A | N/A | N/A | 4.400 | |
| wallmount | Intel Alder Lade Core | 64 | 6x Gigabit Ethernet; USB 2.0; USB 3.1 Gen 2 | Neousys | N/A | N/A | N/A | N/A | 4.400 | |
| wallmount | Intel Alder Lade Core | 64 | 6x Gigabit Ethernet; USB 2.0; USB 3.1 Gen 2 | Neousys | N/A | N/A | N/A | N/A | 4.400 | |
| wallmount | Intel Alder Lade Core | 64 | 6x Gigabit Ethernet; USB 2.0; USB 3.1 Gen 2 | Neousys | N/A | N/A | N/A | N/A | 4.400 | |
| wallmount | Intel Alder Lade Core | N/A | 2x Gigabit Ethernet; USB 2.0; USB 3.1 Gen 2 | Neousys | N/A | N/A | N/A | N/A | 4.400 | |
| wallmount | Intel Alder Lade Core | 64 | 6x Gigabit Ethernet; USB 2.0; USB 3.1 Gen 2 | Neousys | N/A | N/A | N/A | N/A | 4.400 | |
| wallmount | Intel Alder Lade Core | 64 | 6x Gigabit Ethernet; PoE; USB 2.0; USB 3.1 Gen 2 | Neousys | N/A | N/A | N/A | N/A | 4.400 |
Por que escolher Neousys - Nuvo-9000?
High-end processors for demanding vision applications
Powered by the Intel 12th Gen Core processor, the Nuvo-9000 series fanless embedded computer delivers an incredible boost in computing performance for emerging high-end requirement than 8th & 9th generation processors.
Wide temperature range operation
The Nuvo-9000 series fanless embedded computer features a patented passive cooling thermal design that can effectively channel heat from the heat sink and truly operate over a wide temperature range from -25°C to 70°C while under 100% CPU load.
Patented expansion cassette
The Nuvo-9000 series inherits Neousys' patented expansion cassette design to provide great versatility by allowing additional installation of PCIe or PCI add-on cards.
MezIO Interface for incorporating further I/O functions
The MezIO interface is designed to integrate application-oriented I/O functions into an embedded system. Neousys offers a range of Nuvo-9000 compatible MezIO modules with various I/Os such as RS-232/422/485, isolated DIO and ignition power control. Users can also leverage signals/ power supplied by the MezIO interface to customise their own module. Neousys MezIO provides a cost-effective way to build a tailor-made embedded system for your application.
