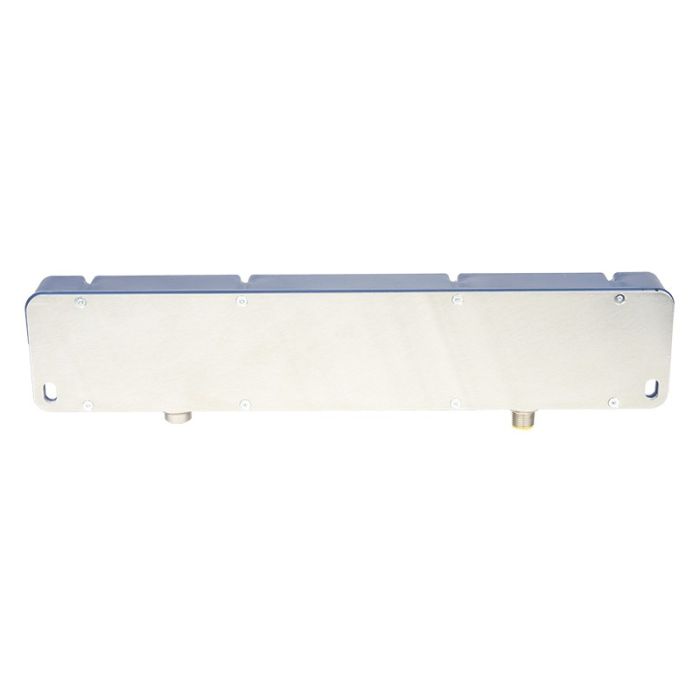

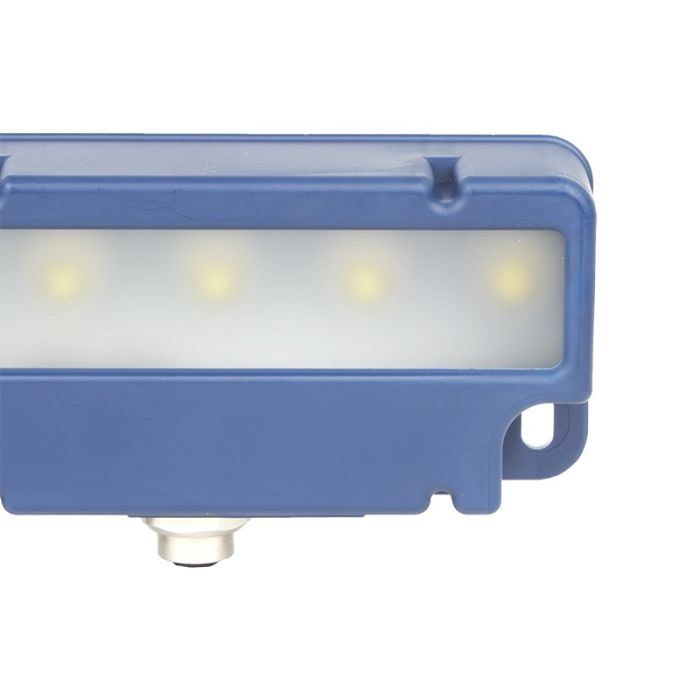

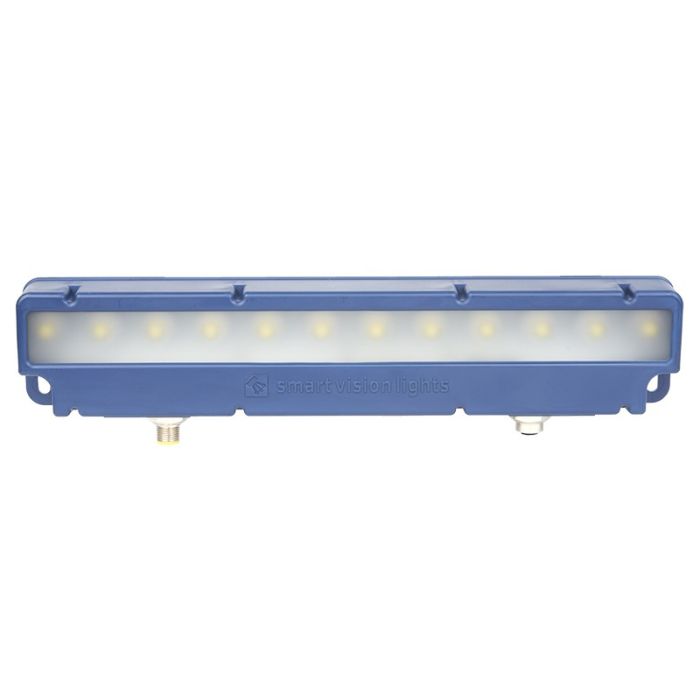

Smart Vision Lights - L300G2
Linear light featuring an integrated Multi-Drive™ driver that can produce up to 390,000 lux.
Key Features
- Illumination Type: Bright Field, Dark Field, Direct Lighting
- IP Rating: IP50
- Max Working Distance: 2000 mm
- Min Working Distance: 300 mm
- Compatible with SmartVisionLink
- Mode: Multi-Drive™
- Factory Installed Linear Polarizer possible
- Wavelength: 365 nm - 1650 nm
- Lens Configuration: line (10° width, 50° fan angle), narrow (standard 10°), wide (10°)
- Features: daisy-chaining up to 6 lights
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nome do produto | Lighting technique | Lighting geometry | Light distribution | Light colour | Emitting surface width (mm) | Emitting surface outer diameter (mm) | Emitting surface inner diameter (mm) | Smart | Beam angle | Connectors | Dominant wavelength (nm) | Emitting surface height (mm) | Intensity control method | IP rating | LED risk group | Manufacturer | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dark field | bar light | direct | White | 294 | N/A | N/A | yes | 30° | M12 4-pin A-coded | N/A | 24 | Continuous; Overdrive | IP50 | 1 | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | White | 294 | N/A | N/A | yes | 10° | M12 4-pin A-coded | N/A | 24 | Continuous; Overdrive | IP50 | 1 | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | Red | 294 | N/A | N/A | yes | 30° | M12 4-pin A-coded | 625 | 24 | Continuous; Overdrive | IP50 | 0 (exempt) | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | Red | 294 | N/A | N/A | yes | 10° | M12 4-pin A-coded | 625 | 24 | Continuous; Overdrive | IP50 | 0 (exempt) | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | UV | 294 | N/A | N/A | yes | 30° | M12 4-pin A-coded | 850 | 24 | Continuous; Overdrive | IP50 | 0 (exempt) | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | UV | 294 | N/A | N/A | yes | line | M12 4-pin A-coded | 850 | 24 | Continuous; Overdrive | IP50 | 0 (exempt) | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | UV | 294 | N/A | N/A | yes | 10° | M12 4-pin A-coded | 850 | 24 | Continuous; Overdrive | IP50 | 0 (exempt) | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | Blue | 294 | N/A | N/A | yes | 10° | M12 4-pin A-coded | 470 | 24 | Continuous; Overdrive | IP50 | 1 | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | Blue | 294 | N/A | N/A | yes | 30° | M12 4-pin A-coded | 470 | 24 | Continuous; Overdrive | IP50 | 1 | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | UV | 294 | N/A | N/A | yes | 10° | M12 4-pin A-coded | 395 | 24 | Continuous; Overdrive | IP50 | 2 | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | UV | 294 | N/A | N/A | yes | 10° | M12 4-pin A-coded | 365 | 24 | Continuous; Overdrive | IP50 | 2 | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | SWIR | 294 | N/A | N/A | yes | line | M12 4-pin A-coded | 1550 | 24 | Continuous; Overdrive | IP50 | 0 (exempt) | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | SWIR | 294 | N/A | N/A | yes | 10° | M12 4-pin A-coded | 1550 | 24 | Continuous; Overdrive | IP50 | 0 (exempt) | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | SWIR | 294 | N/A | N/A | yes | 10° | M12 4-pin A-coded | 1450 | 24 | Continuous; Overdrive | IP50 | 0 (exempt) | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | SWIR | 294 | N/A | N/A | yes | 10° | M12 4-pin A-coded | 1300 | 24 | Continuous; Overdrive | IP50 | 0 (exempt) | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | SWIR | 294 | N/A | N/A | yes | 10° | M12 4-pin A-coded | 1200 | 24 | Continuous; Overdrive | IP50 | 0 (exempt) | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | SWIR | 294 | N/A | N/A | yes | 10° | M12 4-pin A-coded | 1150 | 24 | Continuous; Overdrive | IP50 | 0 (exempt) | Smart Vision Lights | 0.370 | |
| dark field | bar light | direct | SWIR | 294 | N/A | N/A | yes | 10° | M12 4-pin A-coded | 1050 | 24 | Continuous; Overdrive | IP50 | 0 (exempt) | Smart Vision Lights | 0.370 |
Por que escolher Smart Vision Lights - L300G2?

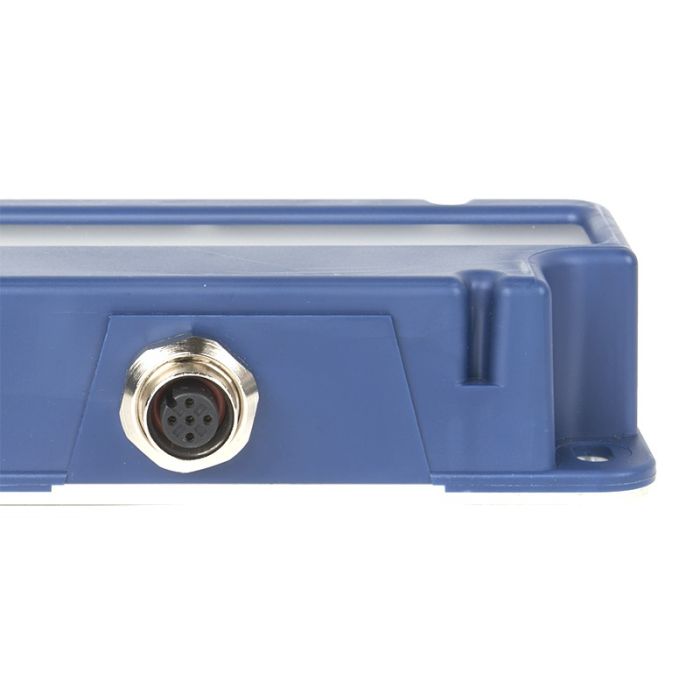

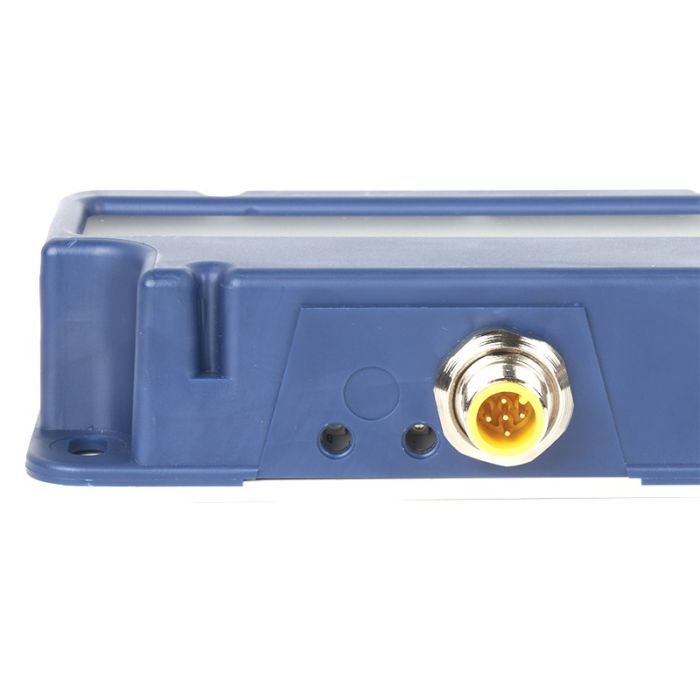

Equipped with PNP and NPN strobe input
Used in strobed mode the light can easily be triggered from the strobe out signal of the camera.
Integrated driver
The built-in driver allows the light to work in continuous operation or triggered mode. Its 0-10V analogue control line gives the user total control over intensity in both modes.
Different lens options
The illumination can be provided with 3 different lens configurations: Standard, wide and line.
Manufactured in a variety of wavelengths
The front lights are available in the following standard colours: white (6500 K), blue (470 nm), green (530 nm), red (625 nm), Infrared (850 and 940 nm) and UV (365 and 395 nm).
Special variants available
The L300 light is available in an overdrive version ODL300 for all colours and optics options. Additionally, a particularly highly protected variant (IP69K) with a stainless housing is the ideal option for applications in harsh environments.
