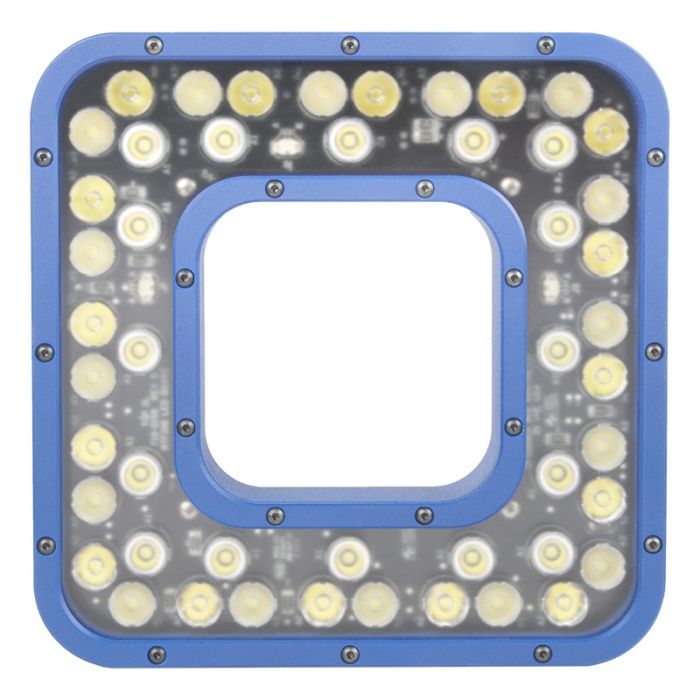

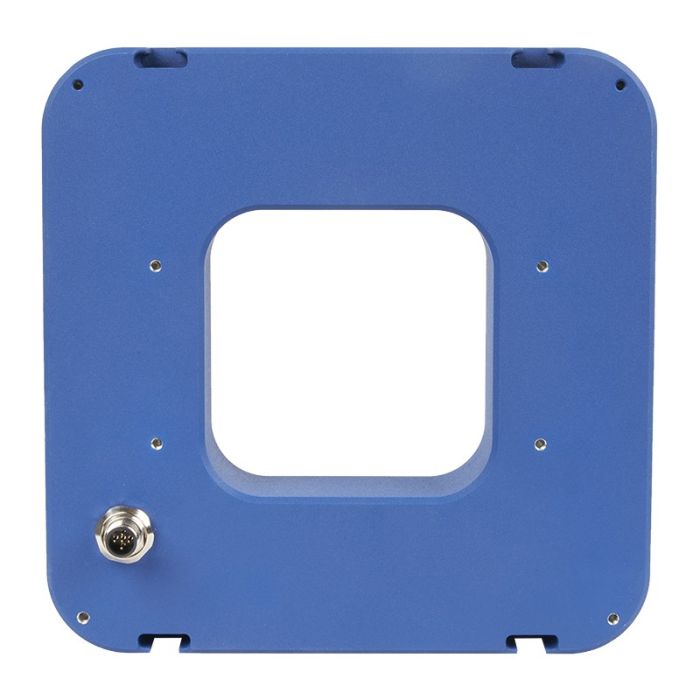

Smart Vision Lights - RTF200
Ring Light optimizable for many different applications over a wide range of working distances and field of view requirements.
Key Features
- Illumination Type: Bright Field, Direct Lighting
- IP Rating: IP65
- Min Working Distance: 200 mm
- Max Working Distance: 2000 mm
- Mode: Multi-Drive™
- SmartVisionLink Compatible
- Wavelength: white, blue (470 nm), red (625 nm), IR (850 nm)
- Lens Configuration: 111, 131, 153 (standard), 333, 353
- Factory installed linear polarizer as an option
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nome do produto | Beam angle | Connectors | Dominant wavelength (nm) | Emitting surface height (mm) | Emitting surface inner diameter (mm) | Emitting surface outer diameter (mm) | Emitting surface width (mm) | Intensity control method | IP rating | LED risk group | Light colour | Light distribution | Lighting geometry | Lighting technique | Manufacturer | Smart | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| not specified | M12 5-pin A-coded | 850 | 187.5 | N/A | N/A | 187.5 | Continuous; Overdrive | IP65 | 0 (exempt) | IR | direct | ring light | frontlight | Smart Vision Lights | yes | 1.700 | |
| not specified | M12 5-pin A-coded | N/A | 187.5 | N/A | N/A | 187.5 | Continuous; Overdrive | IP65 | 1 | White | direct | ring light | frontlight | Smart Vision Lights | yes | 1.700 | |
| not specified | M12 5-pin A-coded | 470 | 187.5 | N/A | N/A | 187.5 | Continuous; Overdrive | IP65 | 1 | Blue | direct | ring light | frontlight | Smart Vision Lights | yes | 1.700 | |
| not specified | M12 5-pin A-coded | 625 | 187.5 | N/A | N/A | 187.5 | Continuous; Overdrive | IP65 | 0 (exempt) | Red | direct | ring light | frontlight | Smart Vision Lights | yes | 1.700 | |
| not specified | M12 5-pin A-coded | N/A | 187.5 | N/A | N/A | 187.5 | Continuous; Overdrive | IP65 | 1 | White | direct | ring light | frontlight | Smart Vision Lights | yes | 1.700 | |
| not specified | M12 5-pin A-coded | N/A | 187.5 | N/A | N/A | 187.5 | Continuous; Overdrive | IP65 | 1 | White | direct | ring light | frontlight | Smart Vision Lights | yes | 1.700 | |
| not specified | M12 5-pin A-coded | N/A | 187.5 | N/A | N/A | 187.5 | Continuous; Overdrive | IP65 | 1 | White | direct | ring light | frontlight | Smart Vision Lights | yes | 1.700 | |
| not specified | M12 5-pin A-coded | N/A | 187.5 | N/A | N/A | 187.5 | Continuous; Overdrive | IP65 | 1 | White | direct | ring light | frontlight | Smart Vision Lights | yes | 1.700 |
