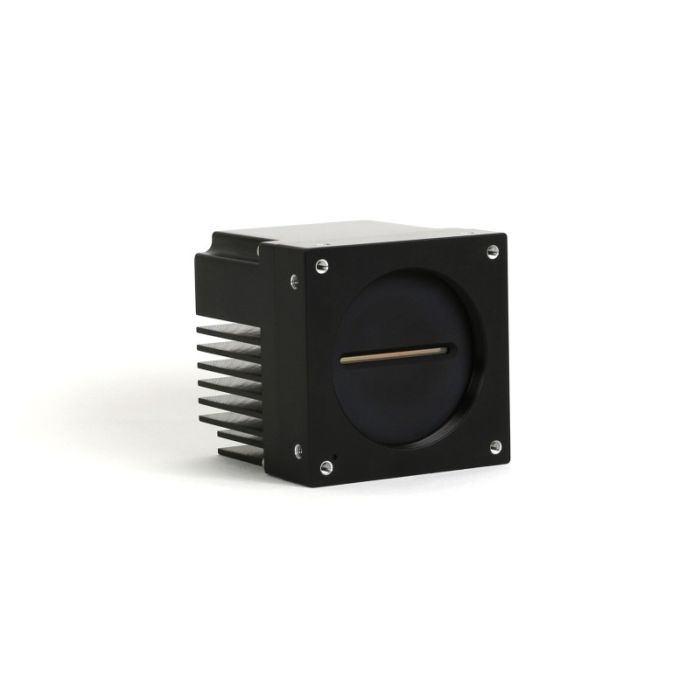

Teledyne DALSA - Linea ML

High speed next generation multiline camera with mono, colour, NIR and polarisation sensor options.

Key Features

  • Sensor: quad-linear CMOS sensor with 4k, 8k and 16k pixels
  • Line rate: from 25 up to 300 khz (8k and 16k monochrome model)
  • Pixel size: 10 μm 4k version, 5 μm 8k and 16k version, square pixels
  • Features: multiple areas of interest for data reduction, flat-field correction and automatic white balancing, independent exposure control for each colour, subpixel spatial correction, parallax correction to achieve optimal synchronisation, independent start/stop exposure per line and simultaneous multi-lighting configuration, integrated exposure control

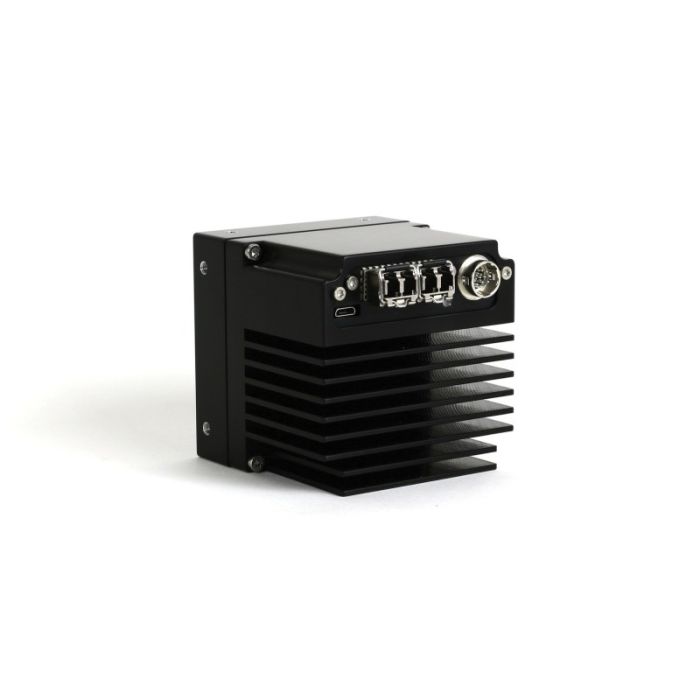

  • Interface: CameraLink HS interface with direct fibre output or CX4 connector

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

Até
Até
Até
Até
Até
Nome do produto Dimension (depth, mm) Dimension (height, mm) Dimension (width, mm) Resolution Horizontal (Px) Interface Lens mount Manufacturer Max. line freq. (kHz) Pixel size (µm) Scan type Sensor type Wavelength range Weight (kg)
DALSA LINEA ML-FC-08K10T
 76 76 85 8192 CameraLink HS M58 x 0.75 Teledyne DALSA 90 5 line CMOS Colour; Visible N/A
DALSA LINEA ML-HM-16K30H
 97 140.5 79.5 16384 CameraLink HS M90 x 1 Teledyne DALSA 300 5 line CMOS Monochrome; Visible N/A
DALSA LINEA ML-FC-08K07N
 85 76 76 8192 CameraLink HS M58 x 0.75 Teledyne DALSA 70 5 line CMOS Colour; VIS-NIR N/A
DALSA LINEA ML-FM-08K30H
 76 76 85 8192 CameraLink HS M58 x 0.75 Teledyne DALSA 280 5 line CMOS Monochrome; Visible 0.500
DALSA LINEA ML-HC-16K10T
 97 140.5 79.5 16384 CameraLink HS M90 x 1 Teledyne DALSA 100 5 line CMOS Colour; Visible 1.275
DALSA LINEA ML-FM-16K15A
 78.6 140.5 97 16384 CameraLink HS M90 x 1 Teledyne DALSA 143 5 line CMOS Monochrome; Visible N/A
DALSA LINEA ML-FC-16K04T
 78.6 140.5 97 16384 CameraLink HS M90 x 1 Teledyne DALSA 141 5 line CMOS Colour; Visible N/A
DALSA LINEA ML-FM-16K07A
 78.6 140.5 97 16384 CameraLink HS M90 x 1 Teledyne DALSA 70 5 line CMOS Monochrome; Visible N/A
DALSA LINEA ML-FC-16K02T
 78.6 140.5 97 16384 CameraLink HS M90 x 1 Teledyne DALSA 25 5 line CMOS Colour; Visible N/A
DALSA LINEA ML-HC-08K10T
 85 76 76 8192 CameraLink HS M58 x 0.75 Teledyne DALSA 300 5 line CMOS Colour; Visible 0.500
DALSA LINEA ML-HM-08K30H
 85 76 76 8192 CameraLink HS M58 x 0.75 Teledyne DALSA 300 5 line CMOS Monochrome; Visible 0.500
