Vieworks - VP
High-performance machine vision cameras with thermoelectric Peltier cooling, allowing long exposure times to increase sensitivity.
Key Features
- Sensor: from ON Semiconductor, Sony, GPixel and AMS CMOS sensors, monochrome or colour
- Bit depth: 8, 10 or 12 bit data output
- Features: user-defined LUT, flat field correction, field upgradeable firmware, defect pixel correction

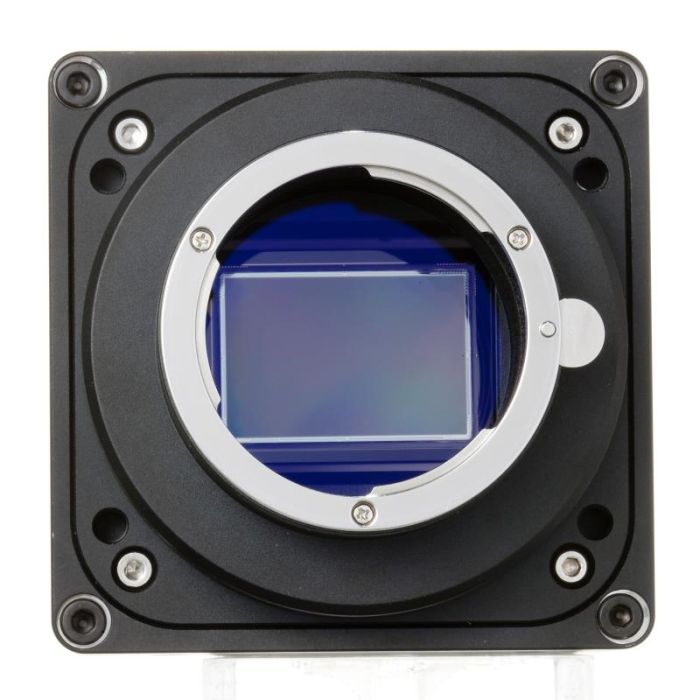

- Lens: M72 and F-mount
- Interface: CameraLink, CoaXPress
- Cooling: thermoelectric Peltier cooling maintains temperature at 20°C below ambient, allowing long exposure times for increased sensitivity
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nome do produto | Wavelength range | Resolution (MP) | Frame rate (Hz) | Lens mount | Interface | Sensor model | Manufacturer | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Resolution Horizontal (Px) | Housing | Pixel size (µm) | Scan type | Sensor format | Sensor size diagonal (mm) | Sensor type | Shutter type | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Monochrome; Visible | 71 | 4.2 | Nikon F-Mount | CameraLink | CHR70M | Vieworks | 137 | 90 | 90 | 10000 | standard | 3.1 | area | Large format | 38 | CMOS | Rolling shutter | 0.150 | |
| Colour; Visible | 71 | 4.2 | Nikon F-Mount | CameraLink | CHR70M | Vieworks | 137 | 90 | 90 | 10000 | standard | 3.1 | area | Large format | 38 | CMOS | Rolling shutter | 0.150 | |
| Monochrome; Visible | 101.8 | 8.7 | M72 x 0.75 | CoaXPress | IMX411 | Vieworks | 88 | 100 | 100 | 11656 | standard | 3.76 | area | Large format | 55 | CMOS | Rolling shutter | 1.100 | |
| Colour; Visible | 101.8 | 8.7 | M72 x 0.75 | CoaXPress | IMX411 | Vieworks | 88 | 100 | 100 | 11656 | standard | 3.76 | area | Large format | 55 | CMOS | Rolling shutter | 1.100 | |
| Monochrome; Visible | 151 | 6.2 | M72 x 0.75 | CoaXPress | IMX461 | Vieworks | 85 | 110 | 110 | 14192 | standard | 3.76 | area | Large format | 66.7 | CMOS | Rolling shutter | 1.400 | |
| Colour; Visible | 151 | 6.2 | M72 x 0.75 | CoaXPress | IMX461 | Vieworks | 85 | 110 | 110 | 14192 | standard | 3.76 | area | Large format | 66.7 | CMOS | Rolling shutter | 1.400 | |
| Monochrome; Visible | 151 | 5.5 | M72 x 0.75 | CameraLink | IMX411 | Vieworks | 88 | 110 | 110 | 14192 | standard | 3.76 | area | Large format | 66.7 | CMOS | Rolling shutter | 1.400 | |
| Colour; Visible | 31.4 | 26.2 | Nikon F-Mount | CameraLink | IMX342 | Vieworks | 129.3 | 90 | 90 | 6464 | standard | 3.45 | area | APS-C | 27.9 | CMOS | Global shutter | 1.257 | |
| Monochrome; Visible | 31.4 | 26.2 | Nikon F-Mount | CameraLink | IMX342 | Vieworks | 129.3 | 90 | 90 | 6464 | standard | 3.45 | area | APS-C | 27.9 | CMOS | Global shutter | 1.257 | |
| Colour; Visible | 31.4 | 35.4 | Nikon F-Mount | CoaXPress | IMX342 | Vieworks | 129.3 | 90 | 90 | 6464 | standard | 3.45 | area | APS-C | 27.9 | CMOS | Global shutter | 1.262 | |
| Monochrome; Visible | 31.4 | 35.4 | Nikon F-Mount | CoaXPress | IMX342 | Vieworks | 129.3 | 90 | 90 | 6464 | standard | 3.45 | area | APS-C | 27.9 | CMOS | Global shutter | 1.262 | |
| Colour; Visible | 101 | 8.1 | M72 x 0.75 | CoaXPress | IMX461 | Vieworks | 88 | 100 | 100 | 11648 | closed housing | 3.76 | area | N/A | 54.76 | CMOS | Rolling shutter | 1.100 | |
| Colour; Visible | 151 | 5.5 | M72 x 0.75 | CoaXPress | IMX411 | Vieworks | 88 | 100 | 100 | 14192 | closed housing | 3.76 | area | N/A | 9.1 | CMOS | Global shutter | 1.400 | |
| Monochrome; Visible | 101 | 8.1 | M72 x 0.75 | CoaXPress | IMX461 | Vieworks | 88 | 100 | 100 | 11656 | closed housing | 3.76 | area | N/A | 54.76 | CMOS | Global shutter | 1.100 | |
| Monochrome; Visible | 61 | 13 | Nikon F-Mount | CameraLink | IMX455 | Vieworks | 150 | 80 | 80 | 9568 | standard | 3.76 | area | Large format | 43.3 | CMOS | Rolling shutter | 1.070 |
Por que escolher Vieworks - VP?

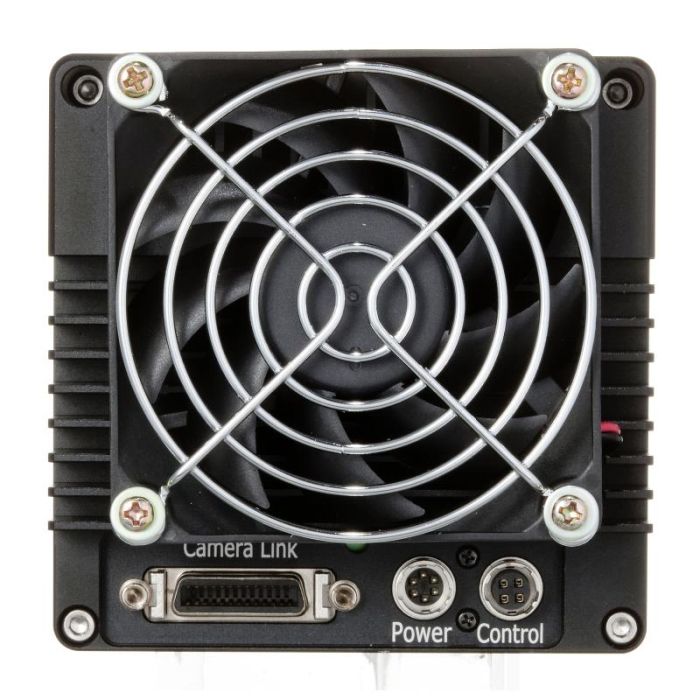

Excellent heat dissipation structure
The Vieworks VP series is more robust with excellent heat dissipation structure to prevent frosting caused by temperature difference between the outside and inside.
High image quality using cooling technology
By lowering the sensor temperature by up to 20 degrees Celsius below ambient, it ensures stable performance and low noise even during long exposures.
Better usability
The programmable camera simplifies firmware updates in the machine vision field. The VP series supports CoaXPress and CameraLink interface and provides image processing capabilities such as Flat Field Correction (FFC) and Pixel defect correction.
