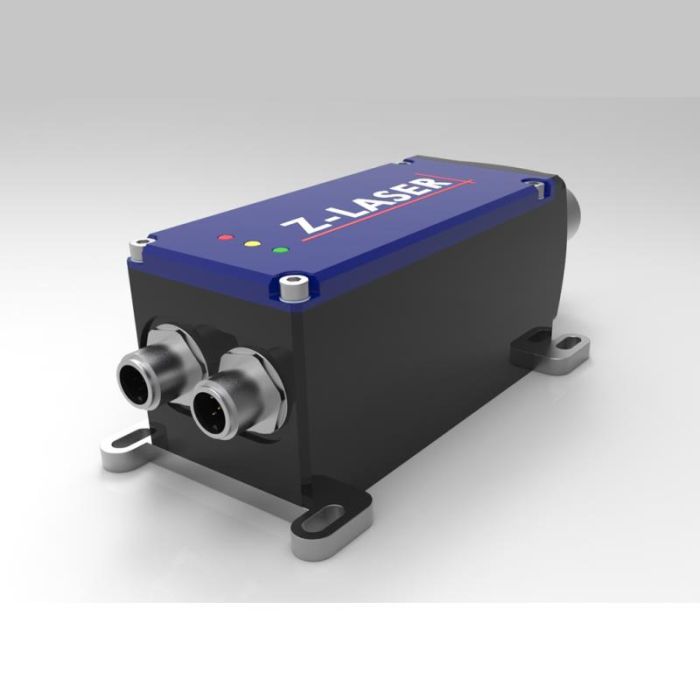

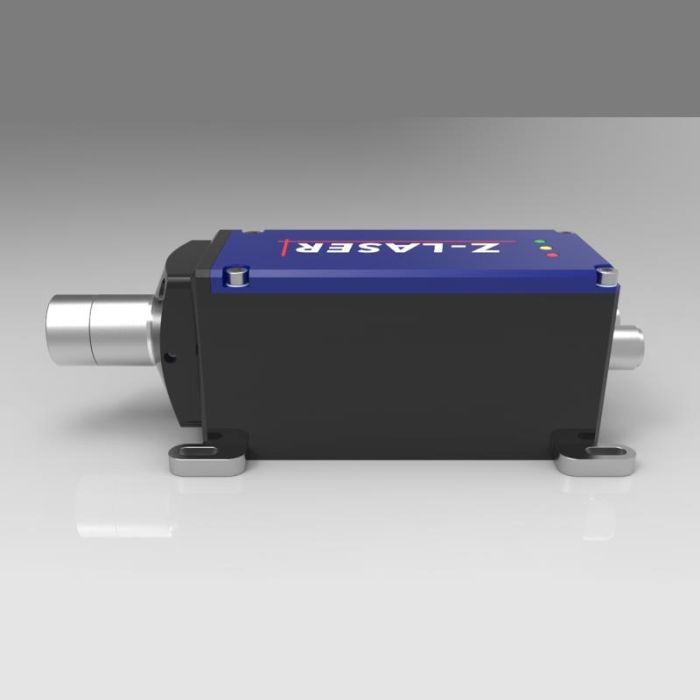

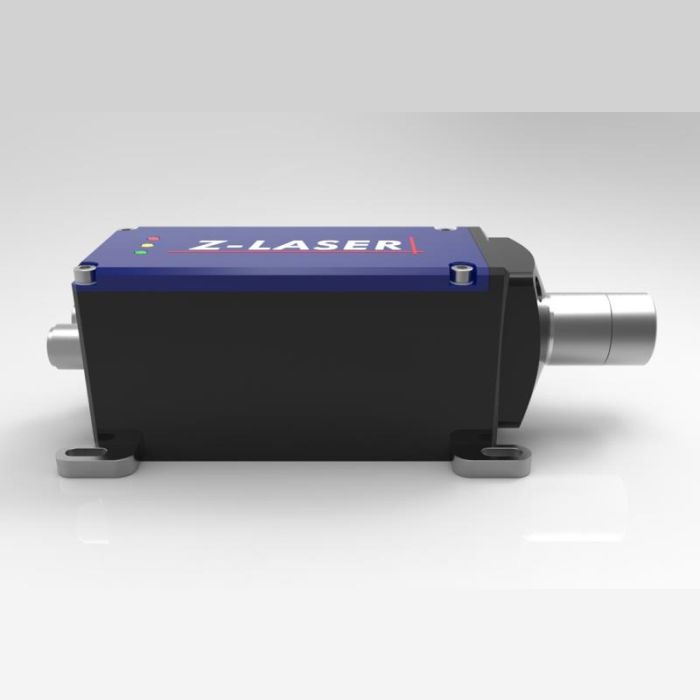

Z-Laser - ZQ1
High-power laser with high-precision laser lines, providing 2 different Powell lens options for close-up and far range.
Key Features
- Power: optical output power up to 2500mW
- Wavelength: from 450 nm to 808 nm
- Optics: line and dot optics available
- Focus: manually focusable
- I/O: TTL modulation up to 200kHz, analogue intensity control
- Protection: IP67
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nome do produto | Dominant wavelength (nm) | Beam angle | Manufacturer | IP rating | Max. trigger frequency (Hz) | Weight (kg) |
|---|---|---|---|---|---|---|
| 520 | 45° | Z-Laser | IP67 | 200 | 0.690 | |
| 450 | 75° | Z-Laser | IP67 | 200 | 0.690 | |
| 808 | 60° | Z-Laser | IP67 | N/A | N/A | |
| 450 | focused | Z-Laser | IP67 | N/A | N/A | |
| 450 | 45°; focused | Z-Laser | IP67 | 200 | 0.690 | |
| 450 | 20°; focused | Z-Laser | IP67 | 200 | 0.690 | |
| 640 | focused | Z-Laser | IP67 | N/A | N/A | |
| 520 | 90° | Z-Laser | IP67 | 200 | 0.690 | |
| 640 | 20° | Z-Laser | IP67 | 200 | 0.690 | |
| 520 | focused | Z-Laser | IP67 | N/A | N/A | |
| 760 | 80° | Z-Laser | IP67 | 200 | 0.691 | |
| 450 | 55° | Z-Laser | IP67 | 200 | 0.691 |
Por que escolher Z-Laser - ZQ1?
Exceptional precision
Two Powell lenses are available for the ZQ1 to ensure optimum homogeneity of the laser line for the required working distance. The result is high measurement accuracy and process reliability.
High-precision lens alignment
Automated lens positioning allows the lasers to be manufactured with exceptional precision, ensuring tight tolerances. As a result, duplicating a system becomes significantly easier since the calibration process is streamlined and simplified.
Active monitoring capabilities
The laser monitors a number of important operating parameters, which can also be read out: an age-related laser failure is indicated at an early stage, allowing timely reordering. This reduces not only the downtime of your system, but also your spare parts inventory. In addition, the ability to remotely control the laser via software facilitates convenient remote maintenance.
