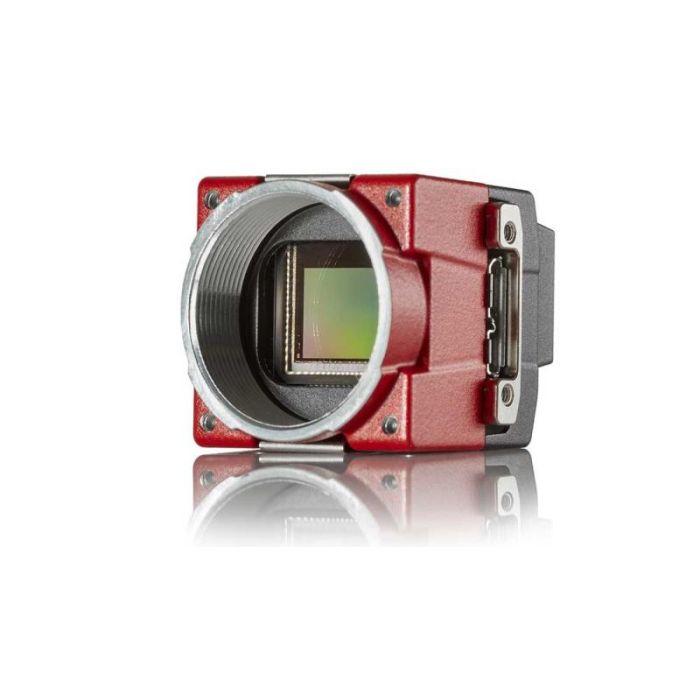

Allied Vision - Alvium USB3

The Allied Vision Alvium series is an innovative embedded camera platform that addresses the limitations associated with current cameras for embedded applications and offers system designers a previously unknown level of freedom.

Key Features

  • Resolution: up to 24.6 megapixels
  • Sensors: CMOS global and rolling shutter sensors from Sony and ON Semi
  • Frame rates: up to 691 frames per second
  • Different Housing options: Bare board, open housing or closed housing
  • Lens mounts: C-mount, CS-mount or S-mount
  • Spectral sensitivity: from ultraviolet (UV) to short wave infrared (SWIR)

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

To
To
To
To
To
Product Name Dimension (depth, mm) Dimension (height, mm) Dimension (width, mm) Frame rate (Hz) Resolution Horizontal (Px) Housing Interface Lens mount Manufacturer Pixel size (µm) Resolution (MP) Scan type Sensor format Sensor model Sensor size diagonal (mm) Sensor type Shutter type Wavelength range Weight (kg)
AV ALVIUM 1800U-501C-NIR-CH-C
 38 29 29 67 2592 closed housing USB C-Mount Allied Vision 2.2 5 area 1/2.5" AR0522 7.13 CMOS Rolling shutter Colour; VIS-NIR 0.060
AV ALVIUM 1800U-2040C-CH-C-90
 38 29 29 21 4512 closed housing 90° USB C-Mount Allied Vision 2.74 20.4 area 1.1" IMX541 17.48 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-2460M-CH-C-90
 38 38 32 14 5328 closed housing 90° USB C-Mount Allied Vision 2.74 24.6 area 1.2" IMX540 19.3 CMOS Global shutter Monochrome; Visible 0.070
AV ALVIUM 1800U-240M-CH-CS
 33 29 29 176 1936 closed housing USB CS-Mount Allied Vision 3.45 2.4 area 1/2.3" IMX392 7.89 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-240C-CH-C
 38 29 29 176 1936 closed housing USB C-Mount Allied Vision 3.45 2.4 area 1/2.3" IMX392 7.89 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-240C-CH-CS
33 29 29 176 1936 closed housing USB CS-Mount Allied Vision 3.45 2.4 area 1/2.3" IMX392 7.89 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-240C-CH-S
 33 29 29 176 1936 closed housing USB S-Mount Allied Vision 3.45 2.4 area 1/2.3" IMX392 7.89 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-130 VSWIR-CH-CS
 33 29 29 130 1296 closed housing USB CS-Mount Allied Vision 5 1.3 area 1/2" IMX990 8.28 InGaAs Global shutter Monochrome; VIS-SWIR 0.065
AV ALVIUM 1800U-240M-CH-C
 38 29 29 176 1936 closed housing USB C-Mount Allied Vision 3.45 2.4 area 1/2.3" IMX392 7.89 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-240M-CH-S
 33 29 29 176 1936 closed housing USB S-Mount Allied Vision 3.45 2.4 area 1/2.3" IMX392 7.89 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-234M-CH-C
 30 29 29 40 1936 closed housing USB C-Mount Allied Vision 5.86 2.4 area 1/1.2" IMX249 13.4 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-812UV-CH-CS
 33 29 29 51 2848 closed housing USB CS-Mount Allied Vision 2.74 8.1 area 2/3" IMX487 11.04 CMOS Global shutter Monochrome; UV 0.065
AV ALVIUM 1800U-030 VSWIR-CH-C
 38 29 29 249 656 closed housing USB C-Mount Allied Vision 5 0.3 area 1/4" IMX991 4.19 InGaAs Global shutter Monochrome; VIS-SWIR 0.065
AV ALVIUM 1800U-500M-CH-C
 38 29 29 68 2592 closed housing USB C-Mount Allied Vision 2.2 5 area 1/2.5" AR0521SR 7.13 CMOS Rolling shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-500M-CH-CS
 33 29 29 68 2592 closed housing USB CS-Mount Allied Vision 2.2 5 area 1/2.5" AR0521SR 7.13 CMOS Rolling shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-500M-CH-S
 33 29 29 68 2592 closed housing USB S-Mount Allied Vision 2.2 5 area 1/2.5" AR0521SR 7.13 CMOS Rolling shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-500C-CH-C
 38 29 29 68 2592 closed housing USB C-Mount Allied Vision 2.2 5 area 1/2.5" AR0521SR 7.13 CMOS Rolling shutter Colour; Visible 0.060
AV ALVIUM 1800U-500C-CH-CS
 33 29 29 68 2592 closed housing USB CS-Mount Allied Vision 2.2 5 area 1/2.5" AR0521SR 7.13 CMOS Rolling shutter Colour; Visible 0.060
AV ALVIUM 1800U-500C-CH-S
 33 29 29 68 2592 closed housing USB S-Mount Allied Vision 2.2 5 area 1/2.5" AR0521SR 7.13 CMOS Rolling shutter Colour; Visible 0.060
AV ALVIUM 1800U-040M-CH-C
 38 29 29 494 728 closed housing USB C-Mount Allied Vision 6.9 0.4 area 1/3" IMX287 6.27 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-040C-CH-C
 38 29 29 494 728 closed housing USB C-Mount Allied Vision 6.9 0.4 area 1/2.9" IMX287 6.27 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-040C-CH-CS
 33 29 29 494 728 closed housing USB CS-Mount Allied Vision 6.9 0.4 area 1/2.9" IMX287 6.27 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-040C-CH-S
 33 29 29 494 728 closed housing USB S-Mount Allied Vision 6.9 0.4 area 1/2.9" IMX287 6.27 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-050C-CH-C
38 29 29 117 808 closed housing USB C-Mount Allied Vision 4.8 0.5 area 1/3.6" Python 480 4.85 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-050C-CH-CS
 33 29 29 117 808 closed housing USB CS-Mount Allied Vision 4.8 0.5 area 1/3.6" Python 480 4.85 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-050C-CH-S
 33 29 29 117 808 closed housing USB S-Mount Allied Vision 4.8 0.5 area 1/3.6" Python 480 4.85 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-050M-CH-C
 38 29 29 117 808 closed housing USB C-Mount Allied Vision 4.8 0.5 area 1/3.6" Python 480 4.85 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-120M-CH-C
 38 29 29 52 1280 closed housing USB C-Mount Allied Vision 3.75 1.2 area 1/3" AR0135CS 6 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-040M-CH-CS
 33 29 29 494 728 closed housing USB CS-Mount Allied Vision 6.9 0.4 area 1/2.9" IMX287 6.27 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-040M-CH-S
 33 29 29 494 728 closed housing USB S-Mount Allied Vision 6.9 0.4 area 1/2.9" IMX287 6.27 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-050M-CH-S
 33 29 29 117 808 closed housing USB S-Mount Allied Vision 4.8 0.5 area 1/3.6" Python 480 4.85 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-050M-CH-CS
 33 29 29 117 808 closed housing USB CS-Mount Allied Vision 4.8 0.5 area 1/3.6" Python 480 4.85 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-120M-CH-S
 33 29 29 52 1280 closed housing USB S-Mount Allied Vision 3.75 1.2 area 1/3" AR0135CS 6 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-120C-CH-C
38 29 29 52 1280 closed housing USB C-Mount Allied Vision 3.75 1.2 area 1/3" AR0135CS 6 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-120C-CH-CS
 33 29 29 52 1280 closed housing USB CS-Mount Allied Vision 3.75 1.2 area 1/3" AR0135CS 6 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-120C-CH-S
 33 29 29 52 1280 closed housing USB S-Mount Allied Vision 3.75 1.2 area 1/3" AR0135CS 6 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-158C-CH-C
 38 29 29 257 1456 closed housing USB C-Mount Allied Vision 3.45 1.6 area 1/2.9" IMX273 6.27 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-158C-CH-CS
 33 29 29 257 1456 closed housing USB CS-Mount Allied Vision 3.45 1.6 area 1/2.9" IMX273 6.27 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-158C-CH-S
 33 29 29 257 1456 closed housing USB S-Mount Allied Vision 3.45 1.6 area 1/2.9" IMX273 6.27 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-120M-CH-CS
 33 29 29 52 1280 closed housing USB CS-Mount Allied Vision 3.75 1.2 area 1/3" AR0135CS 6 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-158M-CH-C
 38 29 29 257 1456 closed housing USB C-Mount Allied Vision 3.45 1.6 area 1/2.9" IMX273 6.27 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-158M-CH-CS
 33 29 29 257 1456 closed housing USB CS-Mount Allied Vision 3.45 1.6 area 1/2.9" IMX273 6.27 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-158M-CH-S
 33 29 29 257 1456 closed housing USB S-Mount Allied Vision 3.45 1.6 area 1/2.9" IMX273 6.27 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-501-NIR-CH-C
 38 29 29 68 2592 closed housing USB C-Mount Allied Vision 2.2 5 area 1/2.5" AR0522 7.13 CMOS Rolling shutter Monochrome; VIS-NIR 0.060
AV ALVIUM 1800U-501-NIR-CH-CS
 33 29 29 68 2592 closed housing USB CS-Mount Allied Vision 2.2 5 area 1/2.5" AR0522 7.13 CMOS Rolling shutter Monochrome; VIS-NIR 0.060
AV ALVIUM 1800U-501-NIR-CH-S
 33 29 29 68 2592 closed housing USB S-Mount Allied Vision 2.2 5 area 1/2.5" AR0522 7.13 CMOS Rolling shutter Monochrome; VIS-NIR 0.060
AV ALVIUM 1800U-501-NIR-CH-C-90
 38 32 29 68 2592 closed housing 90° USB C-Mount Allied Vision 2.2 5 area 1/2.5" AR0522 7.13 CMOS Rolling shutter Monochrome; VIS-NIR 0.065
AV ALVIUM 1800U-507M-CH-C
 38 29 29 34 2464 closed housing USB C-Mount Allied Vision 3.45 5.1 area 2/3" IMX264 11.07 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-507C-CH-C
 38 29 29 34 2464 closed housing USB C-Mount Allied Vision 3.45 5.1 area 2/3" IMX264 11.07 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-507M-CH-C-90
38 29 29 34 2464 closed housing 90° USB C-Mount Allied Vision 3.45 5.1 area 2/3" IMX264 11.07 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-507C-CH-C-90
38 29 32 34 2464 closed housing 90° USB C-Mount Allied Vision 3.45 5.1 area 2/3" IMX264 11.07 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-2050M-CH-C
38 29 29 21 5496 closed housing USB C-Mount Allied Vision 2.4 20.2 area 1" IMX183 15.86 CMOS Rolling shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-1236C-CH-C
 38 29 29 23 4112 closed housing USB C-Mount Allied Vision 3.45 12.4 area 1" IMX304 17.58 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-319M-CH-C
 38 29 29 54 2064 closed housing USB C-Mount Allied Vision 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-319M-CH-CS
33 29 29 54 2064 closed housing USB CS-Mount Allied Vision 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-319M-CH-S
 33 29 29 54 2064 closed housing USB S-Mount Allied Vision 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-319C-CH-C
38 29 29 54 2064 closed housing USB C-Mount Allied Vision 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-319C-CH-CS
 33 29 29 54 2064 closed housing USB CS-Mount Allied Vision 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-319C-CH-S
 33 29 29 54 2064 closed housing USB S-Mount Allied Vision 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-507C-CH-CS
 33 29 29 34 2464 closed housing USB CS-Mount Allied Vision 3.45 5.1 area 2/3" IMX264 11.07 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-507M-CH-CS
 33 29 29 34 2464 closed housing USB CS-Mount Allied Vision 3.45 5.1 area 2/3" IMX264 11.07 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-1236C-CH-CS
 33 29 29 23 4112 closed housing USB CS-Mount Allied Vision 3.45 12.4 area 1" IMX304 17.58 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-1236M-CH-C
 38 29 29 23 4112 closed housing USB C-Mount Allied Vision 3.45 12.4 area 1" IMX304 17.58 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-1236M-CH-CS
 33 29 29 23 4112 closed housing USB CS-Mount Allied Vision 3.45 12.4 area 1" IMX304 17.58 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-2050M-CH-CS
 33 29 29 21 5496 closed housing USB CS-Mount Allied Vision 2.4 20.2 area 1" IMX183 15.86 CMOS Rolling shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-2050C-CH-C
 38 29 29 21 5496 closed housing USB C-Mount Allied Vision 2.4 20.2 area 1" IMX183 15.86 CMOS Rolling shutter Colour; Visible 0.065
AV ALVIUM 1800U-2050C-CH-CS
 33 29 29 21 5496 closed housing USB CS-Mount Allied Vision 2.4 20.2 area 1" IMX183 15.86 CMOS Rolling shutter Colour; Visible 0.060
AV ALVIUM 1800U-500C-CH-S-90
 33 29 32 68 2592 closed housing 90° USB S-Mount Allied Vision 2.2 5 area 1/2.5" AR0521SR 7.13 CMOS Rolling shutter Colour; Visible 0.065
AV ALVIUM 1800U-508C-CH-C
 38 29 29 84 2464 closed housing USB C-Mount Allied Vision 3.45 5.1 area 2/3" IMX250 11.07 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-508M-CH-C
 38 29 29 84 2464 closed housing USB C-Mount Allied Vision 3.45 5.1 area 2/3" IMX250 11.07 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-508C-CH-CS
 33 29 29 84 2464 closed housing USB CS-Mount Allied Vision 3.45 5.1 area 2/3" IMX250 11.07 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-508M-CH-CS
 33 29 29 84 2464 closed housing USB CS-Mount Allied Vision 3.45 5.1 area 2/3" IMX250 11.07 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-1240C-CH-C
 38 29 29 35 4024 closed housing USB C-Mount Allied Vision 1.85 12.3 area 1/1.7" IMX226 9.33 CMOS Rolling shutter Colour; Visible 0.065
AV ALVIUM 1800U-1240C-CH-CS
 33 29 29 35 4024 closed housing USB CS-Mount Allied Vision 1.85 12.3 area 1/1.7" IMX226 9.33 CMOS Rolling shutter Colour; Visible 0.065
AV ALVIUM 1800U-1240C-CH-S
 33 29 29 35 4024 closed housing USB S-Mount Allied Vision 1.85 12.3 area 1/1.7" IMX226 9.33 CMOS Rolling shutter Colour; Visible 0.065
AV ALVIUM 1800U-1240M-CH-C
 38 29 29 35 4024 closed housing USB C-Mount Allied Vision 1.85 12.3 area 1/1.7" IMX226 9.33 CMOS Rolling shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-1240M-CH-CS
 33 29 29 35 4024 closed housing USB CS-Mount Allied Vision 1.85 12.3 area 1/1.7" IMX226 9.33 CMOS Rolling shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-1240M-CH-S
 33 29 29 35 4024 closed housing USB S-Mount Allied Vision 1.85 12.3 area 1/1.7" IMX226 9.33 CMOS Rolling shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-2460C-CH-C
 38 29 29 17 5328 closed housing USB C-Mount Allied Vision 2.74 24.5 area 1.2" IMX540 19.3 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-120M-CH-S-90
 33 29 32 52 1280 closed housing 90° USB S-Mount Allied Vision 3.75 1.2 area 1/3" AR0135CS 6 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-120C-CH-S-90
 33 29 32 52 1280 closed housing 90° USB S-Mount Allied Vision 3.75 1.2 area 1/3" AR0135CS 6 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-319M-CH-C-90
 38 29 32 54 2064 closed housing 90° USB C-Mount Allied Vision 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-2040C-CH-C
 38 29 29 21 4512 closed housing USB C-Mount Allied Vision 2.74 20.4 area 1.1" IMX541 17.48 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-1620C-CH-C
 38 29 29 26 5328 closed housing USB C-Mount Allied Vision 2.74 16.2 area 1.1" IMX542 16.81 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-2040M-CH-C
 38 29 29 21 4512 closed housing USB C-Mount Allied Vision 2.74 20.4 area 1.1" IMX541 17.48 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-1236M-CH-C-90
 38 29 32 23 4112 closed housing 90° USB C-Mount Allied Vision 3.45 12.4 area 1" IMX304 17.58 CMOS Global shutter Monochrome; Visible 0.070
AV ALVIUM 1800U-2460M-CH-C
 38 29 29 17 5328 closed housing USB C-Mount Allied Vision 2.74 24.5 area 1.2" IMX540 19.3 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-1242C-CH-CS
 33 29 29 34 4128 closed housing USB CS-Mount Allied Vision 2.74 12.4 area 1/1.1" IMX545 14 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-511M-CH-C
 38 29 29 79 2464 closed housing USB C-Mount Allied Vision 2.74 5.1 area 1/1.8" IMX547 8.81 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-511M-CH-CS
 33 29 29 79 2464 closed housing USB CS-Mount Allied Vision 2.74 5.1 area 1/1.8" IMX547 8.81 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-511M-CH-S
 38 29 29 79 2464 closed housing USB S-Mount Allied Vision 2.74 5.1 area 1/1.8" IMX547 8.81 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-511C-CH-C
 38 29 29 79 2464 closed housing USB C-Mount Allied Vision 2.74 5.1 area 1/1.8" IMX547 8.81 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-511C-CH-CS
 33 29 29 79 2464 closed housing USB CS-Mount Allied Vision 2.74 5.1 area 1/1.8" IMX547 8.81 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-511C-CH-S
 33 29 29 79 2464 closed housing USB S-Mount Allied Vision 2.74 5.1 area 1/1.8" IMX547 8.81 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-1620M-CH-C
 38 29 29 26 5328 closed housing USB C-Mount Allied Vision 2.74 16.2 area 1.1" IMX542 16.81 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-811C-CH-C
 38 29 29 51 2848 closed housing USB C-Mount Allied Vision 2.74 8.1 area 2/3" IMX546 11.04 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-811M-CH-C
 38 29 29 51 2848 closed housing USB C-Mount Allied Vision 2.74 8.1 area 2/3" IMX546 11.04 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-811C-CH-CS
 33 29 29 51 2848 closed housing USB CS-Mount Allied Vision 2.74 8.1 area 2/3" IMX546 11.04 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-811M-CH-CS
 33 29 29 51 2848 closed housing USB CS-Mount Allied Vision 2.74 8.1 area 2/3" IMX546 11.04 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-1242C-CH-C
 38 29 29 33 4128 closed housing USB C-Mount Allied Vision 2.74 12.4 area 1/1.1" IMX545 14 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-1242M-CH-C
 38 29 29 33 4128 closed housing USB C-Mount Allied Vision 2.74 12.4 area 1/1.1" IMX545 14 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-1242M-CH-CS
 33 29 29 33 4128 closed housing USB CS-Mount Allied Vision 2.74 12.4 area 1/1.1" IMX545 14 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-511M-CH-C-90
 38 29 32 79 2464 closed housing 90° USB C-Mount Allied Vision 2.74 5.1 area 1/1.8" IMX547 8.81 CMOS Global shutter Monochrome; Visible 0.070
AV ALVIUM 1800U-811M-CH-C-90
 38 29 32 51 2848 closed housing 90° USB C-Mount Allied Vision 2.74 8.1 area 2/3" IMX546 11.04 CMOS Global shutter Monochrome; Visible 0.070
AV ALVIUM 1800U-130 VSWIR-CH-C
 38 29 29 130 1296 closed housing USB C-Mount Allied Vision 5 1.3 area 1/2" IMX990 8.28 InGaAs Global shutter Monochrome; VIS-SWIR 0.065
AV ALVIUM 1800U-291M-CH-C
 38 29 29 144 1944 closed housing USB C-Mount Allied Vision 4.5 2.9 area 2/3" IMX421 10.97 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-030 VSWIR-CH-CS
 33 29 29 249 656 closed housing USB CS-Mount Allied Vision 5 0.3 area 1/4" IMX991 4.19 InGaAs Global shutter Monochrome; VIS-SWIR 0.065
AV ALVIUM 1800U-030 VSWIR-CH-S
 33 29 29 249 656 closed housing USB S-Mount Allied Vision 5 0.3 area 1/4" IMX991 4.19 InGaAs Global shutter Monochrome; VIS-SWIR 0.065
AV ALVIUM 1800U-130 VSWIR-CH-S
 33 29 29 130 1296 closed housing USB S-Mount Allied Vision 5 1.3 area 1/2" IMX990 8.28 InGaAs Global shutter Monochrome; VIS-SWIR 0.065
AV ALVIUM 1800U-030 VSWIR-CH-C-90
 38 32 29 249 656 closed housing 90° USB C-Mount Allied Vision 5 0.3 area 1/4" IMX991 4.19 InGaAs Global shutter Monochrome; VIS-SWIR 0.070
AV ALVIUM 1800U-030 VSWIR-CH-CS-90
 33 29 32 249 656 closed housing 90° USB CS-Mount Allied Vision 5 0.3 area 1/4" IMX991 4.19 InGaAs Global shutter Monochrome; VIS-SWIR 0.070
AV ALVIUM 1800U-030 VSWIR-CH-S-90
 33 29 32 249 656 closed housing 90° USB S-Mount Allied Vision 5 0.3 area 1/4" IMX991 4.19 InGaAs Global shutter Monochrome; VIS-SWIR 0.070
AV ALVIUM 1800U-130 VSWIR-CH-C-90
 38 38 32 130 1296 closed housing 90° USB C-Mount Allied Vision 5 1.3 area N/A IMX990 8.28 InGaAs Global shutter Monochrome; VIS-SWIR 0.060
AV ALVIUM 1800U-130 VSWIR-CH-CS-90
 33 29 32 130 1296 closed housing 90° USB CS-Mount Allied Vision 5 1.3 area N/A IMX990 8.28 InGaAs Global shutter Monochrome; VIS-SWIR 0.070
AV ALVIUM 1800U-130 VSWIR-CH-S-90
 33 29 32 130 1296 closed housing 90° USB S-Mount Allied Vision 5 1.3 area N/A IMX990 8.28 InGaAs Global shutter Monochrome; VIS-SWIR 0.070
AV ALVIUM 1800U-052M-CH-C
 32 29 29 688 816 closed housing USB C-Mount Allied Vision 9 0.5 area 1/1.7" IMX426 9.25 CMOS Global shutter Monochrome; Visible 0.070
AV ALVIUM 1800U-2460C-CH-C-90
 38 38 32 17 5328 closed housing 90° USB C-Mount Allied Vision 2.74 24.6 area 1.2" IMX540 19.3 CMOS Global shutter Colour; Visible 0.070
AV ALVIUM 1800U-1236C-CH-C-90
 38 38 32 22 4112 closed housing 90° USB C-Mount Allied Vision 3.45 12.4 area 1" IMX304 17.58 CMOS Global shutter Colour; Visible 0.070
AV ALVIUM 1800U-2050M-CH-C-90
 38 32 29 21 5496 closed housing 90° USB C-Mount Allied Vision 2.4 20.2 area 1" IMX183 15.86 CMOS Rolling shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-240C-CH-S-90
 33 29 32 176 1936 closed housing 90° USB S-Mount Allied Vision 3.45 2.4 area 1/2.3" IMX392 7.89 CMOS Global shutter Colour; Visible 0.070
AV ALVIUM 1800U-1240C-CH-C-90
 38 29 32 35 4024 closed housing 90° USB C-Mount Allied Vision 1.85 12.2 area 1/1.7" IMX226 9.33 CMOS Rolling shutter Colour; Visible 0.070
AV ALVIUM 1800U-052M-CH-CS
 33 29 29 688 816 closed housing USB CS-Mount Allied Vision 9 0.5 area 1/1.7" IMX426 9.25 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-052C-CH-C
38 29 29 691 816 closed housing USB C-Mount Allied Vision 9 0.5 area 1/1.7" IMX426 9.25 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-052C-CH-CS
 33 29 29 688 816 closed housing USB CS-Mount Allied Vision 9 0.5 area 1/1.7" IMX426 9.25 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-291M-CH-CS
 33 29 29 144 1944 closed housing USB CS-Mount Allied Vision 4.5 2.9 area 2/3" IMX421 10.97 CMOS Global shutter Monochrome; Visible 0.070
AV ALVIUM 1800U-291C-CH-C
38 29 29 144 1944 closed housing USB C-Mount Allied Vision 4.5 2.9 area 2/3" IMX421 10.97 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-291C-CH-CS
 33 29 29 144 1944 closed housing USB CS-Mount Allied Vision 4.5 2.9 area 2/3" IMX421 10.97 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-120M-CH-CS-90
 33 29 32 52 1280 closed housing 90° USB CS-Mount Allied Vision 3.75 1.2 area 1/3" AR0135CS 6 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-812UV-CH-C
 38 29 29 51 2848 closed housing USB C-Mount Allied Vision 2.74 8.1 area 2/3" IMX487 11.04 CMOS Global shutter Monochrome; UV 0.065
AV ALVIUM 1800U-235C-CH-C
 38 29 29 155 1936 closed housing USB C-Mount Allied Vision 5.86 2.4 area 1/1.2" IMX174 13.4 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-235C-CH-CS
 33 29 29 155 1936 closed housing USB CS-Mount Allied Vision 5.86 2.4 area 1/1.2" IMX174 13.4 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-235M-CH-C
 38 29 29 155 1936 closed housing USB C-Mount Allied Vision 5.86 2.4 area 1/1.2" IMX174 13.4 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-235M-CH-CS
 33 29 29 155 1936 closed housing USB CS-Mount Allied Vision 5.86 2.4 area 1/1.2" IMX174 13.4 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-234M-CH-CS
 33 29 29 40 1936 closed housing USB CS-Mount Allied Vision 5.86 2.4 area 1/1.2" IMX249 13.4 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-234C-CH-C
 38 29 29 40 1936 closed housing USB C-Mount Allied Vision 5.86 20.4 area 1/1.2" IMX249 13.4 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-234C-CH-CS
 33 29 29 40 1936 closed housing USB CS-Mount Allied Vision 5.86 2.4 area 1/1.2" IMX249 13.4 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-501C-NIR-CH-CS
 33 29 29 67 2592 closed housing USB CS-Mount Allied Vision 2.2 5 area 1/2.5" AR0522 7.13 CMOS Rolling shutter Colour; VIS-NIR 0.060
AV ALVIUM 1800U-501C-NIR-CH-S
 33 29 29 67 2592 closed housing USB S-Mount Allied Vision 2.2 5 area 1/2.5" AR0522 7.13 CMOS Rolling shutter Colour; VIS-NIR 0.060
AV ALVIUM 1800U-1242M-CH-C-90
 38 29 32 33 4128 closed housing 90° USB C-Mount Allied Vision 2.74 12.4 area 1/1.1" IMX545 14 CMOS Global shutter Monochrome; Visible 0.070
AV ALVIUM 1800U-052M-CH-C-90
 38 29 29 688 816 closed housing 90° USB C-Mount Allied Vision 9 0.5 area 1/1.7" IMX426 9.25 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-158M-CH-C-90
 38 29 32 257 1456 closed housing 90° USB C-Mount Allied Vision 3.45 1.6 area 1/2.9" IMX273 6.27 CMOS Global shutter Monochrome; Visible 0.070
AV ALVIUM 1800U-120M-CH-C-90
 38 29 32 52 1280 closed housing 90° USB C-Mount Allied Vision 3.75 1.2 area 1/3" AR0135CS 6 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-510M-CH-C
 38 29 29 79 2464 closed housing USB C-Mount Allied Vision 2.74 5.1 area 1/1.8" IMX548 8.81 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-240C-CH-C-90
 38 29 32 176 1936 closed housing 90° USB C-Mount Allied Vision 3.45 2.4 area 1/2.3" IMX392 7.89 CMOS Global shutter Colour; Visible 0.070
AV ALVIUM 1800U-131M-CH-C
 38 29 29 59 1280 closed housing USB C-Mount Allied Vision 5.3 1.3 area 1/1.8" EV76C560 8.69 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-131M-CH-CS
 33 29 29 59 1280 closed housing USB CS-Mount Allied Vision 5.3 1.3 area 1/1.8" EV76C560 8.69 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-131M-CH-S
 33 29 29 59 1280 closed housing USB S-Mount Allied Vision 5.3 1.3 area 1/1.8" EV76C560 8.69 CMOS Global shutter Monochrome; Visible 0.060
AV ALVIUM 1800U-131C-CH-C
 38 29 29 59 1280 closed housing USB C-Mount Allied Vision 5.3 1.3 area 1/1.8" EV76C560 8.69 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-895M-CH-C
 38 29 29 31 4112 closed housing USB C-Mount Allied Vision 3.45 8.9 area 1" IMX267 16.05 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-895C-CH-C
 38 29 29 31 4112 closed housing USB C-Mount Allied Vision 3.45 8.9 area 1" IMX267 16.05 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-131C-CH-CS
 33 29 29 59 1280 closed housing USB CS-Mount Allied Vision 5.3 1.3 area 1/1.8" EV76C560 8.69 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-131C-CH-S
 33 29 29 59 1280 closed housing USB S-Mount Allied Vision 5.3 1.3 area 1/1.8" EV76C560 8.69 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-192C-CH-C
 38 29 29 59 1600 closed housing USB C-Mount Allied Vision 4.5 1.9 area 2/3" EV76C570 9 CMOS Rolling shutter Colour; Visible 0.065
AV ALVIUM 1800U-192C-CH-CS
 33 29 29 59 1600 closed housing USB CS-Mount Allied Vision 4.5 1.9 area 2/3" EV76C570 9 CMOS Rolling shutter Colour; Visible 0.065
AV ALVIUM 1800U-192C-CH-S
 33 29 29 59 1600 closed housing USB S-Mount Allied Vision 4.5 1.9 area 2/3" EV76C570 9 CMOS Rolling shutter Colour; Visible 0.065
AV ALVIUM 1800U-203C-CH-C
 38 29 29 200 1632 closed housing USB C-Mount Allied Vision 4.5 2 area 1/1.7" IMX422 9.25 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-203C-CH-CS
 33 29 29 200 1632 closed housing USB CS-Mount Allied Vision 4.5 2 area 1/1.7" IMX422 9.25 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-895C-CH-CS
 33 29 29 31 4112 closed housing USB CS-Mount Allied Vision 3.45 8.9 area 1" IMX267 16.05 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-895M-CH-CS
 33 29 29 31 4112 closed housing USB CS-Mount Allied Vision 3.45 8.9 area 1" IMX267 16.05 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-203M-CH-C
 38 29 29 200 1632 closed housing USB C-Mount Allied Vision 4.5 2 area 1/1.7" IMX422 9.25 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-203M-CH-CS
 33 29 29 200 1632 closed housing USB CS-Mount Allied Vision 4.5 2 area 1/1.7" IMX422 9.25 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-192M-CH-C
 38 29 29 59 1600 closed housing USB C-Mount Allied Vision 4.5 1.9 area 2/3" EV76C570 9 CMOS Rolling shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-192M-CH-CS
 33 29 29 59 1600 closed housing USB CS-Mount Allied Vision 4.5 1.9 area 2/3" EV76C570 9 CMOS Rolling shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-192M-CH-S
 33 29 29 59 1600 closed housing USB S-Mount Allied Vision 4.5 1.9 area 2/3" EV76C570 9 CMOS Rolling shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-530 VSWIR-CH-C
 38 29 29 77 2592 closed housing USB C-Mount Allied Vision 3.45 5.3 area 1/1.4" IMX992 11.41 InGaAs Global shutter Monochrome; VIS-SWIR 0.075
AV ALVIUM 1800U-530 VSWIR-CH-CS
 33 29 29 77 2592 closed housing USB CS-Mount Allied Vision 3.45 5.3 area 1/1.4" IMX992 11.41 InGaAs Global shutter Monochrome; VIS-SWIR 0.065
AV ALVIUM 1800U-320 VSWIR-CH-C
 38 29 29 120 2080 closed housing USB C-Mount Allied Vision 3.45 3.2 area 1/1.8" IMX993 8.94 InGaAs Global shutter Monochrome; VIS-SWIR 0.065
AV ALVIUM 1800U-320 VSWIR-CH-CS
 33 29 29 120 2080 closed housing USB CS-Mount Allied Vision 3.45 3.2 area 1/1.8" IMX993 8.94 InGaAs Global shutter Monochrome; VIS-SWIR 0.065
AV ALVIUM 1800U-510C-CH-C
 38 29 29 79 2464 closed housing USB C-Mount Allied Vision 2.74 5.1 area 1/1.8" IMX548 8.81 CMOS Global shutter Colour; Visible 0.065
AV ALVIUM 1800U-1240M-CH-C-90
 38 29 32 35 4024 closed housing 90° USB C-Mount Allied Vision 1.85 12.2 area 1/1.7" IMX226 9.33 CMOS Rolling shutter Monochrome; Visible 0.070
AV ALVIUM 1800U-234M-CH-CS-90
 33 29 32 40 1936 closed housing 90° USB CS-Mount Allied Vision 5.86 2.4 area 1/1.2" IMX249 13.4 CMOS Global shutter Monochrome; Visible N/A
AV ALVIUM 1800U-530 VSWIR-CH-C-90
 38 32 29 77 2592 closed housing 90° USB C-Mount Allied Vision 3.45 5.3 area 1/1.4" IMX992 11.41 InGaAs Global shutter Monochrome; VIS-SWIR 0.070
AV ALVIUM 1800U-530 VSWIR-CH-CS-90
 33 29 32 77 2592 closed housing 90° USB CS-Mount Allied Vision 3.45 5.3 area 1/1.4" IMX992 11.41 InGaAs Global shutter Monochrome; VIS-SWIR 0.070
AV ALVIUM 1800U-320 VSWIR-CH-C-90
 38 29 32 120 2080 closed housing 90° USB C-Mount Allied Vision 3.45 3.2 area 1/1.8" IMX993 8.94 InGaAs Global shutter Monochrome; VIS-SWIR 0.070
AV ALVIUM 1800U-320 VSWIR-CH-CS-90
 33 29 32 120 2080 closed housing 90° USB CS-Mount Allied Vision 3.45 3.2 area 1/1.8" IMX993 8.94 InGaAs Global shutter Monochrome; VIS-SWIR 0.070
AV ALVIUM 1800U-234C-CH-C-90
 29 29 30 40 1936 closed housing 90° USB C-Mount Allied Vision 5.86 20.4 area 1/1.2" IMX249 13.4 CMOS Global shutter Colour; Visible N/A
AV ALVIUM 1800U-234M-CH-C-90
 38 29 38 40 1936 closed housing 90° USB C-Mount Allied Vision 5.86 2.4 area 1/1.2" IMX249 13.4 CMOS Global shutter Monochrome; Visible N/A
AV ALVIUM 1800U-2040M-CH-C-90
 38 29 32 21 4512 closed housing 90° USB C-Mount Allied Vision 2.74 20.4 area 1.1" IMX541 17.48 CMOS Global shutter Monochrome; Visible 0.070
AV ALVIUM 1800U-511M-CH-CS-90
 33 29 32 79 2464 closed housing 90° USB CS-Mount Allied Vision 2.74 5.1 area 1/1.8" IMX547 8.81 CMOS Global shutter Monochrome; Visible 0.070
AV ALVIUM 1800U-2040M-CH-CS-90
 33 29 32 21 4512 closed housing 90° USB CS-Mount Allied Vision 2.74 20.4 area 1.1" IMX541 17.48 CMOS Global shutter Monochrome; Visible 0.070
AV ALVIUM 1800U-291M-CH-C-90
 38 29 32 144 1944 closed housing 90° USB C-Mount Allied Vision 4.5 2.9 area 2/3" IMX421 10.97 CMOS Global shutter Monochrome; Visible 0.070
AV ALVIUM 1800U-507C-CH-C POL
 38 29 29 34 2464 closed housing USB C-Mount Allied Vision 3.45 5.1 area 2/3" IMX264MYR 11.07 CMOS Global shutter Colour; Visible 0.060
AV ALVIUM 1800U-500C-CH-C-90
 38 29 38 68 2592 closed housing 90° USB C-Mount Allied Vision 2.2 5 area 1/2.5" AR0521SR 7.13 CMOS Rolling shutter Colour; Visible 0.065
AV ALVIUM 1800U-319M-CH-CS-90
 33 29 32 54 2064 closed housing 90° USB CS-Mount Allied Vision 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter Monochrome; Visible 0.065
AV ALVIUM 1800U-1240M-CH-S-90
 33 29 32 35 4024 closed housing 90° USB S-Mount Allied Vision 1.85 12.2 area 1/1.7" IMX226 9.33 CMOS Rolling shutter Monochrome; Visible 0.070
AV ALVIUM 1800U-291C-CH-C-90
 38 29 29 144 1944 closed housing 90° USB C-Mount Allied Vision 4.5 2.9 area 2/3" IMX421 10.97 CMOS Global shutter Colour; Visible 0.065

Need more information?

Contact our experts to get personalized recommendations.

Contact Tech News
