Allied Vision - Alvium USB3

The Allied Vision Alvium series is an innovative embedded camera platform that addresses the limitations associated with current cameras for embedded applications and offers system designers a previously unknown level of freedom.

Key Features

Resolution: up to 24.6 megapixels
Sensors: CMOS global and rolling shutter sensors from Sony and ON Semi
Frame rates: up to 691 frames per second

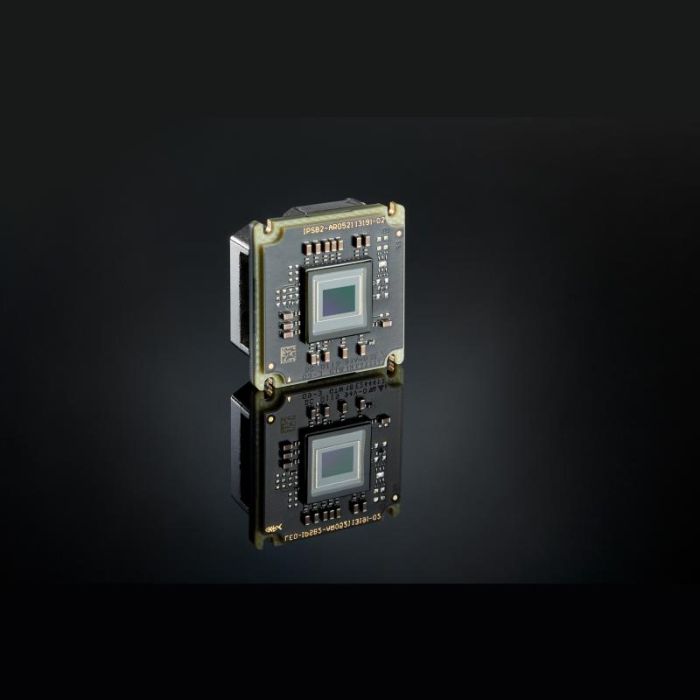

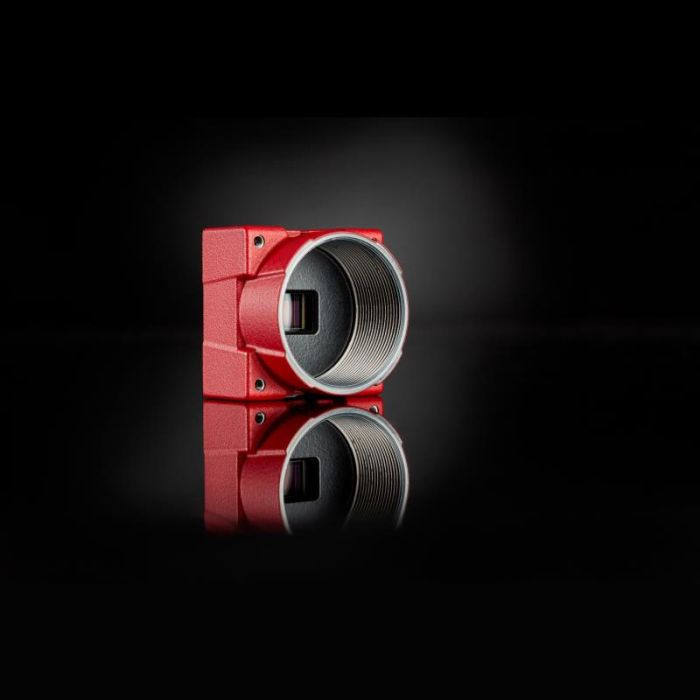

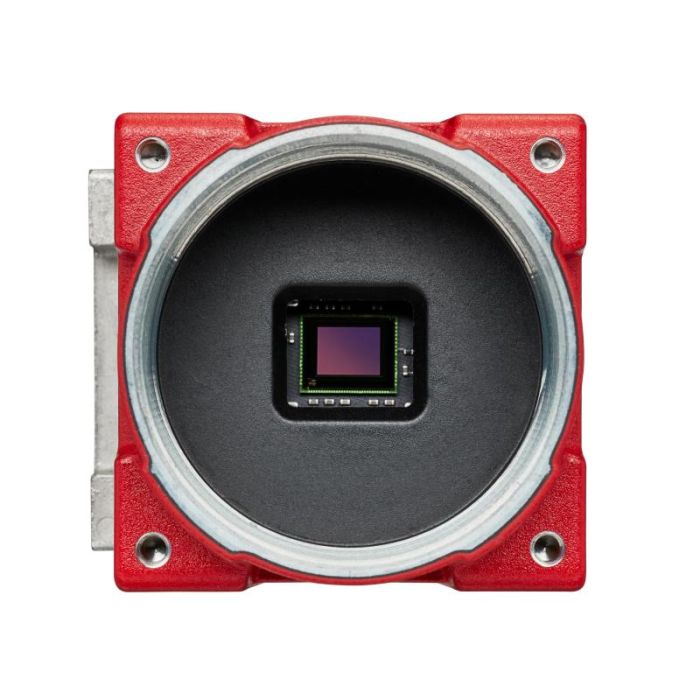

Different Housing options: Bare board, open housing or closed housing
Lens mounts: C-mount, CS-mount or S-mount
Spectral sensitivity: from ultraviolet (UV) to short wave infrared (SWIR)

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

Bit depth

Bis

Dimension (depth, mm)

Bis

Dimension (height, mm)

Bis

Dimension (width, mm)

Bis

Frame rate (Hz)

Bis

Resolution Horizontal (Px)

Bis

Pixel size (µm)

Bis

Resolution (MP)

Bis

Sensor model

Sensor size diagonal (mm)

Bis

Resolution Vertical (Px)

Bis

Produktname	Bit depth	Dimension (depth, mm)	Dimension (height, mm)	Dimension (width, mm)	Frame rate (Hz)	Resolution Horizontal (Px)	Housing	Interface	Interface configuration	Lens mount	Manufacturer	Pixel size (µm)	Resolution (MP)	Scan type	Sensor configuration	Sensor model	Sensor size diagonal (mm)	Shutter type	Wavelength range	Resolution Vertical (Px)	Weight (kg)
AV ALVIUM 1800U-501C-NIR-CH-C	10	38	29	29	67	2592	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.2	5	N/A	N/A	AR0522	7.13	Rolling shutter	Colour; VIS-NIR	1944	0.060
AV ALVIUM 1800U-2040C-CH-C-90	12	38	29	29	21	4512	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	20.4	area	Single sensor	IMX541	17.48	Global shutter	Colour; Visible	4512	0.065
AV ALVIUM 1800U-2460M-CH-C-90	12	38	38	32	14	5328	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	24.6	area	N/A	IMX540	19.3	Global shutter	Monochrome; Visible	4608	0.070
AV ALVIUM 1800U-240M-CH-CS	12	33	29	29	176	1936	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	2.4	area	Single sensor	IMX392	7.89	Global shutter	Monochrome; Visible	1216	0.065
AV ALVIUM 1800U-240C-CH-C	12	38	29	29	176	1936	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	2.4	area	Single sensor	IMX392	7.89	Global shutter	Colour; Visible	1216	0.065
AV ALVIUM 1800U-240C-CH-CS	12	33	29	29	176	1936	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	2.4	area	Single sensor	IMX392	7.89	Global shutter	Colour; Visible	1216	0.065
AV ALVIUM 1800U-240C-CH-S	12	33	29	29	176	1936	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	3.45	2.4	area	Single sensor	IMX392	7.89	Global shutter	Colour; Visible	1216	0.065
AV ALVIUM 1800U-130 VSWIR-CH-CS	10	33	29	29	130	1296	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	5	1.3	area	N/A	IMX990	8.28	Global shutter	Monochrome; VIS-SWIR	1032	0.065
AV ALVIUM 1800U-240M-CH-C	12	38	29	29	176	1936	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	2.4	area	Single sensor	IMX392	7.89	Global shutter	Monochrome; Visible	1216	0.065
AV ALVIUM 1800U-240M-CH-S	12	33	29	29	176	1936	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	3.45	2.4	area	Single sensor	IMX392	7.89	Global shutter	Monochrome; Visible	1216	0.065
AV ALVIUM 1800U-234M-CH-C	10; 12	30	29	29	40	1936	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	5.86	2.4	area	N/A	IMX249	13.4	Global shutter	Monochrome; Visible	1216	0.065
AV ALVIUM 1800U-812UV-CH-CS	12	33	29	29	51	2848	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	2.74	8.1	area	N/A	IMX487	11.04	Global shutter	Monochrome; UV	2848	0.065
AV ALVIUM 1800U-030 VSWIR-CH-C	12	38	29	29	249	656	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	5	0.3	area	N/A	IMX991	4.19	Global shutter	Monochrome; VIS-SWIR	520	0.065
AV ALVIUM 1800U-500M-CH-C	10	38	29	29	68	2592	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.2	5	area	Single sensor	AR0521SR	7.13	Rolling shutter	Monochrome; Visible	1944	0.060
AV ALVIUM 1800U-500M-CH-CS	10	33	29	29	68	2592	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	2.2	5	area	Single sensor	AR0521SR	7.13	Rolling shutter	Monochrome; Visible	1944	0.060
AV ALVIUM 1800U-500M-CH-S	10	33	29	29	68	2592	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	2.2	5	area	Single sensor	AR0521SR	7.13	Rolling shutter	Monochrome; Visible	1944	0.060
AV ALVIUM 1800U-500C-CH-C	10	38	29	29	68	2592	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.2	5	area	Single sensor	AR0521SR	7.13	Rolling shutter	Colour; Visible	1944	0.060
AV ALVIUM 1800U-500C-CH-CS	10	33	29	29	68	2592	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	2.2	5	area	Single sensor	AR0521SR	7.13	Rolling shutter	Colour; Visible	1944	0.060
AV ALVIUM 1800U-500C-CH-S	10	33	29	29	68	2592	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	2.2	5	area	Single sensor	AR0521SR	7.13	Rolling shutter	Colour; Visible	1944	0.060
AV ALVIUM 1800U-040M-CH-C	12	38	29	29	494	728	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	6.9	0.4	area	Single sensor	IMX287	6.27	Global shutter	Monochrome; Visible	544	0.060
AV ALVIUM 1800U-040C-CH-C	12	38	29	29	494	728	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	6.9	0.4	area	Single sensor	IMX287	6.27	Global shutter	Colour; Visible	544	0.060
AV ALVIUM 1800U-040C-CH-CS	12	33	29	29	494	728	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	6.9	0.4	area	Single sensor	IMX287	6.27	Global shutter	Colour; Visible	544	0.060
AV ALVIUM 1800U-040C-CH-S	12	33	29	29	494	728	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	6.9	0.4	area	Single sensor	IMX287	6.27	Global shutter	Colour; Visible	544	0.060
AV ALVIUM 1800U-050C-CH-C	10	38	29	29	117	808	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	4.8	0.5	area	Single sensor	Python 480	4.85	Global shutter	Colour; Visible	608	0.060
AV ALVIUM 1800U-050C-CH-CS	10	33	29	29	117	808	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	4.8	0.5	area	Single sensor	Python 480	4.85	Global shutter	Colour; Visible	608	0.060
AV ALVIUM 1800U-050C-CH-S	10	33	29	29	117	808	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	4.8	0.5	area	Single sensor	Python 480	4.85	Global shutter	Colour; Visible	608	0.060
AV ALVIUM 1800U-050M-CH-C	10	38	29	29	117	808	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	4.8	0.5	area	Single sensor	Python 480	4.85	Global shutter	Monochrome; Visible	608	0.060
AV ALVIUM 1800U-120M-CH-C	12	38	29	29	52	1280	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.75	1.2	area	Single sensor	AR0135CS	6	Global shutter	Monochrome; Visible	960	0.060
AV ALVIUM 1800U-040M-CH-CS	12	33	29	29	494	728	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	6.9	0.4	area	Single sensor	IMX287	6.27	Global shutter	Monochrome; Visible	544	0.060
AV ALVIUM 1800U-040M-CH-S	12	33	29	29	494	728	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	6.9	0.4	area	Single sensor	IMX287	6.27	Global shutter	Monochrome; Visible	544	0.060
AV ALVIUM 1800U-050M-CH-S	10	33	29	29	117	808	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	4.8	0.5	area	Single sensor	Python 480	4.85	Global shutter	Monochrome; Visible	608	0.060
AV ALVIUM 1800U-050M-CH-CS	10	33	29	29	117	808	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	4.8	0.5	area	Single sensor	Python 480	4.85	Global shutter	Monochrome; Visible	608	0.060
AV ALVIUM 1800U-120M-CH-S	12	33	29	29	52	1280	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	3.75	1.2	area	Single sensor	AR0135CS	6	Global shutter	Monochrome; Visible	960	0.060
AV ALVIUM 1800U-120C-CH-C	12	38	29	29	52	1280	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.75	1.2	area	Single sensor	AR0135CS	6	Global shutter	Colour; Visible	960	0.060
AV ALVIUM 1800U-120C-CH-CS	12	33	29	29	52	1280	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.75	1.2	area	Single sensor	AR0135CS	6	Global shutter	Colour; Visible	960	0.060
AV ALVIUM 1800U-120C-CH-S	12	33	29	29	52	1280	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	3.75	1.2	area	Single sensor	AR0135CS	6	Global shutter	Colour; Visible	960	0.060
AV ALVIUM 1800U-158C-CH-C	12	38	29	29	257	1456	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	1.6	area	Single sensor	IMX273	6.27	Global shutter	Colour; Visible	1088	0.065
AV ALVIUM 1800U-158C-CH-CS	12	33	29	29	257	1456	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	1.6	area	Single sensor	IMX273	6.27	Global shutter	Colour; Visible	1088	0.065
AV ALVIUM 1800U-158C-CH-S	12	33	29	29	257	1456	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	3.45	1.6	area	Single sensor	IMX273	6.27	Global shutter	Colour; Visible	1088	0.065
AV ALVIUM 1800U-120M-CH-CS	12	33	29	29	52	1280	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.75	1.2	area	Single sensor	AR0135CS	6	Global shutter	Monochrome; Visible	960	0.060
AV ALVIUM 1800U-158M-CH-C	12	38	29	29	257	1456	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	1.6	area	Single sensor	IMX273	6.27	Global shutter	Monochrome; Visible	1088	0.065
AV ALVIUM 1800U-158M-CH-CS	12	33	29	29	257	1456	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	1.6	area	Single sensor	IMX273	6.27	Global shutter	Monochrome; Visible	1088	0.065
AV ALVIUM 1800U-158M-CH-S	12	33	29	29	257	1456	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	3.45	1.6	area	Single sensor	IMX273	6.27	Global shutter	Monochrome; Visible	1088	0.065
AV ALVIUM 1800U-501-NIR-CH-C	10	38	29	29	68	2592	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.2	5	area	Single sensor	AR0522	7.13	Rolling shutter	Monochrome; VIS-NIR	1944	0.060
AV ALVIUM 1800U-501-NIR-CH-CS	10	33	29	29	68	2592	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	2.2	5	area	Single sensor	AR0522	7.13	Rolling shutter	Monochrome; VIS-NIR	1944	0.060
AV ALVIUM 1800U-501-NIR-CH-S	10	33	29	29	68	2592	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	2.2	5	area	Single sensor	AR0522	7.13	Rolling shutter	Monochrome; VIS-NIR	1944	0.060
AV ALVIUM 1800U-501-NIR-CH-C-90	10	38	32	29	68	2592	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.2	5	area	Single sensor	AR0522	7.13	Rolling shutter	Monochrome; VIS-NIR	1944	0.065
AV ALVIUM 1800U-507M-CH-C	12	38	29	29	34	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	5.1	area	Single sensor	IMX264	11.07	Global shutter	Monochrome; Visible	2056	0.060
AV ALVIUM 1800U-507C-CH-C	12	38	29	29	34	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	5.1	area	Single sensor	IMX264	11.07	Global shutter	Colour; Visible	2056	0.060
AV ALVIUM 1800U-507M-CH-C-90	12	38	29	29	34	2464	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	5.1	area	Single sensor	IMX264	11.07	Global shutter	Monochrome; Visible	2056	0.060
AV ALVIUM 1800U-507C-CH-C-90	12	38	29	32	34	2464	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	5.1	area	Single sensor	IMX264	11.07	Global shutter	Colour; Visible	2056	0.060
AV ALVIUM 1800U-2050M-CH-C	10	38	29	29	21	5496	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.4	20.2	area	Single sensor	IMX183	15.86	Rolling shutter	Monochrome; Visible	3672	0.065
AV ALVIUM 1800U-1236C-CH-C	12	38	29	29	23	4112	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	12.4	area	Single sensor	IMX304	17.58	Global shutter	Colour; Visible	3008	0.065
AV ALVIUM 1800U-319M-CH-C	12	38	29	29	54	2064	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	3.2	area	Single sensor	IMX265	8.89	Global shutter	Monochrome; Visible	1544	0.060
AV ALVIUM 1800U-319M-CH-CS	12	33	29	29	54	2064	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	3.2	area	Single sensor	IMX265	8.89	Global shutter	Monochrome; Visible	1544	0.060
AV ALVIUM 1800U-319M-CH-S	12	33	29	29	54	2064	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	3.45	3.2	area	Single sensor	IMX265	8.89	Global shutter	Monochrome; Visible	1544	0.060
AV ALVIUM 1800U-319C-CH-C	12	38	29	29	54	2064	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	3.2	area	Single sensor	IMX265	8.89	Global shutter	Colour; Visible	1544	0.060
AV ALVIUM 1800U-319C-CH-CS	12	33	29	29	54	2064	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	3.2	area	Single sensor	IMX265	8.89	Global shutter	Colour; Visible	1544	0.060
AV ALVIUM 1800U-319C-CH-S	12	33	29	29	54	2064	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	3.45	3.2	area	Single sensor	IMX265	8.89	Global shutter	Colour; Visible	1544	0.060
AV ALVIUM 1800U-507C-CH-CS	12	33	29	29	34	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	5.1	area	Single sensor	IMX264	11.07	Global shutter	Colour; Visible	2056	0.060
AV ALVIUM 1800U-507M-CH-CS	12	33	29	29	34	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	5.1	area	Single sensor	IMX264	11.07	Global shutter	Monochrome; Visible	2056	0.060
AV ALVIUM 1800U-1236C-CH-CS	12	33	29	29	23	4112	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	12.4	area	Single sensor	IMX304	17.58	Global shutter	Colour; Visible	3008	0.060
AV ALVIUM 1800U-1236M-CH-C	12	38	29	29	23	4112	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	12.4	area	Single sensor	IMX304	17.58	Global shutter	Monochrome; Visible	3008	0.065
AV ALVIUM 1800U-1236M-CH-CS	12	33	29	29	23	4112	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	12.4	area	Single sensor	IMX304	17.58	Global shutter	Monochrome; Visible	3008	0.060
AV ALVIUM 1800U-2050M-CH-CS	10	33	29	29	21	5496	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	2.4	20.2	area	Single sensor	IMX183	15.86	Rolling shutter	Monochrome; Visible	3672	0.060
AV ALVIUM 1800U-2050C-CH-C	10	38	29	29	21	5496	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.4	20.2	area	Single sensor	IMX183	15.86	Rolling shutter	Colour; Visible	3672	0.065
AV ALVIUM 1800U-2050C-CH-CS	10	33	29	29	21	5496	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	2.4	20.2	area	Single sensor	IMX183	15.86	Rolling shutter	Colour; Visible	3672	0.060
AV ALVIUM 1800U-500C-CH-S-90	10	33	29	32	68	2592	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	2.2	5	area	N/A	AR0521SR	7.13	Rolling shutter	Colour; Visible	1944	0.065
AV ALVIUM 1800U-508C-CH-C	12	38	29	29	84	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	5.1	area	Single sensor	IMX250	11.07	Global shutter	Colour; Visible	2056	0.065
AV ALVIUM 1800U-508M-CH-C	12	38	29	29	84	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	5.1	area	Single sensor	IMX250	11.07	Global shutter	Monochrome; Visible	2056	0.065
AV ALVIUM 1800U-508C-CH-CS	12	33	29	29	84	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	5.1	area	Single sensor	IMX250	11.07	Global shutter	Colour; Visible	2056	0.065
AV ALVIUM 1800U-508M-CH-CS	12	33	29	29	84	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	5.1	area	Single sensor	IMX250	11.07	Global shutter	Monochrome; Visible	2056	0.065
AV ALVIUM 1800U-1240C-CH-C	10	38	29	29	35	4024	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	1.85	12.3	area	Single sensor	IMX226	9.33	Rolling shutter	Colour; Visible	3036	0.065
AV ALVIUM 1800U-1240C-CH-CS	10	33	29	29	35	4024	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	1.85	12.3	area	Single sensor	IMX226	9.33	Rolling shutter	Colour; Visible	3036	0.065
AV ALVIUM 1800U-1240C-CH-S	10	33	29	29	35	4024	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	1.85	12.3	area	Single sensor	IMX226	9.33	Rolling shutter	Colour; Visible	3036	0.065
AV ALVIUM 1800U-1240M-CH-C	10	38	29	29	35	4024	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	1.85	12.3	area	Single sensor	IMX226	9.33	Rolling shutter	Monochrome; Visible	3036	0.065
AV ALVIUM 1800U-1240M-CH-CS	10	33	29	29	35	4024	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	1.85	12.3	area	Single sensor	IMX226	9.33	Rolling shutter	Monochrome; Visible	3036	0.065
AV ALVIUM 1800U-1240M-CH-S	10	33	29	29	35	4024	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	1.85	12.3	area	Single sensor	IMX226	9.33	Rolling shutter	Monochrome; Visible	3036	0.065
AV ALVIUM 1800U-2460C-CH-C	12	38	29	29	17	5328	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	24.5	area	Single sensor	IMX540	19.3	Global shutter	Colour; Visible	4608	0.065
AV ALVIUM 1800U-120M-CH-S-90	12	33	29	32	52	1280	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	3.75	1.2	area	Single sensor	AR0135CS	6	Global shutter	Monochrome; Visible	960	0.065
AV ALVIUM 1800U-120C-CH-S-90	12	33	29	32	52	1280	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	3.75	1.2	area	Single sensor	AR0135CS	6	Global shutter	Colour; Visible	960	0.065
AV ALVIUM 1800U-319M-CH-C-90	12	38	29	32	54	2064	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	3.2	area	Single sensor	IMX265	8.89	Global shutter	Monochrome; Visible	1544	0.065
AV ALVIUM 1800U-2040C-CH-C	12	38	29	29	21	4512	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	20.4	area	Single sensor	IMX541	17.48	Global shutter	Colour; Visible	4512	0.065
AV ALVIUM 1800U-1620C-CH-C	12	38	29	29	26	5328	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	16.2	area	Single sensor	IMX542	16.81	Global shutter	Colour; Visible	3040	0.065
AV ALVIUM 1800U-2040M-CH-C	12	38	29	29	21	4512	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	20.4	area	N/A	IMX541	17.48	Global shutter	Monochrome; Visible	4512	0.065
AV ALVIUM 1800U-1236M-CH-C-90	12	38	29	32	23	4112	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	12.4	area	Single sensor	IMX304	17.58	Global shutter	Monochrome; Visible	3008	0.070
AV ALVIUM 1800U-2460M-CH-C	12	38	29	29	17	5328	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	24.5	area	Single sensor	IMX540	19.3	Global shutter	Monochrome; Visible	4608	0.065
AV ALVIUM 1800U-1242C-CH-CS	12	33	29	29	34	4128	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	2.74	12.4	area	Single sensor	IMX545	14	Global shutter	Colour; Visible	3008	0.065
AV ALVIUM 1800U-511M-CH-C	12	38	29	29	79	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	5.1	area	Single sensor	IMX547	8.81	Global shutter	Monochrome; Visible	2064	0.065
AV ALVIUM 1800U-511M-CH-CS	12	33	29	29	79	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	2.74	5.1	area	Single sensor	IMX547	8.81	Global shutter	Monochrome; Visible	2064	0.065
AV ALVIUM 1800U-511M-CH-S	12	38	29	29	79	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	2.74	5.1	area	Single sensor	IMX547	8.81	Global shutter	Monochrome; Visible	2064	0.065
AV ALVIUM 1800U-511C-CH-C	12	38	29	29	79	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	5.1	area	Single sensor	IMX547	8.81	Global shutter	Colour; Visible	2064	0.065
AV ALVIUM 1800U-511C-CH-CS	12	33	29	29	79	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	2.74	5.1	area	Single sensor	IMX547	8.81	Global shutter	Colour; Visible	2064	0.065
AV ALVIUM 1800U-511C-CH-S	12	33	29	29	79	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	2.74	5.1	area	Single sensor	IMX547	8.81	Global shutter	Colour; Visible	2064	0.065
AV ALVIUM 1800U-1620M-CH-C	12	38	29	29	26	5328	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	16.2	N/A	N/A	IMX542	16.81	Global shutter	Monochrome; Visible	3040	0.065
AV ALVIUM 1800U-811C-CH-C	12	38	29	29	51	2848	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	8.1	area	Single sensor	IMX546	11.04	Global shutter	Colour; Visible	2848	0.065
AV ALVIUM 1800U-811M-CH-C	12	38	29	29	51	2848	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	8.1	area	Single sensor	IMX546	11.04	Global shutter	Monochrome; Visible	2848	0.065
AV ALVIUM 1800U-811C-CH-CS	12	33	29	29	51	2848	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	2.74	8.1	area	Single sensor	IMX546	11.04	Global shutter	Colour; Visible	2848	0.065
AV ALVIUM 1800U-811M-CH-CS	12	33	29	29	51	2848	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	2.74	8.1	area	Single sensor	IMX546	11.04	Global shutter	Monochrome; Visible	2848	0.065
AV ALVIUM 1800U-1242C-CH-C	12	38	29	29	33	4128	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	12.4	area	Single sensor	IMX545	14	Global shutter	Colour; Visible	3008	0.065
AV ALVIUM 1800U-1242M-CH-C	12	38	29	29	33	4128	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	12.4	area	Single sensor	IMX545	14	Global shutter	Monochrome; Visible	3008	0.060
AV ALVIUM 1800U-1242M-CH-CS	12	33	29	29	33	4128	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	2.74	12.4	area	Single sensor	IMX545	14	Global shutter	Monochrome; Visible	3008	0.065
AV ALVIUM 1800U-511M-CH-C-90	12	38	29	32	79	2464	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	5.1	area	N/A	IMX547	8.81	Global shutter	Monochrome; Visible	2064	0.070
AV ALVIUM 1800U-811M-CH-C-90	12	38	29	32	51	2848	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	8.1	N/A	N/A	IMX546	11.04	Global shutter	Monochrome; Visible	2848	0.070
AV ALVIUM 1800U-130 VSWIR-CH-C	10	38	29	29	130	1296	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	5	1.3	area	N/A	IMX990	8.28	Global shutter	Monochrome; VIS-SWIR	1032	0.065
AV ALVIUM 1800U-291M-CH-C	12	38	29	29	144	1944	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	4.5	2.9	area	Single sensor	IMX421	10.97	Global shutter	Monochrome; Visible	1472	0.065
AV ALVIUM 1800U-030 VSWIR-CH-CS	12	33	29	29	249	656	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	5	0.3	area	N/A	IMX991	4.19	Global shutter	Monochrome; VIS-SWIR	520	0.065
AV ALVIUM 1800U-030 VSWIR-CH-S	12	33	29	29	249	656	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	5	0.3	area	N/A	IMX991	4.19	Global shutter	Monochrome; VIS-SWIR	520	0.065
AV ALVIUM 1800U-130 VSWIR-CH-S	10	33	29	29	130	1296	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	5	1.3	area	N/A	IMX990	8.28	Global shutter	Monochrome; VIS-SWIR	1032	0.065
AV ALVIUM 1800U-030 VSWIR-CH-C-90	12	38	32	29	249	656	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	5	0.3	area	N/A	IMX991	4.19	Global shutter	Monochrome; VIS-SWIR	520	0.070
AV ALVIUM 1800U-030 VSWIR-CH-CS-90	12	33	29	32	249	656	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	5	0.3	area	N/A	IMX991	4.19	Global shutter	Monochrome; VIS-SWIR	520	0.070
AV ALVIUM 1800U-030 VSWIR-CH-S-90	12	33	29	32	249	656	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	5	0.3	area	N/A	IMX991	4.19	Global shutter	Monochrome; VIS-SWIR	520	0.070
AV ALVIUM 1800U-130 VSWIR-CH-C-90	10	38	38	32	130	1296	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	5	1.3	area	N/A	IMX990	8.28	Global shutter	Monochrome; VIS-SWIR	1032	0.060
AV ALVIUM 1800U-130 VSWIR-CH-CS-90	10	33	29	32	130	1296	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	5	1.3	area	N/A	IMX990	8.28	Global shutter	Monochrome; VIS-SWIR	1032	0.070
AV ALVIUM 1800U-130 VSWIR-CH-S-90	10	33	29	32	130	1296	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	5	1.3	area	N/A	IMX990	8.28	Global shutter	Monochrome; VIS-SWIR	1032	0.070
AV ALVIUM 1800U-052M-CH-C	12	32	29	29	688	816	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	9	0.5	area	Single sensor	IMX426	9.25	Global shutter	Monochrome; Visible	624	0.070
AV ALVIUM 1800U-2460C-CH-C-90	12	38	38	32	17	5328	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	24.6	area	N/A	IMX540	19.3	Global shutter	Colour; Visible	4608	0.070
AV ALVIUM 1800U-1236C-CH-C-90	12	38	38	32	22	4112	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	12.4	area	Single sensor	IMX304	17.58	Global shutter	Colour; Visible	3008	0.070
AV ALVIUM 1800U-2050M-CH-C-90	10	38	32	29	21	5496	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.4	20.2	area	Single sensor	IMX183	15.86	Rolling shutter	Monochrome; Visible	3672	0.060
AV ALVIUM 1800U-240C-CH-S-90	12	33	29	32	176	1936	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	3.45	2.4	area	Single sensor	IMX392	7.89	Global shutter	Colour; Visible	1216	0.070
AV ALVIUM 1800U-1240C-CH-C-90	10	38	29	32	35	4024	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	1.85	12.2	area	N/A	IMX226	9.33	Rolling shutter	Colour; Visible	3036	0.070
AV ALVIUM 1800U-052M-CH-CS	12	33	29	29	688	816	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	9	0.5	area	Single sensor	IMX426	9.25	Global shutter	Monochrome; Visible	624	0.065
AV ALVIUM 1800U-052C-CH-C	12	38	29	29	691	816	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	9	0.5	area	Single sensor	IMX426	9.25	Global shutter	Colour; Visible	624	0.065
AV ALVIUM 1800U-052C-CH-CS	12	33	29	29	688	816	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	9	0.5	area	Single sensor	IMX426	9.25	Global shutter	Colour; Visible	624	0.065
AV ALVIUM 1800U-291M-CH-CS	12	33	29	29	144	1944	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	4.5	2.9	area	Single sensor	IMX421	10.97	Global shutter	Monochrome; Visible	1472	0.070
AV ALVIUM 1800U-291C-CH-C	12	38	29	29	144	1944	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	4.5	2.9	area	Single sensor	IMX421	10.97	Global shutter	Colour; Visible	1472	0.065
AV ALVIUM 1800U-291C-CH-CS	12	33	29	29	144	1944	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	4.5	2.9	area	Single sensor	IMX421	10.97	Global shutter	Colour; Visible	1472	0.065
AV ALVIUM 1800U-120M-CH-CS-90	12	33	29	32	52	1280	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.75	1.2	N/A	N/A	AR0135CS	6	Global shutter	Monochrome; Visible	960	0.065
AV ALVIUM 1800U-812UV-CH-C	12	38	29	29	51	2848	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	8.1	area	N/A	IMX487	11.04	Global shutter	Monochrome; UV	2848	0.065
AV ALVIUM 1800U-235C-CH-C	12	38	29	29	155	1936	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	5.86	2.4	area	Single sensor	IMX174	13.4	Global shutter	Colour; Visible	1216	0.065
AV ALVIUM 1800U-235C-CH-CS	10; 12	33	29	29	155	1936	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	5.86	2.4	area	N/A	IMX174	13.4	Global shutter	Colour; Visible	1216	0.065
AV ALVIUM 1800U-235M-CH-C	10	38	29	29	155	1936	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	5.86	2.4	N/A	N/A	IMX174	13.4	Global shutter	Monochrome; Visible	1216	0.065
AV ALVIUM 1800U-235M-CH-CS	10; 12	33	29	29	155	1936	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	5.86	2.4	N/A	N/A	IMX174	13.4	Global shutter	Monochrome; Visible	1216	0.065
AV ALVIUM 1800U-234M-CH-CS	10; 12	33	29	29	40	1936	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	5.86	2.4	area	N/A	IMX249	13.4	Global shutter	Monochrome; Visible	1216	0.065
AV ALVIUM 1800U-234C-CH-C	10; 12	38	29	29	40	1936	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	5.86	20.4	area	N/A	IMX249	13.4	Global shutter	Colour; Visible	1216	0.065
AV ALVIUM 1800U-234C-CH-CS	10; 12	33	29	29	40	1936	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	5.86	2.4	area	N/A	IMX249	13.4	Global shutter	Colour; Visible	1216	0.065
AV ALVIUM 1800U-501C-NIR-CH-CS	10	33	29	29	67	2592	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	2.2	5	N/A	N/A	AR0522	7.13	Rolling shutter	Colour; VIS-NIR	1944	0.060
AV ALVIUM 1800U-501C-NIR-CH-S	10	33	29	29	67	2592	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	2.2	5	N/A	N/A	AR0522	7.13	Rolling shutter	Colour; VIS-NIR	1944	0.060
AV ALVIUM 1800U-1242M-CH-C-90	12	38	29	32	33	4128	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	12.4	area	Single sensor	IMX545	14	Global shutter	Monochrome; Visible	3008	0.070
AV ALVIUM 1800U-052M-CH-C-90	12	38	29	29	688	816	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	9	0.5	area	Single sensor	IMX426	9.25	Global shutter	Monochrome; Visible	624	0.065
AV ALVIUM 1800U-158M-CH-C-90	12	38	29	32	257	1456	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	1.6	area	Single sensor	IMX273	6.27	Global shutter	Monochrome; Visible	1088	0.070
AV ALVIUM 1800U-120M-CH-C-90	12	38	29	32	52	1280	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.75	1.2	area	Single sensor	AR0135CS	6	Global shutter	Monochrome; Visible	960	0.060
AV ALVIUM 1800U-510M-CH-C	12	38	29	29	79	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	5.1	area	Single sensor	IMX548	8.81	Global shutter	Monochrome; Visible	2064	0.065
AV ALVIUM 1800U-240C-CH-C-90	10; 12; 8	38	29	32	176	1936	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	2.4	area	N/A	IMX392	7.89	Global shutter	Colour; Visible	1216	0.070
AV ALVIUM 1800U-131M-CH-C	10; 8	38	29	29	59	1280	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	5.3	1.3	area	N/A	EV76C560	8.69	Global shutter	Monochrome; Visible	1024	0.060
AV ALVIUM 1800U-131M-CH-CS	10; 8	33	29	29	59	1280	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	5.3	1.3	area	N/A	EV76C560	8.69	Global shutter	Monochrome; Visible	1024	0.060
AV ALVIUM 1800U-131M-CH-S	10; 8	33	29	29	59	1280	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	5.3	1.3	area	N/A	EV76C560	8.69	Global shutter	Monochrome; Visible	1024	0.060
AV ALVIUM 1800U-131C-CH-C	10; 8	38	29	29	59	1280	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	5.3	1.3	area	N/A	EV76C560	8.69	Global shutter	Colour; Visible	1024	0.060
AV ALVIUM 1800U-895M-CH-C	10; 12	38	29	29	31	4112	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	8.9	area	Single sensor	IMX267	16.05	Global shutter	Monochrome; Visible	2176	0.065
AV ALVIUM 1800U-895C-CH-C	10	38	29	29	31	4112	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	8.9	area	Single sensor	IMX267	16.05	Global shutter	Colour; Visible	2176	0.065
AV ALVIUM 1800U-131C-CH-CS	10; 8	33	29	29	59	1280	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	5.3	1.3	area	N/A	EV76C560	8.69	Global shutter	Colour; Visible	1024	0.060
AV ALVIUM 1800U-131C-CH-S	10; 8	33	29	29	59	1280	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	5.3	1.3	area	N/A	EV76C560	8.69	Global shutter	Colour; Visible	1024	0.060
AV ALVIUM 1800U-192C-CH-C	10; 8	38	29	29	59	1600	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	4.5	1.9	area	N/A	EV76C570	9	Rolling shutter	Colour; Visible	1200	0.065
AV ALVIUM 1800U-192C-CH-CS	10; 8	33	29	29	59	1600	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	4.5	1.9	area	N/A	EV76C570	9	Rolling shutter	Colour; Visible	1200	0.065
AV ALVIUM 1800U-192C-CH-S	10; 8	33	29	29	59	1600	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	4.5	1.9	area	N/A	EV76C570	9	Rolling shutter	Colour; Visible	1200	0.065
AV ALVIUM 1800U-203C-CH-C	10; 12; 8	38	29	29	200	1632	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	4.5	2	area	N/A	IMX422	9.25	Global shutter	Colour; Visible	1248	0.065
AV ALVIUM 1800U-203C-CH-CS	10; 12; 8	33	29	29	200	1632	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	4.5	2	area	N/A	IMX422	9.25	Global shutter	Colour; Visible	1248	0.065
AV ALVIUM 1800U-895C-CH-CS	10; 12	33	29	29	31	4112	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	8.9	area	N/A	IMX267	16.05	Global shutter	Colour; Visible	2176	0.065
AV ALVIUM 1800U-895M-CH-CS	10; 12	33	29	29	31	4112	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	8.9	area	N/A	IMX267	16.05	Global shutter	Monochrome; Visible	2176	0.065
AV ALVIUM 1800U-203M-CH-C	10; 12; 8	38	29	29	200	1632	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	4.5	2	area	N/A	IMX422	9.25	Global shutter	Monochrome; Visible	1248	0.065
AV ALVIUM 1800U-203M-CH-CS	10; 12; 8	33	29	29	200	1632	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	4.5	2	area	N/A	IMX422	9.25	Global shutter	Monochrome; Visible	1248	0.065
AV ALVIUM 1800U-192M-CH-C	10; 8	38	29	29	59	1600	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	4.5	1.9	area	N/A	EV76C570	9	Rolling shutter	Monochrome; Visible	1200	0.065
AV ALVIUM 1800U-192M-CH-CS	10; 8	33	29	29	59	1600	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	4.5	1.9	area	N/A	EV76C570	9	Rolling shutter	Monochrome; Visible	1200	0.065
AV ALVIUM 1800U-192M-CH-S	10; 8	33	29	29	59	1600	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	4.5	1.9	area	N/A	EV76C570	9	Rolling shutter	Monochrome; Visible	1200	0.065
AV ALVIUM 1800U-530 VSWIR-CH-C	12	38	29	29	77	2592	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	5.3	area	N/A	IMX992	11.41	Global shutter	Monochrome; VIS-SWIR	2056	0.075
AV ALVIUM 1800U-530 VSWIR-CH-CS	12	33	29	29	77	2592	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	5.3	area	N/A	IMX992	11.41	Global shutter	Monochrome; VIS-SWIR	2056	0.065
AV ALVIUM 1800U-320 VSWIR-CH-C	12	38	29	29	120	2080	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	3.2	area	N/A	IMX993	8.94	Global shutter	Monochrome; VIS-SWIR	1544	0.065
AV ALVIUM 1800U-320 VSWIR-CH-CS	12	33	29	29	120	2080	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	3.2	area	N/A	IMX993	8.94	Global shutter	Monochrome; VIS-SWIR	1544	0.065
AV ALVIUM 1800U-510C-CH-C	12	38	29	29	79	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	5.1	area	Single sensor	IMX548	8.81	Global shutter	Colour; Visible	2064	0.065
AV ALVIUM 1800U-1240M-CH-C-90	10	38	29	32	35	4024	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	1.85	12.2	area	N/A	IMX226	9.33	Rolling shutter	Monochrome; Visible	3036	0.070
AV ALVIUM 1800U-234M-CH-CS-90	10; 12	33	29	32	40	1936	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	5.86	2.4	area	N/A	IMX249	13.4	Global shutter	Monochrome; Visible	1216	N/A
AV ALVIUM 1800U-530 VSWIR-CH-C-90	12	38	32	29	77	2592	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	5.3	area	N/A	IMX992	11.41	Global shutter	Monochrome; VIS-SWIR	2056	0.070
AV ALVIUM 1800U-530 VSWIR-CH-CS-90	12	33	29	32	77	2592	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	5.3	area	N/A	IMX992	11.41	Global shutter	Monochrome; VIS-SWIR	2056	0.070
AV ALVIUM 1800U-320 VSWIR-CH-C-90	12	38	29	32	120	2080	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	3.2	area	N/A	IMX993	8.94	Global shutter	Monochrome; VIS-SWIR	1544	0.070
AV ALVIUM 1800U-320 VSWIR-CH-CS-90	12	33	29	32	120	2080	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	3.2	area	N/A	IMX993	8.94	Global shutter	Monochrome; VIS-SWIR	1544	0.070
AV ALVIUM 1800U-234C-CH-C-90	12	29	29	30	40	1936	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	5.86	20.4	area	N/A	IMX249	13.4	Global shutter	Colour; Visible	1216	N/A
AV ALVIUM 1800U-234M-CH-C-90	10; 12	38	29	38	40	1936	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	5.86	2.4	area	N/A	IMX249	13.4	Global shutter	Monochrome; Visible	1216	N/A
AV ALVIUM 1800U-2040M-CH-C-90	12	38	29	32	21	4512	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.74	20.4	area	N/A	IMX541	17.48	Global shutter	Monochrome; Visible	4512	0.070
AV ALVIUM 1800U-511M-CH-CS-90	12	33	29	32	79	2464	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	2.74	5.1	area	N/A	IMX547	8.81	Global shutter	Monochrome; Visible	2064	0.070
AV ALVIUM 1800U-2040M-CH-CS-90	12	33	29	32	21	4512	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	2.74	20.4	area	N/A	IMX541	17.48	Global shutter	Monochrome; Visible	4512	0.070
AV ALVIUM 1800U-291M-CH-C-90	12	38	29	32	144	1944	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	4.5	2.9	area	Single sensor	IMX421	10.97	Global shutter	Monochrome; Visible	1472	0.070
AV ALVIUM 1800U-507C-CH-C POL	12	38	29	29	34	2464	closed housing	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	3.45	5.1	area	Single sensor	IMX264MYR	11.07	Global shutter	Colour; Visible	2056	0.060
AV ALVIUM 1800U-500C-CH-C-90	10	38	29	38	68	2592	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	2.2	5	N/A	N/A	AR0521SR	7.13	Rolling shutter	Colour; Visible	1944	0.065
AV ALVIUM 1800U-319M-CH-CS-90	12	33	29	32	54	2064	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	CS-Mount	Allied Vision	3.45	3.2	area	Single sensor	IMX265	8.89	Global shutter	Monochrome; Visible	1544	0.065
AV ALVIUM 1800U-1240M-CH-S-90	10	33	29	32	35	4024	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	S-Mount	Allied Vision	1.85	12.2	area	N/A	IMX226	9.33	Rolling shutter	Monochrome; Visible	3036	0.070
AV ALVIUM 1800U-291C-CH-C-90	12	38	29	29	144	1944	closed housing 90°	USB	USB3 Vision; USB3.0; USB3.1; USB3.1 Gen1	C-Mount	Allied Vision	4.5	2.9	area	Single sensor	IMX421	10.97	Global shutter	Colour; Visible	1472	0.065

Benötigen Sie weitere Informationen?

Fragen Sie unsere Experten, um persönliche Empfehlungen zu bekommen.

Kontaktieren Sie uns

Allied Vision - Alvium USB3

Key Features

Find the right model for your needs

Benötigen Sie weitere Informationen?

Produkte

Lösungen

Services

Unternehmen
