Teledyne FLIR - Dragonfly S USB3

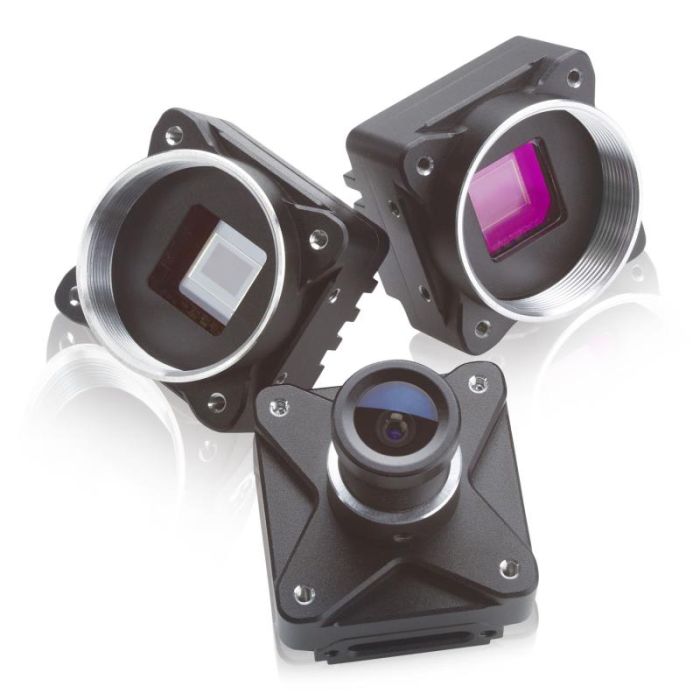

The Dragonfly S boasts a modular and lightweight design, tailored for a variety of industrial applications, with flexible camera configurations ranging from board-level to fully enclosed models. This design speeds up the initial phase of developing imaging applications for large-scale manufacturing, volume-based tasks and multi-camera systems.
Key Features
- Broad resolution range
- High frame rates
- Sensor type: CMOS
- Sensor model: Sony, Onsemi and Teledyne e2v
- Spectrum color / monochrome
- Data interface: USB3 Vision compliant USB3.1 Gen 1
- Lens mounts: CS-mount, S-mount
- Miscellaneous housing: Fully enclosed, front housing or single PCB board-level
- Side/back USB3 connector orientations, with locking mechanism
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Bit depth | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Frame rate (Hz) | Resolution Horizontal (Px) | Housing | Interface | Interface configuration | Lens mount | Manufacturer | Pixel size (µm) | Resolution (MP) | Scan type | Sensor configuration | Sensor model | Sensor size diagonal (mm) | Shutter type | Wavelength range | Resolution Vertical (Px) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10; 12; 8 | 22.4 | 29.5 | 29.5 | 49 | 2592 | closed housing | USB | USB3.1 | CS-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Monochrome; Visible | 1944 | 0.020 | |
| 10; 12; 8 | 24 | 29.5 | 29.5 | 49 | 2592 | closed housing | USB | USB3.1 | S-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Monochrome; Visible | 1944 | 0.024 | |
| 10; 12; 8 | 21.5 | 29.5 | 29.5 | 49 | 2592 | closed housing | USB | USB3.1 | CS-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Monochrome; Visible | 1944 | 0.022 | |
| 10; 12; 8 | 23.1 | 29.5 | 29.5 | 49 | 2592 | closed housing | USB | USB3.1 | S-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Monochrome; Visible | 1944 | 0.024 | |
| 10; 12; 8 | 22.4 | 29.5 | 29.5 | 49 | 2592 | closed housing | USB | USB3.1 | CS-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Colour; Visible | 1944 | 0.023 | |
| 10; 12; 8 | 24 | 29.5 | 29.5 | 49 | 2592 | closed housing | USB | USB3.1 | S-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Colour; Visible | 1944 | 0.024 | |
| 10; 12; 8 | 21.5 | 29.5 | 29.5 | 49 | 2592 | closed housing | USB | USB3.1 | CS-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Colour; Visible | 1944 | 0.023 | |
| 10; 12; 8 | 23.1 | 29.5 | 29.5 | 49 | 2592 | closed housing | USB | USB3.1 | S-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Colour; Visible | 1944 | 0.024 | |
| 10; 12; 8 | 9.5 | 27 | 27 | 49 | 2592 | bare board 180° | USB | USB3.1 | None | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Colour | 1944 | 0.005 | |
| 10; 12; 8 | 9.5 | 27 | 27 | 49 | 2592 | bare board 180° | USB | USB3.1 | None | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Monochrome | 1944 | 0.005 | |
| 10; 12; 8 | 7.8 | 27 | 27 | 49 | 2592 | bare board 180° | USB | USB3.1 | None | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Monochrome | 1944 | 0.005 | |
| 10; 12; 8 | 21.5 | 29.5 | 29.5 | 49 | 2592 | open housing | USB | USB3.1 | CS-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Monochrome | 1944 | 0.018 | |
| 10; 12; 8 | 23.1 | 29.5 | 29.5 | 49 | 2592 | open housing | USB | USB3.1 | S-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Monochrome | 1944 | 0.019 | |
| 10; 12; 8 | 23.1 | 29.5 | 29.5 | 49 | 2592 | open housing | USB | USB3.1 | S-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Colour | 1944 | 0.019 | |
| 10; 12; 8 | 7.8 | 27 | 27 | 49 | 2592 | bare board 180° | USB | USB3.1 | None | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Colour | 1944 | 0.005 | |
| 10; 12; 8 | 21.5 | 29.5 | 29.5 | 49 | 2592 | open housing | USB | USB3.1 | CS-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Colour | 1944 | 0.018 | |
| 10; 12; 8 | 22.4 | 29.5 | 29.5 | 49 | 2592 | open housing | USB | USB3.1 | CS-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Colour | 1944 | 0.018 | |
| 10; 12; 8 | 24 | 29.5 | 29.5 | 49 | 2592 | open housing | USB | USB3.1 | S-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Colour | 1944 | 0.018 | |
| 10; 12; 8 | 22.4 | 29.5 | 29.5 | 49 | 2592 | open housing | USB | USB3.1 | CS-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Monochrome | 1944 | 0.018 | |
| 10; 12; 8 | 24 | 29.5 | 29.5 | 49 | 2592 | open housing | USB | USB3.1 | S-Mount | Teledyne FLIR | 2.2 | 5 | area | Single sensor | AR0521 | 7.13 | Rolling shutter | Monochrome | 1944 | 0.018 |
