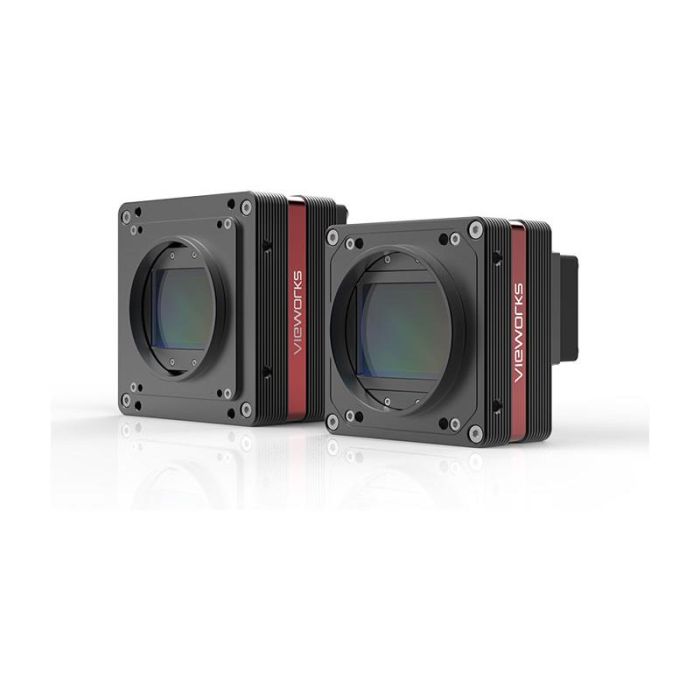

Vieworks - VC

Ultra high-speed machine vision cameras, based on global shutter CMOS sensors with frames rates up to 450fps.

Key Features

  • Sensor: high speed CMOS sensors
  • Resolution: 2–155 megapixel
  • Frame rate: up to 454 fps
  • Bit depth: 8 bit, 10 bit or 12 bit data output
  • Features: fixed pattern noise correction, field upgradable firmware, pixel defect correction
  • Lens: C-, F-, M42 or M72-Mount
  • Interface: CameraLink, CoaXPress or 10 GigE
  • Software: compatible with Common Vision Blox

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

To
To
To
To
To
Product Name Dimension (depth, mm) Dimension (height, mm) Dimension (width, mm) Frame rate (Hz) Resolution Horizontal (Px) Housing Interface Interface configuration Lens mount Manufacturer Pixel size (µm) Resolution (MP) Scan type Sensor format Sensor model Sensor size diagonal (mm) Sensor type Shutter type Wavelength range Weight (kg)
VIEWORKS VC-4MC-C180E0-CM
 54 68 68 179.5 2048 standard CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium C-Mount Vieworks 5.5 4.2 area 1" CMV4000 15.93 CMOS Global shutter/Prog scan Colour; Visible 0.420
VIEWORKS VC-4MC-M180E0-FM
 83 68 68 179.5 2048 standard CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium Nikon F-Mount Vieworks 5.5 4.2 area 1" CMV4000 15.93 CMOS Global shutter/Prog scan Monochrome; Visible 0.460
VIEWORKS VC-2MC-M340E0-CM
 54 68 68 337.6 2048 standard CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium C-Mount Vieworks 5.5 2.2 area 2/3" CMV2000 12.75 CMOS Global shutter/Prog scan Monochrome; Visible 0.420
VIEWORKS VC-4MC-M180E0-CM
 54 68 68 179.5 2048 standard CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium C-Mount Vieworks 5.5 4.2 area 1" CMV4000 15.93 CMOS Global shutter/Prog scan Monochrome; Visible 0.420
VIEWORKS VC-2MC-C340E0-CM
 54 68 68 337.6 2048 standard CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium C-Mount Vieworks 5.5 2.2 area 2/3" CMV2000 12.75 CMOS Global shutter/Prog scan Colour; Visible 0.420
VIEWORKS VC-2MC-M340E0-FM
 83 68 68 337.6 2048 standard CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium Nikon F-Mount Vieworks 5.5 2.2 area 2/3" CMV2000 12.75 CMOS Global shutter/Prog scan Monochrome; Visible 0.460
VIEWORKS VC-2MC-C340E0-FM
 83 68 68 337.6 2048 standard CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium Nikon F-Mount Vieworks 5.5 2.2 area 2/3" CMV2000 12.75 CMOS Global shutter/Prog scan Colour; Visible 0.460
VIEWORKS VC-4MC-M80E0-CM
 54 68 68 78.9 2048 standard CameraLink CameraLink Base C-Mount Vieworks 5.5 4.2 area 1" CMV4000 15.93 CMOS Global shutter/Prog scan Monochrome; Visible 0.420
VIEWORKS VC-2MC-M150E0-FM
 83 68 68 148.5 2048 standard CameraLink CameraLink Base; CameraLink Medium Nikon F-Mount Vieworks 5.5 2.2 area 2/3" CMV2000 12.75 CMOS Global shutter/Prog scan Monochrome; Visible 0.460
VIEWORKS VC-4MC-C180E0-FM
 83 68 68 179.5 2048 standard CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium Nikon F-Mount Vieworks 5.5 4.2 area 1" CMV4000 15.93 CMOS Global shutter/Prog scan Colour; Visible 0.460
VIEWORKS VC-4MC-M80E0-FM
 83 68 68 78.9 2048 standard CameraLink CameraLink Base Nikon F-Mount Vieworks 5.5 4.2 area 1" CMV4000 15.93 CMOS Global shutter/Prog scan Monochrome; Visible 0.460
VIEWORKS VC-4MC-C80E0-CM
 54 68 68 78.9 2048 standard CameraLink CameraLink Base; CameraLink Medium C-Mount Vieworks 5.5 4.2 area 1" CMV4000 15.93 CMOS Global shutter/Prog scan Colour; Visible 0.420
VIEWORKS VC-4MC-C80E0-FM
 83 68 68 78.9 2048 standard CameraLink CameraLink Base; CameraLink Medium Nikon F-Mount Vieworks 5.5 4.2 area 1" CMV4000 15.93 CMOS Global shutter/Prog scan Colour; Visible 0.460
VIEWORKS VC-2MC-M150E0-CM
 54 68 68 148.5 2048 standard CameraLink CameraLink Base; CameraLink Medium C-Mount Vieworks 5.5 2.2 area 2/3" CMV2000 12.75 CMOS Global shutter/Prog scan Monochrome; Visible 0.420
VIEWORKS VC-2MC-C150E0-CM
 54 68 68 148.5 2048 standard CameraLink CameraLink Base; CameraLink Medium C-Mount Vieworks 5.5 2.2 area 2/3" CMV2000 12.75 CMOS Global shutter/Prog scan Colour; Visible 0.420
VIEWORKS VC-2MC-C150E0-FM
 83 68 68 148.5 2048 standard CameraLink CameraLink Base; CameraLink Medium Nikon F-Mount Vieworks 5.5 2.2 area 2/3" CMV2000 12.75 CMOS Global shutter/Prog scan Colour; Visible 0.460
VIEWORKS VC-25MC-M30D0-FM
 83 68 68 30.8 5120 standard CameraLink CameraLink Deca; CameraLink Full Nikon F-Mount Vieworks 4.5 26.2 area Large format VITA 25K 32 CMOS Global shutter/Prog scan Monochrome; Visible 0.420
VIEWORKS VC-25MC-C30D0-FM
 83 68 68 30.8 5120 standard CameraLink CameraLink Deca; CameraLink Full M42 x 1; Nikon F-Mount Vieworks 4.5 26.2 area Large format VITA 25K 32 CMOS Global shutter/Prog scan Colour; Visible 0.420
VIEWORKS VC-12MX-M180E0-DIN-FM
 101 80 80 179.5 4096 standard CoaXPress 1x CXP-6; 2x CXP-6; 4x CXP-6 Nikon F-Mount Vieworks 5.5 12.6 area Large format CMV12000 28.16 CMOS Global shutter/Prog scan Monochrome; Visible 0.620
VIEWORKS VC-12MC-C65E0-FM
 83 68 68 65 4096 standard CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium Nikon F-Mount Vieworks 5.5 12.6 area Large format CMV12000 28.16 CMOS Global shutter/Prog scan Colour; Visible 0.420
VIEWORKS VC-12MC-M65E0-FM
 83 68 68 65 4096 standard CameraLink CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium Nikon F-Mount Vieworks 5.5 12.6 area Large format CMV12000 28.16 CMOS Global shutter/Prog scan Monochrome; Visible 0.420
VIEWORKS VC-12MX-C180E0-DIN-FM
 101 80 80 179.5 4096 standard CoaXPress 1x CXP-6; 2x CXP-6; 4x CXP-6 Nikon F-Mount Vieworks 5.5 12.6 area Large format CMV12000 28.16 CMOS Global shutter/Prog scan Colour; Visible 0.620
VIEWORKS VC-25MX-M72D0-DIN-FM
 101 80 80 72 5120 standard CoaXPress 2x CXP-6; 4x CXP-6 Nikon F-Mount Vieworks 4.5 26.2 area Large format VITA 25K 32 CMOS Global shutter/Prog scan Monochrome; Visible 0.630
VIEWORKS VC-25MX-C72D0-DIN-FM
 101 80 80 72 5120 standard CoaXPress 2x CXP-6; 4x CXP-6 Nikon F-Mount Vieworks 4.5 26.2 area Large format VITA 25K 32 CMOS Global shutter/Prog scan Colour; Visible 0.630
VIEWORKS VC-25MX-C81D0-DIN-FM
 101 80 80 81 5120 standard CoaXPress 1x CXP-6; 2x CXP-6; 4x CXP-12; 4x CXP-6 Nikon F-Mount Vieworks 4.5 26.2 area Large format Python 25K 35 CMOS Global shutter Colour; Visible 0.630
VIEWORKS VC-25MX-M81D0-DIN-FM
 101 80 80 81 5120 standard CoaXPress 1x CXP-6; 2x CXP-6; 4x CXP-12; 4x CXP-6 Nikon F-Mount Vieworks 4.5 26.2 area Large format Python 25K 35 CMOS Global shutter Monochrome; Visible 0.630
VIEWORKS VC-12MX-C330F00-FM
 110 90 90 330 4096 standard CoaXPress 1x CXP-6; 2x CXP-6; 4x CXP-12; 4x CXP-6 Nikon F-Mount Vieworks 5.5 12.6 area Large format CMV12000 28.16 CMOS Global shutter Colour; Visible 0.745
VIEWORKS VC-101MX-M9H00
 92.5 90 90 8.1 11648 standard CoaXPress 4x CXP-6 M72 x 0.75 Vieworks 3.76 101 area Large format IMX461 55 CMOS Rolling shutter Monochrome; Visible 0.800
VIEWORKS VC-151MX-M6H00
 92.5 100 100 6.2 14192 standard CoaXPress 4x CXP-6 M72 x 0.75 Vieworks 3.76 151 area Large format IMX411 66.7 CMOS Rolling shutter Monochrome; Visible 1.070
VIEWORKS VC-101MX-C9H00
 92.5 90 90 8.1 11648 standard CoaXPress 4x CXP-6 M72 x 0.75 Vieworks 3.76 101 area Large format IMX461 55 CMOS Rolling shutter Colour; Visible 0.800
VIEWORKS VC-151MX-C6H00
 92.5 100 100 6.2 14192 standard CoaXPress 4x CXP-6 M72 x 0.75 Vieworks 3.76 151 area Large format IMX411 66.7 CMOS Rolling shutter Colour; Visible 1.070
VIEWORKS VC-101MC-M8H00
 92.5 100 100 8.1 11648 standard CameraLink CameraLink Base; CameraLink Full; CameraLink Medium M72 x 0.75 Vieworks 3.76 101 area Large format IMX461 55 CMOS Rolling shutter Monochrome; Visible 1.070
VIEWORKS VC-25MC-M31I0
 57 55 55 31 5120 standard CameraLink CameraLink Full C-Mount Vieworks 2.5 25 area 1.1" GMAX0505 18.1 sCMOS Global shutter Monochrome; Visible 0.215
VIEWORKS VC-25MC-C31I0
 57 50 50 31 5120 standard CameraLink CameraLink Full C-Mount Vieworks 2.5 25 area 1.1" GMAX0505 32.58 sCMOS Global shutter Colour; Visible 0.215
VIEWORKS VC-25MX2-M150I10-CM
 69.4 80 80 150.2 5120 standard CoaXPress 4x CXP-12 C-Mount Vieworks 2.5 26.2 area Medium format GMAX0505 18.1 CMOS Global shutter Monochrome; Visible 0.560
VIEWORKS VC-25MX2-C150I10-CM
 69.4 80 80 150.2 5120 standard CoaXPress 4x CXP-12 C-Mount Vieworks 2.5 26.2 area Medium format GMAX0505 18.1 CMOS Global shutter Colour; Visible 0.560
VIEWORKS VC-65MX2-M71I10-FM
 105 80 80 71.1 9344 standard CoaXPress 4x CXP-12 Nikon F-Mount Vieworks 3.2 65.4 area Large format GMAX3265 37.4 CMOS Global shutter Monochrome; Visible 0.750
VIEWORKS VC-65MX2-C71I10-FM
 105 80 80 71.1 9344 standard CoaXPress 4x CXP-12 Nikon F-Mount Vieworks 3.2 65.4 area Large format GMAX3265 37.4 CMOS Global shutter Colour; Visible 0.750
VIEWORKS VC-4MX-M144F00-CM
 41 40 40 144 2048 standard CoaXPress 1x CXP-6 C-Mount Vieworks 5.5 4 area 1" CMV4000 15.93 CMOS Global shutter/Prog scan Monochrome; Visible 0.200
VIEWORKS VC-17MC-M48H00-FM
 105 68 68 48.4 5440 standard CameraLink CameraLink Base; CameraLink Full; CameraLink Medium Nikon F-Mount Vieworks 3.45 16.8 area 4/3" IMX387 21.5 CMOS Global shutter Monochrome; Visible 0.537
VIEWORKS VC-17MC-C48H00-FM
 105 68 68 48.4 5440 standard CameraLink CameraLink Base; CameraLink Full; CameraLink Medium Nikon F-Mount Vieworks 3.45 16.8 area 4/3" IMX387 21.5 CMOS Global shutter Colour; Visible 0.537
VIEWORKS VC-31MC-M26H00-FM
 105 68 68 26.2 6464 standard CameraLink CameraLink Base; CameraLink Full; CameraLink Medium Nikon F-Mount Vieworks 3.45 31.4 area APS-C IMX342 27.9 CMOS Global shutter Monochrome; Visible 0.537
VIEWORKS VC-31MC-C26H00-FM
 105 68 68 26.2 6464 standard CameraLink CameraLink Base; CameraLink Full; CameraLink Medium Nikon F-Mount Vieworks 3.45 31.4 area APS-C IMX342 27.9 CMOS Global shutter Colour; Visible 0.537
VIEWORKS VC-17MX-C61H00-FM
 105 68 68 61.3 5440 standard CoaXPress 4x CXP-6 Nikon F-Mount Vieworks 3.45 16.8 area 4/3" IMX387 21.5 CMOS Global shutter Colour; Visible 0.550
VIEWORKS VC-17MX-M61H00-FM
 105 68 68 61.3 5440 standard CoaXPress 4x CXP-6 Nikon F-Mount Vieworks 3.45 16.8 area 4/3" IMX387 21.5 CMOS Global shutter Monochrome; Visible 0.550
VIEWORKS VC-31MX-M35H00-FM
 105 68 68 35.4 6464 standard CoaXPress 4x CXP-6 Nikon F-Mount Vieworks 3.45 31.4 area APS-C IMX342 27.9 CMOS Global shutter Monochrome; Visible 0.550
VIEWORKS VC-31MX-C35H00-FM
 105 68 68 35.4 6464 standard CoaXPress 4x CXP-6 Nikon F-Mount Vieworks 3.45 31.4 area APS-C IMX342 27.9 CMOS Global shutter Colour; Visible 0.550
VIEWORKS VC-25M10G-M41I00-CM
 74 68 68 41.7 5120 standard Gigabit Ethernet 10 GigE C-Mount Vieworks 2.5 25 area 1.1" GMAX0505 18.1 sCMOS Global shutter Monochrome; Visible 0.460
VIEWORKS VC-25M10G-C41I00-CM
 74 68 68 41.7 5120 standard Gigabit Ethernet 10 GigE C-Mount Vieworks 2.5 25 area 1.1" GMAX0505 18.1 sCMOS Global shutter Colour; Visible 0.460
VIEWORKS VC-5MX2-M289I10-CM
 91 50 50 289 2592 standard CoaXPress 2x CXP-12; 2x CXP-6; PoCXP C-Mount Vieworks 2.5 5 area 1/2" GMAX2505 8.38 CMOS Global shutter/Prog scan Monochrome; Visible 0.270
VIEWORKS VC-9MX2-M262I10-CM
 91 50 50 262 4192 standard CoaXPress 1x CXP-6; 2x CXP-12; 2x CXP-6; PoCXP C-Mount Vieworks 2.5 9 area 2/3" GMAX2509 11.8 CMOS Global shutter/Prog scan Monochrome; Visible 0.270
VIEWORKS VC-61MX-C18H00-FM
 107 80 80 18 9568 standard CoaXPress 1x CXP-6; 2x CXP-6; 4x CXP-12; 4x CXP-6 Nikon F-Mount Vieworks 3.76 61 area Large format IMX455 43.2 CMOS Rolling shutter Colour; Visible 0.745
VIEWORKS VC-5MX2-C289I10-CM
 91 50 50 289 2592 standard CoaXPress 1x CXP-6; 2x CXP-12; 2x CXP-6; PoCXP C-Mount Vieworks 2.5 5 area 1/2" GMAX2505 8.38 CMOS Global shutter/Prog scan Colour; Visible 0.270
VIEWORKS VC-9MX2-C262I10-CM
 91 50 50 262 4192 standard CoaXPress 1x CXP-6; 2x CXP-12; 2x CXP-6; PoCXP C-Mount Vieworks 2.5 9 area 2/3" GMAX2505 8.38 CMOS Global shutter/Prog scan Colour; Visible 0.270
VIEWORKS VC-18MX2-M132I10-CM
 91 50 50 132 4480 standard CoaXPress 1x CXP-6; 2x CXP-12; 2x CXP-6 C-Mount Vieworks 2.5 18 area 1" GMAX2518 15.18 CMOS Global shutter/Prog scan Monochrome; Visible 0.270
VIEWORKS VC-18MX2-C132I10-CM
 91 50 50 132 4480 standard CoaXPress 1x CXP-6; 2x CXP-12; 2x CXP-6 C-Mount Vieworks 2.5 18 area 1" GMAX2518 15.18 CMOS Global shutter/Prog scan Colour; Visible 0.270
VIEWORKS VC-21MX2-M230I00-FM
 104 80 80 229 5120 standard CoaXPress 4x CXP-12 Nikon F-Mount Vieworks 4.5 20.9 area N/A GSPRINT4521 29.51 CMOS Global shutter Monochrome; Visible 0.750
VIEWORKS VC-21MX2-C230I00-FM
 104 80 80 226 5120 standard CoaXPress 4x CXP-12 Nikon F-Mount Vieworks 4.5 20.9 area N/A GSPRINT4521 29.51 CMOS Global shutter Colour; Visible 0.750
VIEWORKS VC-21MDF-M460I00-FM
 135 68 68 454 5120 standard CoaXPress CoaxPress over Fiber Nikon F-Mount Vieworks 4.5 20.9 area N/A GSPRINT4521 29.51 CMOS Global shutter Monochrome; Visible N/A
VIEWORKS VC-21MDF-C460I00-FM
 135 68 68 454 5120 standard CoaXPress CoaxPress over Fiber Nikon F-Mount Vieworks 4.5 20.9 area N/A GSPRINT4521 29.51 CMOS Global shutter Colour; Visible N/A
VIEWORKS VC-21MDF-M460I00-HS-FM
 135 68 68 454 5120 standard CoaXPress CoaxPress over Fiber Nikon F-Mount Vieworks 4.5 20.9 area N/A GSPRINT4521 29.51 CMOS Global shutter Monochrome; Visible N/A
VIEWORKS VC-21MDF-C460I00-HS-FM
 135 68 68 454 5120 standard CoaXPress CoaxPress over Fiber Nikon F-Mount Vieworks 4.5 20.9 area N/A GSPRINT4521 29.51 CMOS Global shutter Colour; Visible N/A
