IPORT NTX-MINI HORIZ 3.3V
SKU#:
64497
Vision Standards Connectivity for Imaging Devices

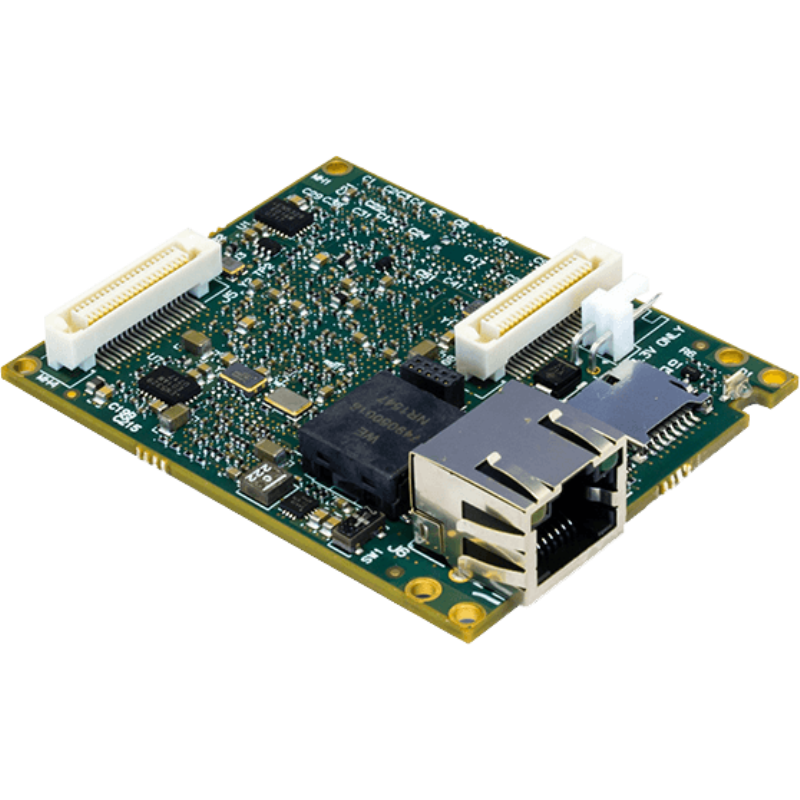

Nota: ¡El producto real puede variar respecto a la imagen!
Las descargas se encuentran en la serie de productos correspondiente:
Pleora - Embedded Interface
Contáctanos >
Solicitar precios
Se exceptúan errores y omisiones. Se aplican nuestros Términos y Condiciones Generales. Abastecemos exclusivamente a clientes corporativos.
Product Features
| Attributes | |
|---|---|
| Bandwidth (MByte/s) | 1000 |
| Certificates | PoPs, TSCA, No CE, No Dual Use, REACH, RoHS |
| Connectors | Molex |
| Design (plug-in card/box) | Board Level |
| Dimension (depth, mm) | 42 |
| Dimension (height, mm) | 21 |
| Dimension (width, mm) | 42 |
| Driver support | eBUS SDK |
| Inputs | 1x 24-bit bus |
| Interface | Gigabit Ethernet |
| Interface configuration | GigE Vision |
| Interface/Standard | Pixelbus |
| I/Os | yes |
| Number channels | 1 |
| Numbers of connectors (Video) | 1 |
| Onboard memory (MB) | 32 |
| Onboard processing | no |
| Operating temperature (°C) | N/A |
| Pixel clock (MHz) | 90 |
| Power over data interface | yes |
| Programmable | yes |
| Signal | digital |
| Weight (kg) | 0.018 |
- Embedded interfaces with low-latency data stream over GigE Vision or USB3 Vision
- Supports GigE Vision (1G, NBASE-T 2.5G/5G, 10G) and USB3 Vision over copper or fiber
- Transmission rates up to 10 Gb/s for low-latency, uncompressed image streaming
- 10 Gb/s operation over standard Cat 6A cabling up to 100 meters
- Standardized parallel LVTTL/LVCMOS sensor interface (up to 32-bit)
- Up to 10 taps per channel for internal 128-bit pixel bus for high-performance multi-megapixel sensors
- Compatible with both line scan and area scan imaging modes
- GigE Vision 2.0 compliant for seamless multi-vendor interoperability
- GenICam compliant interface for simplified software integration and device control
- IEEE 1588 Precision Time Protocol (PTP) for precise synchronization of distributed imaging systems
- Integrated programmable logic controller (PLC) for external machine control and flexible feature adaptation
- Large on-board frame buffer with image tagging and metadata management for secure data recovery
- Compact, low-power embedded design with Power over Ethernet (PoE) or external power options and field-upgradable firmware via GigE port
- Supported by Pleora eBUS SDK application tool kit
