Pleora - Embedded Interface

Embedded GigE Vision & USB3 Vision Connectivity for Imaging Devices, with high-reliability, low-latency interface solutions for industrial, medical, and security imaging systems

Key Features

  • Embedded interfaces with low-latency data stream over GigE Vision or USB3 Vision
  • Supports GigE Vision (1G, NBASE-T 2.5G/5G, 10G) and USB3 Vision over copper or fiber
  • Transmission rates up to 10 Gb/s for low-latency, uncompressed image streaming
  • 10 Gb/s operation over standard Cat 6A cabling up to 100 meters
  • Standardized parallel LVTTL/LVCMOS sensor interface (up to 32-bit)
  • Up to 10 taps per channel for internal 128-bit pixel bus for high-performance multi-megapixel sensors
  • Compatible with both line scan and area scan imaging modes
  • GigE Vision 2.0 compliant for seamless multi-vendor interoperability
  • GenICam compliant interface for simplified software integration and device control
  • IEEE 1588 Precision Time Protocol (PTP) for precise synchronization of distributed imaging systems
  • Integrated programmable logic controller (PLC) for external machine control and flexible feature adaptation
  • Large on-board frame buffer with image tagging and metadata management for secure data recovery
  • Compact, low-power embedded design with Power over Ethernet (PoE) or external power options and field-upgradable firmware via GigE port
  • Supported by Pleora eBUS SDK application tool kit

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

Hasta
Hasta
Hasta
Nombre del producto Connectors Dimension (depth, mm) Dimension (height, mm) Dimension (width, mm) Inputs Interface Interface/Standard Manufacturer Number channels Onboard memory (MB) Onboard processing Weight (kg)
IPORT NTX-MINI VERT
 Molex 42 24 42 1x 24-bit bus Gigabit Ethernet Pixelbus Pleora 1 32 no 0.018
IPORT NTX-GIGE-IND DEV KIT
 1*Samtec 37 28 37 1x 32-bit bus Gigabit Ethernet Pixelbus Pleora 1 120 no N/A

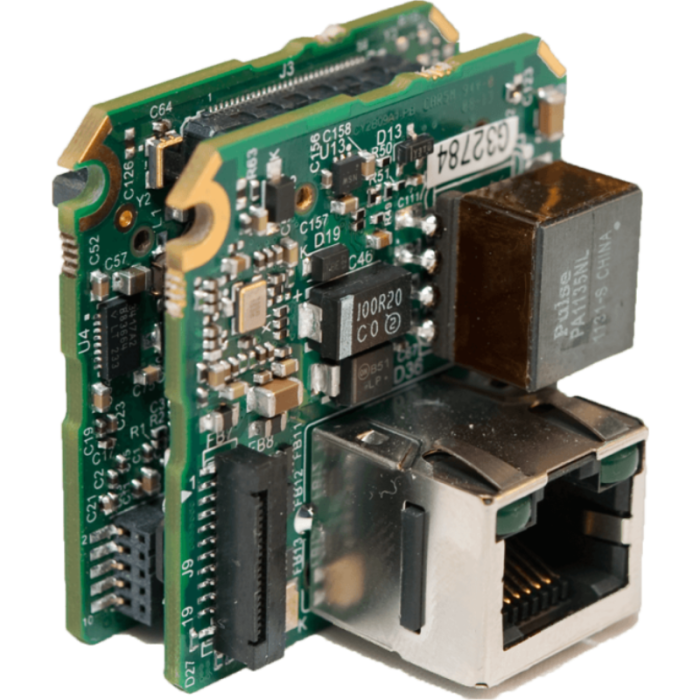

IPORT NTX-GIGE OEM BOARD SET
 1*Samtec 37 28 37 1x 32-bit bus Gigabit Ethernet Pixelbus Pleora 1 120 no 0.030
IPORT NTX-GIGE-IND OEM BOARD SET
 1*Samtec 37 28 37 1x 32-bit bus Gigabit Ethernet Pixelbus Pleora 1 120 no 0.030
IPORT NTX-GIGE OEM KIT
 1*Samtec 37 28 37 1x 32-bit bus Gigabit Ethernet Pixelbus Pleora 1 120 no 0.035
IPORT NTX-GIGE-IND OEM KIT
 1*Samtec 37 28 37 1x 32-bit bus Gigabit Ethernet Pixelbus Pleora 1 120 no 0.035

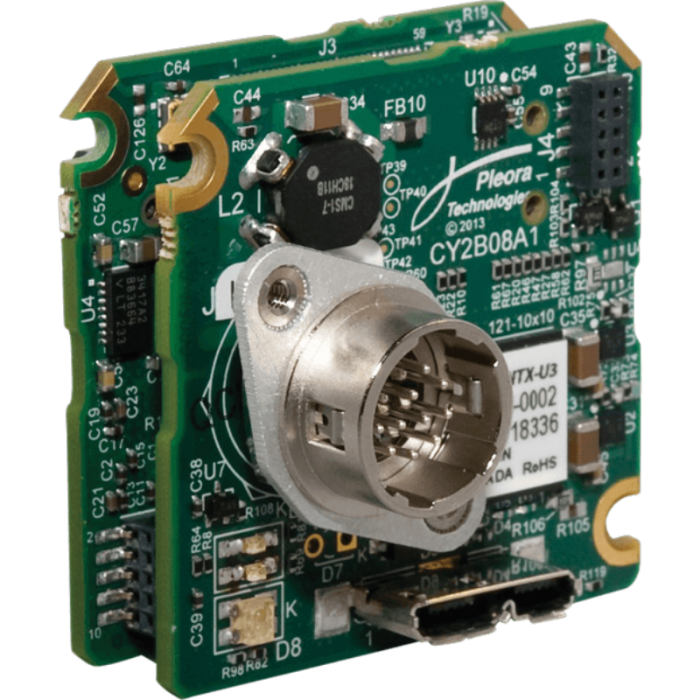

IPORT NTX-U3 OEM BOARD SET EXT-PWR
 1*Samtec 37 23 37 1x 32-bit bus USB3 Vision Pixelbus Pleora 1 120 no 0.026

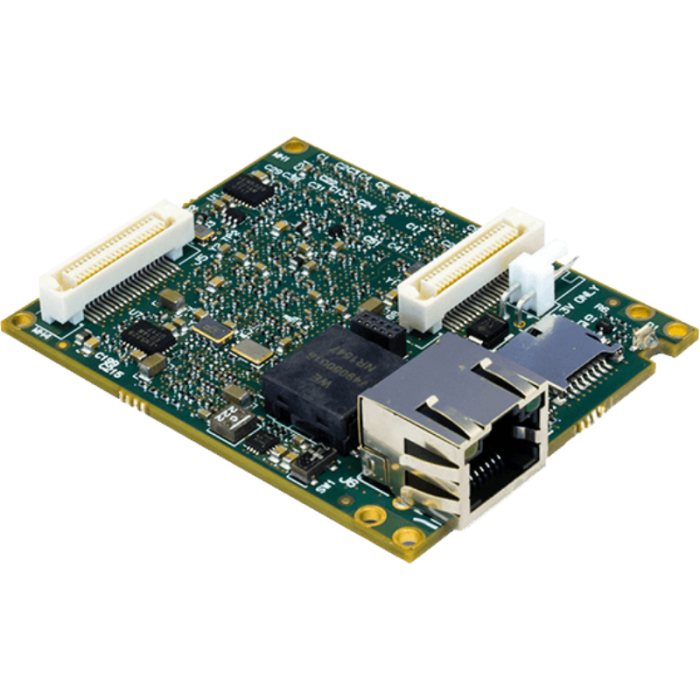

IPORT NTX-NBT50 OEM BOARD
 2* HIROSE 40-pin 72.5 17.6 56 7x 8:1 pairs Gigabit Ethernet LVDS Pleora 1 512 no 0.034
IPORT NTX-GIGE DEV KIT
 1*Samtec 37 28 37 1x 32-bit bus Gigabit Ethernet Pixelbus Pleora 1 120 no N/A
IPORT NTX-NBT25 DEV KIT
 2* HIROSE 40-pin 72.5 17.6 56 1x 24-bit bus Gigabit Ethernet Pixelbus Pleora 1 512 no N/A
IPORT NTX-U3 OEM BASIC BOARD SET PO-U
 1*Samtec 37 23 37 1x 32-bit bus USB3 Vision Pixelbus Pleora 1 120 no 0.026
IPORT NTX-NBT50 DEV KIT
 2* HIROSE 40-pin 72.5 17.6 56 7x 8:1 pairs Gigabit Ethernet LVDS Pleora 1 512 no N/A
IPORT NTX-U3 DEV KIT PO-USB
 1*Samtec 37 23 37 1x 32-bit bus USB3 Vision Pixelbus Pleora 1 120 no N/A
IPORT NTX-NBT25 OEM BOARD
 2* HIROSE 40-pin 72.5 17.6 56 1x 24-bit bus Gigabit Ethernet Pixelbus Pleora 1 512 no 0.034
IPORT NTX-U3 OEM BOARD SET PO-USB
 1*Samtec 37 23 37 1x 32-bit bus USB3 Vision Pixelbus Pleora 1 120 no 0.026
IPORT NTX-U3 OEM BASIC BOARD SET EXT-P
 1*Samtec 37 23 37 1x 32-bit bus USB3 Vision Pixelbus Pleora 1 120 no 0.026
IPORT NTX-U3 DEV KIT EXT-PWR
 1*Samtec 37 23 37 1x 32-bit bus USB3 Vision Pixelbus Pleora 1 120 no N/A
IPORT NTX-DECA OEM BOARD
 2* HIROSE 40-pin 72.5 17.6 56 17x 8:1 pairs Gigabit Ethernet LVDS Pleora 1 1024 no 0.033
IPORT NTX-DECA DEV KIT
 2* HIROSE 40-pin 72.5 17.6 56 17x 8:1 pairs Gigabit Ethernet LVDS Pleora 1 1024 no N/A
IPORT NTX-MINI VERT W PLC ADAPTR
 Molex 42 24 42 1x 24-bit bus Gigabit Ethernet Pixelbus Pleora 1 32 no 0.020
IPORT NTX-MINI VERT W PLC ADAPTR 12P
 Molex 42 24 42 1x 24-bit bus Gigabit Ethernet Pixelbus Pleora 1 32 no 0.020
IPORT NTX-MINI DEV KIT-V
 Molex 42 24 42 1x 24-bit bus Gigabit Ethernet Pixelbus Pleora 1 32 no N/A
IPORT NTX-MINI VERT 3.3V
 Molex 42 24 42 1x 24-bit bus Gigabit Ethernet Pixelbus Pleora 1 32 no 0.018
IPORT NTX-MINI HORIZ
 Molex 42 21 42 1x 24-bit bus Gigabit Ethernet Pixelbus Pleora 1 32 no 0.018
IPORT NTX-MINI HORIZ W PLC ADAPTR
 Molex 42 21 42 1x 24-bit bus Gigabit Ethernet Pixelbus Pleora 1 32 no 0.020
IPORT NTX-MINI DEV KIT-H
 Molex 42 21 42 1x 24-bit bus Gigabit Ethernet Pixelbus Pleora 1 32 no N/A
IPORT NTX-MINI HORIZ 3.3V
 Molex 42 21 42 1x 24-bit bus Gigabit Ethernet Pixelbus Pleora 1 32 no 0.018

¿Por qué elegir Pleora - Embedded Interface?

Flexible Embedded Integration

The small-footprint hardware is easily integrated into compact camera bodies, flat panel X-ray detectors, and custom imaging systems. Support for Power over Ethernet (PoE) and external power options ensures deployment flexibility.

High-Speed, Low-Latency Streaming

Transmit uncompressed image data at throughputs from 1 Gb/s to 10 Gb/s over standard Cat 5e or 6A cabling up to 100 meters.

Standardized Sensor Interface

A parallel LVTTL/LVCMOS interface (up to 128-bit, 10 taps) supports both line scan and area scan sensors, enabling compatibility with multi-megapixel imaging devices.

Multi-Vendor Interoperability

Full GigE Vision 2.0 and GenICam compliance guarantees seamless integration into existing and new multi-vendor digital imaging systems
