Automation Technology - C6-CS

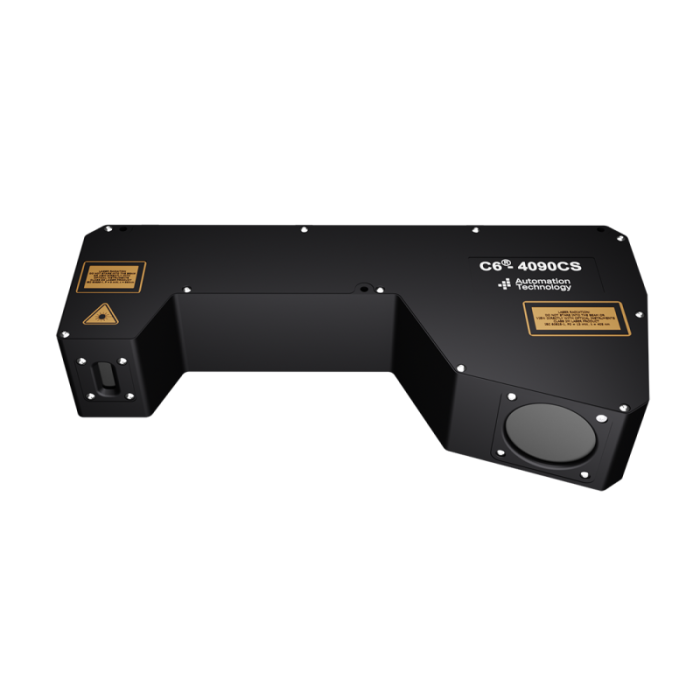

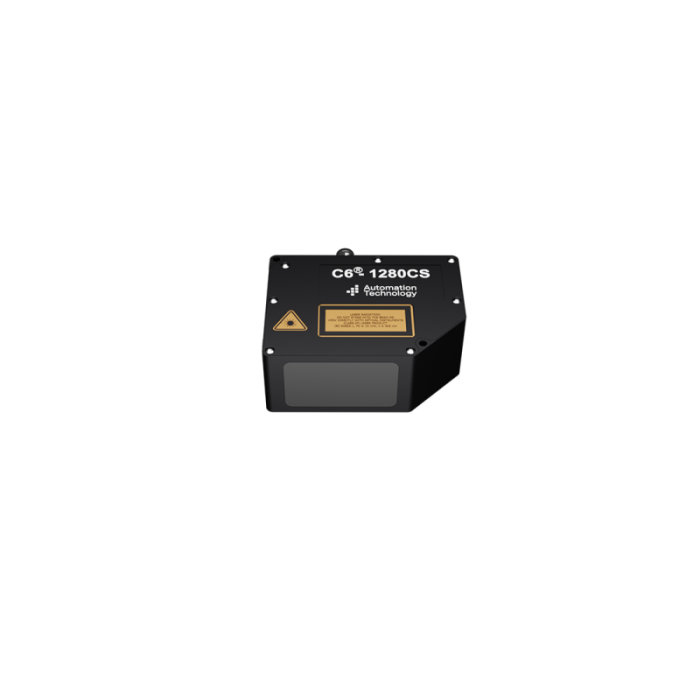

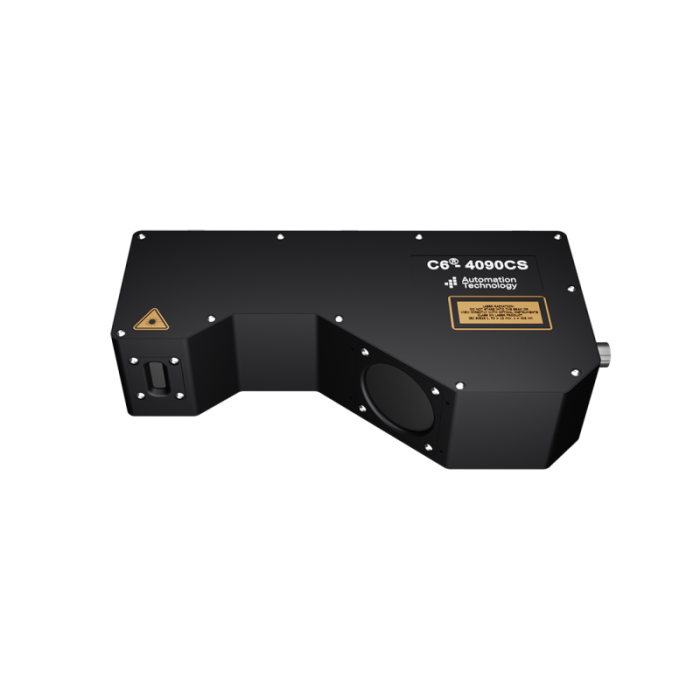

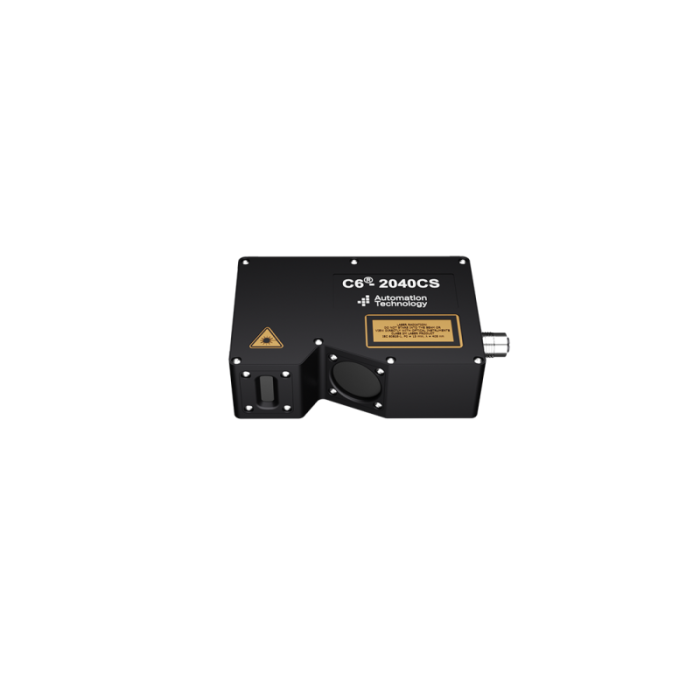

C6-CS series compact sensors come precalibrated from the factory and can be ordered with a measurement protocol. This offers easy integration and setup of complete systems without the need for further calibration, even with several sensor heads. The documented preconfiguration stage guarantees that all sensors behave exactly the way they are expected. Automatic measurement processes allow the delivery of identical sensor configurations at any time, independent of human influences during the calibration process.

A multitude of device configurations are available for different demands depending on field of view, z-range, resolution as well as laser wavelength and intensity. This means that changing requirements in the application does not necessarily result in being forced to change to a different supplier or a different technology. In most cases switching to another compact sensor model is sufficient. Therefore, fast implementation and exchange is simplified. Fully customer-specific models can be manufactured as well, in order to meet the application requirements quickly and with minimum effort.

The C6-CS series supports the GenICam 3.0 protocol enabling software configuration without a manufacturer SDK. Any GenICam-compliant software solution such as CVB 3D can be used. There's all the flexibility required when choosing new software or continuing using an existing one. This avoids time-consuming training sessions for new software solutions.

The C6-CS features several integrated high-precision image processing algorithms for measurements with subpixel accuracy. Its HDR 3D technology is perfectly suited for objects with high differences in brightness and highly reflective surfaces.
