Schneider-Kreuznach - EMERALD
Lenses for high-resolution area and line scan cameras
Key Features
- Camera mount: F-mount or V-48 to adopt M42 or M58
- Image circle: 43.2 mm - 90 mm
- Resolution: at max. sensor size: 29 MP
- Miscellaneous: Available in various focal lengths
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nombre del producto | Focal length (mm) | Sensor format | Sensor size diagonal (mm) | Camera mount (optics) | Min. pixel size | Aperture | M.O.D. (mm) | Wavelength range | Filter thread | Magnification (max) | Manufacturer | Resolution |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

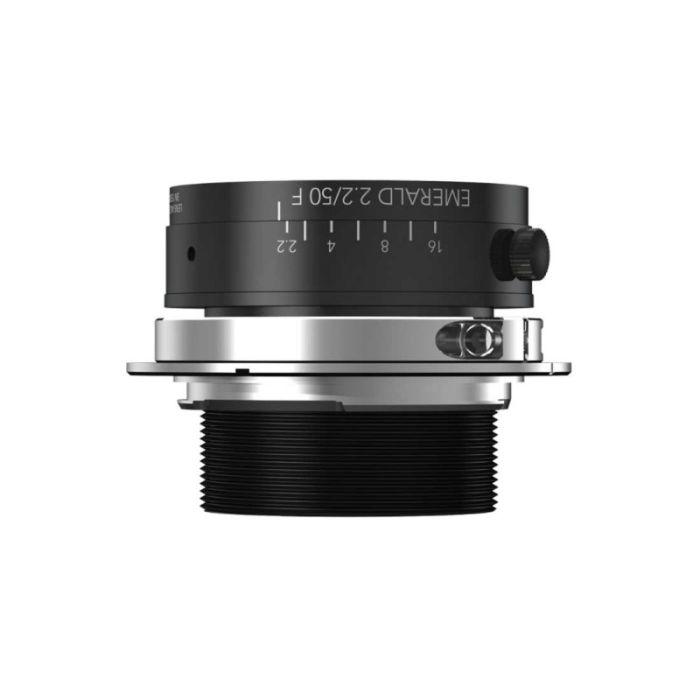

| 50 | SFF* | 43.2 | Nikon F-Mount | 5.45 µm | F 2.2 | 320 | Visible | M43 x 0.75 | 0.170 | Schneider Kreuznach | 29.0 | |
| 100 | SFF* | 43.2 | Nikon F-Mount | 5.45 µm | F 2.8 | 660 | Visible | M43 x 0.75 | 0.170 | Schneider Kreuznach | 29.0 | |

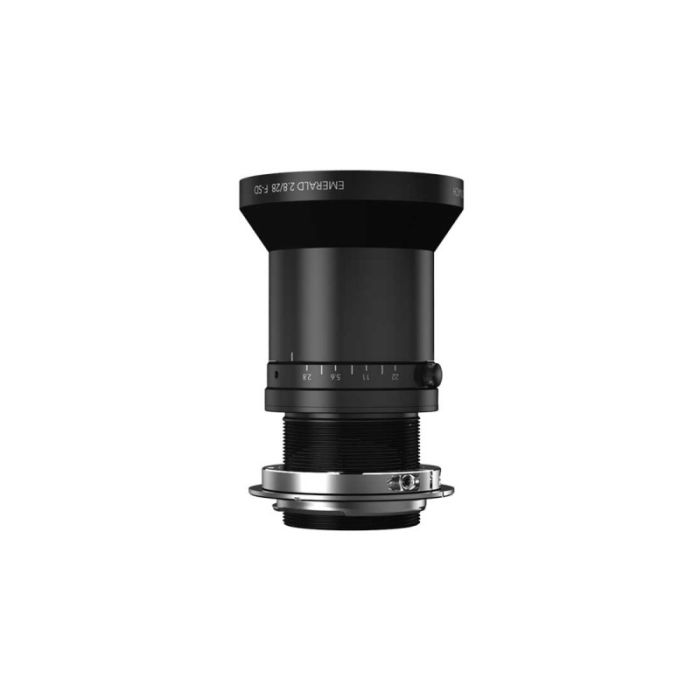

| 28 | SFF* | 43.2 | Nikon F-Mount | 5.45 µm | F 2.8 | 550 | Visible | M62 x 0.75 | 0.050 | Schneider Kreuznach | 29.0 | |
| 28 | SFF* | 43.2 | Nikon F-Mount | 5.45 µm | F 2.8 | 400 | Visible | M62 x 0.75 | 0.100 | Schneider Kreuznach | 29.0 | |

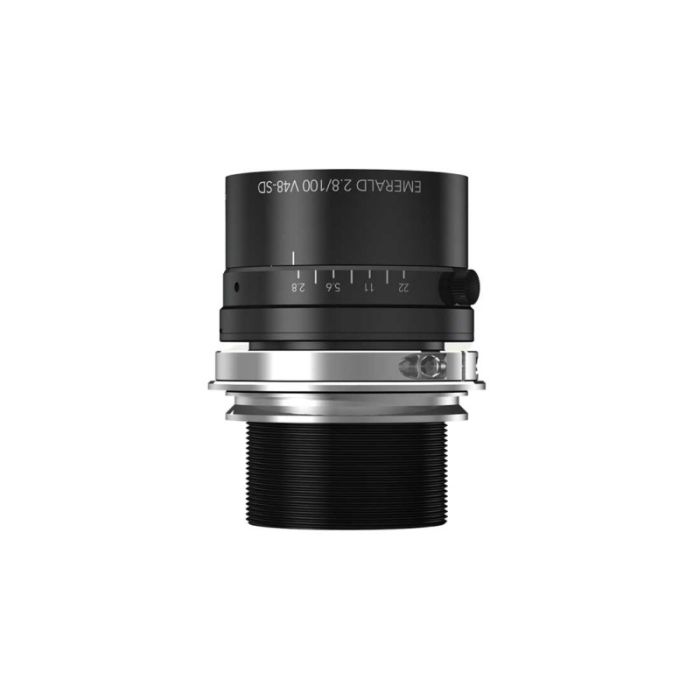

| 100 | SFF* | 43.2 | V48 | 5.45 µm | F 2.8 | 400 | Visible | M43 x 0.75 | 0.170 | Schneider Kreuznach | 29.0 | |
| 28 | SFF* | 43.2 | V48 | 5.45 µm | F 2.8 | 550 | Visible | M62 x 0.75 | 0.050 | Schneider Kreuznach | 29.0 | |
| 28 | SFF* | 43.2 | V48 | 5.45 µm | F 2.8 | 400 | Visible | M62 x 0.75 | 0.100 | Schneider Kreuznach | 29.0 | |
| 50 | SFF* | 43.2 | V48 | N/A | F 2.2 | 320 | VIS-NIR | M43 x 0.75 | 0.210 | Schneider Kreuznach | 12k | |
| 60 | Large format | 60 | Nikon F-Mount | 5.45 µm | F 4 | 220 | Visible | M43 x 0.75 | 0.33 | Schneider Kreuznach | 5.5 | |

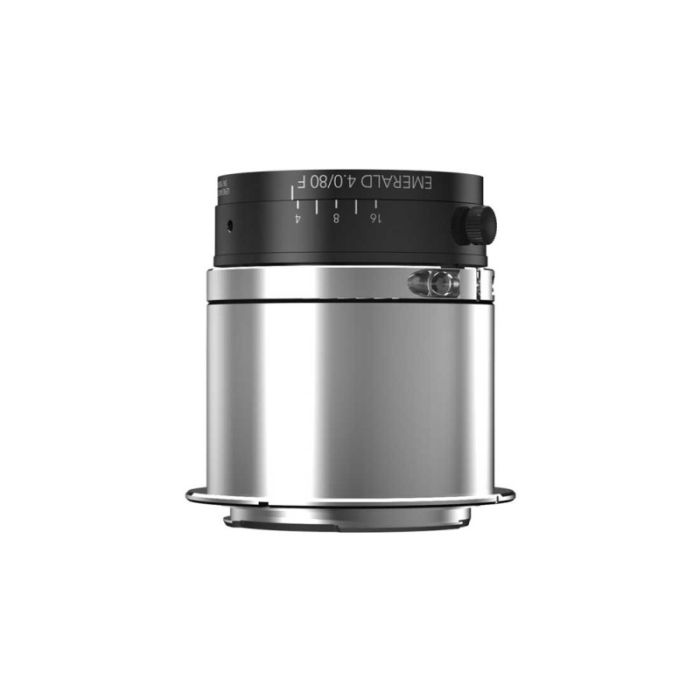

| 80 | Large format | 60 | Nikon F-Mount | 5.45 µm | F 4 | 323 | Visible | M43 x 0.75 | 0.250 | Schneider Kreuznach | 5.5 | |
| 60 | Large format | 62.5 | V48 | 5.45 µm | F 4 | 230 | Visible | M43 x 0.75 | 0.33 | Schneider Kreuznach | 5.5 | |
| 80 | Large format | 82 | V48 | 5.45 µm | F 4 | 380 | Visible | M43 x 0.75 | N/A | Schneider Kreuznach | 5.5 | |
| 100 | SFF* | 43.2 | V48 | 5.45 µm | F 2.9 | 2062 | Visible | M43 x 0.75 | 0.170 | Schneider Kreuznach | 29.0 |
¿Por qué elegir Schneider-Kreuznach - EMERALD?
Ability to resolve down to 5.5 µm pixels
Thanks to their excellent MTF, the lenses are well suited for high-resolution area and line scan cameras with a pixel size of only 5.5 µm.
Optimised for use in the near infrared up to 1000 nm
Selected glass types and coating guarantee optimum image reproduction in the near infrared.
Large image circle up to 60 mm
The EMERALD models reproduce the smallest details right up to the edges of line sensors and large-format sensors.
High level of adaptability
The M42, M58 or F-mount camera mounts provide a high level of adaptability to various camera types.
