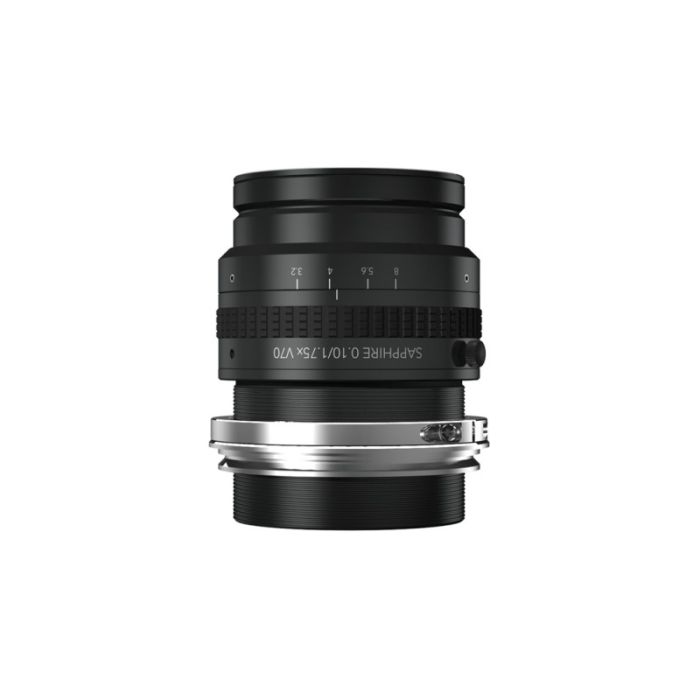

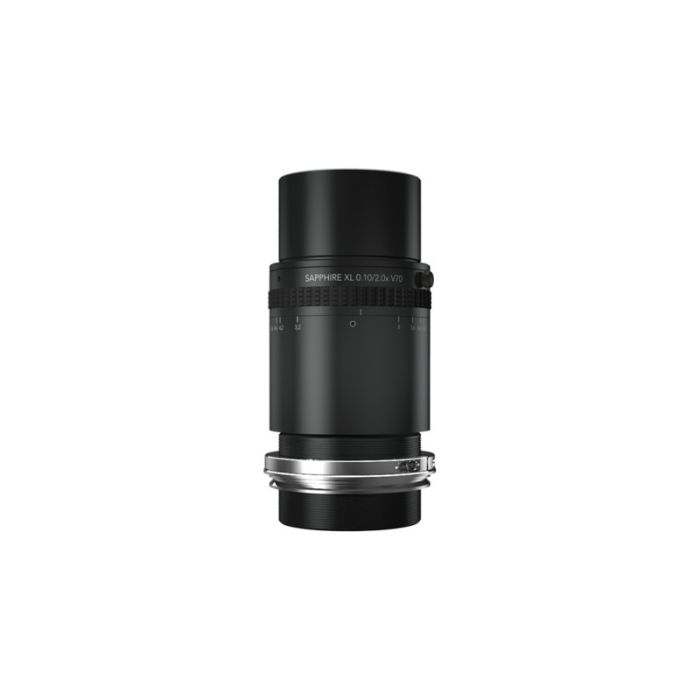

Schneider-Kreuznach - SAPPHIRE
12k and 16k line scan lens series made for high end linescan applications
Key Features
- Lens mount: V70 mount adaptable to M58, M72, M90 and M95

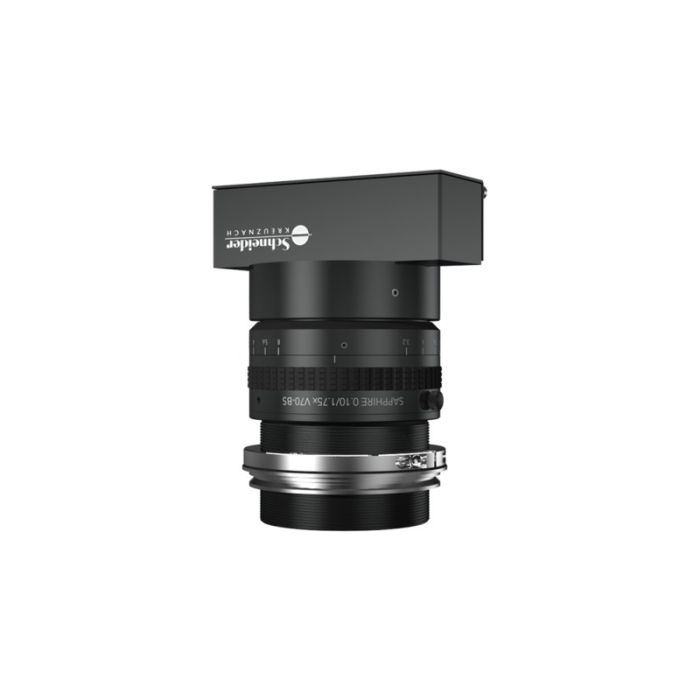

- Magnifications: -0.07x, -0.23x, -0.29x, -0.35x, -0.5x, -0.7x, -0.875x, -1.143x, -1.43x, -1.75x (optional with beamsplitter), -2.0x
- Aperture: 2.8-4.7
- Transmission: 400 - 1000 nm
- Miscellaneous: various extension tubes to fit your needs
Documentos
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nombre del producto | Focal length (mm) | Sensor format | Sensor size diagonal (mm) | Camera mount (optics) | Min. pixel size | Aperture | M.O.D. (mm) | Wavelength range | Filter thread | Magnification (max) | Manufacturer | Resolution |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 95 | Large format | 62.5 | V70 | 3.5 µm | F 4.5 | N/A | VIS-NIR | M52 x 0.75 | 0.170 | Schneider Kreuznach | 16k | |
| 95 | Large format | 62.5 | V70 | 3.5 µm | F 3.9 | N/A | VIS-NIR | M52 x 0.75 | 0.280 | Schneider Kreuznach | 12k; 16k | |
| 96 | Large format | 62.5 | V70 | 3.5 µm | F 3.7 | N/A | VIS-NIR | M52 x 0.75 | 0.33 | Schneider Kreuznach | 12k; 16k | |
| 96 | Large format | 62.5 | V70 | 3.5 µm | F 3.5 | N/A | VIS-NIR | M52 x 0.75 | 0.39 | Schneider Kreuznach | 12k; 16k | |
| 96.2 | Large format | 62.5 | V70 | 3.5 µm | F 3.2 | N/A | VIS-NIR | M52 x 0.75 | 0.55 | Schneider Kreuznach | 12k; 16k | |
| 97 | Large format | 62.5 | V70 | 3.5 µm | F 3.2 | N/A | VIS-NIR | M52 x 0.75 | 0.75 | Schneider Kreuznach | 12k; 16k | |
| 87.5 | Large format | 62.5 | V70 | 3.5 µm | F 3.2 | N/A | VIS-NIR | M40.5 x 0.5 | 1.85 | Schneider Kreuznach | 12k; 16k | |
| 87.5 | Large format | 62.5 | V70 | 3.5 µm | F 3.2 | N/A | VIS-NIR | No Filter Thread | 1.85 | Schneider Kreuznach | 12k; 16k | |
| 97 | Large format | 82 | V70 | 3.5 µm | F 3.2 | N/A | VIS-NIR | M58 x 0.75 | 1.54 | Schneider Kreuznach | 12k; 16k | |
| 96.2 | Large format | 82 | V70 | 3.5 µm | F 3.2 | N/A | VIS-NIR | M58 x 0.75 | 2.15 | Schneider Kreuznach | 12k; 16k | |
| 98 | Large format | 62.5 | V70 | 3.5 µm | F 2.8 | N/A | VIS-NIR | M58 x 0.75 | 1.2 | Schneider Kreuznach | 12k; 16k |
¿Por qué elegir Schneider-Kreuznach - SAPPHIRE?
Versatile lens series
The series offers various magnifications, ranging from -0.07x to -2.0x, i.e. changing the test object does not require searching for a new lens series.
Adaptable to a wide range of cameras
The V70 mount has been adapted to work with M72 and gives you the option to mount the lens on M58, M90, M95 and M72 threads. This enables you to work with the vast majority of high-resolution line scan cameras available on the market. As it also offers many different extension tubes, it is very likely to fit your camera as well.
For maximum performance
All SAPPHIRE lenses are measured and checked at Schneider-Kreuznach at almost every single step in its production. The manufacturer marks the best alignment to the sensor line with a red dot and calls it "red dot for best azimuth" in the datasheets. This spot marks the best performance and contrast for your specific lens, making each lens unique. This is also the reason why Schneider-Kreuznach decided to work with V-mounts. You can easily rotate your lens to the best position and fix it with the locking screws.
Broadband coating
Offering a coating from 400 nm to 1000 nm Schneider-Kreuznach stays true to their commitment to offer lenses which are suitable for almost all industrial lighting conditions.
Outstanding optical performance
The MTF (contrast) over the whole image circle is very homogenous, there is virtually no distortion. Limitations due to vignetting do not matter with SAPPHIRE lenses.
