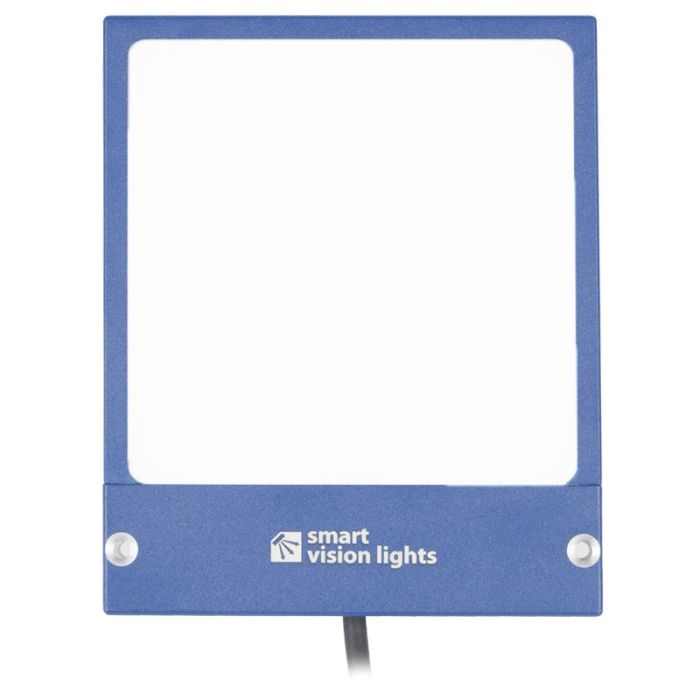

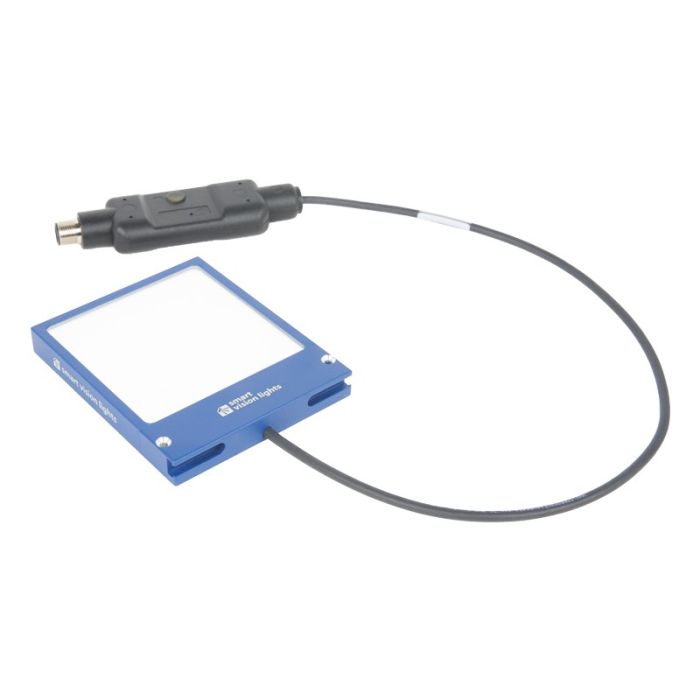

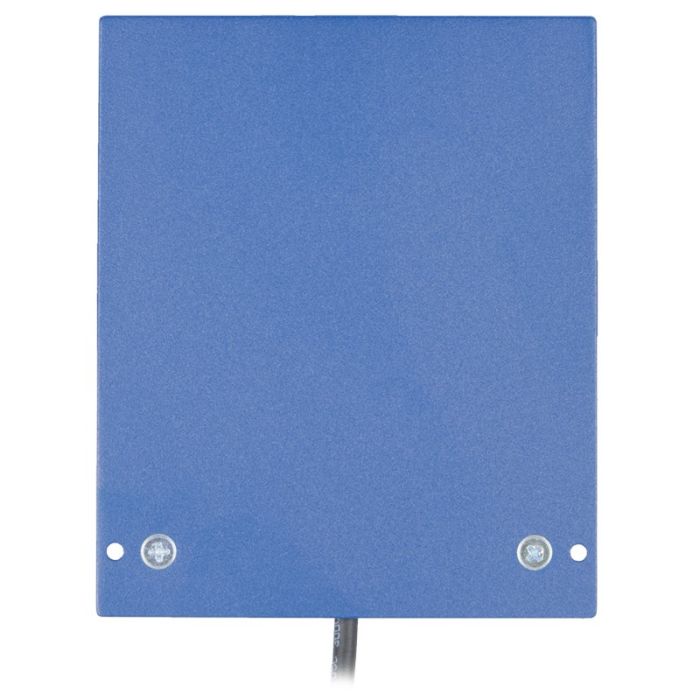

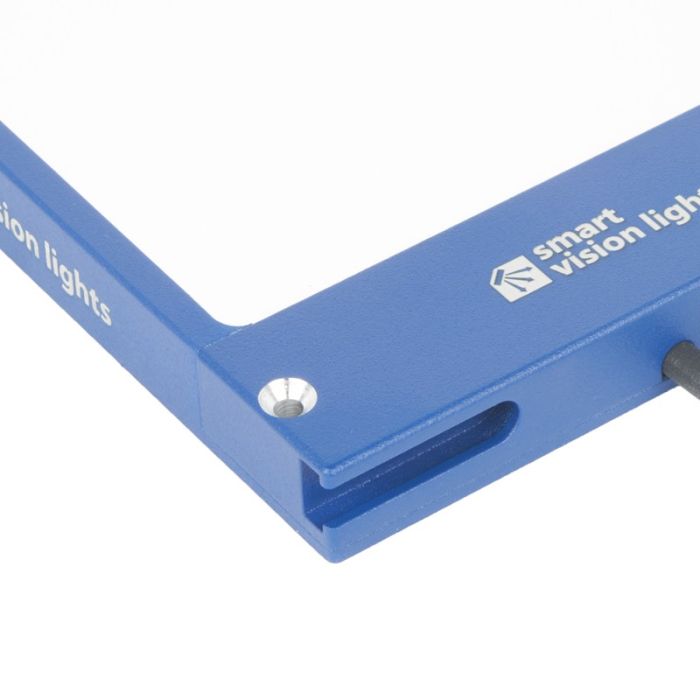

Smart Vision Lights - MBL
Mini back light with an ultra-slim design.
Key Features

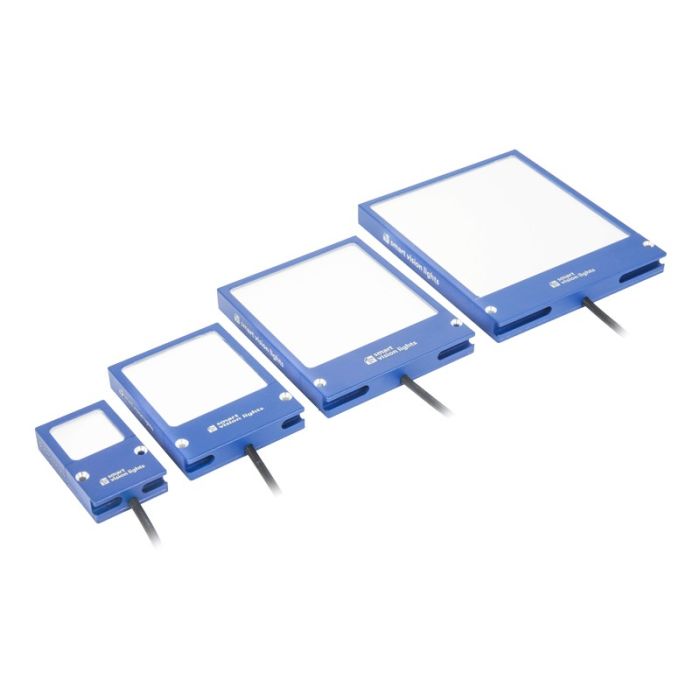

Illumination Type: Backlight, Bright Field * IP Rating: IP50 * Mode: Multi-Drive™ * SmartVisionLink: Compatible * Size: 25 x 25 mm, 50 x 50 mm, 75 x 75 mm, 100 x 100 mm * Wavelength: WHI (white), 470 nm (blue), 625 nm (red), 850 nm (IR)
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nombre del producto | Lighting technique | Lighting geometry | Light distribution | Light colour | Emitting surface width (mm) | Emitting surface outer diameter (mm) | Emitting surface inner diameter (mm) | Smart | Beam angle | Connectors | Dominant wavelength (nm) | Emitting surface height (mm) | Intensity control method | IP rating | LED risk group | Manufacturer | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| backlight | square light | diffused | Red | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | 625 | N/A | N/A | IP50 | 0 (exempt) | Smart Vision Lights | N/A | |
| backlight | square light | diffused | White | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | N/A | N/A | Continuous; Multidrive; Overdrive | IP50 | 1 | Smart Vision Lights | N/A | |
| backlight | square light | diffused | Red | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | 625 | N/A | N/A | IP50 | 0 (exempt) | Smart Vision Lights | N/A | |
| backlight | square light | diffused | White | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | N/A | N/A | Continuous; Multidrive; Overdrive | IP50 | 1 | Smart Vision Lights | N/A | |
| backlight | square light | diffused | White | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | N/A | N/A | Continuous; Multidrive; Overdrive | IP50 | 1 | Smart Vision Lights | N/A | |
| backlight | square light | diffused | Blue | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | 470 | N/A | N/A | IP50 | N/A | Smart Vision Lights | N/A | |
| backlight | square light | diffused | White | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | N/A | N/A | Continuous | IP50 | 1 | Smart Vision Lights | N/A | |
| backlight | square light | diffused | Blue | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | 470 | N/A | N/A | IP50 | N/A | Smart Vision Lights | N/A | |
| backlight | square light | diffused | Red | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | 625 | N/A | N/A | IP50 | 0 (exempt) | Smart Vision Lights | N/A | |
| backlight | square light | diffused | Blue | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | 470 | N/A | N/A | IP50 | N/A | Smart Vision Lights | N/A | |
| backlight | square light | diffused | Red | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | 625 | N/A | N/A | IP50 | 0 (exempt) | Smart Vision Lights | N/A | |
| backlight | square light | diffused | IR | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | 850 | N/A | N/A | IP50 | 0 (exempt) | Smart Vision Lights | N/A | |
| backlight | square light | diffused | IR | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | 850 | N/A | N/A | IP50 | 0 (exempt) | Smart Vision Lights | N/A | |
| backlight | square light | diffused | IR | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | 850 | N/A | N/A | IP50 | 0 (exempt) | Smart Vision Lights | N/A | |
| backlight | square light | diffused | IR | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | 850 | N/A | N/A | IP50 | 0 (exempt) | Smart Vision Lights | N/A | |
| backlight | square light | diffused | Blue | N/A | N/A | N/A | no | not specified | M12 5-pin A-coded | 470 | N/A | N/A | IP50 | N/A | Smart Vision Lights | N/A |
